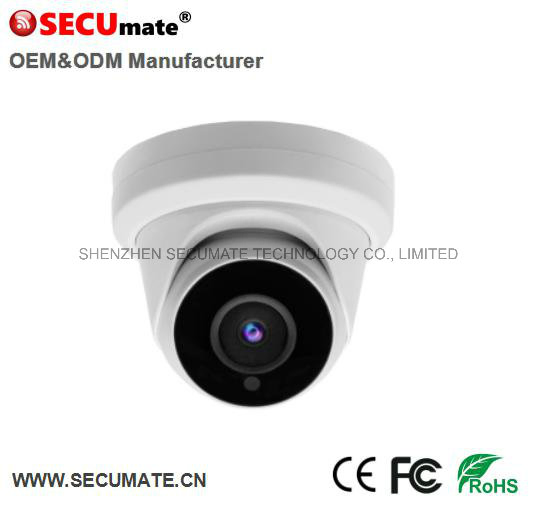

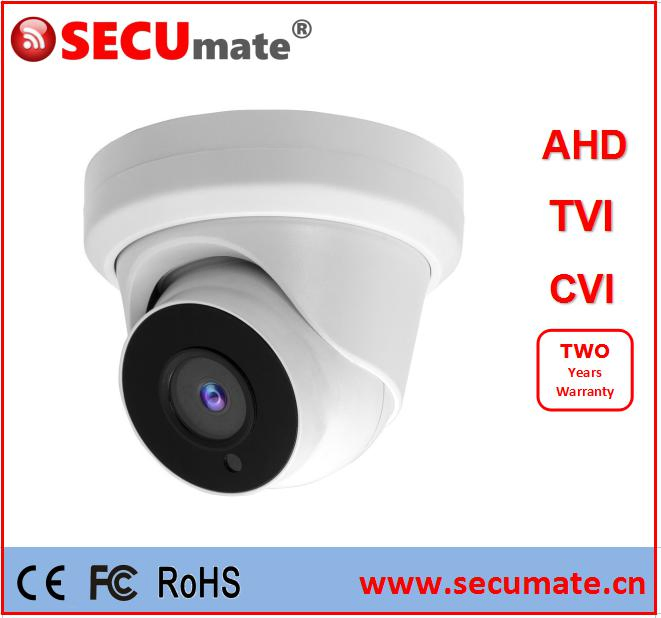

5MP CCTV Tvi Ahd Cvi Analog Hikvision Type Dome Camera
5MP 4 IN 1 TVI/AHD/CVI/CVBS Coaxial Outdoor 30m IR Eyeball Dome Camera with Motorised LensMODEL: SE-AM5HD90M-1/2.7" 5 Megapixels CMOS,-Resolution: 2592x1944, -Selectable Output: AHD 5MP/TVI 5MP/CVI 4MP/CVBS 1280H-Lens: 2.8-12mm Motorised lens-IR distance 20-30m-True Day&Night-ICR-UTC, dip s......
Send Inquiry
Product Description
5MP 4 IN 1 TVI/AHD/CVI/CVBS Coaxial Outdoor 30m IR Eyeball Dome Camera with Motorised Lens
MODEL: SE-AM5HD90M
-1/2.7" 5 Megapixels CMOS,
-Resolution: 2592x1944,
-Selectable Output: AHD 5MP/TVI 5MP/CVI 4MP/CVBS 1280H
-Lens: 2.8-12mm Motorised lens
-IR distance 20-30m
-True Day&Night-ICR
-UTC, dip swtich for different signal output
-Outdoor, IP67
MODEL: SE-AM5HD90M
-1/2.7" 5 Megapixels CMOS,
-Resolution: 2592x1944,
-Selectable Output: AHD 5MP/TVI 5MP/CVI 4MP/CVBS 1280H
-Lens: 2.8-12mm Motorised lens
-IR distance 20-30m
-True Day&Night-ICR
-UTC, dip swtich for different signal output
-Outdoor, IP67
| Camera | |
| Sensor | 1/2.7' 5 Megapixel CMOS |
| Effective Pixels | 2592(H) × 1944(V) |
| Video frame rate | 2560*1440@25/30fps; 2592*1944@20fps/12.5fps |
| Resolution | 1280H (CVBS output) |
| Min. Illumination | 0 Lux (IR ON) |
| Sync System | Internal |
| Lens | 2.8-12mm Motorised lens |
| IR Distance | 20-30m |
| Electronic Shutter | Auto/ Manual (X30~1/50000) / FLK |
| S/N Rate | ≥50db(AGC OFF) |
| Video Output | 1.0Vp-p complex video output, 75Ω |
| OSD menu | |
| White Balance | ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB |
| NR | 2DNR/3DNR, OFF |
| Image adjustable | Brightness, sharpness, AGC |
| DWDR | AUTO/ON/ OFF |
| Sens-up | OFF/ Auto (X30, X25, X20, X15, X10, X8, X6, X4, X2) |
| BLC | BLC/ HSBLC/ OFF |
| AGC | 0~15 |
| Day&Night Switch | Auto, EXT, B/W, Color |
| Privacy Mask | OFF/ ON (4 zone) |
| Motion Detection | OFF/ ON (4 zone) |
| Mirror | Horizontal/ vertical/ rotation |
| DPC | Auto, OFF/ON |
| Defog | OFF/ Auto |
| OSD menu languages | Chinese, english etc 12 languages |
| Signal Output | 4 in 1, AHD 5MP, TVI 5MP, CVI 5MP, Analog 1280H |
| General | |
| Transmission Distance | 75-3/300m,75-5/500m |
| Protection | IP67 |
| Power Supply | DC12V± 10% |
| Power Consumption | <5W |
| Working Environment | -30°C ~ 60°C, Less than 95% RH |
| Dimensions(mm) | / |
| Weight | / |
