Home > Products > CCTV Camera > 5MP H. 265 Professional IP CCTV Vandalproof Dome Camera with Hikvision Protocol
5MP H. 265 Professional IP CCTV Vandalproof Dome Camera with Hikvision Protocol
5MP H.265 Starlight Smart Fixed 20m IR Vandalproof Dome CameraMODEL: SE-FM5HVD24Product Feature:1/2.8" SONY Starivs 5 Megapixel CMOS, Resolution- 2592x1944, 5 Megapixels2.8mm lensTrue Day & Night (IR Cut Removable),IR distance 10-20mONVIF Profile s, SlinkDWDR, 3DNRSupport WEB, VMS, P2P APP ......
Send Inquiry
Product Description

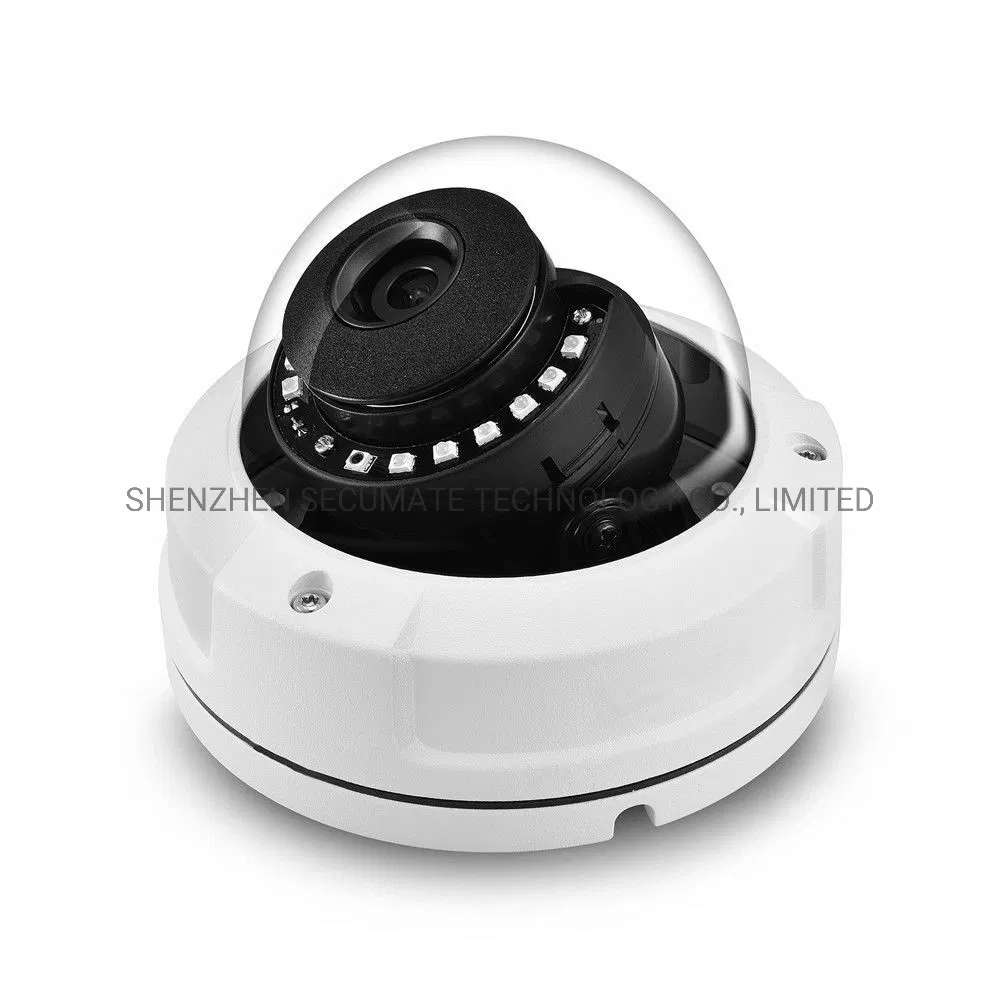

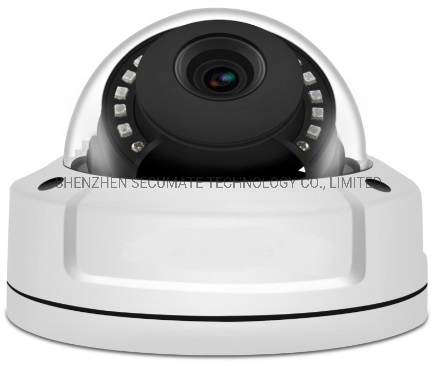

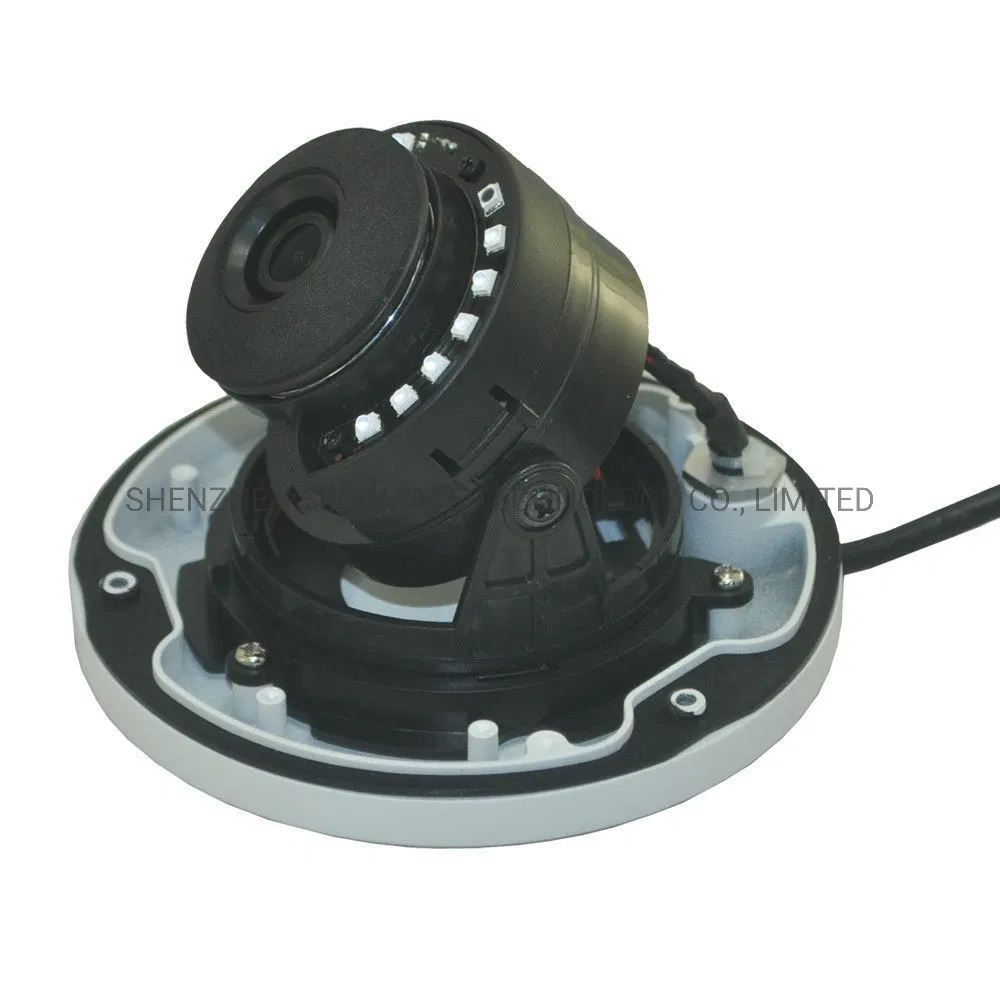

5MP H.265 Starlight Smart Fixed 20m IR Vandalproof Dome Camera
MODEL: SE-FM5HVD24
Product Feature:
•1/2.8" SONY Starivs 5 Megapixel CMOS,
•Resolution- 2592x1944, 5 Megapixels
•2.8mm lens
•True Day & Night (IR Cut Removable),
•IR distance 10-20m
•ONVIF Profile s, Slink
•DWDR, 3DNR
•Support WEB, VMS, P2P APP connection
•Motion Detection and Privacy Masking
•IP67 waterproof, Vandalproof
•DC12V, POE
MODEL: SE-FM5HVD24
Product Feature:
•1/2.8" SONY Starivs 5 Megapixel CMOS,
•Resolution- 2592x1944, 5 Megapixels
•2.8mm lens
•True Day & Night (IR Cut Removable),
•IR distance 10-20m
•ONVIF Profile s, Slink
•DWDR, 3DNR
•Support WEB, VMS, P2P APP connection
•Motion Detection and Privacy Masking
•IP67 waterproof, Vandalproof
•DC12V, POE
| Camera | |
| Image Sensor | 1/2.8" SONY 5 Megapixel progressive scan CMOS |
| Min.illumination | 0Lux/F1.4(IR on) |
| IR Distance | 10-20m |
| Electronic Shutter | Auto/ Manual(1/25~1/10000), FLK |
| Day/ Night | ICR switch, Auto, Color, B/W, Ext |
| Lens | 3.6mm lens |
| S/N ratio | ≥50db (AGC OFF) |
| Output | PAL/ NTSC adjustable |
| DWDR | DWDR(Off/ Low/ Middle/ High) |
| Smart IR Control | Auto/ Manual/Off |
| 3DNR | Off/ Low/ Middle/ High/ Higher |
| Defog | Off/ Low/ Middle/ High |
| Mirror | Off/ Horizontal/ Vertical/ 180º rotation/ Corridor mode(90º rotation,270º rotation) |
| Slow Shutter | OFF/ON |
| Exposure | Auto/ Manual |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| Encoding | |
| Video Compression | H.265 /H.264/ MJPEG |
| H.265 Encoding | Main Profile |
| H.264 Encoding | BaseLine / Main Profile / High Profile |
| Encoding features | NTSC: Main stream: 2592*1944 @15fps, Sub-stream: VGA@30fps PAL: Main stream: 2592*1944@15fps, Sub-stream: VGA@25fps |
| Max. Resolution | 2592X1944 |
| Video Bit rate | Constant bit rate, Variable bit rate (16kbps~8000kbps) |
| Video Type | Complex stream/ Video stream |
| Audio Compression | / |
| Audio Bit rate | / |
| Audio Control | / |
| ROI | Support 4 zones, multi-stage level |
| NETWORK | |
| Network Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, FTP |
| Access Protocol | ONVIF Profile S, Slink |
| Browser | Support IE, Chrome, Firefox, Safari |
| User Permission | User add/ modify/ delete, permission management |
| Safe Mode | Authorized user name and password, HTTPS encryption, AES link encryption, RTSP verification |
| Motion Detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering Alarm | 1 zone |
| Privacy Mask | 4 zones |
| Intelligent Analysis | Target Counting, Area Detection, Left/ Lost, Line Crossing |
| Event linkage | Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
| Multicast Function | Support |
| ANR | Support, match with NVR |
| Mobile Surveillance | Support Apple, Android APP |
| Exception detection | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| DST | Support |
| Snapshot | Support snapshot, snapshot resolution is encoding resolution |
| System Update | Support remote update |
| INTERFACE | |
| Network Interface | RJ45 10M/100M network adaptive |
| Analog video output | / |
| Audio | / |
| Alarm Input | / |
| Alarm Output | / |
| Reset | / |
| RS485 | / |
| TF card | / |
| GENERAL | |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | 0%--90% |
| Protection Grade | IP67, Vandalproof |
| Power Supply | DC12V /PoE |
| Power Consumption (max) | <6W |
| Dimensions(mm) | / |
| Weight/PCS(g) | / |
