Product Description

Features:

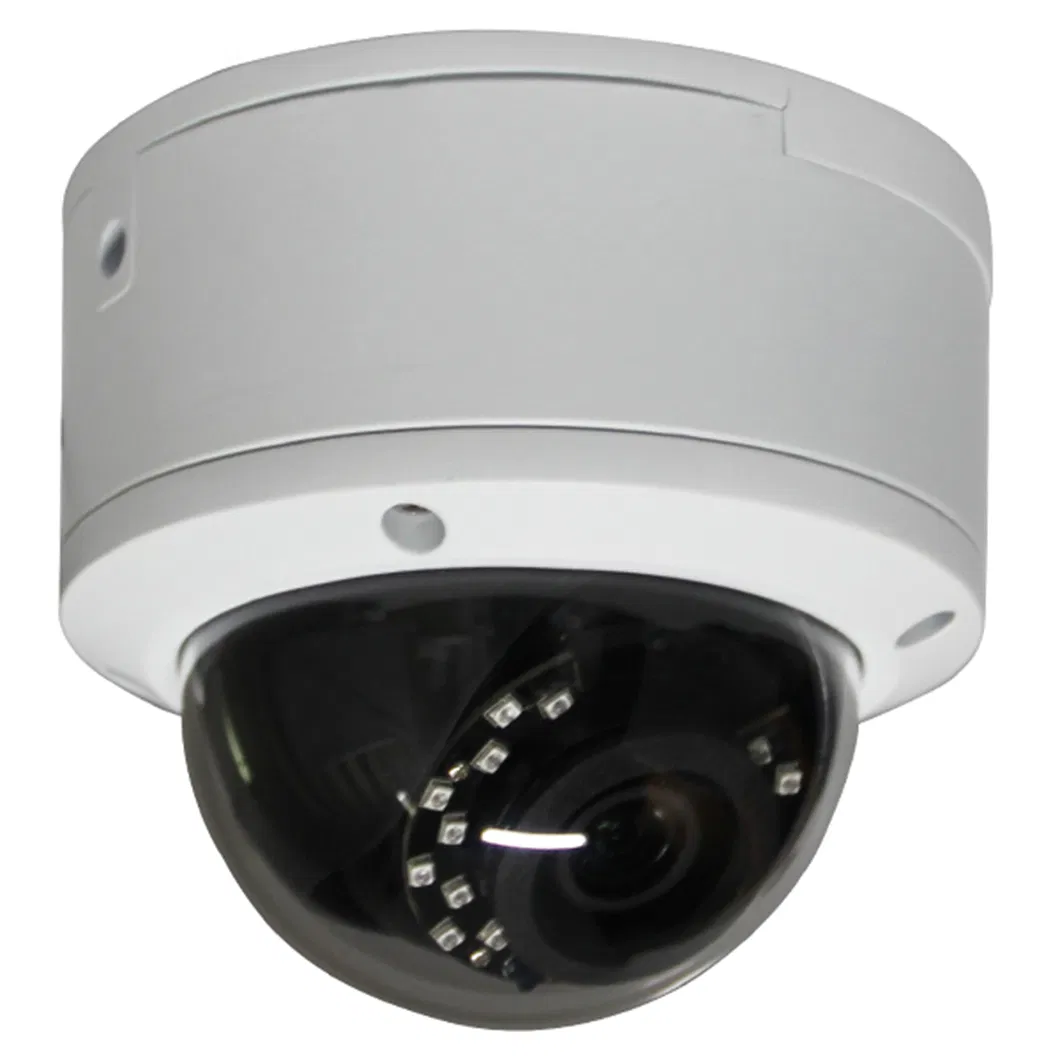

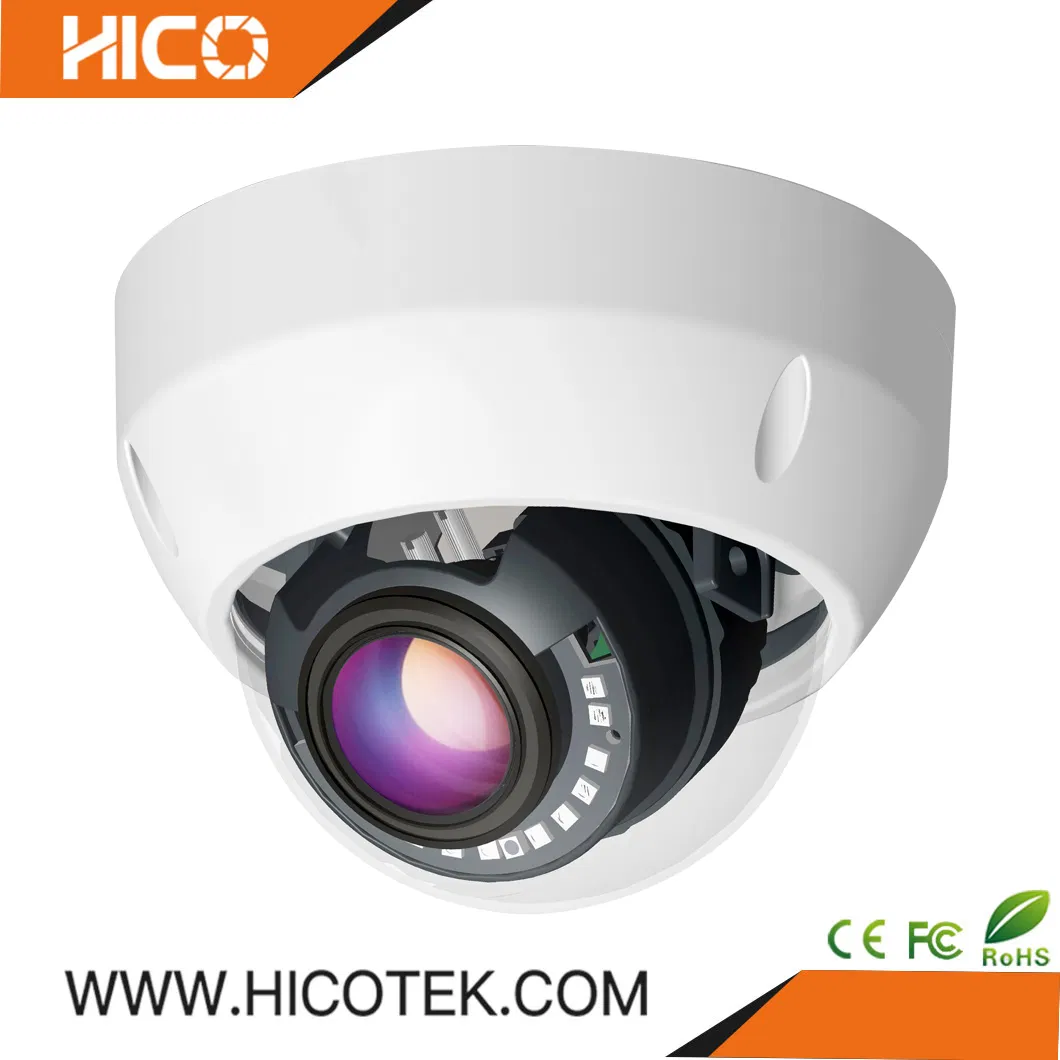

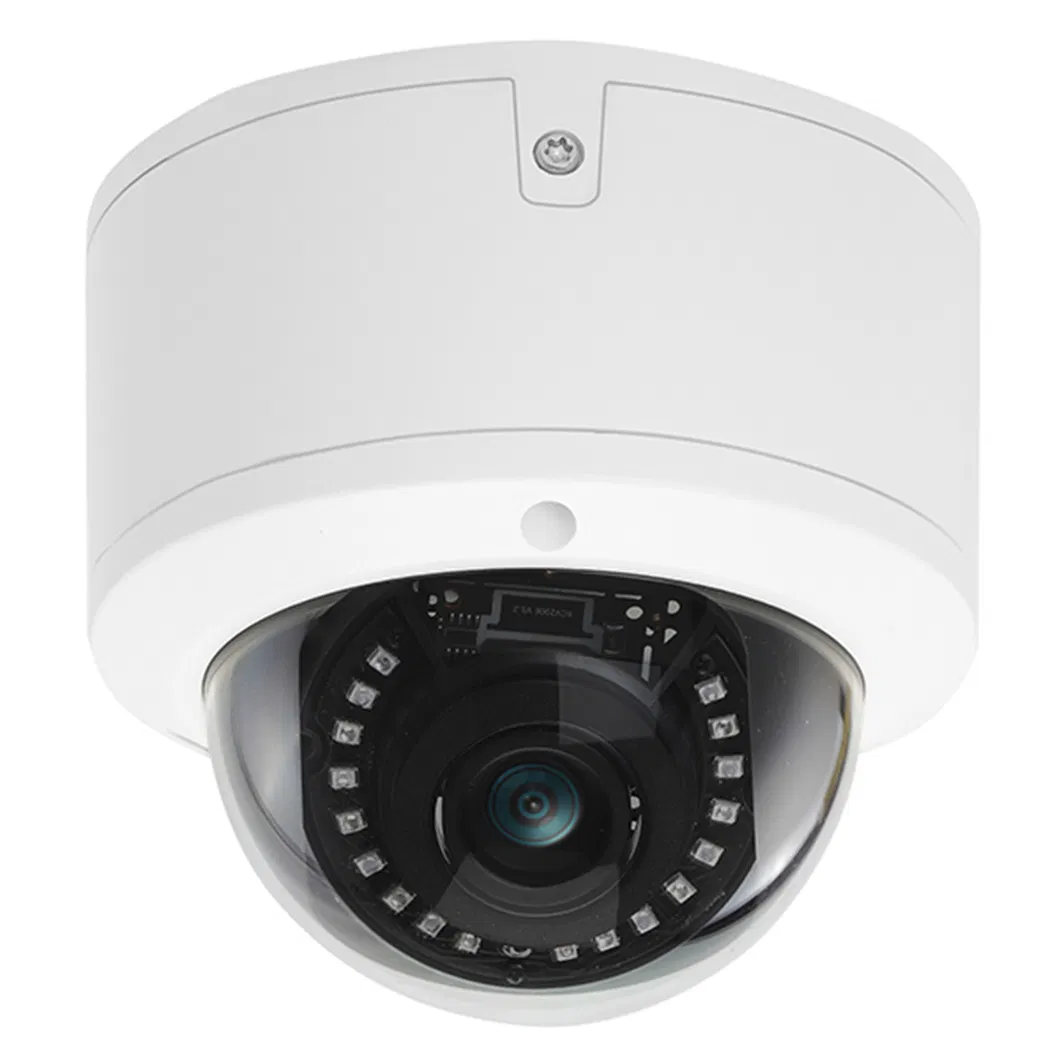

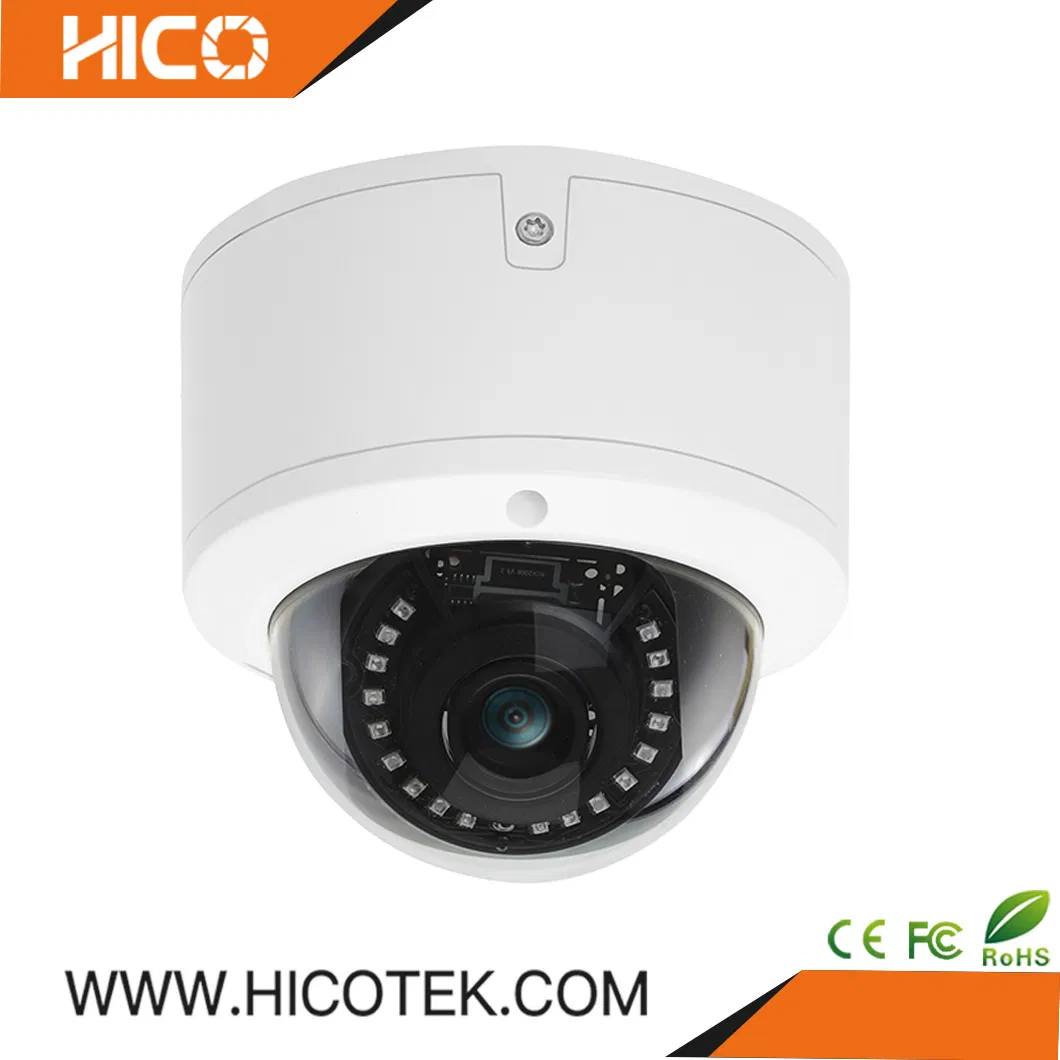

4"Vandalproof IR Dome Camera
5.0 Megapixel HD CMOS Sensor
2.8-12mm Zoom Lens
IR LED: 18pcs SMD or ¢5X30pcs
25M IR Range
Water Resistant Rate:IP66

Chipset
Image Sensor	HD CMOS Sensor
Resolution	5MP
Effective Pixels	2592(H)*1944(V)
Compression	H.264/H.265/JPEG/AVI/ MJPEG
TV System	PAL/NTSC Adjustable
Electronic Shutter Time	Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio	≥52dB
Scanning System	Progressive
Video Output	Network
Lens
Focus Length	2.8-12mm/2.7-13.5mm/3.6-11mm/6-22mm optional
Focus Control	Manual/Auto
Lens Type	Manual/Auto
Pixels	5MP
Night Vision
Infrared Distance	20M-40M
IR Status	Under 10 Lux By CDS
IR Power On	CDS Auto Control
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF	Support ONVIF 2.4
P2P	YES, Support QR Code
POE	Optional, Support IEEE 802.3af
TF Card	Optional
Video Bit Rate	Constant Bit Rate, Variable Bit Rate (16kbps~8000kbps)
Video Type	Complex Stream/ Video Stream
IE Brower	IE8-11, Google Chrome, Firefox, Safari, Mac Safari
Smart Phone	iPhone, iPad, Android, Android Pad
Intelligent Analysis	Optional (Support Target Counting, Area Detection, Left/Lost Prompt, Line Crossing Alarm)
Camera Features
Day/Night	Color/ B&W (IR-CUT )
Image Config	Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
Corridor Pattern	Support
Defog Mode	Support
BLC	Support
WDR	Support
Motion Detection	Support
Privacy Masking	3 Rectangular Zone
Recording Mode	NVR/NAS/CMS/Web
Language	Multilingual Language
General
Housing	Metal ,IP66
Anti-cut Bracket	YES
IR Cut Filter	YES
Operation Temperature	-10ºC ~ +50ºC RH95% Max
Storage Temperature	-20ºC ~ +60ºC RH95% Max
Power Source	DC12V±10%, 600mA
