5MP IP Network Waterproof Bullet Camera with Long IR Distance
Features 1/3" CMOS sensor Max. 5MP resolution 2592 x 1944 output low illumination 0.1Lux Day/Night (ICR),AWB, 2D/3D-DNR, IR-CUT D-WDR, Motion Detection, Privacy Mask, Mirror, rotate RTSP and Onvif 2.4 compatible H.265/H.264 dual-stream media server Easy-to-use P2P Cloud service Multi web browse......
Send Inquiry
Product Description
Features
• 1/3" CMOS sensor
• Max. 5MP resolution 2592 x 1944 output
• low illumination 0.1Lux
• Day/Night (ICR),AWB, 2D/3D-DNR, IR-CUT
• D-WDR, Motion Detection, Privacy Mask, Mirror, rotate
• RTSP and Onvif 2.4 compatible
• H.265/H.264 dual-stream media server
• Easy-to-use P2P Cloud service

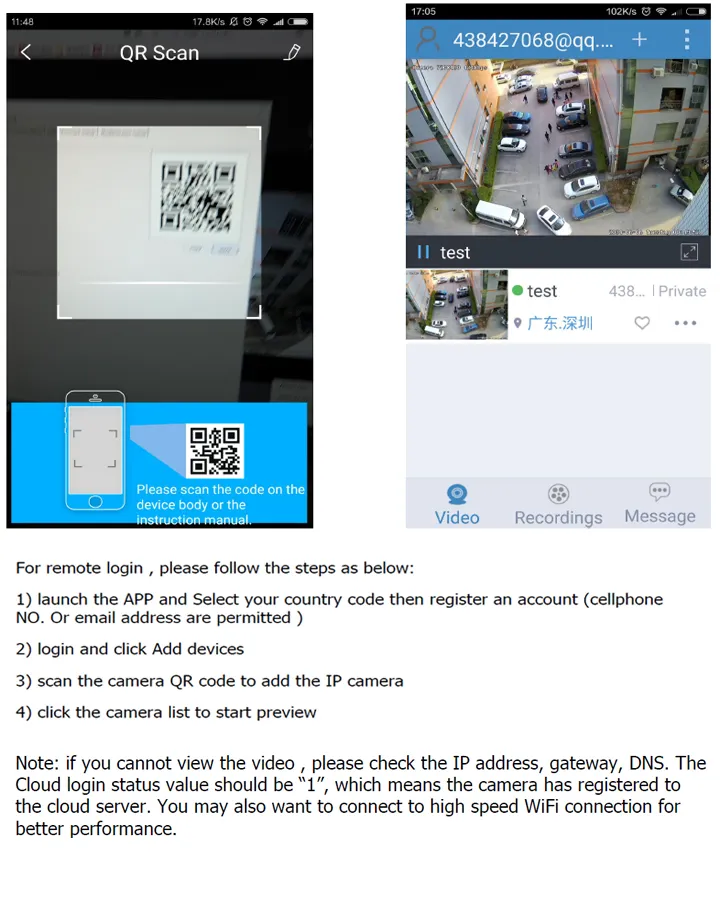

• Multi web browser, PC Client, mobileAPP remote access
• Optional customization Lens/Audio, etc.
• Strong Vandal-proof housing, IP65
• 4PCS Array IR Leds, IR distance 60-70 meters
• 2.8-12mm Varifocal lens
Specification
Our Service
OEM Service:
We offer OEM and ODM services for our clients.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
How to oder from us?
1) Please confirm the model numbers and quantities that you would like to purchase to our sales person,
or email to us.
2) We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges
once you confirm the order.
3) After you arrange the payment and send us your bank slip, we will put your order down to production,
and let you know the delivery date in 2 days.
4) When the goods are finished, we will send them by air express,or by sea or other available shipping method appointed by customers, and let you know the tracking number and estimated time of arrival.
• 1/3" CMOS sensor
• Max. 5MP resolution 2592 x 1944 output
• low illumination 0.1Lux
• Day/Night (ICR),AWB, 2D/3D-DNR, IR-CUT
• D-WDR, Motion Detection, Privacy Mask, Mirror, rotate
• RTSP and Onvif 2.4 compatible
• H.265/H.264 dual-stream media server
• Easy-to-use P2P Cloud service
• Multi web browser, PC Client, mobileAPP remote access
• Optional customization Lens/Audio, etc.
• Strong Vandal-proof housing, IP65
• 4PCS Array IR Leds, IR distance 60-70 meters
• 2.8-12mm Varifocal lens
Specification
| Model | BA-NW4A50E |
| Camera | |
| Image Sensor | 1/3" OV4689 CMOS |
| Effective Pixels | 2688(H)×1520 (V) |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | [email protected](AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto |
| AGC/BLC | Support |
| DNR | 2D/3D DNR |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror, Rotate |
| Encode | |
| Embedded Solution | Hi3516D |
| Video Standard | H.264/H.265 |
| Video Resolution | Main stream: 15fps@5MP(2592x1944), 25fps@4MP(2592x1520), 30fps@3MP/1080P/720P |
| Sub Stream: VGA(640x480)/360P/QVGA@25fps, etc. | |
| Video Bitrates | 32Kbps ‐ 8Mbps, VBR/CBR |
| Audio Standard | G.711‐u |
| OSD Overlay | Title and Time overlay |
| IR Led | |
| IR Led | 4PCS Array IR Leds |
| IR Distance | 60-70M |
| Lens | |
| Focal length | 2.8-12mm Varifocal lens |
| Optional Function | |
| Audio, etc. | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
| P2P | Yes |
| Web | IE , Firefox esr. |
| Media | CMS, Android, IOS |
| ONVIF | 2.4 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 5 W |
| Operating Temp. | -30ºC-(+60)ºC, 10%-90%RH |
Our Service
OEM Service:
We offer OEM and ODM services for our clients.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
How to oder from us?
1) Please confirm the model numbers and quantities that you would like to purchase to our sales person,
or email to us.
2) We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges
once you confirm the order.
3) After you arrange the payment and send us your bank slip, we will put your order down to production,
and let you know the delivery date in 2 days.
4) When the goods are finished, we will send them by air express,or by sea or other available shipping method appointed by customers, and let you know the tracking number and estimated time of arrival.
