China 5MP New Starlight PTZ Sony Imx335 Network 36X Zoom Camera

Product Description

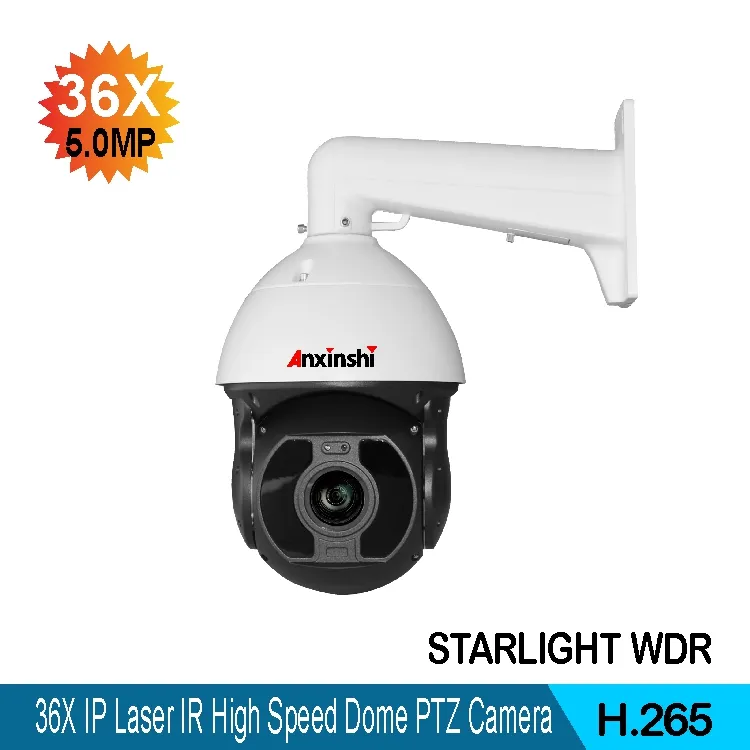

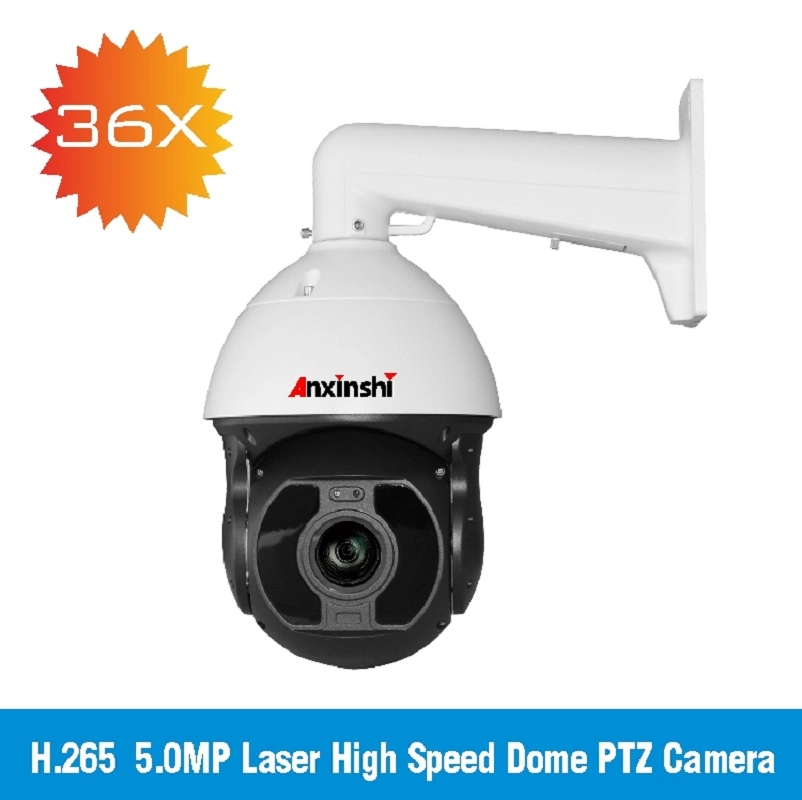

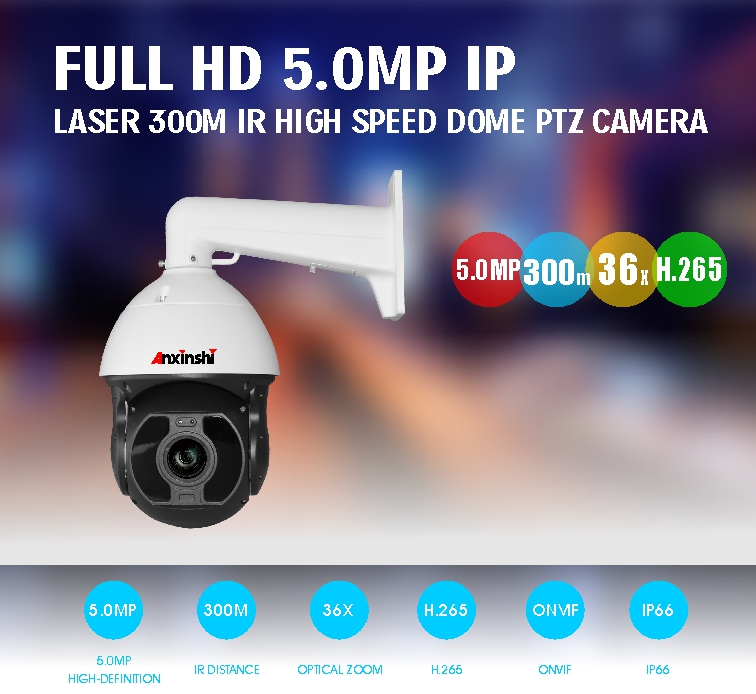

5MP New Starlight PTZ Sony IMX335 Network 36X Zoom Camera

Camera:
1.1/2.8" 5.1M Pixel Sony IMX335 CMOS
2.36X optical zoom, auto focus
3.5.0MP available
4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)
Network Features:
1.Main Stream: 2592*1944,1-25(30)fps; 2304*1296,1-25(30)fps; 1920*1080,1-25(30)fps;
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported Laer IR LED, auto adjust zoom according to different distance
3. IR range 300M
4. With digital temperature controlling system protecting IR LED
5. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S.
6. 6 tours, DC12V

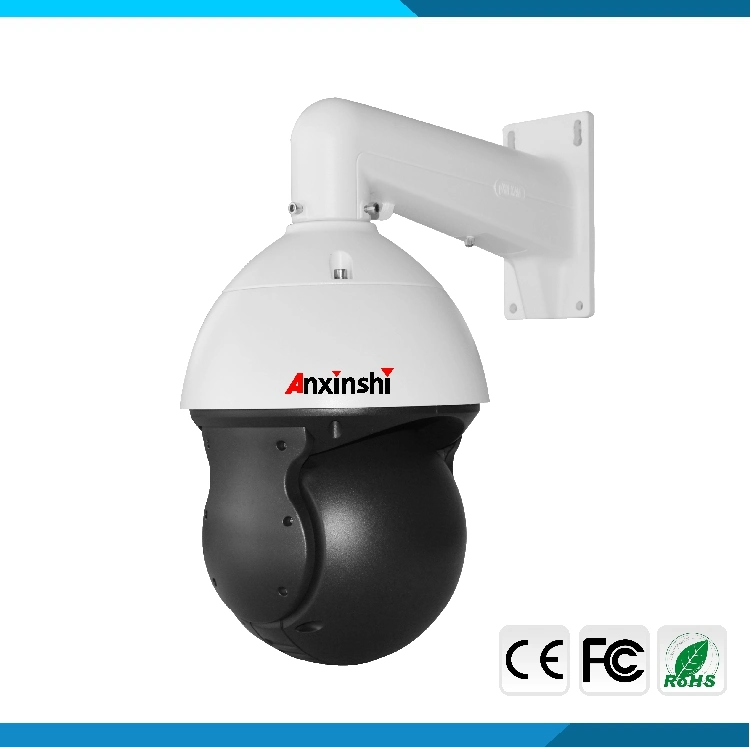

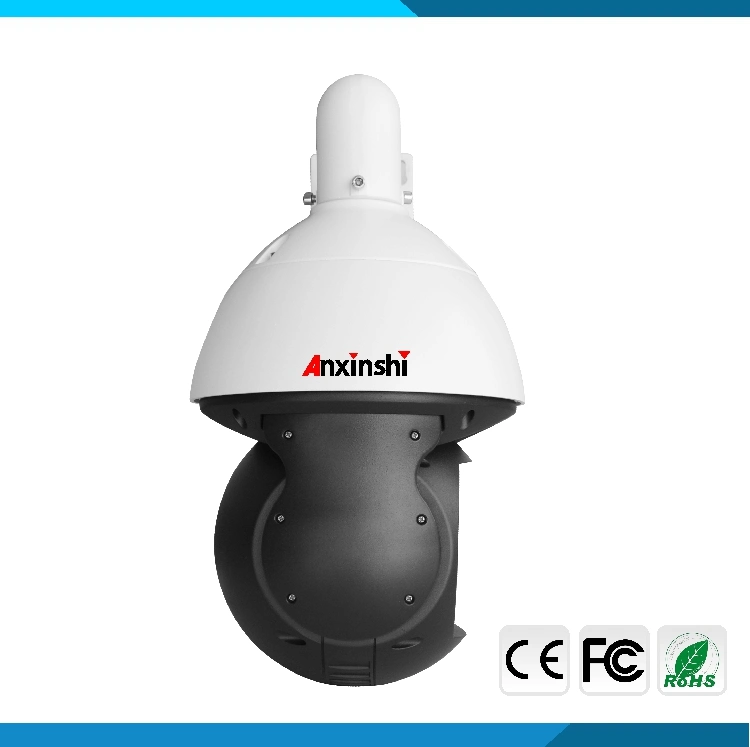

5MP New Starlight PTZ Sony Imx335 Network 36X Zoom Camera

Form parameters
Mode	Name and Description	H.265 IR Laer 300M Full Color Super low illumination Super WDR PTZ Camera
Mode	Name and Description	ASRIH699-036-3535 Outdoor
Camera	Image Sensor	1/2.8" 5.1M Pixel Sony IMX335 CMOS
	Effective Pixels	5.0 Mpixes
	Min. Illumination	Color:0.01Lux@(F1.6, AGC ON) B/W: 0.001Lux@(F1.6, AGC ON)
	Zoom	36X , f=4.6mm~167mm, D/N( ICR-Cut) ,F1.6~F4.8
	Day/Night	Day / Night / External control(IR Cut Filter)
	SNR	≥50dB(AGC OFF)
	WDR	Digital WDR,≥80dB
	AGC	Auto / Manual
	White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
	Digital noise Reduction	DNR,3DNR
	Shutter speed	1/2 - 1/20,000s
Network	Video Compression	H.265 Main Profile/H.264 Main Profile/M-JPEG
	Streams	Dual streams
	Frame Rate	Main stream:
		25921944,1-25(30)fps; 23041296,1-25(30)fps; 1920*1080,1-25(30)fps;
		Sub-stream:
		480640, 1-25(30)fps; 480 360 1-25(30fps 352288, 1-25(30)fps; 176144, 1-25(30)fps
		MJPEG:
		19201080, 1280720, Close
	Bitrate	CBR/VBR, bitrate:32Kbps~10Mbps variable
	Audio Compression	G711,PCM
	P2P	Android,IOS
	Protocols	TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
	Motion detect	Support
	Privacy Zone Masking	Support
	Onvif	Onvif 2.4
	Network	10/100M Base-TX Ethernet, RJ45 Connector
	Mini SD Card	Up to64GB(Optional)
IR Parameters	Luminary	Laer IR 10pcs
	Night vision distance	300M
	Lamp control	Auto, Manual, by Zoom
Dome Features	CPU Type	32 bit ARM CPU
	Address	0~255(soft address and hard address)
	Pan Range	360° continued rotation
	Tilt Range	0~90°(Auto Flip)
	Manual pan speed	0~240º/S
	Manual tilt speed	0~120°/S
	Preset speed	400°/S
	Actual preset Accuracy	±0.10°
	Preset points	255
	Other function	6Tour, Intelligent Three dimensional Scan, 1Pattern group ,Operation recall, Manual continued Auto Scan
	Intelligent power off real time memory	automatic save functions setting ,automatic wake up tour function
General	Work temperature	External-35ºC~55ºC
	Work Humidity	0%~90% (Non condensing)
	Power	DC12V±10%; 5A
	Consumption	<50W
