Product Description

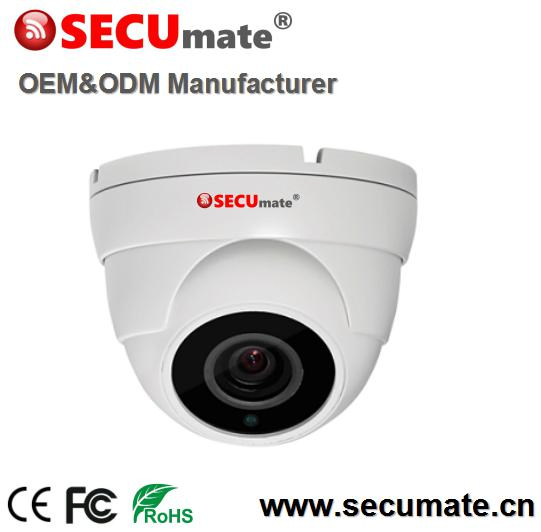

5MP HD IP SONY Starlight IR Eyeball Dome Camera

MODEL: SE-WH5HD99BM

Product Feature:
•1/2.8" SONY 5MP Starvis CMOS Sensor
•Resolution- 2592x 1944, 5Megapixels
•2.8-12mm Motorised lens
•True Day & Night (IR Cut Removable),
•IR distance 30m
•ONVIF Profile s, Slink
•Ultra Starlight, 3DNR
•Support WEB, VMS, P2P APP connection
•Motion Detection and Privacy Masking
•IP67 waterproof
•DC12V, POE

Camera
Image Sensor	1/2.8' SONY 5MP Starvis CMOS
Min.illumination	0Lux/F1.4(IR on)
IR Distance	30m
Electronic Shutter	Auto/ Manual(1/25~1/10000), FLK
Day/ Night	ICR switch, Auto, Color, B/W, Ext
Lens	2.8-12mm Motorised lens
S/N ratio	≥50db (AGC OFF)
Output	PAL/ NTSC adjustable
WDR	DWDR(Off/ Low/ Middle/ High)
Smart IR Control	Auto/ Manual/Off
3DNR	Off/ Low/ Middle/ High/ Higher
Defog	Off/ Low/ Middle/ High
Mirror	Off/ Horizontal/ Vertical/ 180º rotation/ Corridor mode(90º rotation,270º rotation)
Slow Shutter	OFF/ON
Exposure	Auto/ Manual
Image Setting	Brightness, Contrast, Saturation, Sharpness, Hue
Encoding
Video Compression	H.265 /H.264/ MJPEG
H.265 Encoding	Main Profile
H.264 Encoding	BaseLine / Main Profile / High Profile
Encoding features	NTSC: main stream: 2592X1944@30fps, sub-stream: D1@30fps PAL: main stream: 2592X1944@25fps, sub-stream: D1@25fps
Max. Resolution	2592x1944
Video Bit rate	Constant bit rate, Variable bit rate (16kbps~8000kbps)
Video Type	Complex stream/ Video stream
Audio Compression	G.711u
Audio Bit rate	64Kbps
Audio Control	Support input/ output Volume gain control
ROI	Support 4 zones, multi-stage level
NETWORK
Network Protocol	TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, FTP
Access Protocol	ONVIF Profile S, Slink
Browser	Support IE, Chrome, Firefox, Safari
User Permission	User add/ modify/ delete, permission management
Safe Mode	Authorized user name and password, HTTPS encryption, AES link encryption, RTSP verification
Motion Detection	Set detection zone, Multi-level sensitivity can be set
Tampering Alarm	1 zone
Privacy Mask	4 zones
Intelligent Analysis	Target Counting, Area Detection, Left/ Lost, Line Crossing
Event linkage	Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage
Multicast Function	Support
ANR	Support, match with NVR
Mobile Surveillance	Support Apple, Android APP
Exception detection	Support network disconnected, IP conflict, illegal access alarm
OSD	Title, time and date overlay, multi-line OSD, OSD color optional
DST	Support
Snapshot	Support snapshot, snapshot resolution is encoding resolution
System Update	Support remote update
INTERFACE
Network Interface	RJ45 10M/100M network adaptive
Analog video output	/
Audio	/
Alarm Input	/
Alarm Output	/
Reset	/
RS485	/
TF card	/
GENERAL
Operating Temperature	-30°C ~ 60°C
Operating Humidity	0%--90%
Protection Grade	IP66

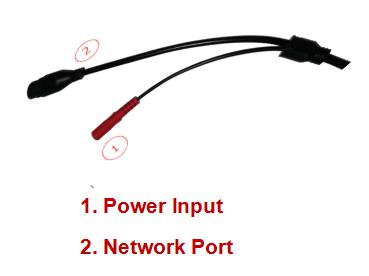

Power Supply	DC12V /PoE
Power Consumption (max)	<7W
Dimensions(mm)	/
Weight/PCS(g)	/
