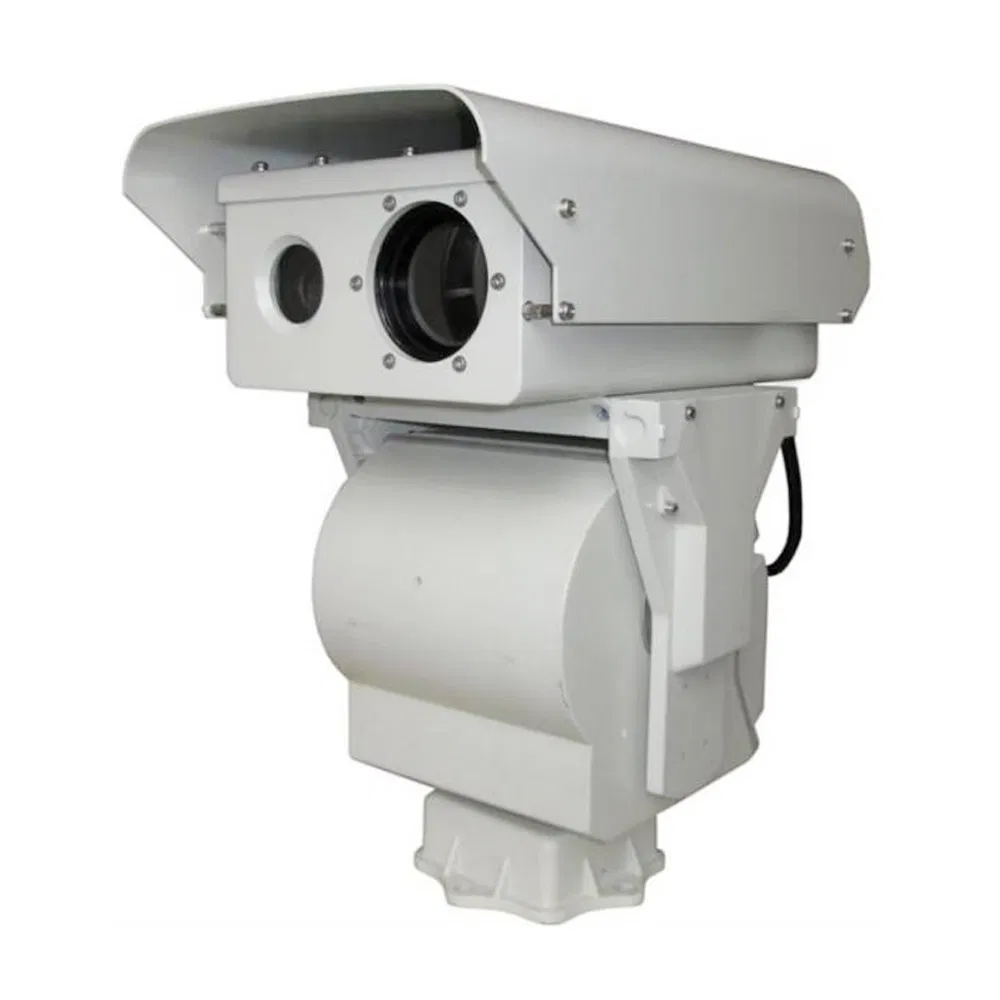

640X512 Night Vision Railway Security Sueveillance PTZ Thermal Camera

Product Description

Specially designed for special purposes, the Camera adopts 2,000,000 visible camera and 384*288/640*512 uncooled thermal camera with large caliber.

In combination with 360 degree PT, the camera is capable of conducting 24 hours real-time monitoring within 2km-18km.

Application:
City safety, oilfield safety, railway security, night gathering evidence.

640X512 Night Vision Railway Security Sueveillance PTZ Thermal Camera

640X512 Night Vision Railway Security Sueveillance PTZ Thermal Camera

Feature

1. 8-320mm/15-500mm/25-750mm/20-1000mm visible camera, 2 mega pixels CCD, 2-10km detection range in the daytime.

2. 25-75mm/21-105mm/31-155mm thermal camera, 336*256/640*512 resolution, 2-10km detection range at night.

3. 50mk NETD produces crisp thermal image under all weather conditions.

4. Fog penetration (optional), optical filtering and DSP image processing.

5. PT with 30kg/50kg load duty and 360 degree rotation.

6. IP66 ingress protection ensures camera´s proper functioning under tough weather conditions.

Technical specification

Model	CQ6510IP2132
Detection	Vehicle: 8.6km Human:3.4km
Identification	Vehicle:2.4km, Human: 900m
Thermal sensor	VOx uncooled detector, 640*512 / 7.5um-14um spectral response, 50mk NETD
Thermal lens	21mm~105mm, 5X zoom Electric zoom and focus (option auto focus)
Fov(H)	36°~6.8°
Image process	2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement;
Visible sensor	1/1.8'' CMOS
	0.0002lux super high sensitive color to B/W CCD
	2 megapixels,1920X1080
	Automatic ICR switch
	H.264/MPEG4/MIPEG
	32Kbps~16Mbps,60Hz30 FPS
Visible lens	8~320mm,40X zoom
	infrared correction
	motorized zoom
	DC8-12V
	auto aperture
	zoom data feedback
Housing	1. Material:High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated 2. Structure:Integrated single-window design 3. Surface coating:PTA three-resistance coating, Seawater corrosion resistance 4. Built-in thermostat, design of thermal equilibrium 5. Interface:Aviation waterproof plug
PTZ	Load:30kg
	Range:Pan: 0~360°, Tilt: +40°~-75°
	Speed:Pan: 0.01~60°/S, Tilt: 0.01~30°/S
	Preset: 80, with Petrol/scan function,Azimuth real-time display, Zero correction function
Interface	Intelligent IP box,one 110M/100M adaptive Ethernet port,1* AC24V/DC24V adapter
Video format	H.264, Dual video output
Protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP ect. Other protocol
	Support ONVIF2.0
	Pelco-P,Pelco-D,Baudrate 2400,4800,9600,19200 optional
Power supply	AC24V/DC24V±10%,50Hz,150W,Standard AC220V->AC24V power supply (Optional DC12V)
Environment	1. Operating temperature:-25ºC~+55ºC(-40ºC optional) 2. Storage temperature:-35ºC~+65ºC 3. Humidity:<90% 4. Anti-lighting:built-in auto Fuse-protected device, Power 4000V,Signal 2000V 5. Ingress protection:IP66
Weight	≤30kg
