8CH 5MP Professional Security CCTV Poe NVR Kit

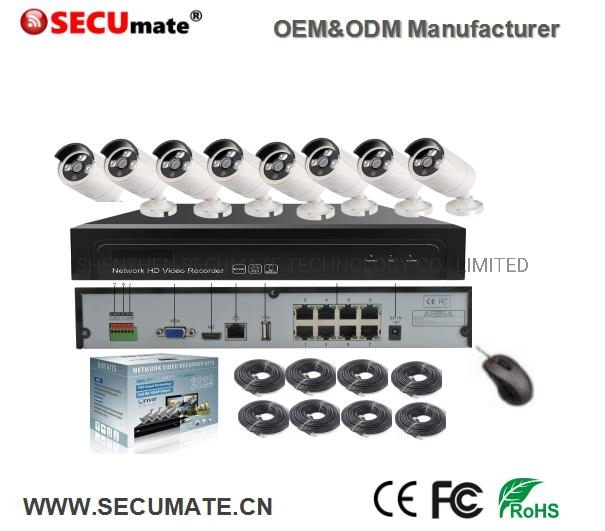

8CH POE NVR Kit with 8x 5MP POE Outdoor IR Bullet CameraMODEL:SE-335M8P8-K85BProduct Feature:-1x 8CH 5MP POE Port NVR(1x HDD)-HDMI/VGA output up to 1080p preview-8x 5MP POE Outdoor IR Bullet Camera-8x 20m Network Cables-1x DC48V/3A Power Adapter-1x USB Mouse-Plug and Play-P2P APP (MKVSION), QR Code......
Send Inquiry
Product Description
8CH POE NVR Kit with 8x 5MP POE Outdoor IR Bullet Camera
MODEL:SE-335M8P8-K85B
Product Feature:

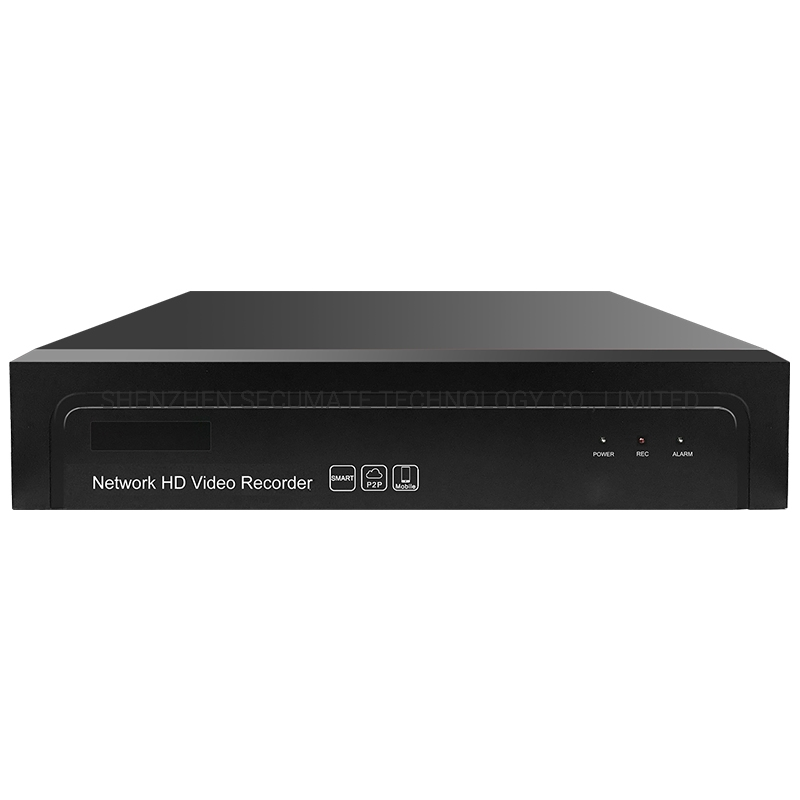

-1x 8CH 5MP POE Port NVR(1x HDD)
-HDMI/VGA output up to 1080p preview

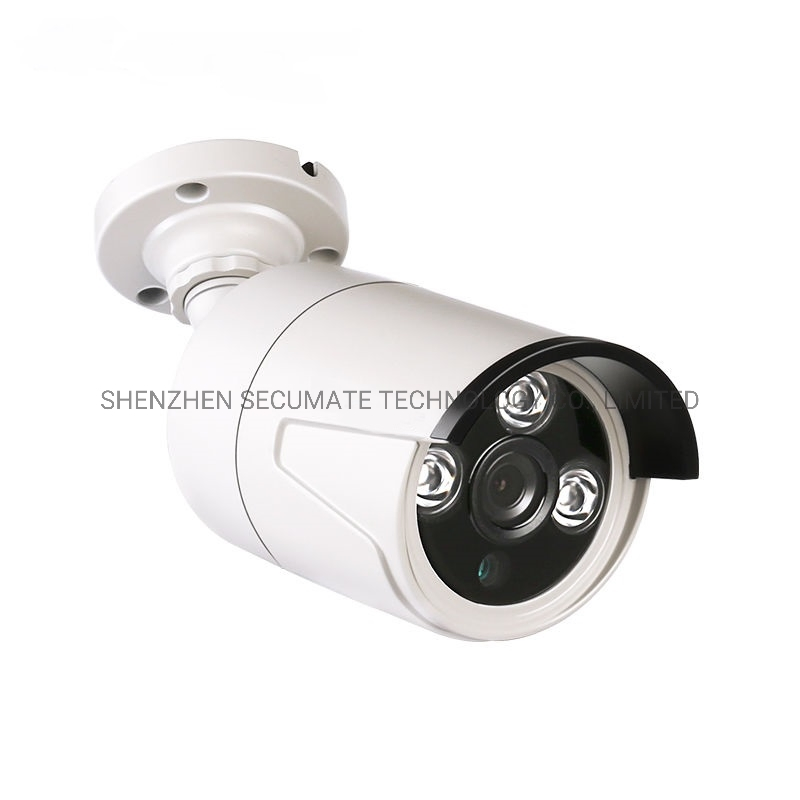

-8x 5MP POE Outdoor IR Bullet Camera
-8x 20m Network Cables
-1x DC48V/3A Power Adapter
-1x USB Mouse
-Plug and Play
-P2P APP (MKVSION), QR Code Scan&Add, easy for Smart Phone Connection
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
Truly Plug ' n ' Play. Set up within minutes!
No experience required. Just connect the cameras to the NVR using just 1 cable for each IP camera and watch straight away.
The NVR uses POE to power the IP camera therefore you don't need to use extra cables to supply power, making installations easier and quicker.
Support P2P Phone application, allowing easier home application. Scan the unique and encrypted QR Code(in the kit) to start watching on your mobile phone, tablet etc straight away.
MODEL:SE-335M8P8-K85B
Product Feature:
-1x 8CH 5MP POE Port NVR(1x HDD)
-HDMI/VGA output up to 1080p preview
-8x 5MP POE Outdoor IR Bullet Camera
-8x 20m Network Cables
-1x DC48V/3A Power Adapter
-1x USB Mouse
-Plug and Play
-P2P APP (MKVSION), QR Code Scan&Add, easy for Smart Phone Connection
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Camera | |
| Image Sensor | 1/2.7" 5 Megapixel CMOS |
| Effective Pixels | 2592 x 1944 |
| Min. illumination | 0Lux/F1.4 (IR ON) |
| Electronic Shutter | Auto/manual (1/25s-1/10000s) |
| Day/Night | Auto/Color/ B/W EXT |
| Lens | 3.6mm |
| IR Distance | 10-20m |
| Video Parameter | DWDR, Mirror, 3DNR, Sharpness, Brightness |
| Protection | IP66 |
| Power supply | POE, DC12V |
| NVR | |
| Video Input | 8CH |
| Video Compression | H.264 |
| Video Input Resolution | 5MP/4MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF |
| Video Output | VGA/HDMI sync output, |
| 1920×1080,1440×900,1280×1024,1366×768,1024×768,800×600 | |
| Bit Rate | 16-8000Kbps |
| Image Display | 1/4/6/8/9 screens |
| Snapshoot | Support(BMP) |
| Motion Detection | 396(22*18)areas available to setup and multi sensitivity adjustable |
| Video Frame Rate | 1-30fps |
| Record Mode | Manual/Alarm/MD/Regular |
| Playback Synchronic | 1ch Main strea, 4ch Sub stream |
| Search Method | Time, Calendar, Event, Channel |
| Video Playback | Start, Stop, Fast play,Slow play, Frame play, Snapshoot, Full screen, Precise playback |
| Backup location | Local HDD, Network |
| Backup Method | Network, USB storage device, USB recorder |
| Network Protocol | TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF |
| Connect protocol | I8S, ONVIF |
| Smart Phone | iPhone, iPad, Android |
| Brower | IE, Chrome, Firefox, Safiri |
| Intelligent Detection | Motion detection. Video loss, Video privacy, shelter alarm |
| Other | / |
| Network Interface | RJ45 10M/100M adaptive Ethernet port |
| RJ45 powersupply | 4 |
| Alarm input | 2CH |
| Alarm output | 1CH |
| RS-485 | Support |
| USB Port | 2*USB2.0 |
| e-SATA | / |
| HDD | 1 SATA, up to 8TB |
| Working Temperature | -20°C ~ 55°C/10%--90% |
| Power Supply | DC48V/3A, POE |
| Power Consumption | NVR:<10W(Without HDD) |
| Dimension(mm) | NVR: 300(L)x209(W)x48.5(H)mm IPC: 75(H)*Φ93(D)mm |
Truly Plug ' n ' Play. Set up within minutes!
No experience required. Just connect the cameras to the NVR using just 1 cable for each IP camera and watch straight away.
The NVR uses POE to power the IP camera therefore you don't need to use extra cables to supply power, making installations easier and quicker.
Support P2P Phone application, allowing easier home application. Scan the unique and encrypted QR Code(in the kit) to start watching on your mobile phone, tablet etc straight away.
