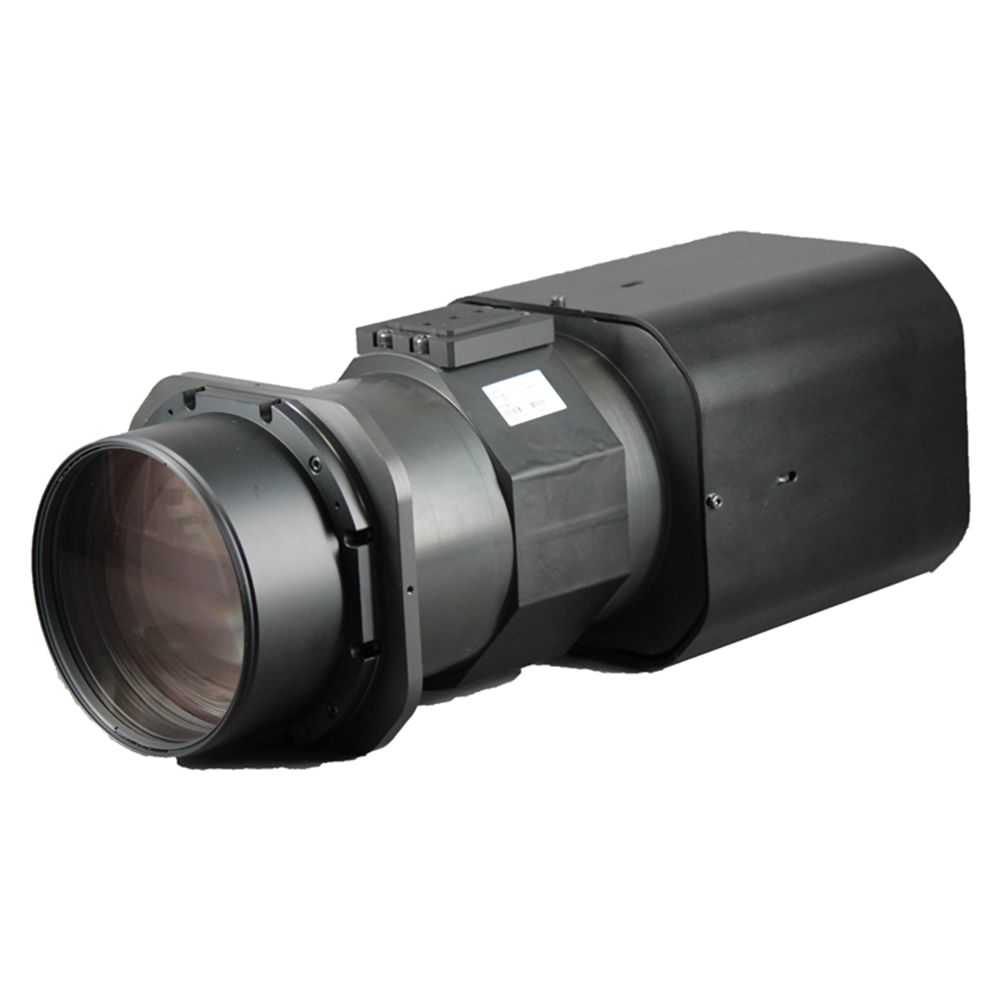

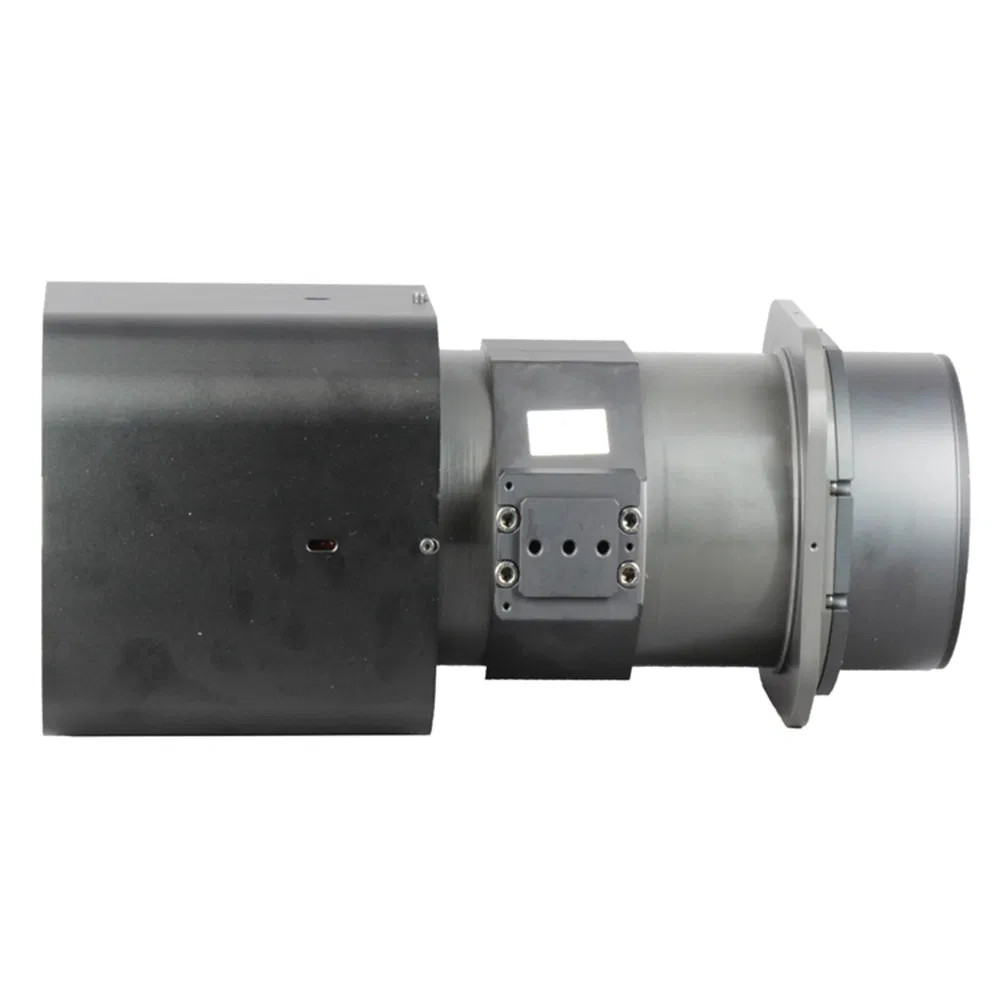

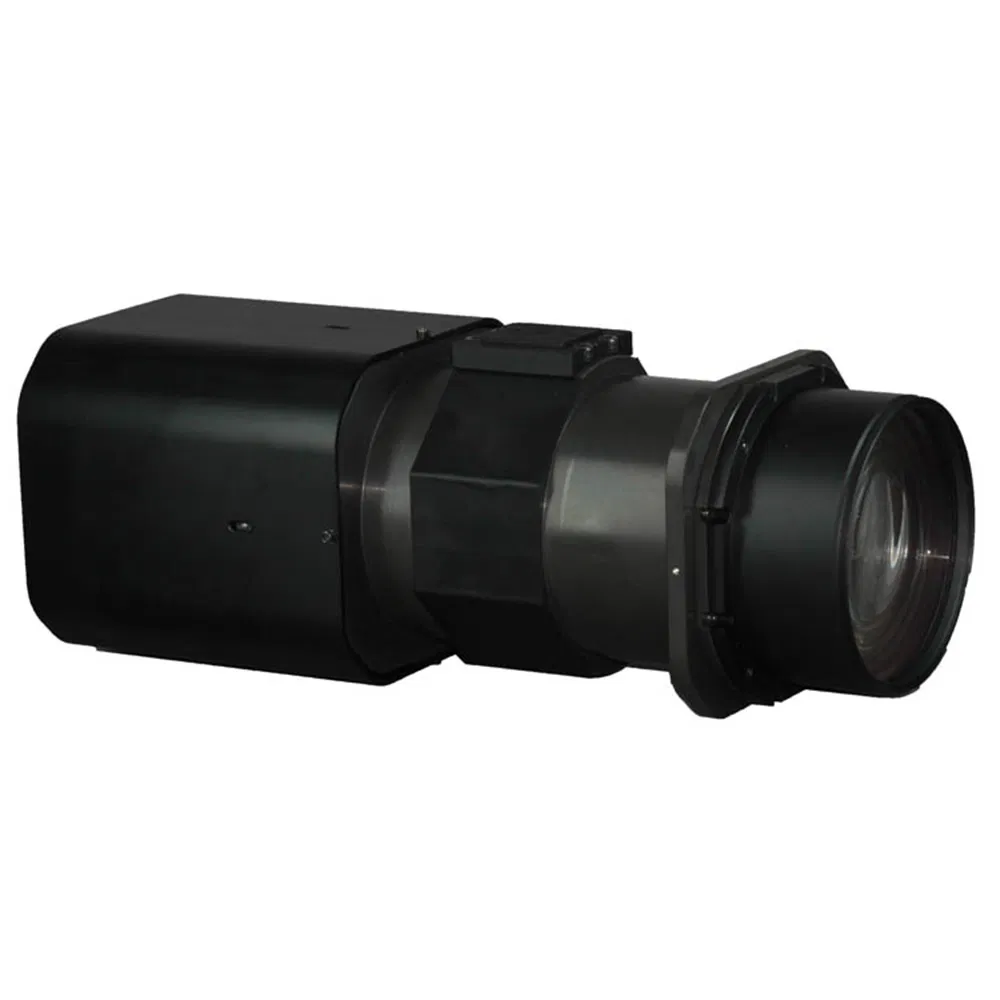

China 90X Ualt Long Range Digital Dual Output Zoom Camera Module

Product Description

Features:
> 1/1.8" Sony IMX385 CMOS Sensor
> Powerful 90x optical zoom (10.5~945mm)
> Max. 2Mp(1920x1080) Resolution
> Support Optical Defog
> Support digital signal lvds and network signal video output at the same time

Applications:
> Intelligent Traffic Systems
> Security
> Surveillance
> Long range surveillance
> Marine surveillance

1.Specification

Model No.: SOAR-CB2290D
Camera
Image Sensor	1/1.8" progressive scan CMOS
Min. Illumination	Color: 0.0005 Lux @(F2.1, AGC ON) Black: 0.0001 Lux @(F2.1, AGC ON)
Shutter Time	1/25 to 1/100,000 s; Support slow shutter
Auto iris	PIRIS
Day& Night	Automatic ICR infrared filter type
Digital Zoom	16x digital zoom
Video Output	Digital signal (LVDS)
Lens
Focal Length	10.5-945mm,90x Optical Zoom
Aperture Range	F2.1-F11.2
Field of View	38.4-0.46°(Wide - Tele)
Working Distance	1m-10m(Wide - Tele)
Zoom Speed	Approximately 8 seconds (optical, wide-Tele)
*Image (Maximum size: 19201080)**
Video output	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Setting	Saturation, brightness, contrast and sharpness can be adjusted by client or browser
Backlight Compensation	Support, customizable area
Exposure Mode	Automatic exposure/aperture priority/shutter priority/manual exposure
Focus Control	Auto focus/one time focus/manual focus/semi-auto focus
Area Exposure/Focus	Support
Optical Fog Penetration	Support
EIS	Support
Day &Night	Automatic, manual, timing, alarm trigger
3D Noise Reduction	Support
Network Function
Network Storage	Supports Micro SD/SDHC/SDXC card (256G) for offline local storage Storage, NAS (NFS, SMB/CIFS are all supported)
Protocol	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IP v6
Interface Protocol	ONVIF(PROFILE S,PROFILE G) ,GB28181-2016,OBCP
Interface
External interface	36pin FFC (including network port, RS485, RS232, SDHC, Alarm In/Out, Line In/Out, power supply).LVDS
General
Working Environment	-30ºC~60ºC, humidity≤95% (non-condensing)
Power supply	DC12V±25%
Consumption	2.5W(11.5W MAX)
Dimensions	374150141.5mm
Weight	5190g

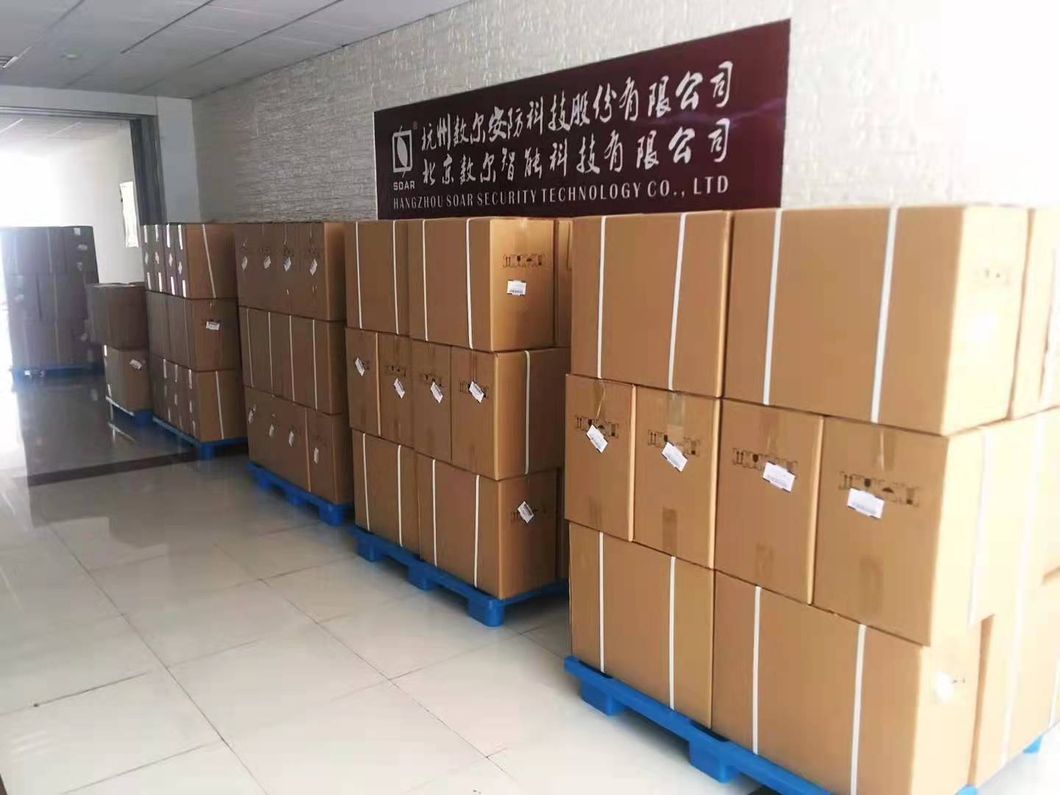

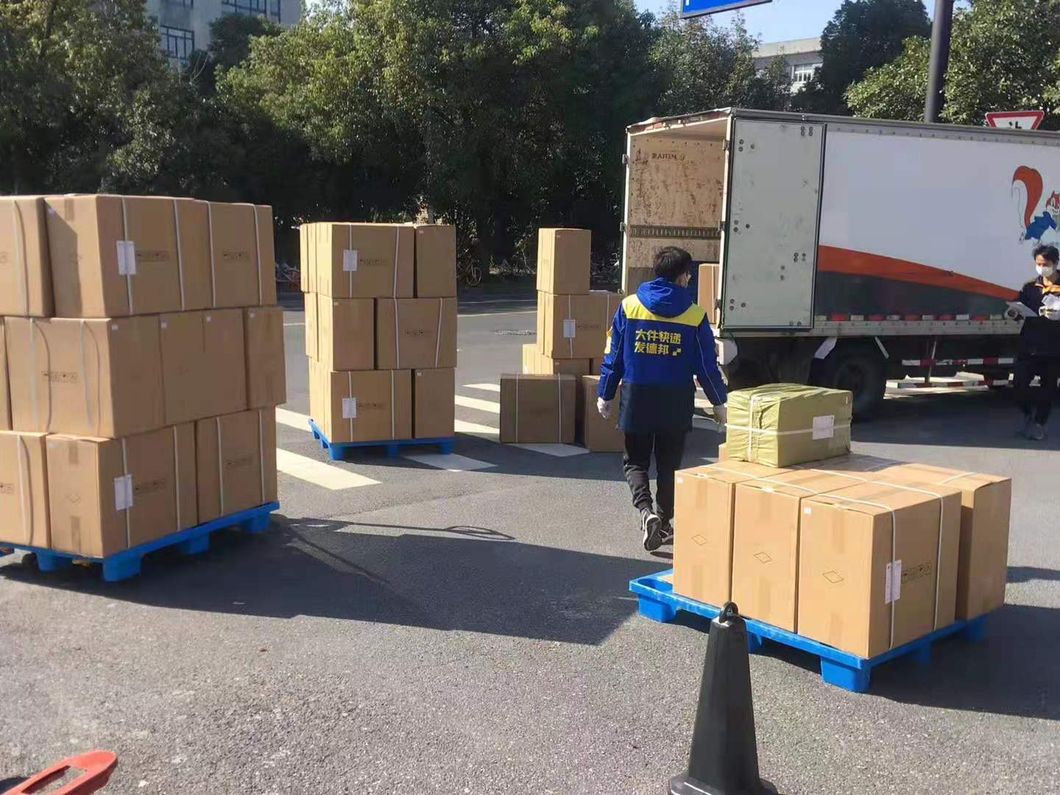

2.Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

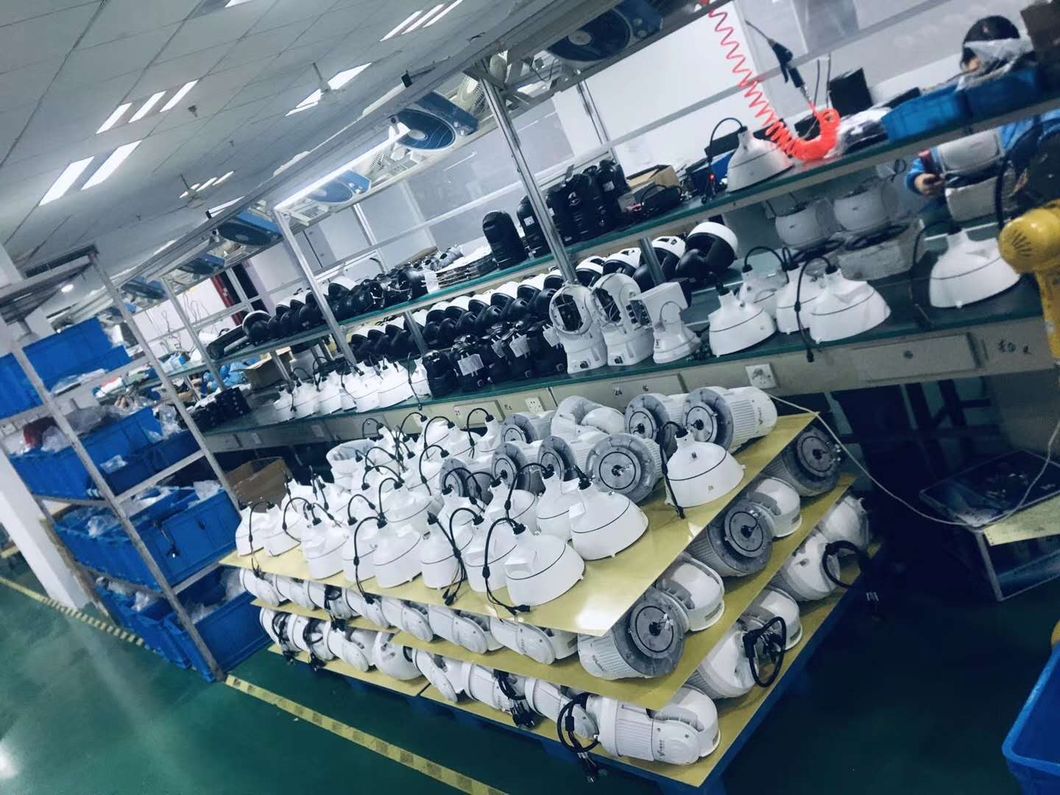

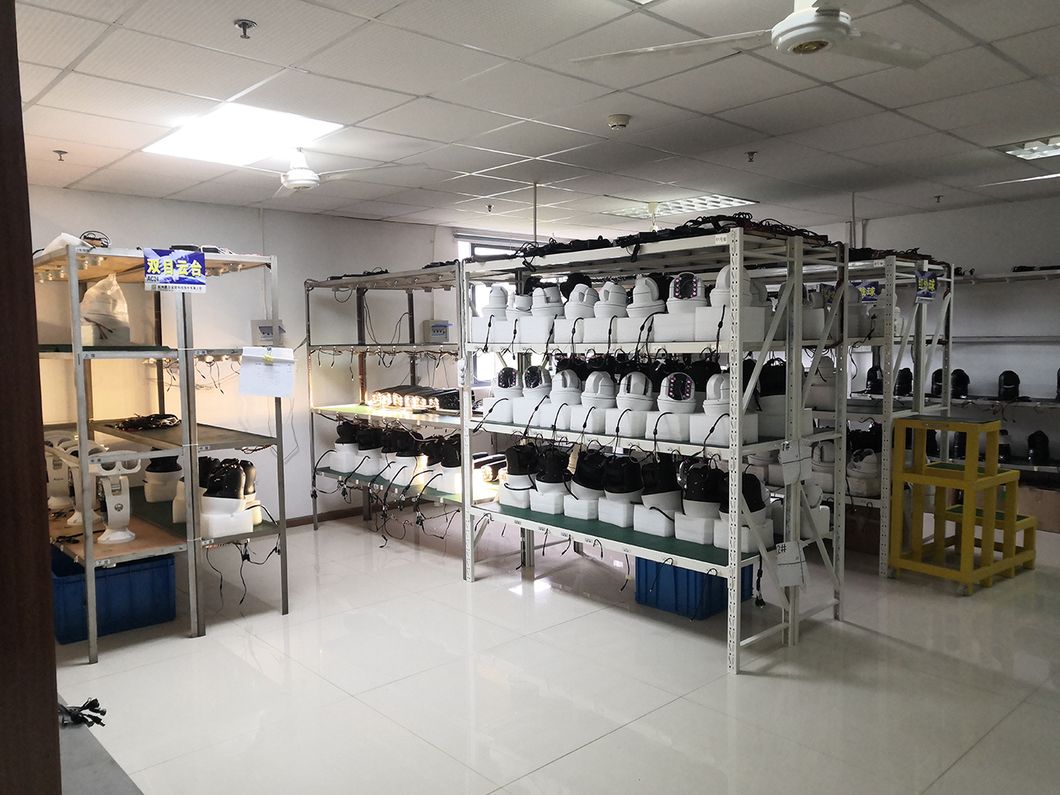

3.Company Profile

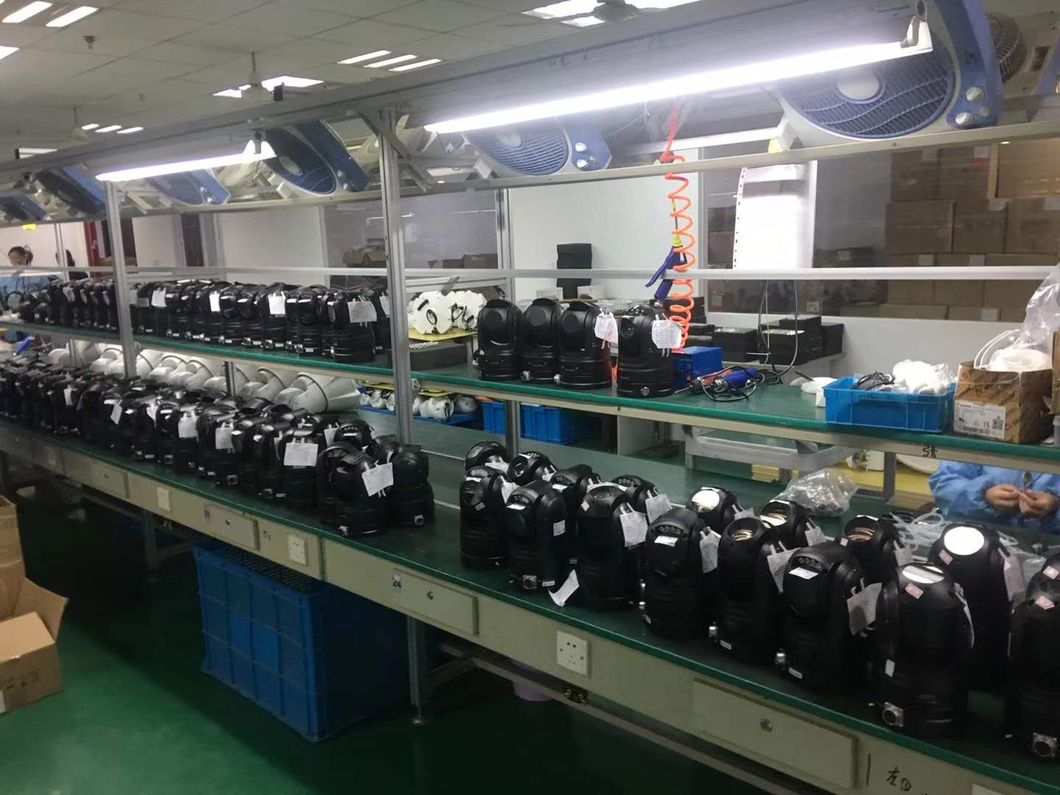

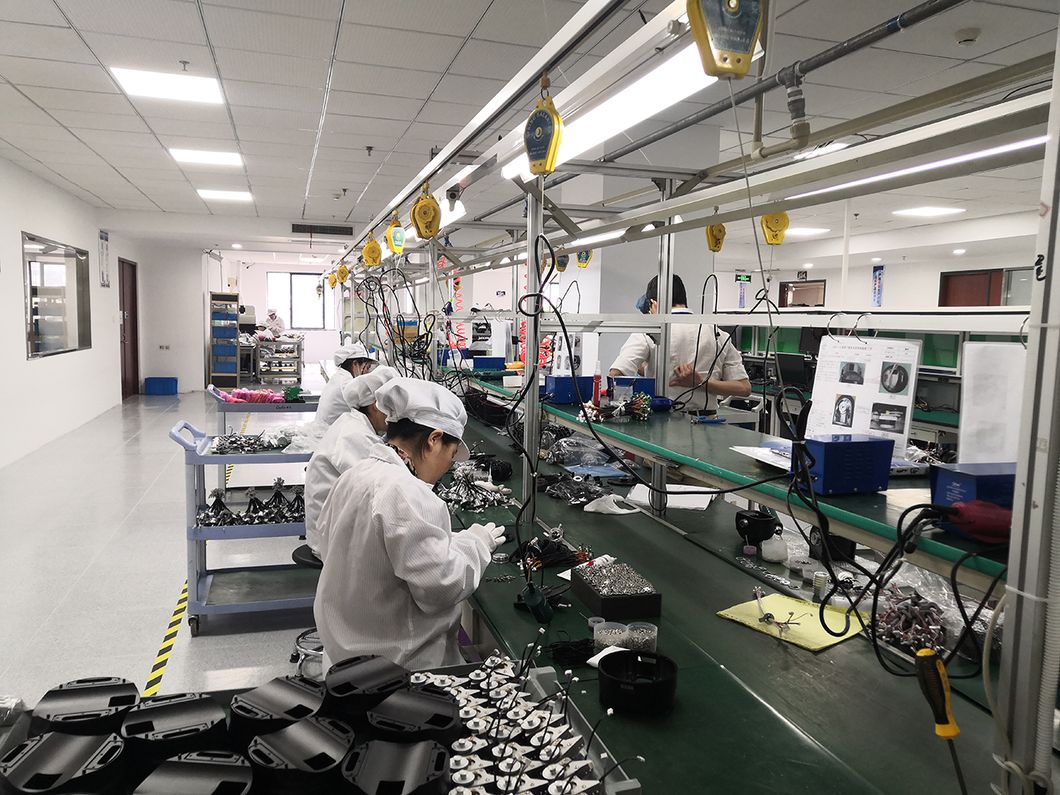

Hangzhou Soar Security Technology Co., Ltd is a professional video surveillance products provider, devoted in the front-end surveillance product design , manufacture and sales for more than 15 years, Since the foundation in 2005. We were honored as "national technical innovation enterprise" in 2015, and successfully listed in public Stock in 2016, stock code:839365.

Our R&D team consists of 60+ members of Masters and senior engineers majored in industrial design, FPGA, ISP, video analysis, AI algorithm, etc.

Our main products are various PTZ and Zoom camera module for vertical/niche market, passed ISO9001 quality certification.

Our products are widely sold all over the world. Meanwhile, we also provide OEM/ODM service. We focus on product innovation, to serve customers, create value for customers as the company's purpose.
