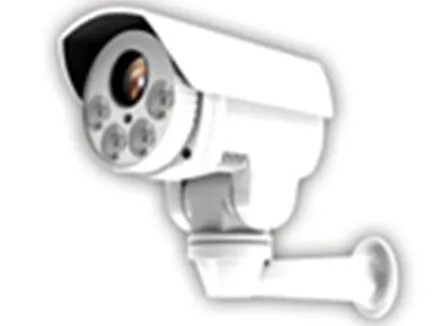

Ahd PTZ Camera
AHD Pan/titl Camera(1.3 Mega Pixel) 960P1/3" Sony IMX322+NVP2441H6mm fixed LensDWDR, 3D NR,Sense Up, OSD Optional,UTC Control OptionalParameters:ModelUV-AHDPT101Camera VideoImage SensorAptina 0130Effective Pixels720P(1280X720)Resolution:1200TVLElectronic Shutter1/50(1/60)s ~ 1/100000sDay &......
Send Inquiry
Product Description
AHD Pan/titl Camera
(1.3 Mega Pixel) 960P
1/3" Sony IMX322+NVP2441H
6mm fixed Lens
DWDR, 3D NR,Sense Up, OSD Optional,UTC Control Optional
Parameters:
| Model | UV-AHDPT101 | ||
| Camera | Video | Image Sensor | Aptina 0130 |
| Effective Pixels | 720P(1280X720) | ||
| Resolution: | 1200TVL | ||
| Electronic Shutter | 1/50(1/60)s ~ 1/100000s | ||
| Day & Night | ICR | ||
| Min. Illumination | 0lux (IR ON) | ||
| Image Enhancement | Image Settings | AWB, AGC Adjustable | |
| Exposure Mode (Auto/Manual) | |||
| Sharpness, Saturation, Brightness & Contrast Adjustable | |||
| WDR Range | Digital WDR | ||
| Noise Reduction | 2D-NR | ||
| Image Orientation | Mirror/Flip | ||
| Privacy Zone | Yes | ||
| Motion Detection | Yes | ||
| Housing | Lens | 4/6/8/12mm | |
| Iris | Auto Iris | ||
| Lens Mount | M12 | ||
| Water-proof | IP66 | ||
| Bracket | Wall Bracket | ||
| Dimensions | 153mm×93mm×130mm(L×W×H) | ||
| Weight(gross) | 920g | ||
| PTZ | Optical Zoom | Fixed Focus:4mm/6mm/8mm/12mm | |
| Digital Zoom | -- | ||
| IR Distance | 30-50M | ||
| Pan Rotation Range | 0~250 | ||
| Tilt Rotation Range | -5~60 | ||
| Pan Speed | 0.5~12 /s | ||
| Tilt Speed | 0.5~12 /s | ||
| Preset Position | 256 | ||
| Connectivity | Video | BNC(AHD) | |
| Power | DC 12V | ||
| RS485 | Yes | ||
| Alarm | Optional | ||
| Others | Work Environment | -35ºC~60ºC, Humidity 10%~90% | |
| Power and bracket are not include | |||
