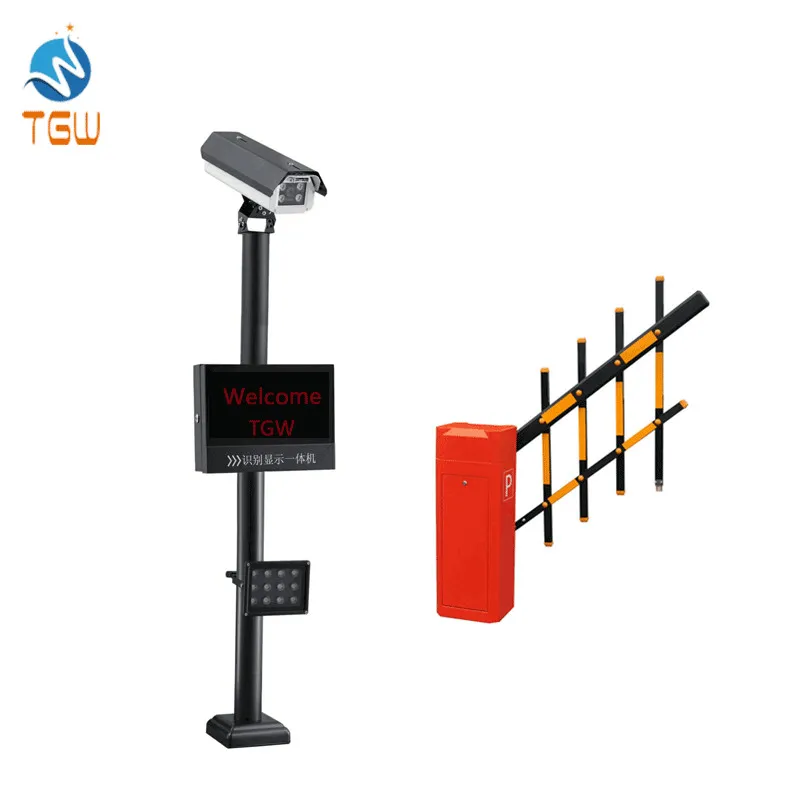

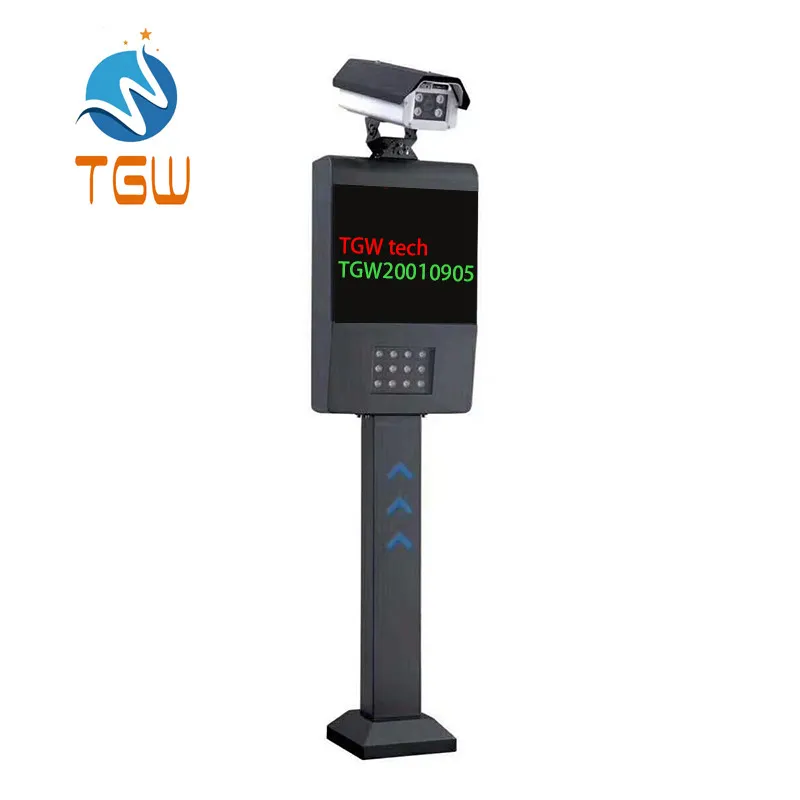

Australia Car Number Plate Recognition Security Camera Parking System Lpr Camera License Plate Recognition Software Auto Car Parking Lot System
ALPR Parking System AdvantagesALPR System Service for Parking lot Management.Automatic identify vehicle license text and figures.Reduce labor cost and management difficulty of parking lot system.Improve vehicle traffic efficiency.Ticketless/ card less parking lot management. Product Description Mode......
Send Inquiry
Product Description
ALPR Parking System AdvantagesALPR System Service for Parking lot Management.
Automatic identify vehicle license text and figures.
Reduce labor cost and management difficulty of parking lot system.
Improve vehicle traffic efficiency.
Ticketless/ card less parking lot management.

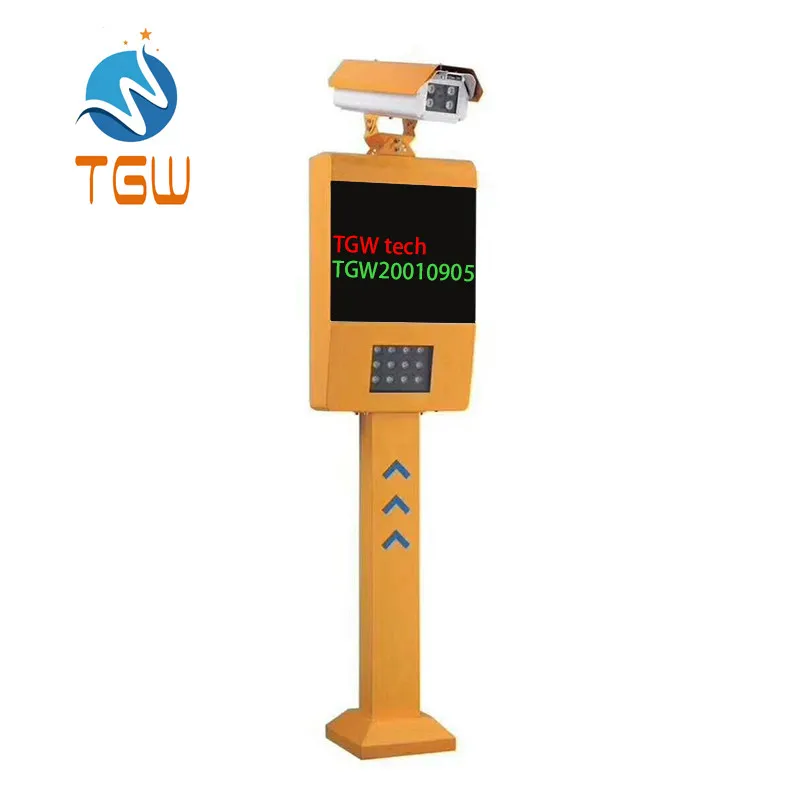

| Model No. | TGW-LGV2 | |
| Display Language | English,Spainish,Korean,Japanese,Arabic.,etc | |
| Applications | Parking lot,car washing.,etc | |
| Pots | TCP.IP ports, Power supply ports | |

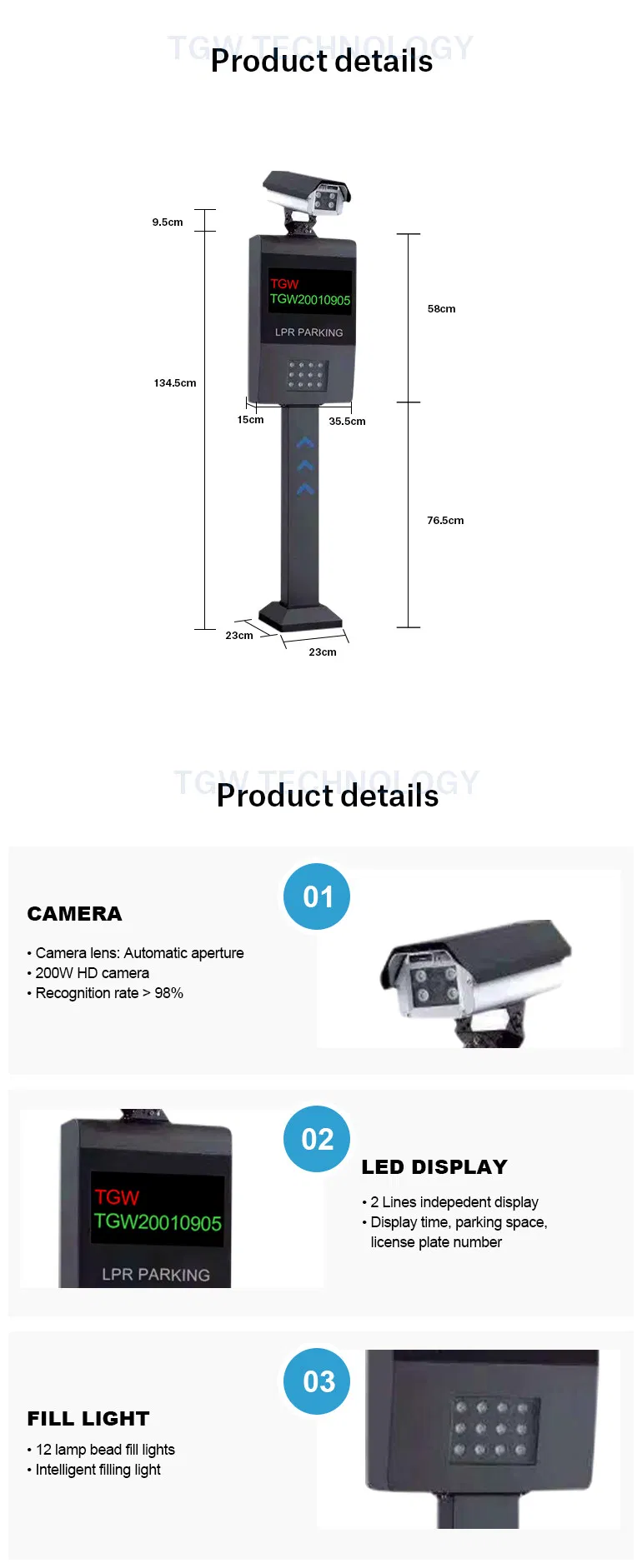

| Hardware configurations | Camera:1 pc Display part:2 lines dispaly and control board Filling light:1pc | |
| Technical Specification | Cabinet material | Iron plate metal 2.0 |
| Camera pixel | 1/3CMOS,2M pixel | |
| Dimension | 360*150*1280mm | |
| Weight(kgs) | 30kg | |
| Recognition distance | 3-10m | |
| Recognition speed | < 30 km/h | |
| Communication Interface | TCP/IP | |
| Rated voltage | 220 v /110V±10% | |
| Display size | 64*32 | |
| Character Color | Black,Yellow | |
| The filling light voltage | Automatic light sensor< 30Lux | |
| Working Tempreture | -25ºC~70ºC | |
| Working Humidity | ≤85% | |

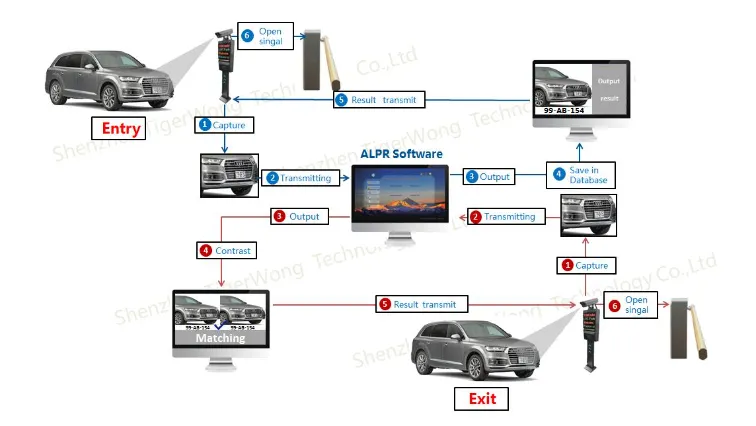

How Does the License Plate Recognition System works?
The license plate recognition camera captures an image by means of vehicle head detection or loop coil trigger,
and the image is transmitted to the software. The software algorithm recognizes the image, writes the recognition
result into the database and returns it to the camera, and the camera sends the switchsignal to barrier switch.
The license plate recognition camera captures an image by means of vehicle head detection or loop coil trigger,
and the image is transmitted to the software. The software algorithm recognizes the image,outputs the recognition result
and compares it with the entrance recognition result in the database. The comparison is successful and the result is returned to the camera.

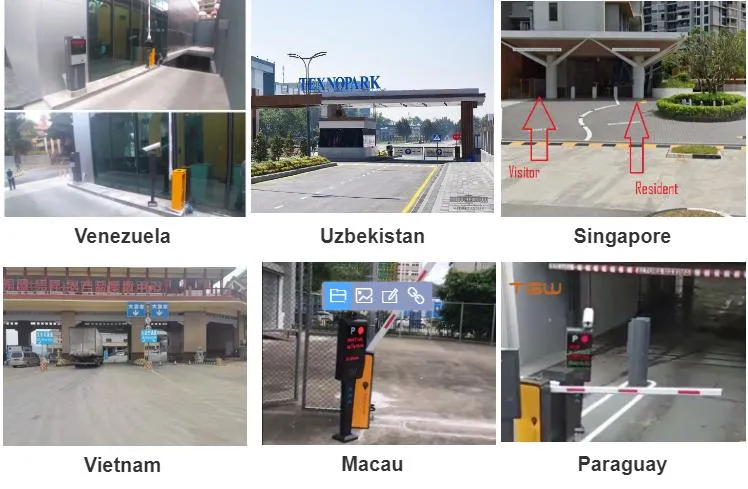

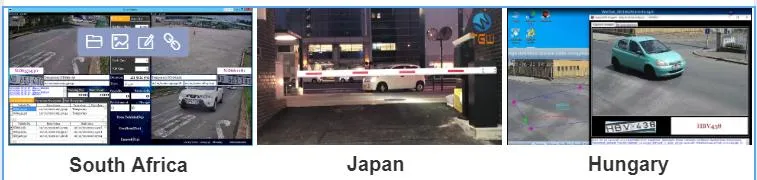

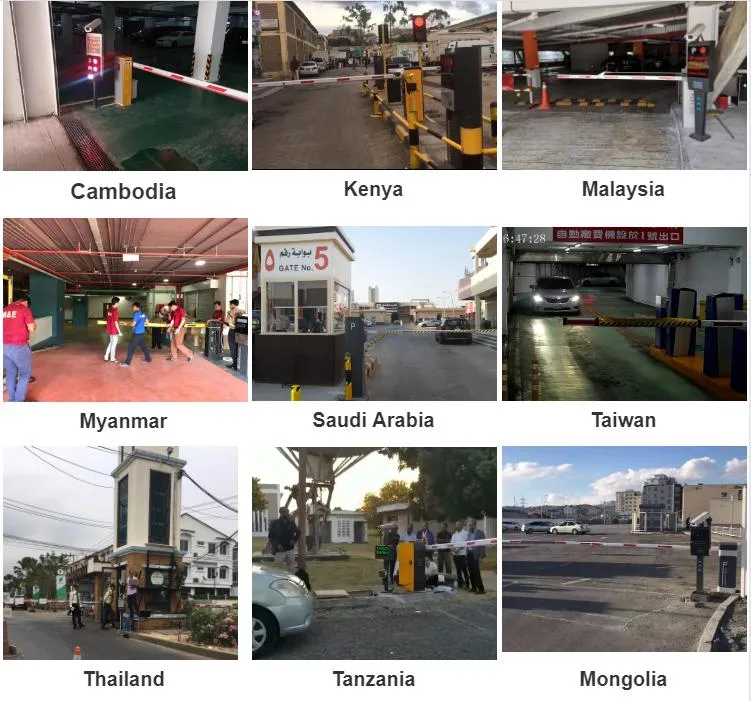

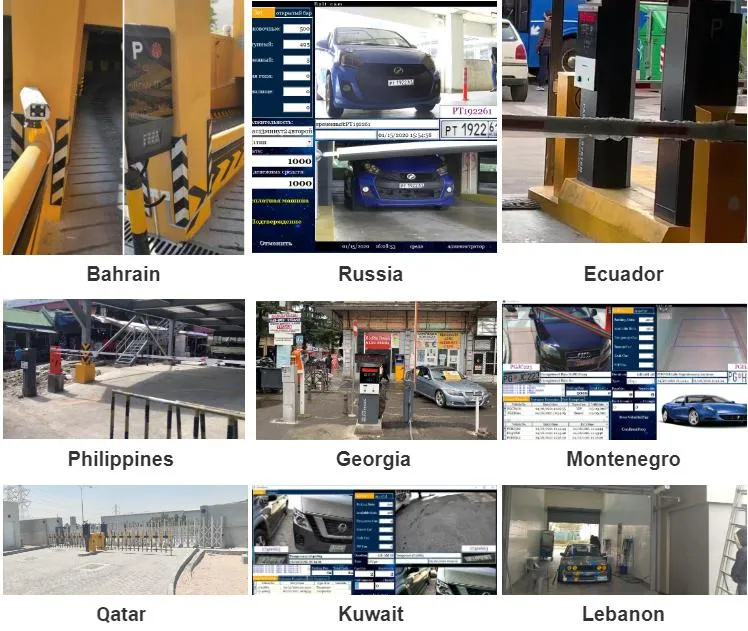

TGW Some Global Projects
1. Q: Are you a manufacturer or a trading company?
A: We are one of the TOP 5 company in LPR system industry with more than 17 years. All the LPR management software
are developed by our R&D team.
2. Q: What kind of technical support you can provide?
A: We have professional R&D team and technical department, they can assist you in any installation task and technical guide.
And if necessary, our engineer could fly to your country to provide service.
3. Q: Can you provide OEM service?
A: Yes we can. As we have our own R&D team, we can develop the software and manufacture the hardware per your request.
4. What countries license plate could be recognized by your LPR Software?
A: So far, our LPR System could recognize 128 countries license plate. You can provide a licence plate number picture to us
and we can test it and then send the recognition result video to you for review.
