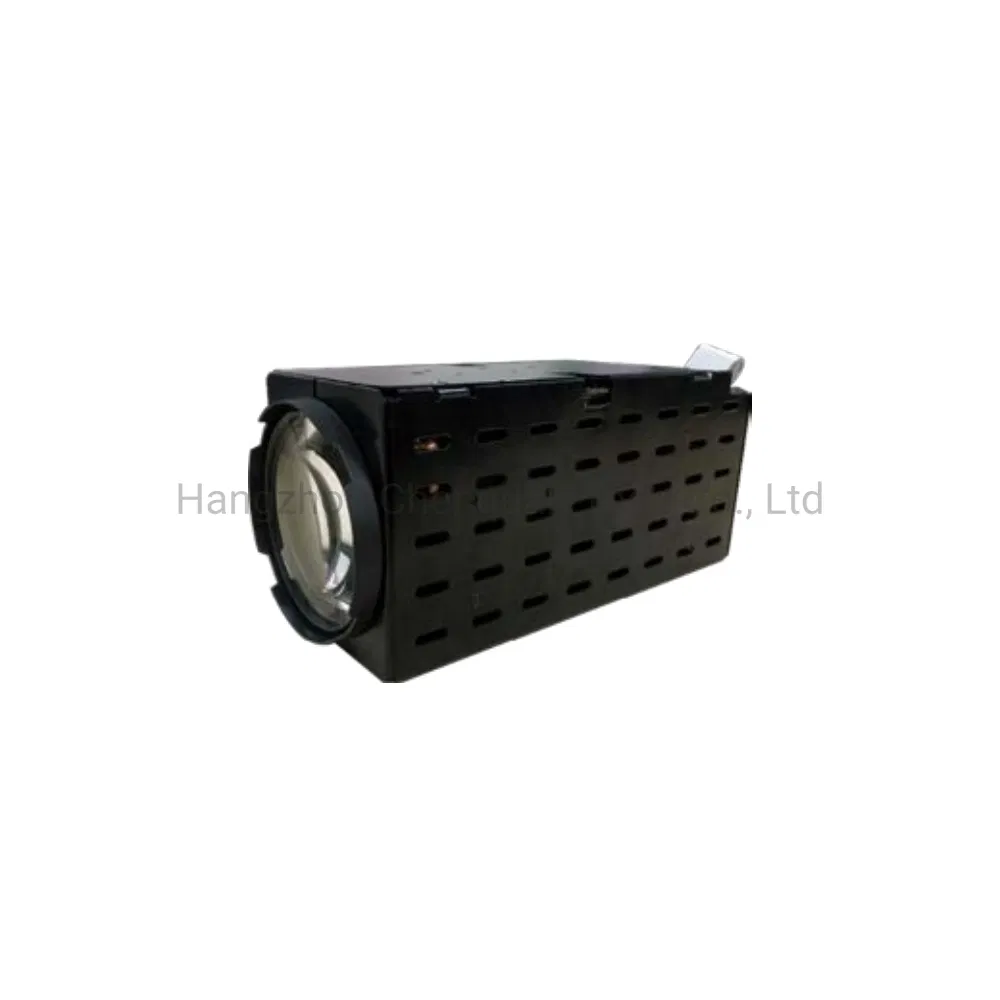

China Auto Focus 2MP 42X Starlight Digital Zoom Camera Module

Product Description

2MP 42X Starlight Digital zoom module

Features:

H.265, 2MP, Starlight 42x5.7~256mm, Auto Focus
120dB WDR
Corridor Mode, HLC, Defog, Triple streams, BMP/JPG snapshot
Intelligent Functions: area intrusion, line crossing, smart analysis, etc.
30-pin KEL coaxial cable interface(LVDS output, compatible with Sony FCB-EH6300)
VISCA command interface is supported by the software

	Name	2MP 42X Starlight Digital Zoom Module
Camera	Sensor	1/2" CMOS SONY IMX385
	Focal Length	5.7-256mm, 42X
	Shutter Time	1/25~1/100000
	Aperture Range	F1.4-F4.5
	Illumination	[email protected], B/[email protected]
	FOV	65.3~1.5°(Min.~Max.)
	Min. Distance	0.1m-2m(Min.~Max.)
	AF Speed	10S Optical lens, (Min.~Max)
	D/N Shift	ICR, Auto, Color, White/Black, Timing, Threshold Control, Rotation
	Digital Zoom	16x
	System Mode	PAL/NTSC
	Lens Initialization	Built-in
	Focus mode	Auto / manual / semi-auto / one time focus(auto mode)
	WDR	120dB
	Image Adjustment	Saturation, Brightness, Contrast, Sharpness, Hue Adjustment
	Interface	30pin LVDS
	Image Setting	Privacy Mask, Anti Flicker, Defog, Corridor Mode, Mirror, Rotate, BLC, HLC, Defect point compensation, watch mode, power off memory, DIS, distortion correction, 3d position
Other	Working Temp.	-10ºC ~ 60ºC Humidity≤95%(non-condensing)
	Power	DC12V
	Power Cons.	3W~5.5W
	Dimension	177.5x71.8x78mm
	Weight	930g
