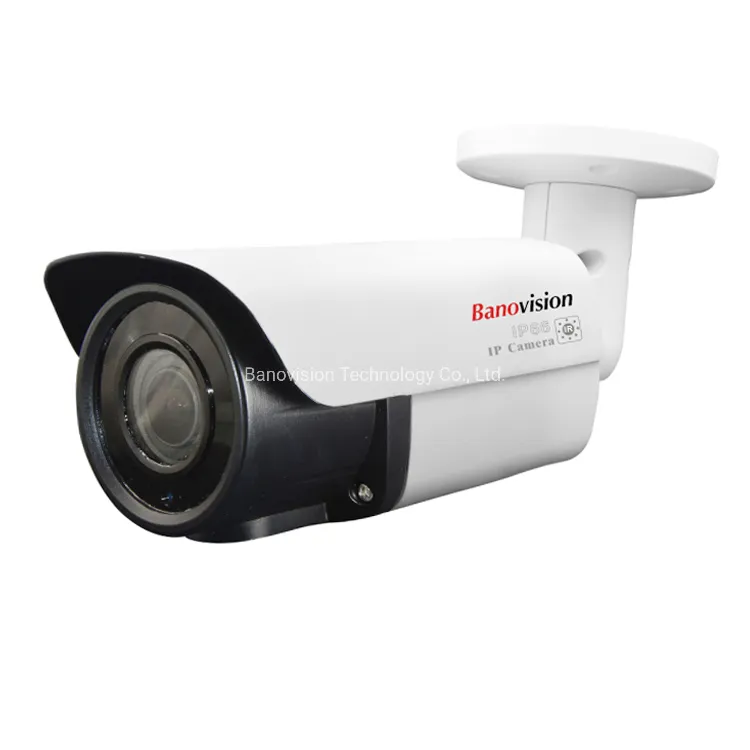

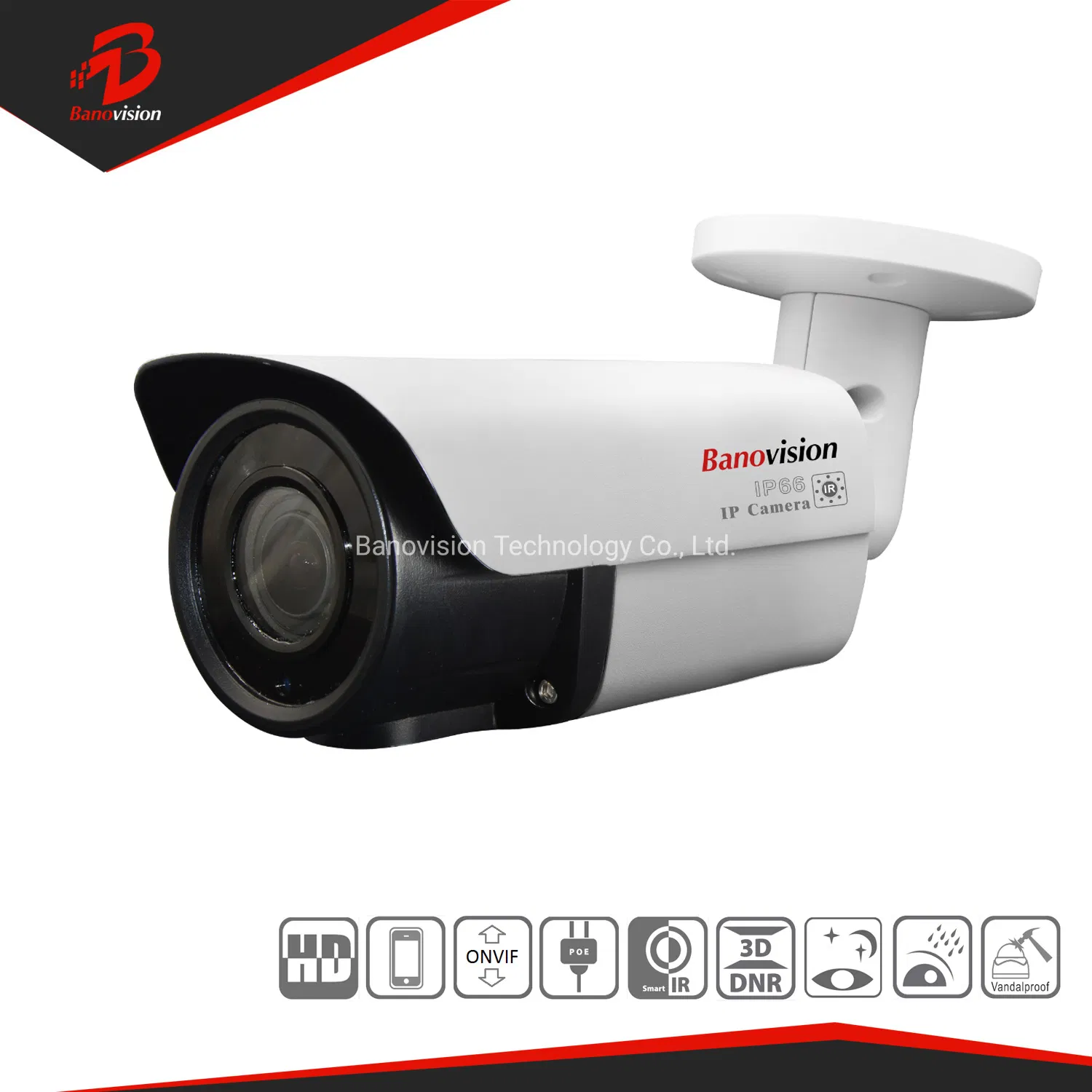

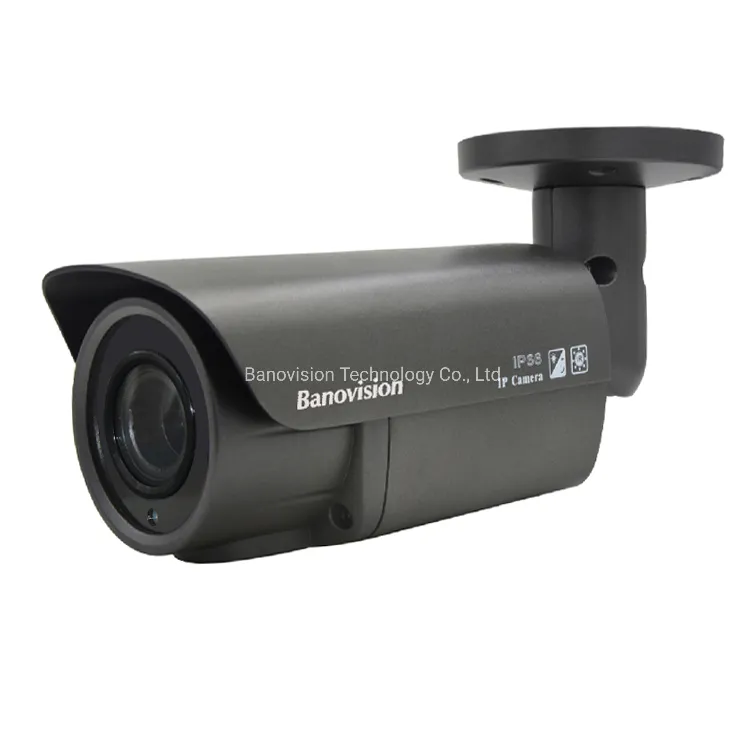

Banovision 5MP Waterproof CCTV Security Digital Surveillance Home Network IP Camera with Motorized Lens From CCTV Camera Supplier
Features* 1/2.8" Sony IMX335 CMOS sensor* Full HD resolution 2592 x 1944P* Ultra low illumination 0.05Lux* Day/Night (ICR),AWB, 2D/3D-DNR, IR-CUT* D-WDR, Motion Detection, Privacy Mask, Mirror, Flip* RTSP and Onvif 2.4 compatible* H.265/H.264 dual-stream media server* Easy-to-use P2P Cloud serv......
Send Inquiry
Product Description
Features
* 1/2.8" Sony IMX335 CMOS sensor
* Full HD resolution 2592 x 1944P
* Ultra low illumination 0.05Lux
* Day/Night (ICR),AWB, 2D/3D-DNR, IR-CUT
* D-WDR, Motion Detection, Privacy Mask, Mirror, Flip
* RTSP and Onvif 2.4 compatible
* H.265/H.264 dual-stream media server
* Easy-to-use P2P Cloud service

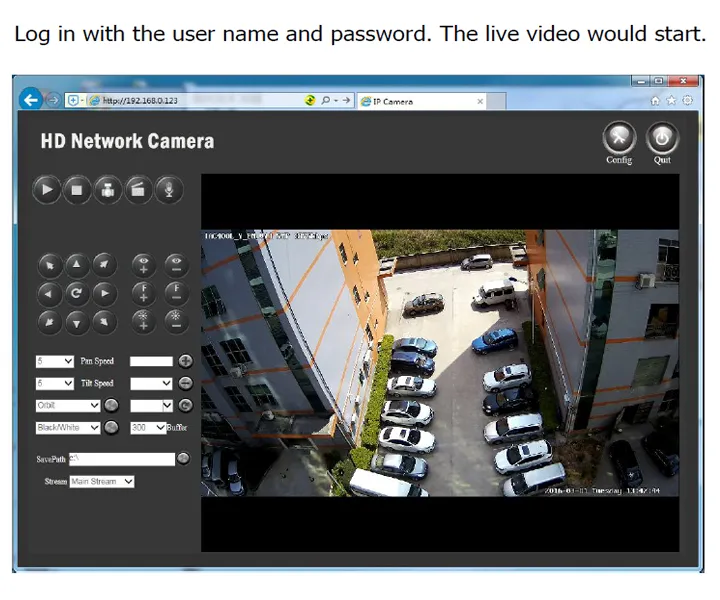

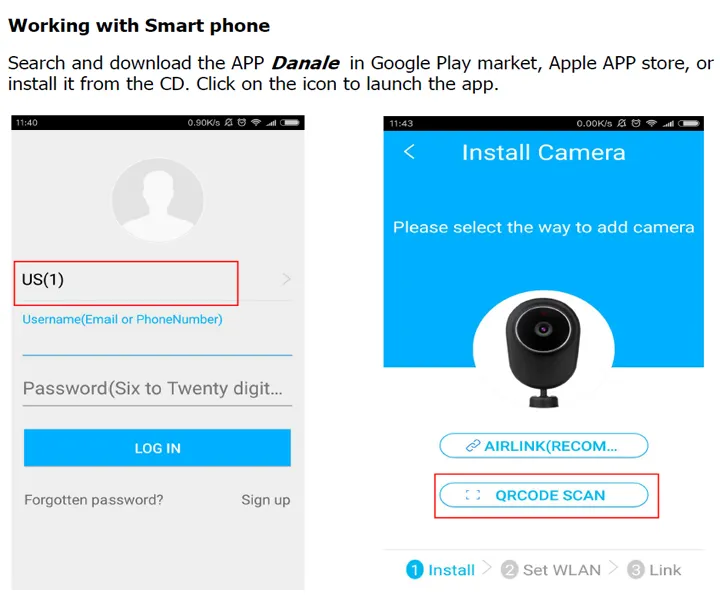

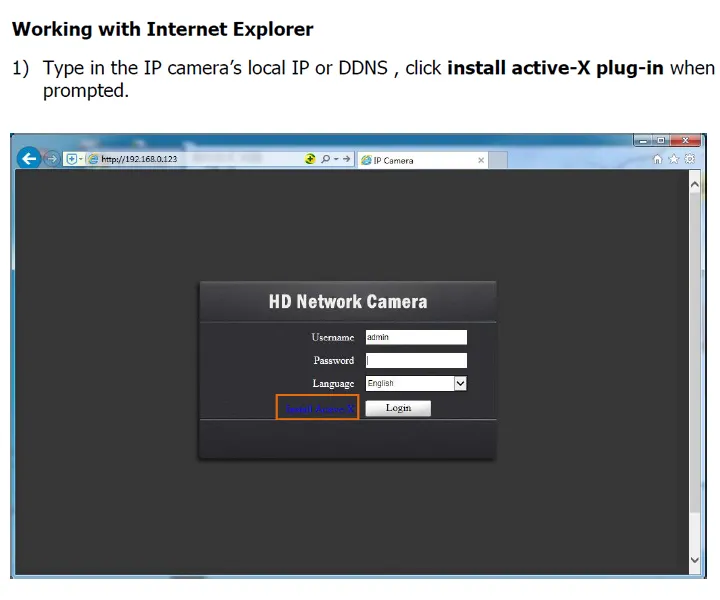

* Multi web browser, PC Client, mobileAPP remote access
* Optional customization Lens/POE, etc.
* Strong Water-proof housing, IP66
* 20pcs Array IR Leds, IR distance 15-30 meters
* 2.8-12mm Motorized Lens
Specification
| Model | BA-NW20A50-SM |
| Camera | |
| Image Sensor | 1/2.8" 5MP IMX335 CMOS |
| Effective Pixels | 2592(H)×1944 (V) |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | [email protected](AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto |
| AGC | Support |
| DNR | 2D/3D DNR |
| Other | Motion Detection, Privacy Mask, Mirror, Flip |
| Encode | |
| Embedded Solution | SSC337DE |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream: 18fps@5MP(2592x1944), 25fps@4MP(2592x1520), 30fps@3MP/1080P/720P |
| Sub stream: VGA(640x480)/360P/QVGA@25fps | |
| Video Bitrates | 512Kbps - 6Mbps, VBR/CBR |
| Audio Standard | G.711-u |
| IR Led | |
| IR Led | 20pcs Array IR Leds |
| IR Distance | 15-30M |
| Lens | |
| Focal length | 2.8-12mm Motorized Lens |
| Optional Function | |
| Audio, POE etc. | |
| Network Services | |
| Protocol | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP |
| P2P | Yes |
| Web | IE , Firefox, etc. |
| Media | CMS, Android, IOS |
| ONVIF | 2.4 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 5 W |
| Operating Temp. | -30ºC-(+60)ºC, 10%-90%RH |
Our Service
OEM Service:
We offer OEM and ODM services for our clients.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
How to oder from us?
1) Please confirm the model numbers and quantities that you would like to purchase to our sales person,
or email to us.
2) We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges
once you confirm the order.
3) After you arrange the payment and send us your bank slip, we will put your order down to production,
and let you know the delivery date in 2 days.
4) When the goods are finished, we will send them by air express,or by sea or other available shipping method appointed by customers, and let you know the tracking number and estimated time of arrival.
