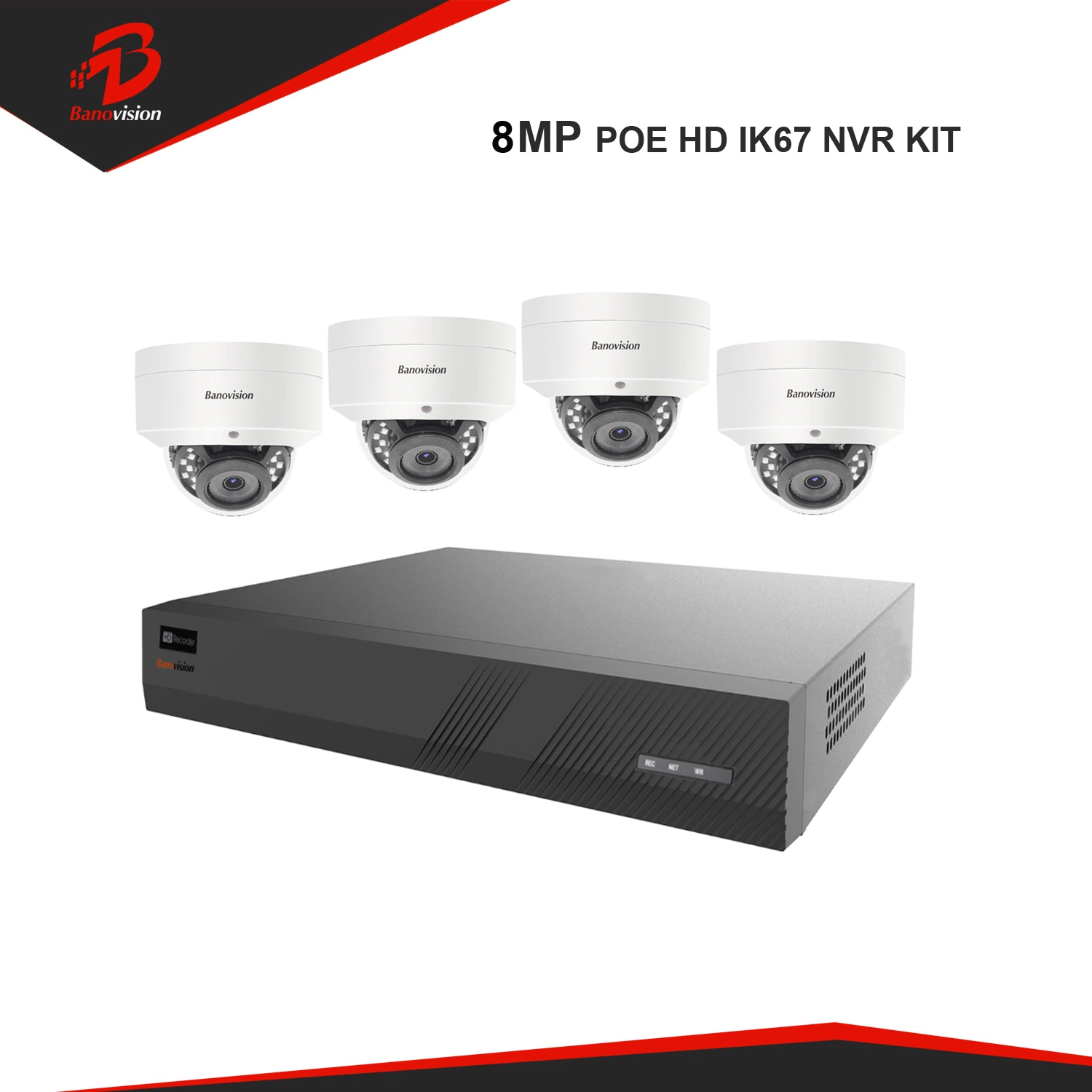

Banovision Home Security Surveillance NVR Poe HD 4K 8MP Dome 4 Channel CCTV PTZ IP Night Vision Cameras Kits CCTV System
Features:NVR * H.264/H.265 8CH 4K POE NVR KIT * Support 8CH 8MP/ 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input* Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse* Multi-mode recording: manual / timer / motion / sensor* Playback : 8CH simultaneous playback*......
Send Inquiry
Product Description
Features:
| NVR | ||
| * H.264/H.265 8CH 4K POE NVR KIT | ||
| * Support 8CH 8MP/ 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input | ||
| * Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse | ||
| * Multi-mode recording: manual / timer / motion / sensor | ||
| * Playback : 8CH simultaneous playback | ||
| * Search : time slice, time, event ( manual, sensor, motion ), tag search | ||
| * Express and flexible backup via USB, network and so on | ||
| * Pentaplex: preview, record, playback, backup and remote access | ||
| * DHCP, DDNS, PPPoE network protocol and CMS supported | ||
| * Remote control via IE or CMS : preview, playback, backup, PTZ and configuration | ||

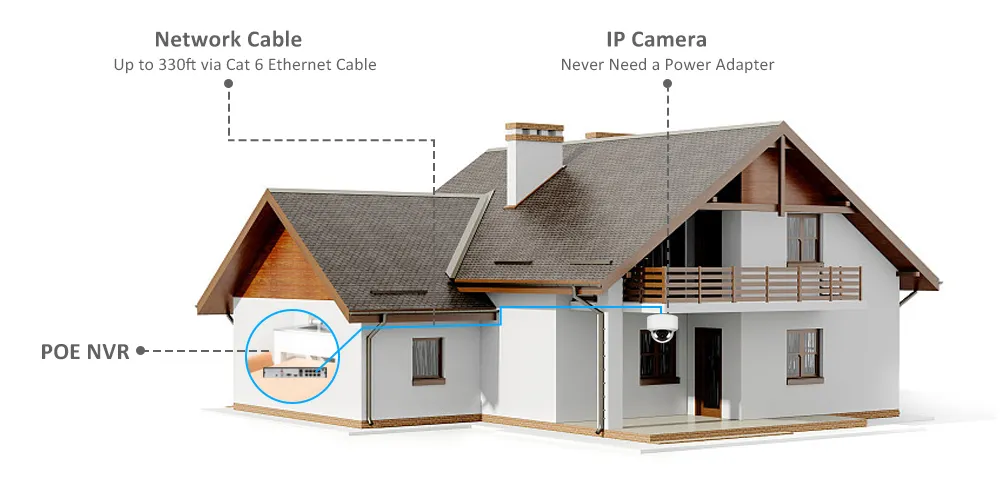

| * 8PoE network ports, support IPC direct connection to NVR; support PoE power supply | ||
| * Powerful smart phone & Pad surveillance with iOS and Andriod OS |
| Camera | ||
| * 1/2.8" Sony low-light CMOS sensor | ||
| * Low illumination 0.001 Lux | ||
| * Day/Night (ICR), AWB, AGC,D-WDR, 2D/3D-DNR, IR-CUT | ||
| * Motion Detection, Privacy Mask, Mirror | ||

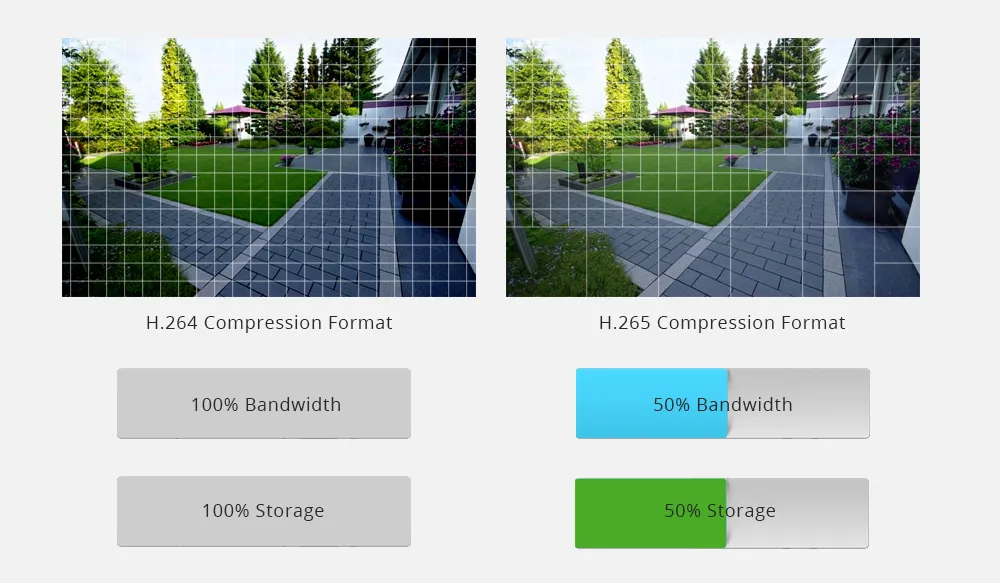

| * H.265/H.264 dual-stream media server | ||
| * Max.8MP HD output | ||
| * Ultra low bitrate and high image quality | ||
| * Easy-to-use P2P Cloud service | ||
| * Multi web browser, PC Client, mobile APP remote access | ||
| * Optional customization Lens/Audio, etc. | ||
| * 8pcs Big Led array, IR distance 15-30 meters( NW2A bullet) | ||
| * Lens: Fixed lens 2.8mm/3.6mm (default) | ||
| * Vandal proof housing ,waterproof, IP66(bullet) |
Specification:
| NVR KIT Model | BA-1N3108L-P4-NKD8 | |
| NVR | BA-1N3108L-P8 | |
| System | Compression | Standard H.265 |
| OS | Embedded Linux | |
| Video | Network Input | 8CH IPC input |
| Network Access Bandwidth | 50Mbps | |
| Network Access Format | 8MP/ 5MP / 4MP / 3MP / 1080P / 960P / 720P@25 / 30fps | |
| Output | HDMI × 1 : 1920 × 1080 / 1280 × 1024 HDMI-VGA cable optional, 1920 × 1080 / 1280 × 1024 | |
| Record | Record Stream | Ultra 265/H.265/H.264 |
| Resolution | 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P | |
| Mode | Manual, timer, motion, sensor | |
| Playback | Simultaneous Playback | Max 4CH |
| Search | Time slice / time / event / tag search | |
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Network | Interface | RJ45 10 / 100 Mbps × 1 |
| PoE Port | RJ45 × 4 | |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP | |
| Web Client | Multiple users online | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD | SATA × 1, max 10T |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |
| Port | USB | USB 2.0 × 2 ( on the rear panel ) |
| Remote Controller | Optional | |
| Others | Power Supply | DC48V |
| Consumption | ≤ 5W ( without HDD ) | |
| Dimensions (mm) | 260mm × 240mm × 46mm (10.2"×9.4"×1.8") | |
| Work Environment | -10 ~ 50 ºC,10% ~ 90% humidity | |

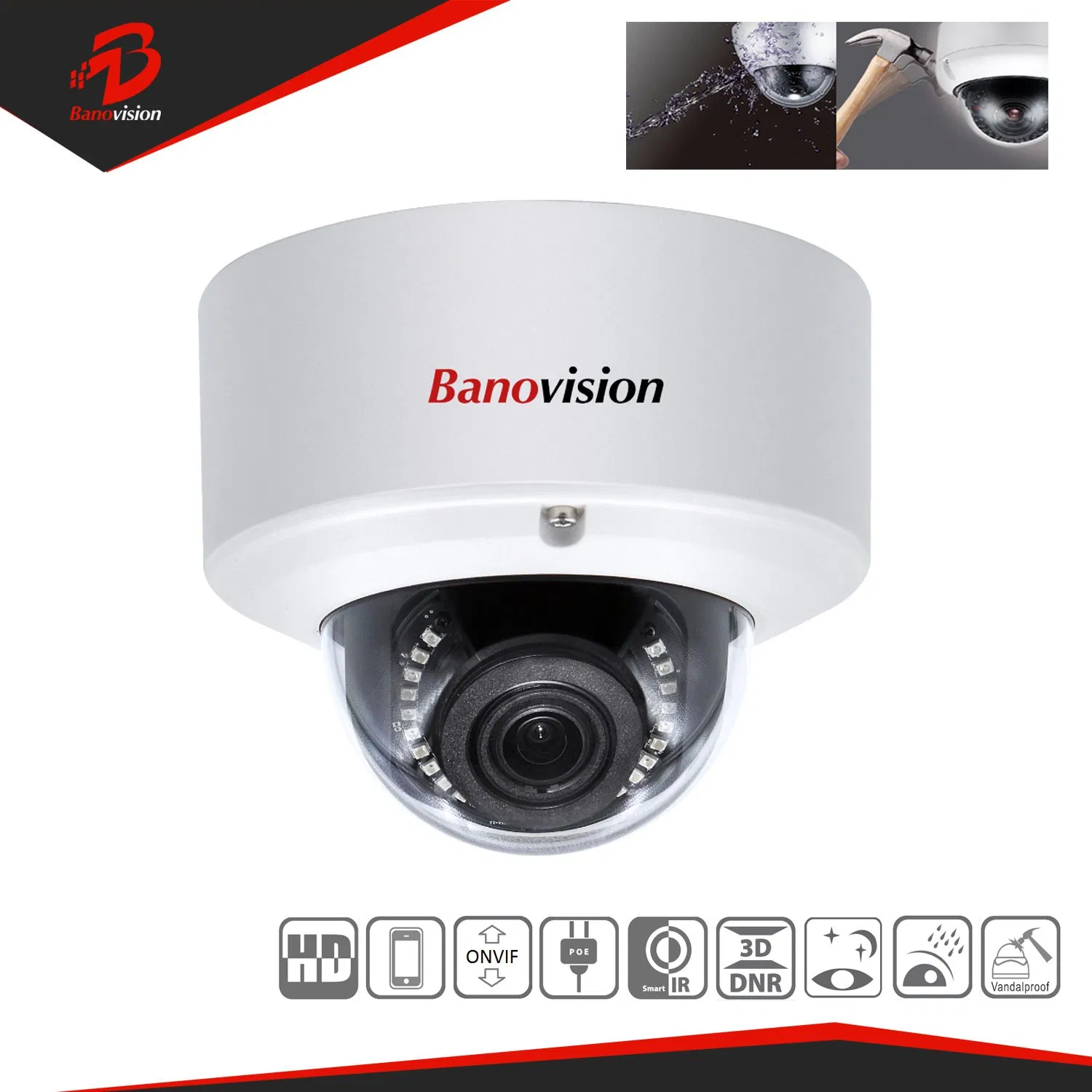

| Model | BA-ND24A80 | |
| Image Sensor | 1/2.8" Sony IMX415 CMOS | |
| Effective Pixels | 3840(H)x2160(V) | |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s | |
| Min. Illumination | [email protected](AGC ON), 0Lux IR on | |
| Day/Night | Auto/Color/(B/W)/Timing | |
| WDR | Digital WDR | |
| White Balance | Auto | |
| BLC / HLC | Support | |
| DNR | 2D/3D DNR | |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror, Flip | |
| Encode | ||
| Embedded Solution | SCC328Q+IMX415 | |
| Video Standard | H.265/H.264 | |
| Video Resolution | MainStream:15fps@8MP(3840x2160),30fps@6MP(3072x2048)/ 5MP(2592x1944)/4MP(2592x1520)/3MP/1080P/720P,etc. | |
| Sub stream: D1/VGA(640x480)/360P/QVGA@25fps | ||
| Video Bitrates | 512Kbps - 6Mbps, VBR/CBR | |
| Audio Standard | G.711-u/G.711-a | |
| IR Led | ||
| IR Led | 24pcs SMD LED array | |
| IR Distance | 20-30meters | |
| Lens | ||
| Focal length | 2.8-12mm VF lens | |
| Optional Function | ||
| POE, Audio, Alarm In/Out, SD card, etc. | ||
| Network Services | ||
| Protocol | RTSP/DHCP/NTP/DST/FTP/SMTP | |
| P2P | Yes | |
| Web | IE , Firefox 32bit esr | |
| Media | CMS, Android, IOS | |
| ONVIF | 2.6 compatible | |
| General | ||
| Network Port | 1-RJ45, 100Mbps, POE optional | |
| Power Supply | 12 VDC ± 10% | |
| Power Consumption | < 5 W | |
| Operating Temp. | -30ºC-(+60)ºC, 10%-90%RH | |
| Pack Contents(Pack Contents): | ||
| NVR Power Supply: DC12V/2A - 1 PC | ||
| Cameras: 8pcs bullet | ||
| Remote Control | ||
| USB Mouse | ||
| Lan Cable: 8pcs 18m(59ft) | ||
| Manual | ||
| Screws | ||
