Best Sale Industry Security Monitoring Middle Range Dual Sensor Thermal Camera

Product Description

Product features
1) Integrating infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring
2) Adopting thermal imaging technology, not limited by light source, imaging clearly
3) Day and night 2 megapixel low illuminance color camera, realizing details observing
4) High intelligence, simple to operate, easy to use and maintain
5) 3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability
6) Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating

Technical specification

Operating distance	Visible light	1000m
	Thermal imaging	object	Human(1.8m×0.5m)	Vehicle(2.3m×2.3m)
		Detection distance	480m	1320m
		Recognition distance	120m	330m
		Identification distance	60m	160m
All-in-one machine	Sensor type	1/4″EXview HAD CCD
	Effective pixel	About 0.44MP
	Horizontal resolution	530TVL(color);570TVL(black and white)
	Focal length	3.4~122.4mm,36× optical zooming
	Horizontal FOV	1.7°~57.8°
Thermal imaging camera	Detector type	uncooled microbolometer focal plane array(α-si)
	Effective pixels	384×288
	Spectral range	8~14μm
	Temp sensitivity	≤[email protected],300K
	Focal length	20m(athermalization design)
	FOV	27.0°×20.4°
	Frame rate	25Hz
	Image processing	DDE, pseudo color
Pan-tilt	Angle	Horizontal 360°continuous rotation,pitching -90°~+90°
	speed	Horizontal 0°~50°/s,pitching 0°~50°/s
	Preset bits	Max 128
	Cruising	6cruising paths,20 bits each path
	Anti-lightning	TVS 6000V
Interface	Power supply interface	DC12V
	Other interfaces	RS485,2xBNC video output
Environment indicators	Working temp	-25ºC~+55ºC
	Storage temp	-40ºC~+65ºC
	Relative humidity	10%~90%
	Anti-salt fog	continuous spraying for 48 hours at PH 6.5-7.2,surface with no changes
	Protection grade	IP66
Power supply	Whole machine power supply	DC12V,appendant 220VAC~12VDC/3A water proof power supply
	Whole machine power consumption	≤30W
Physical features	Whole machine weight	7.5kg
	Installation method	Outdoor pedestal mounting

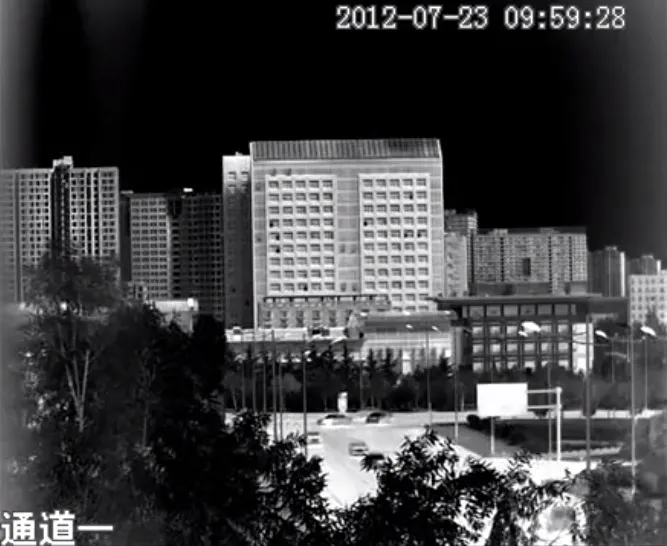

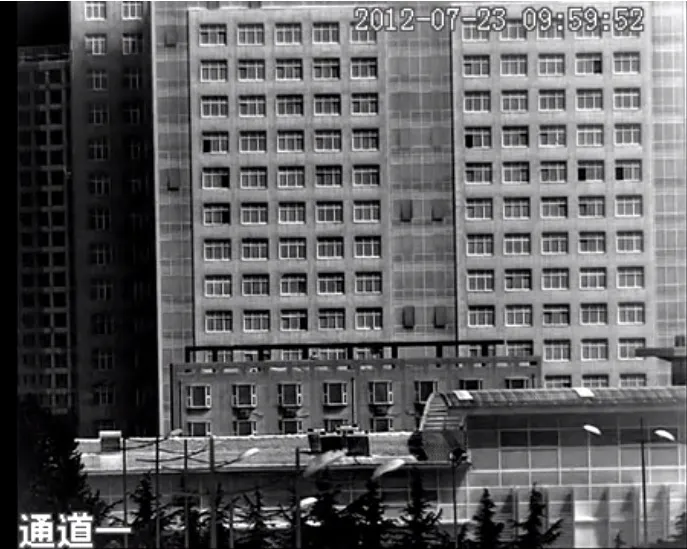

Effect Demo

Packing method

FAQ
1: How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product's quality.

2: What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

3: What is your term of delivery?
We accept EXW, FOB Jinan or FOB Beijing. You can choosethe one which is the most convenient or cost effective for you.

4: What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
