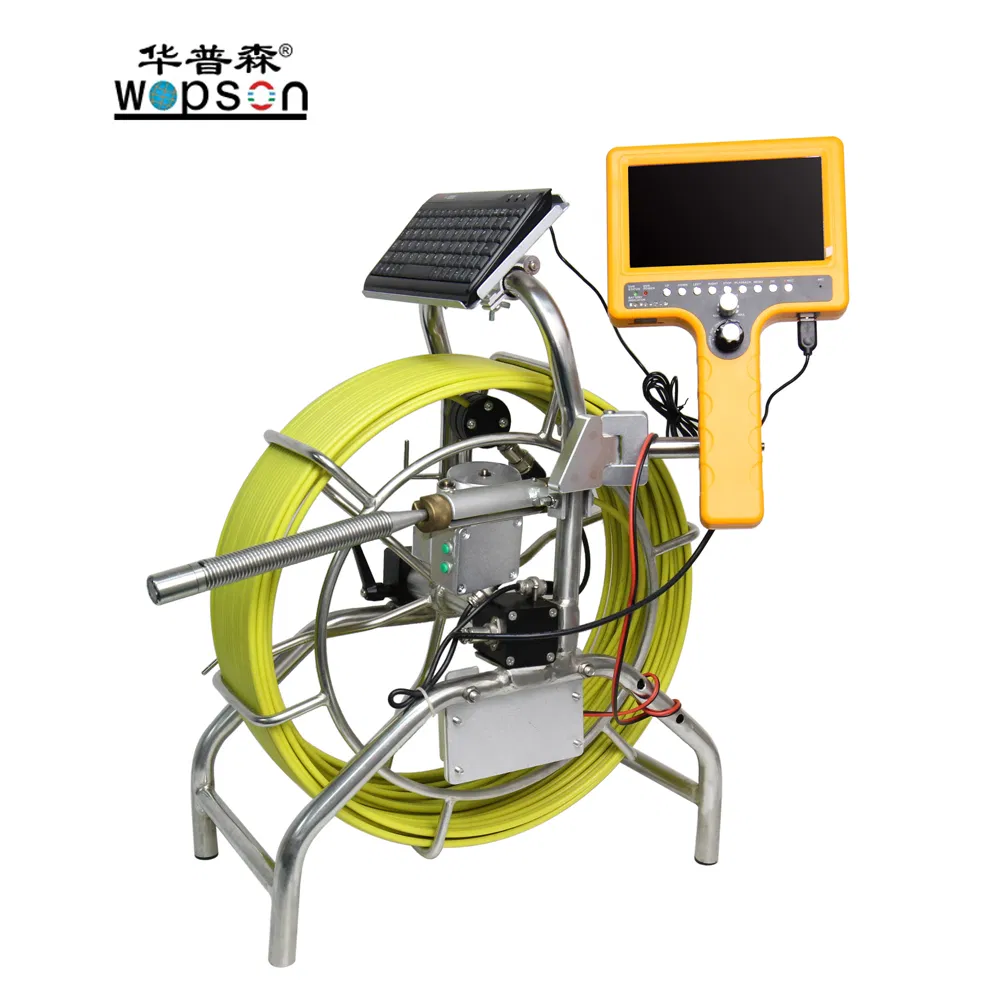

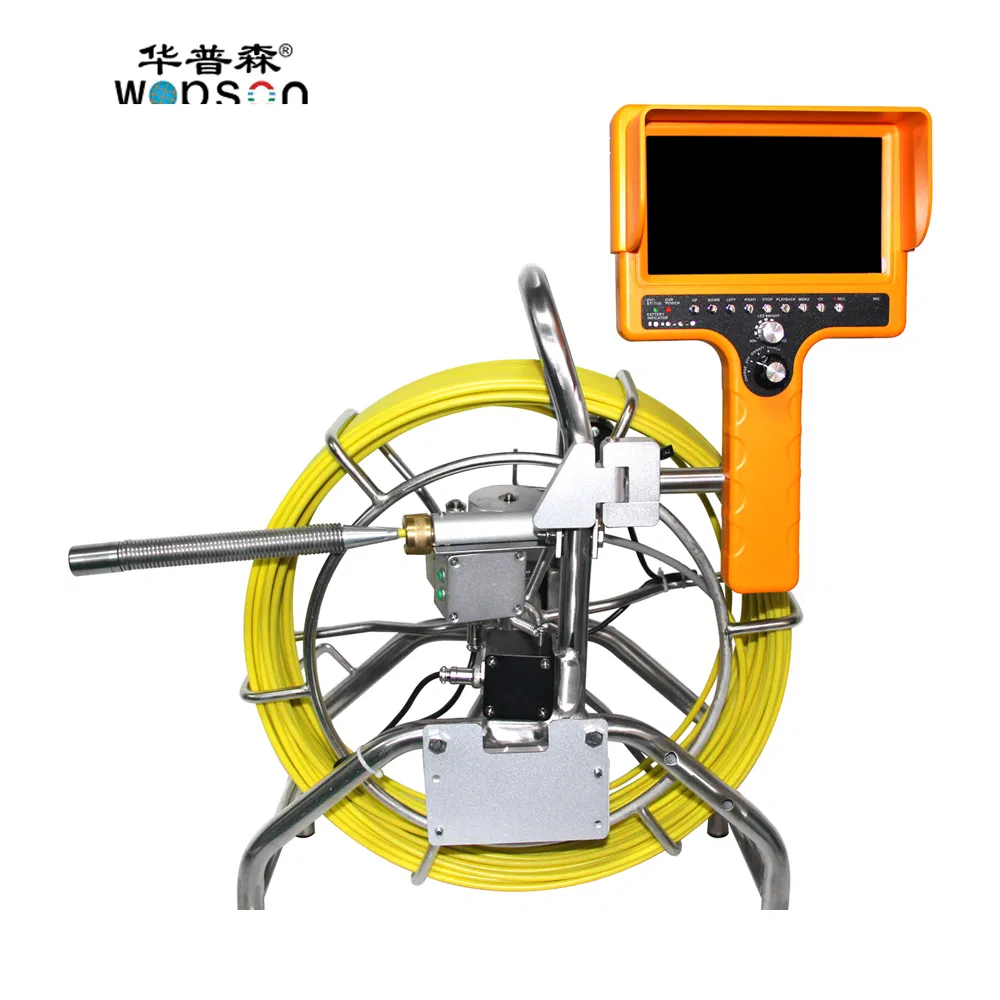

CCTV 23mm Infrared Camera with 512Hz Transmitter for Drain and Pipe Inspection
Fiberglass push cable for sewer underwater inspection camera systemMain Characteristic Camera: 40mm self-levelling camera Cable length: 60m/80mControl part: video recording and text writingLeds adjustable 7 inch TFT Color handy monitor Monitor Size 7 inch TFT color monitorPixe......
Send Inquiry
Product Description
Fiberglass push cable for sewer underwater inspection camera system
Main Characteristic
Camera: 40mm self-levelling camera
Cable length: 60m/80m
Control part: video recording and text writing
Leds adjustable
Thanks for your attention!
Shenzhen Wopson Electrical Co., Ltd intentionally deals with all kinds of electronics and specializes in security and monitoring system. Wopson has a producing base in Shenzhen, Our main products include CCTV, Special Monitor system & pipe inspection system.
Main Characteristic
Camera: 40mm self-levelling camera
Cable length: 60m/80m
Control part: video recording and text writing
Leds adjustable
7 inch TFT Color handy monitor | |
| Monitor Size | 7 inch TFT color monitor |
| Pixels | 1440*234 |
| Monitor Power Supply | DC 12V |
| OSD Language | English |
| Operating Temperature | -10°C to +50°C |
| Up, down left, right adjustable | |
| Shock absorber hinges also acts as sun visor | |
| 16:9 & 4:3 model | |
| Waterproof Connector | |
60m/80m push rod cable | |
| Cable Size | Φ460(L)*270(W)*560(H) |
| Wire Material | Fiberglass rod |
| Fiberglass Length | 60m(standard) & as your requirement |
| Fiberglass Diameter | Φ7mm |
| Fiberglass Color | Yellow |
| Cable wheel material | Stainless steel |
| Meter/ Feet counter | |
| Handle-brake | |
Self-levelling & waterproof & bright 42PCS LEDS 40mm camera | |
| Camera Size | Φ 40mm*77mm with auto-levelling function |
| Camera Lens Material | Sapphire glass |
| Sensor Size | 1/4 inch |
| Total Pixels | PAL:720*576 NTSC:720*480 |
| View Range | 120 ° |
| Illumination | 42PCS WHITE LED |
| Waterproof Level | IP68 |
| Camera Work Current | 100MA |
| Camera Power Supply | DC 12V |
| Operating Temperature | -10°C to +50°C |
Control box with DVR video recording | |
| DVR Power Supply | 12V |
| DVR Work Current | 200MA |
| Storage Medium | SD card (max32G) |
| Total Pixels | 720*567(D1) |
| Movie Format | AVI |
| Microphone Audio Record | |
| Stereo Earphone Output | |
| Digital Clock and Digital Calendar | |
| Battery Level Display | |
| Picture Sanp and Movie Record | |
USB Keyboard | 220*110*15mm |
| Keyboard Interface | USB input |
| Language | English |
| Text Edit Line | PAL 28 letter 15 line NTSC 26 letter 12line |
| Max Edit Page | 4 pages |
Battery | |
| Total power | 14W |
| Charge time | 5 hours |
| Protective voltage | 8.1V |
| Used Time | >260minutes |
| 12V 4000MAH rechargeable li-ion battery(18650) | |
ABS engineering plastic waterproof carry case | |
| Case Size | L520*W435*H200mm |
| Case Material | Engineering plastics |
| Empty Case Weight | 5.9KG |
| Case Color | Black / orange / green |
