CCTV HD Outdoor 5.0MP 20X/36X Zoom High Speed Dome IP PTZ Camera
CCTV HD Outdoor 5.0MP 20X/36X Zoom High Speed Dome IP PTZ CameraFeature* 4.5" double layer metal body construction, IP66 rate protection * 1/3" CMOS, 5.0 Megapixels, 20X/36X optical zoom* HD-IP digital interface output, 1080P high definition image * PWM function, intelligent IR illumi......
Send Inquiry
Product Description
Feature
* 4.5" double layer metal body construction, IP66 rate protection
* 1/3" CMOS, 5.0 Megapixels, 20X/36X optical zoom
* HD-IP digital interface output, 1080P high definition image
* PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
* IR distance 120M/240M
* Support P2P function,OSD menu is available
* ONVIF2.4 compatible; good compatibility with NVRs like DAHUA , HIKVISION , JUFENG and AXXON , Milestone and so on
Specification:
| Product Name | CCTV HD Outdoor 5.0MP 20X/36X ZOOM High Speed Dome IP PTZ Camera | ||
| Camera | |||
| Model Number | WDM-IP8617ER5H-20X | WDM-IP8612B-36X | |
| Image Sensor | 1/3'' 5.0M piexls CMOS Hi3516E+sonny335 | 1/3'' 5.0M piexls CMOS Hi3516A+sonny335 | |
| Effective Pixels | 5.0MP(2592×1944) | ||
| Min. Illumination | Color; 0.05Lux@(F1.6, AGC ON) ; 0.01Lux@(F1.6, AGC ON) | ||
| Zoom | 20X optical zoom, f=4.7-94mm, 36* zoom(f= 4.6mm~165mm) D/N( ICR-Cut) ,F1.6~F1.8 | ||
| Day/Night | Day / Night / External control (IR Cut Filter) | ||
| SNR | ≥50dB(AGC OFF) | ||
| WDR | Digital WDR≥70dB | ||
| AGC | Auto / Manual | ||
| White balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | ||
| Digital noise Reduction | DNR, 3DNR | ||
| Network | |||
| Video Compression | H.265/H.264 Main Profile/M-JPEG | ||
| Max Image Size | 2592×1944@30fps | ||
| Streams | Dual streams | ||
| Frame Rate | Main stream: 1920*1080, 1280*960, 1280*720,720*576, 640*480 | ||
| Sub-stream: 640*480,480*360, 352*288, 320*240, 176*144 | |||
| Bitrate | CBR/VBR, bitrate; 32Kbps~10Mbps variable | ||
| Audio Compression | G711, PCM | ||
| P2P | Android / IOS | ||
| Protocols | TCP/IP,HTTP, NTP,IGMP, DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P | ||
| Motion detect | Support | ||
| Privacy Zone Masking | Support | ||
| Onvif | Onvif 2.4 | ||
| IR parameters | |||
| Night vision distance | 120M | 240M | |
| Dome Features | |||
| Pan Range | 360° continued rotation | ||
| Tilt Range | 0~90°(Auto Flip) | ||
| Manual pan speed | 0.02~200°/S (1-64 degree variable) | ||
| Manual tilt speed | 0.02~120°/S (1-64 degree variable) | ||
| Actual preset Accuracy | ±0.10° | ||
| Preset points | 220 | ||
| Operation OSD language | Chinese /English | ||
| General | |||
| Certification | RoHs ,CE,FCC,IP66 | ||
| Work temperature | External-35Celsius degree~65Celsius degree | ||
| Work Humidity | 0%~95% (Non condensing) | ||
| Temperature control | Intelligent control | ||
| Power | DC 12V | ||
| Consumption | ≤ 20W | ||
| Lightning Protection | Transient Voltage 6000V | ||

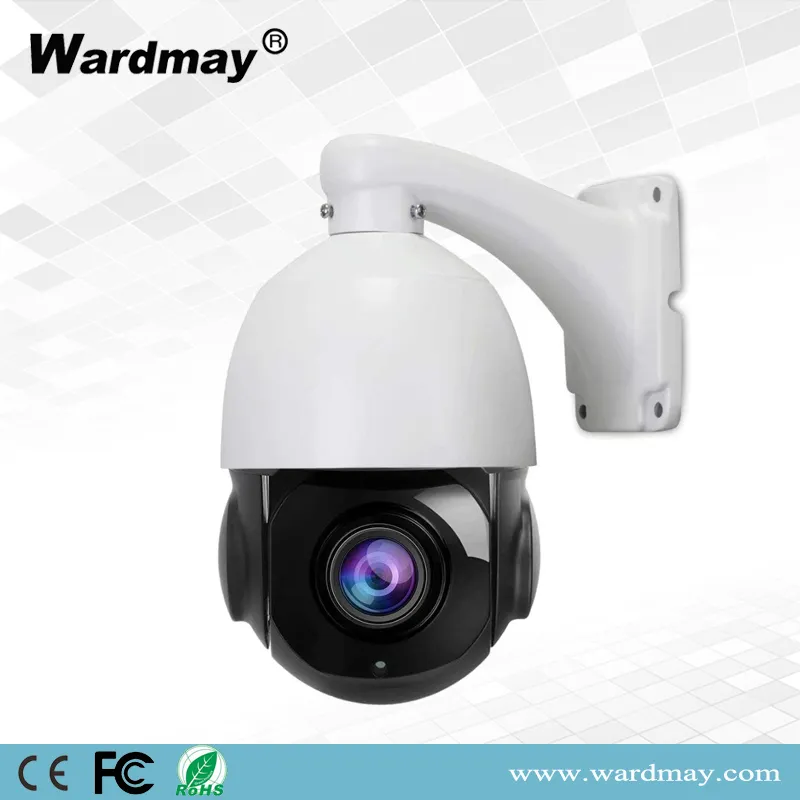

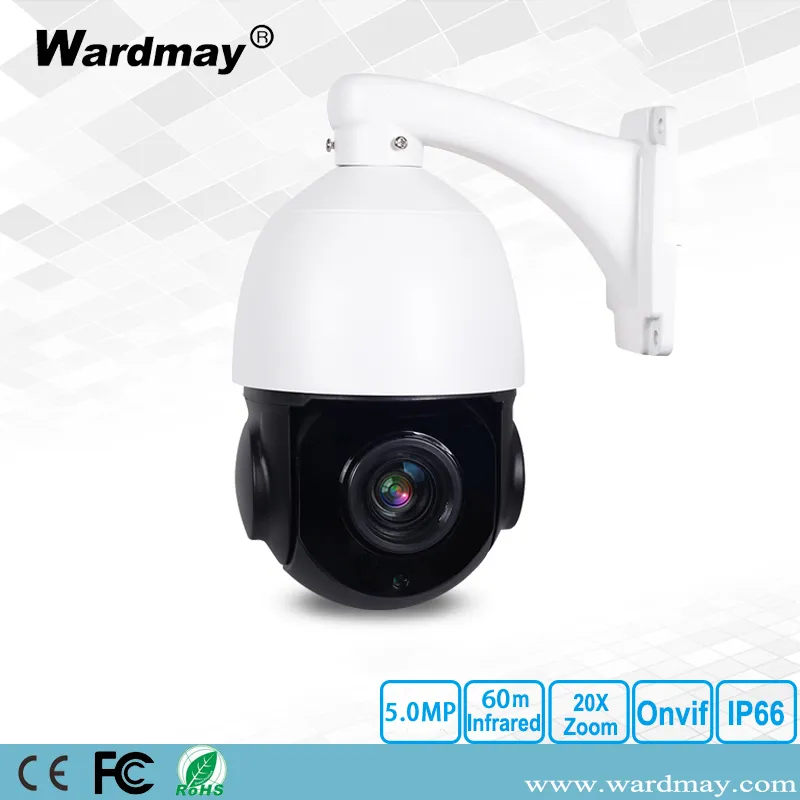

Product Show
