Cheap USB CMOS Camera Module Board

Product Description

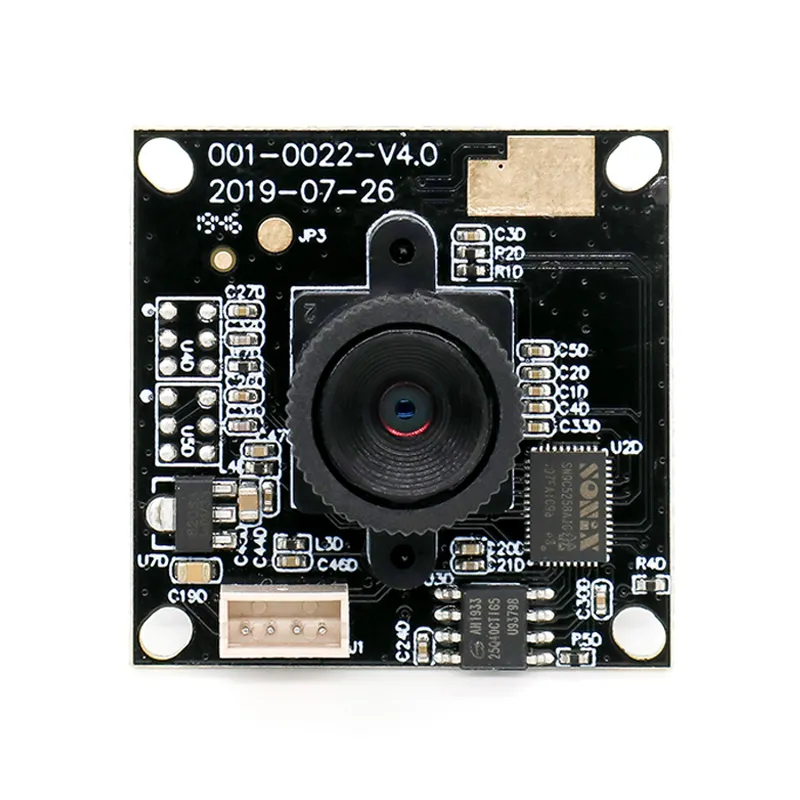

Cheap USB CMos Camera Module Board

1. 1/4 inch OV5648 cmos camera module

2. High quality digital MIC, single or dual channel is optional

3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.

4. USB camera module with 69 degree

5. 38*38mm mini micro USB board camera

Specification:

Items	Parameters
SENSOR	OV5648
Lens Size	1/4"
Maximum Pixels	5 Mega
Maximum Effective Resolution	2592 x 1944
Data Format	MJPG/YUY2
Pixel Size	1.4 µm x 1.4 µm
Dynamic Range	67 dB @ 8x gain
Lens	FOV :D= 69°
	Optical length :10.1MM
	lens construction:4E+IR
	mount :M12*P0.5mm
Focusing	Fixed focus
Frame Rate	10fps
Auto Control	Saturation,Contrast, Acutance,White balance,Exposure
Audio	High quality digital MIC, single or dual channel is optional
Voltage	DC 5V
Working Current	MAX 250mA
USB Connector	USB2.0
Storage Temperature	-20ºC to +70ºC
Working Temperature	Change with environmental temperature
System Compatibility	1,Windows XP(SP2,SP3),Vista ,7,8,10
System Compatibility	2,Linux or OS with UVC driver

Pictures Display:

Company Information:

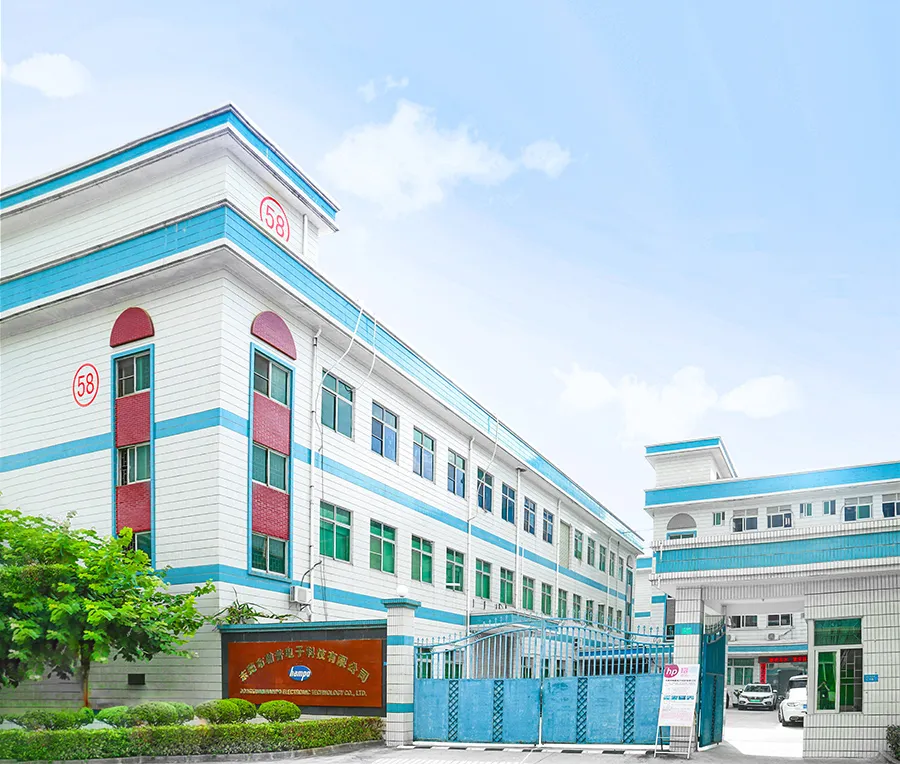

Dongguan Hampo Electronic Technology Co., Ltd, which was founded in 2015, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo has buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.

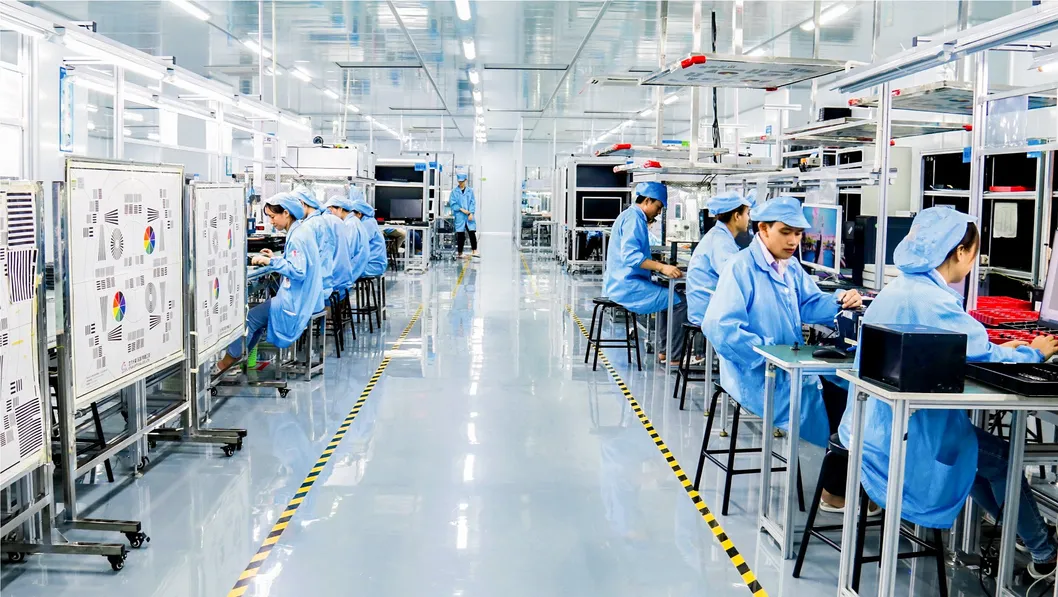

We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed companies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc.
