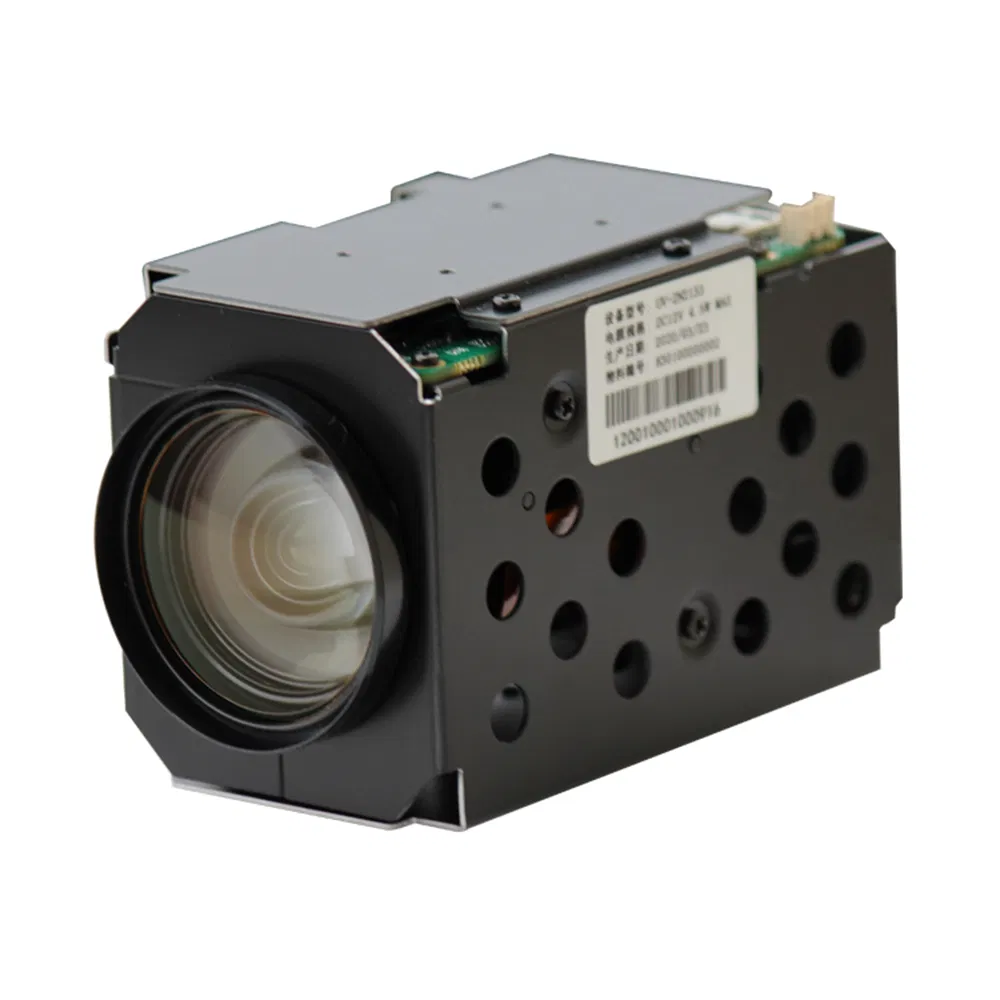

China CMOS Image Sensor 2MP 33X Starlight Network Zoom Camera Module

Product Description

Key Features:

* 1/2.8" Progressive Scan CMOS
* Up to 1920×1080@30fps resolution
* Support H.265/H.264/MJPEG Video compression
* illumination:
Color:0.001Lux@(F1.5,AGC ON)

Black:0.0005Lux@(F1.5,AGC ON)
* 33X optical zoom,16X digital zoom
* 120 dB WDR, 3D DNR, EIS, Regional Exposure, Regional Focus
* Support ONVIF,GB/T28181,SDK and Third-Party Management Platform
* DC 12v±25%

1.Specification

Model No.:SOAR-CB2133
Camera Module
Image Sensor	1/2.8" progressive scan CMOS
Min. Illumination	Color: 0.001 Lux @(F1.5, AGC ON)
Min. Illumination	Black: 0.005 Lux @(F1.5, AGC ON)
Shutter Time	1/25~1/100,000 s
Automatic Aperture	DC
Day& Night	ICR
Digital Zoom	16x
Lens
Focal Length	5.5-180mm,33x Optical Zoom
Aperture Range	F1.5-F4.0
Field of View	H: 60.5-2.3°(Wide - Tele)
	V: 35.1-1.3°(Wide - Tele)
Working Distance	100mm-1000mm (Wide - Tele)
Compression Standard
Video Compression	H.265 / H.264 / MJPEG
H.265 encoding type	Main Profile
H.264 encoding type	Base Line Profile / Main Profile / High Profile
Video Bitrate	32 Kbps~16Mbps
Audio Compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)
Main Stream Resolution	50Hz:25fps(1920×1080),50fps(1920×1080),25fps(1280×960),25fps(1280×720)
Main Stream Resolution	60Hz:30fps(1920×1080),60fps(1920×1080),30fps(1280×960),30fps(1280×720)
Sub Stream 1	50Hz:25fps(704×576),25fps(352×288)
Sub Stream 1	60Hz:30fps(704×480),30fps(352×240)
Sub Stream 2	50Hz:25fps(1920×1080),25fps(1280×960),25fps(1280×720)
Sub Stream 2	60Hz:30fps(1920×1080),30fps(1280×960),30fps(1280×720)
Image Setting	Corridor mode, saturation, brightness, contrast and sharpness can be adjusted by client or browser
Backlight Compensation	Support
Exposure Mode	Automatic exposure/aperture priority/shutter priority/manual exposure
Focus Control	Auto focus/one-time focus/manual focus
Area Exposure/Focus	Support
Defog	Support
EIS	Support
Day &Night	Auto(ICR) / Color / B/W
3D Noise Reduction	Support
Image overlay	Support BMP 24 bit image overlay, optional region
ROI	ROI supports one fixed region for each three-bit stream
Network Function
Network Storage	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS)
Protocol	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
Interface Protocol	ONVIF(PROFILE S,PROFILE G) ,GB28181-2016,OBCP
Interface
External interface	36pin FFC (Including network ports,RS485,RS232,CVBS,SDHC,Alarm In/Out,Line In/Out,Power)
General
Working Environment	-40ºC~60ºC ;Humidity less than 95%
Power supply	DC12V±25%
Consumption	2.5W MAX
Dimensions	97.561.550mm
Weight	300g

SOAR-CB2133

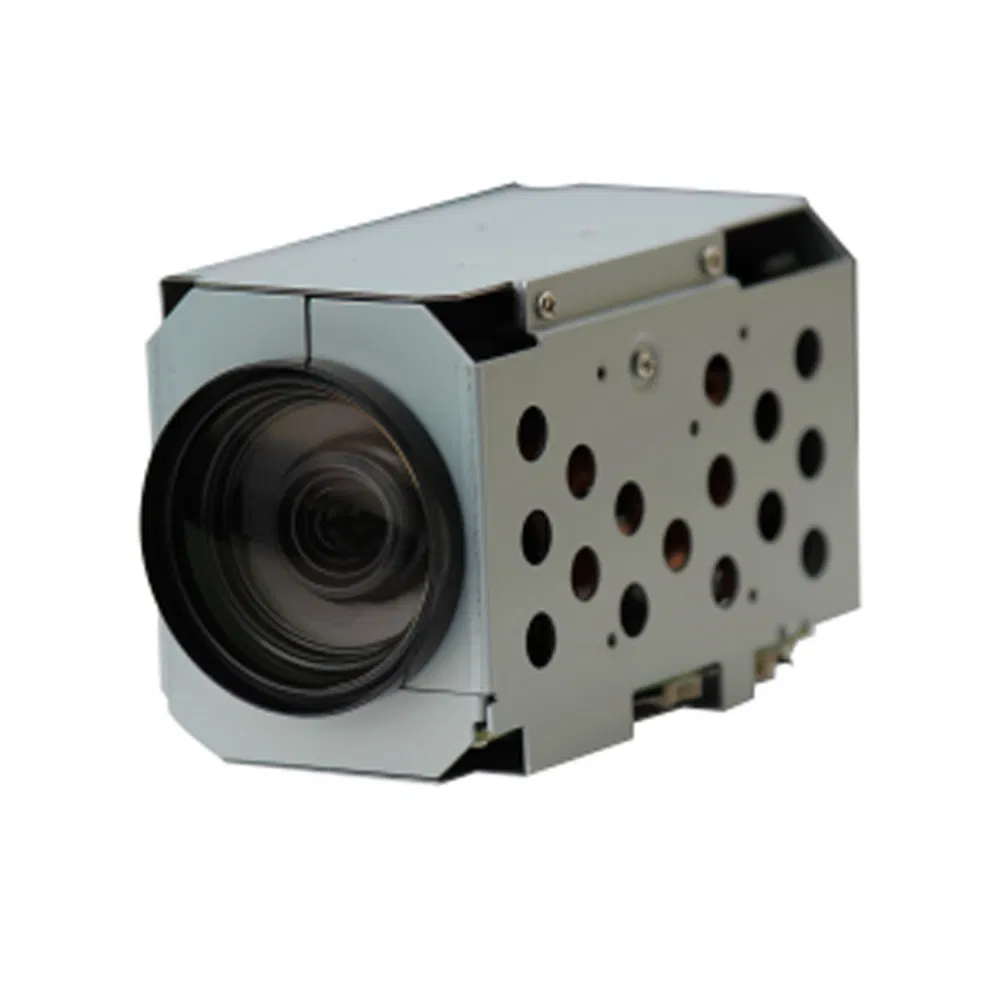

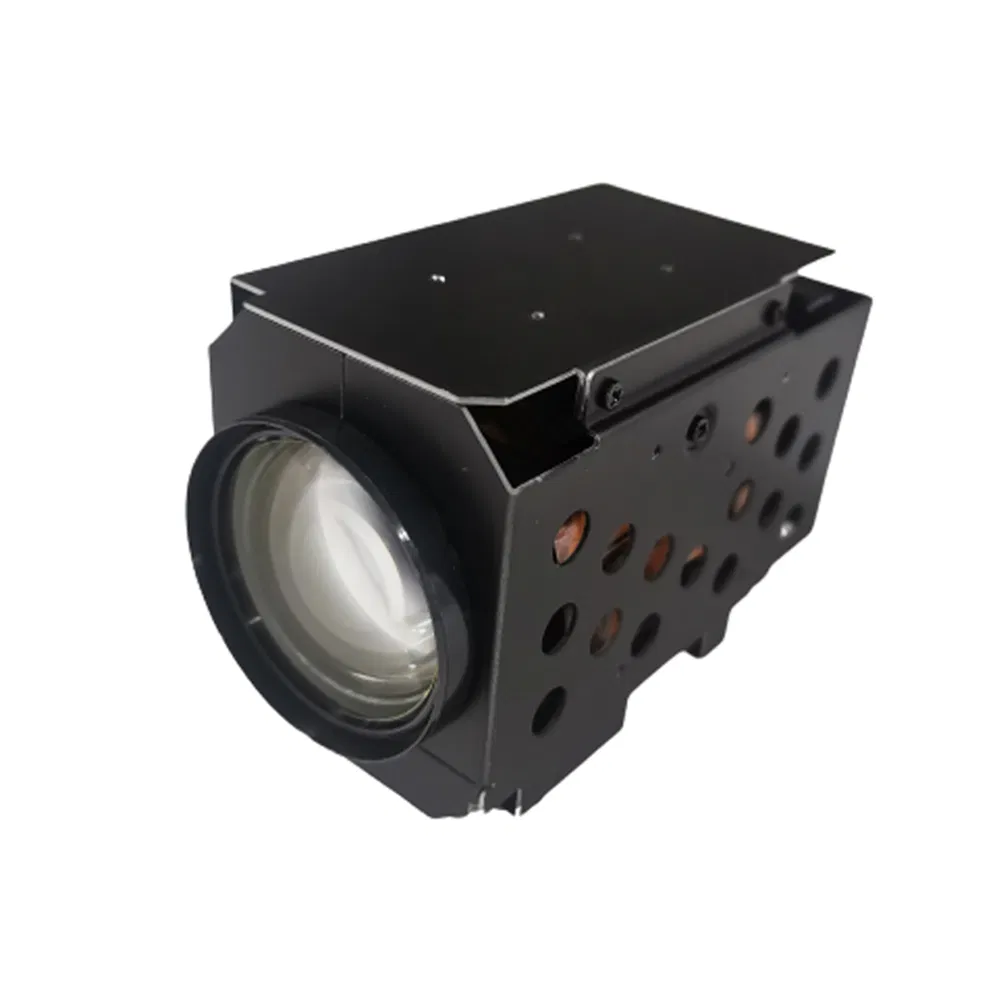

Soar 2MP Opitcal zoom camera module is a series of products, including multiple models. Different products are distinguished mainly according to CMOS, lens and application environment. From the lens, there are 26x, 33x,37x,46x, 52x,72x,90x,92x; COMS has two types: 1/1.8" and 1/2.8"; different focal lengths and sensors also determine their respective usage scenarios. Please contact us for more information.

Applications:

> Intelligent Traffic Systems

> Security
> Surveillance

> Long range surveillance

> Marine surveillance

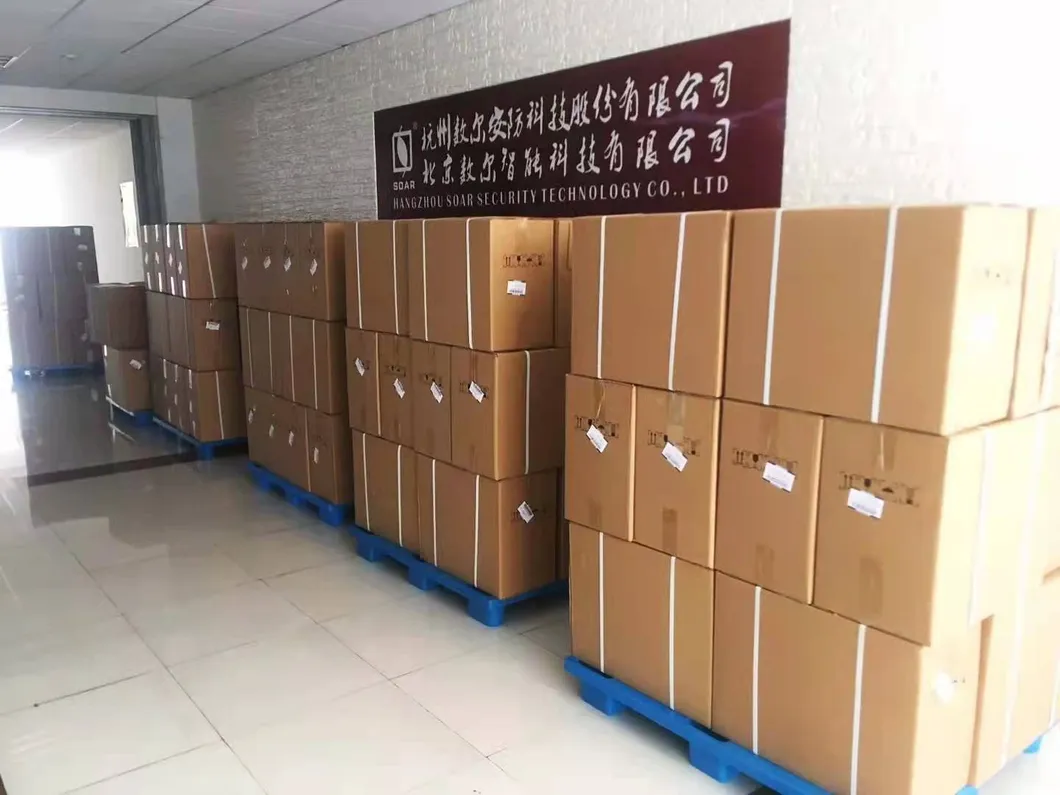

3.Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

3.Company Profile

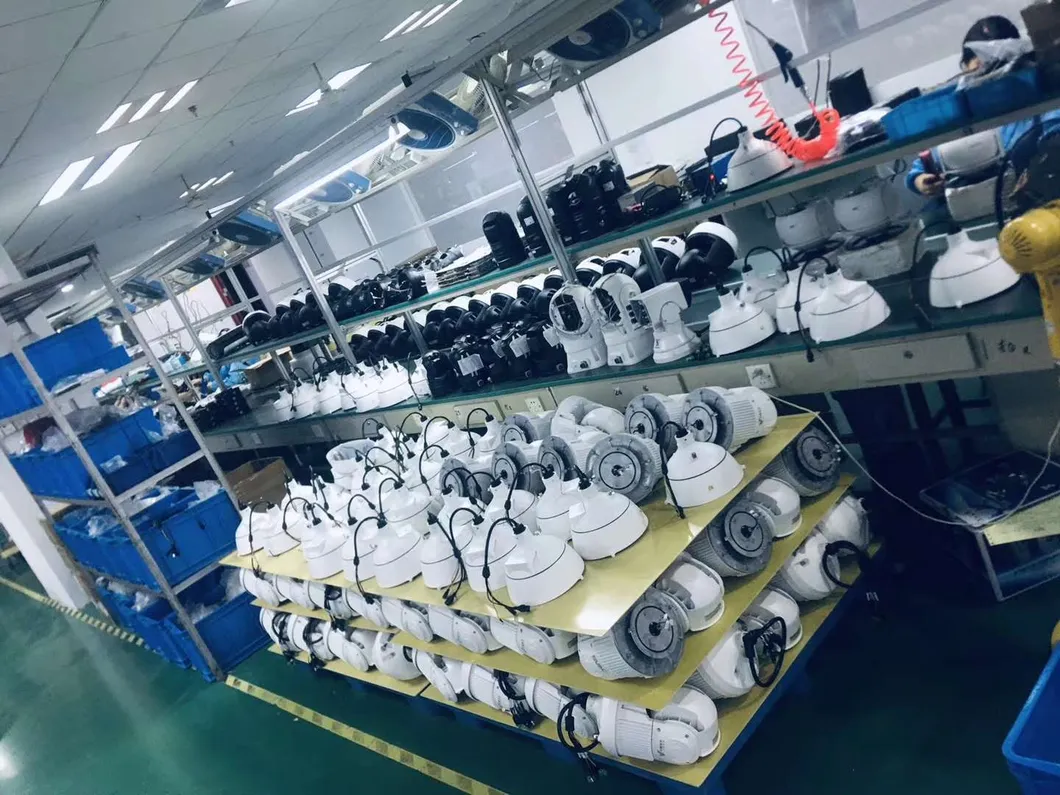

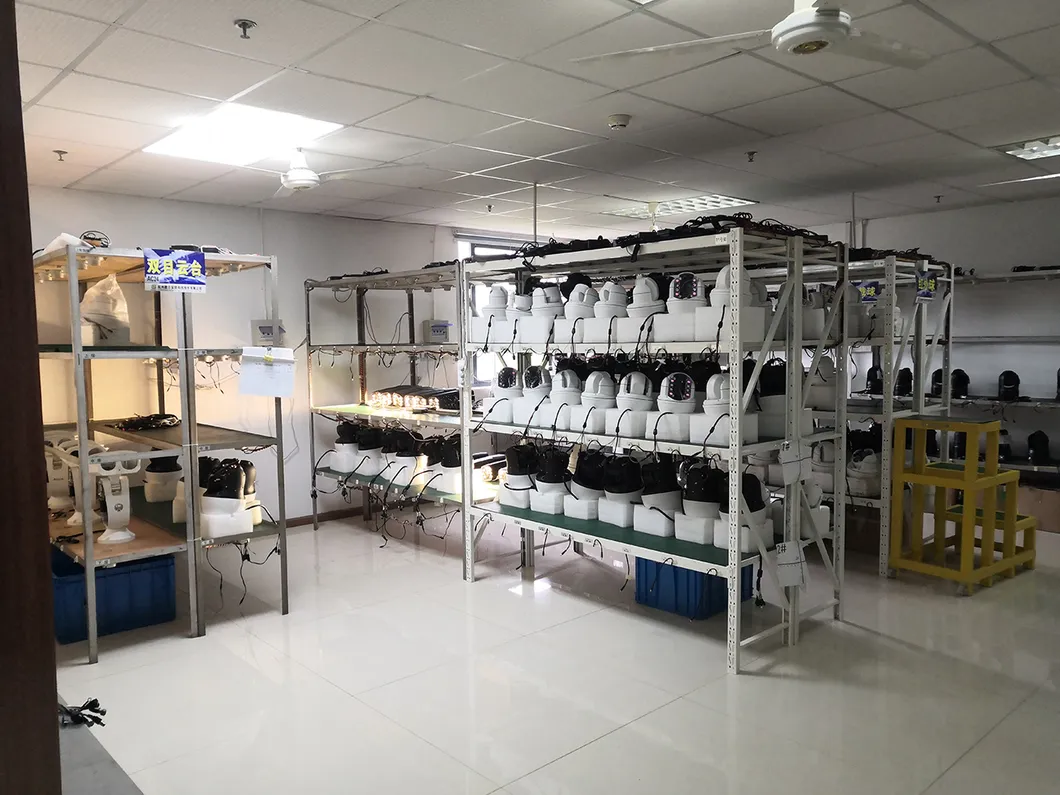

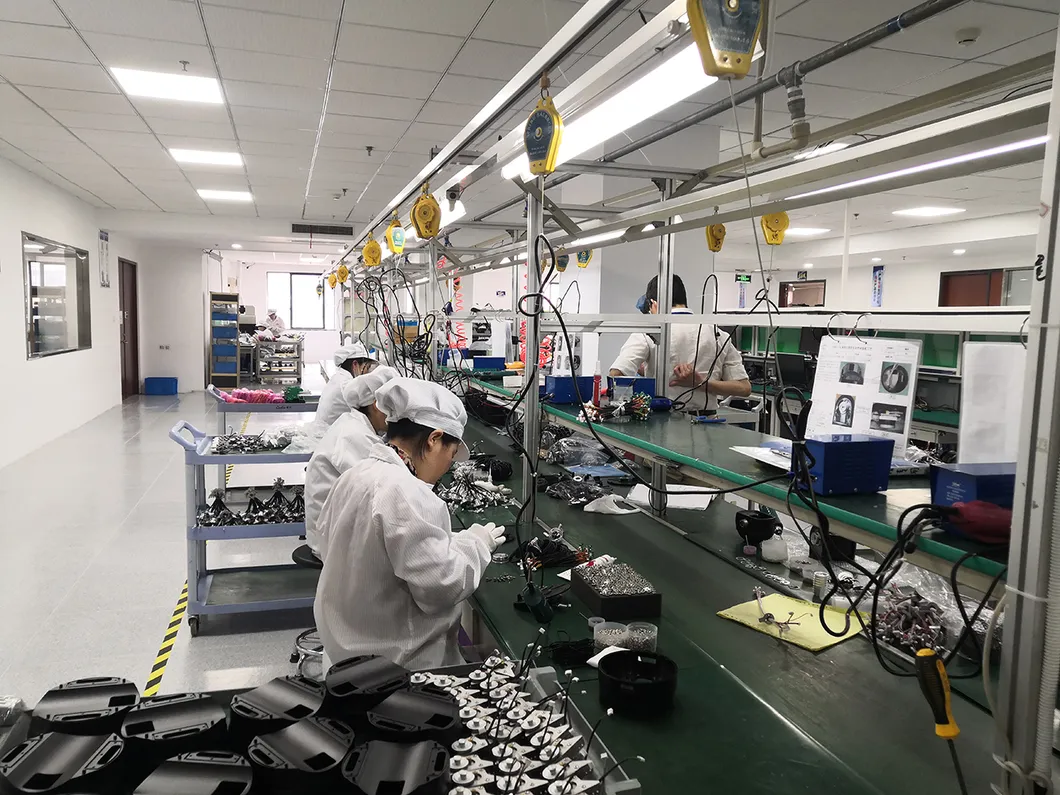

Hangzhou Soar Security Technology Co., Ltd is a professional video surveillance products provider, devoted in the front-end surveillance product design , manufacture and sales for more than 15 years, Since the foundation in 2005. We were honored as "national technical innovation enterprise" in 2015, and successfully listed in public Stock in 2016, stock code:839365.

Our R&D team consists of 60+ members of Masters and senior engineers majored in industrial design, FPGA, ISP, video analysis, AI algorithm, etc.

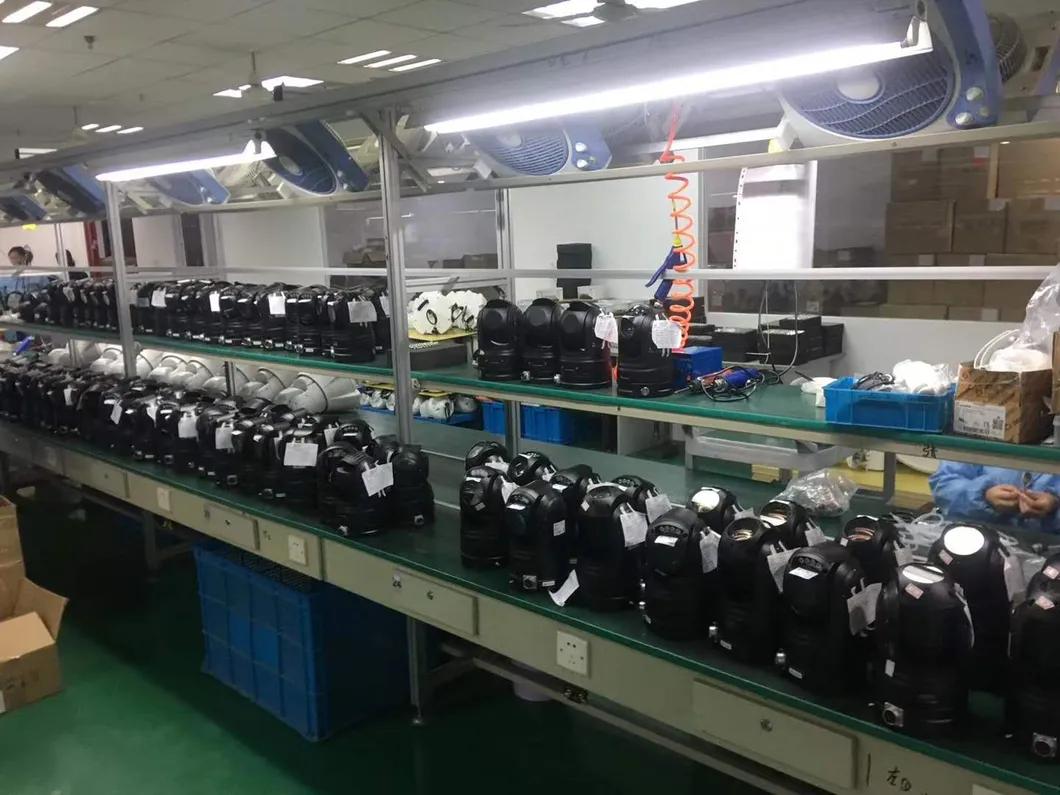

Our main products are various PTZ and Zoom camera module for vertical/niche market, passed ISO9001 quality certification.

Our products are widely sold all over the world. Meanwhile, we also provide OEM/ODM service. We focus on product innovation, to serve customers, create value for customers as the company's purpose.
