CMOS Ov2710 Web Camera 1080P 30fps USB Camera Module for Baby Surveillance
CMOS OV2710 Web Camera 1080P HD Web Cam 30fps USB Camera Module for Baby Surveillance: 1. 1/2.7 inch OV2710 cmos camera module2. 2 megapixel with speed 30fps usb camera3. Full HD realtime USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB Camera Module with 95 degree......
Send Inquiry
Product Description
CMOS OV2710 Web Camera 1080P HD Web Cam 30fps USB Camera Module for Baby Surveillance:
0533 Lens Option
Model No. 3428-A1 6192-2A7 7021-D5 6150-F1 7021-D1 6003-B4 6205-2A6
Optical Format 1/2.5" 1/2.7" 1/2.7" 1/2.7" 1/2.7" 1/2.7 1/2.7
EFL 3.6 3.0 3.0 3.0 3.0 1.0 2.9
BEL 4.21 4.49 3.46 3.41 3.46 4.13 4.34
Construction 2G2P+IR 2P3G+IR 2G2P+IR 2G2P+IR 2G2P 3G2P+IR
F/No 2.8 2.4 2.5 2.4 2.5 2.0 2.4
FOV1/2.5" 96/80/65
FOV1/2.7" 96/88/57 95/86/55 D95 95/86/55 D220 98/89/57
FOV1/2.9" 91/82/52
FOV1/3" 89/76/60 90/76/60 89/76/60
IR Filter 650 650 850 650 650 650 650
MOD M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5

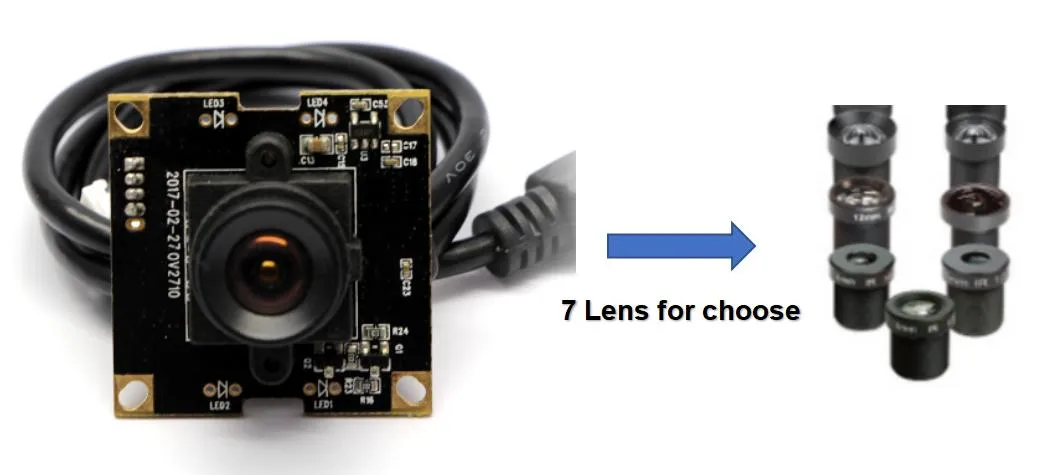

NOTE1: The M12 Lens kit for the USB Camera module,7 lens are included.
NOTE2:For the sample order,please order the lens you need to replace separately and contact us in advance for customization if you would like to replace the lenses on the camera boar.
Pictures Display:
>Functionality and Compatibility
Company Information:
Shenzhen Chuangxinshixun(Dongguan Hampo) Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Main products: Camera modules such as USB camera modules,PEEPHOLE DOOR VIEWER camera module,MIPI camera modules and DVP camera modules; cameras such as PC CAMERA and VIDEO CONFERENCE camera; OID devices such as TALKING PEN and SMART PEN.
Cooperative Companies: Midea and A4 tech, Baidu, Alibaba Group, Huawei, Samsung, Sony,Haier,Orion, and many research institutes.
Technology
Bring in advance technology and machinery equipment, won the title of National High-Tech Enterprise. Having a prossional team on R&D and engineering.
Primary service
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. From the PCBA ,lens assembly to the finished camera.We could provide a complete survice for you.

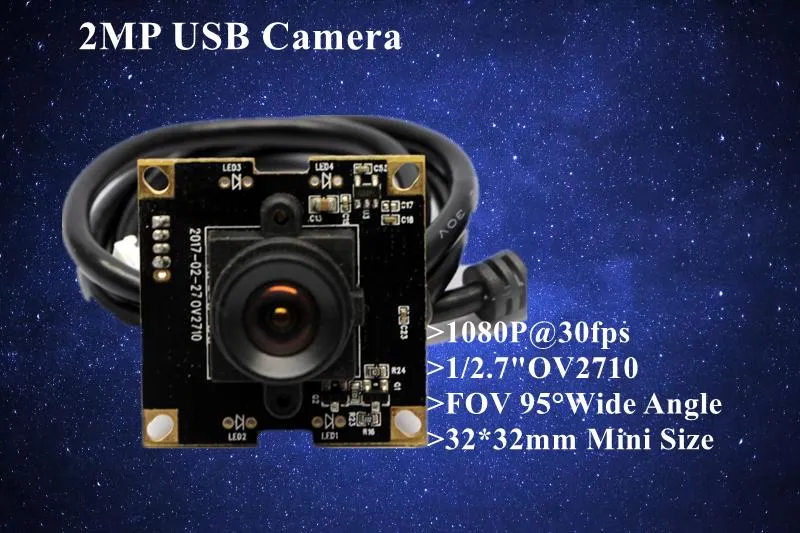

1. 1/2.7 inch OV2710 cmos camera module
2. 2 megapixel with speed 30fps usb camera
3. Full HD realtime USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB Camera Module with 95 degree
5. 32*32mm Micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | OV9712 |
| Lens Size | 1/2.7" |
| Maximum Pixels | 2 mega |
| Maximum Effective Resolution | 1920*1080 |
| Data Format | MJPG/YUY2 |
| Pixel Size | 3 µm x 3 µm |
| Dynamic Range | 69 dB @ 8x gain |
| Lens | FOV :D= 95° |
| Optical length :15.29MM | |
| lens construction:4E+IR | |
| mount :M12*P0.5mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| Audio | High quality digital MIC, single or dual channel is optional |
| Voltage | DC 5V |
| Working Current | MAX 250mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20C to +70C |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
0533 Lens Option
Model No. 3428-A1 6192-2A7 7021-D5 6150-F1 7021-D1 6003-B4 6205-2A6
Optical Format 1/2.5" 1/2.7" 1/2.7" 1/2.7" 1/2.7" 1/2.7 1/2.7
EFL 3.6 3.0 3.0 3.0 3.0 1.0 2.9
BEL 4.21 4.49 3.46 3.41 3.46 4.13 4.34
Construction 2G2P+IR 2P3G+IR 2G2P+IR 2G2P+IR 2G2P 3G2P+IR
F/No 2.8 2.4 2.5 2.4 2.5 2.0 2.4
FOV1/2.5" 96/80/65
FOV1/2.7" 96/88/57 95/86/55 D95 95/86/55 D220 98/89/57
FOV1/2.9" 91/82/52
FOV1/3" 89/76/60 90/76/60 89/76/60
IR Filter 650 650 850 650 650 650 650
MOD M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5
NOTE1: The M12 Lens kit for the USB Camera module,7 lens are included.
NOTE2:For the sample order,please order the lens you need to replace separately and contact us in advance for customization if you would like to replace the lenses on the camera boar.
Pictures Display:
>Functionality and Compatibility- Adjustable parameter: Contrast/ Saturation/ Exposure/ White balance
- Audio: Dual microphones
- System Compatibility: Win7/8/10, Linux, Mac OS with UVC driver
>Applications
Home video surveillance system
Live streaming
Videoconference
Monitoring 3D printer
Dashcam
Company Information:
Shenzhen Chuangxinshixun(Dongguan Hampo) Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Main products: Camera modules such as USB camera modules,PEEPHOLE DOOR VIEWER camera module,MIPI camera modules and DVP camera modules; cameras such as PC CAMERA and VIDEO CONFERENCE camera; OID devices such as TALKING PEN and SMART PEN.
Cooperative Companies: Midea and A4 tech, Baidu, Alibaba Group, Huawei, Samsung, Sony,Haier,Orion, and many research institutes.
Technology
Bring in advance technology and machinery equipment, won the title of National High-Tech Enterprise. Having a prossional team on R&D and engineering.
Primary service
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. From the PCBA ,lens assembly to the finished camera.We could provide a complete survice for you.
