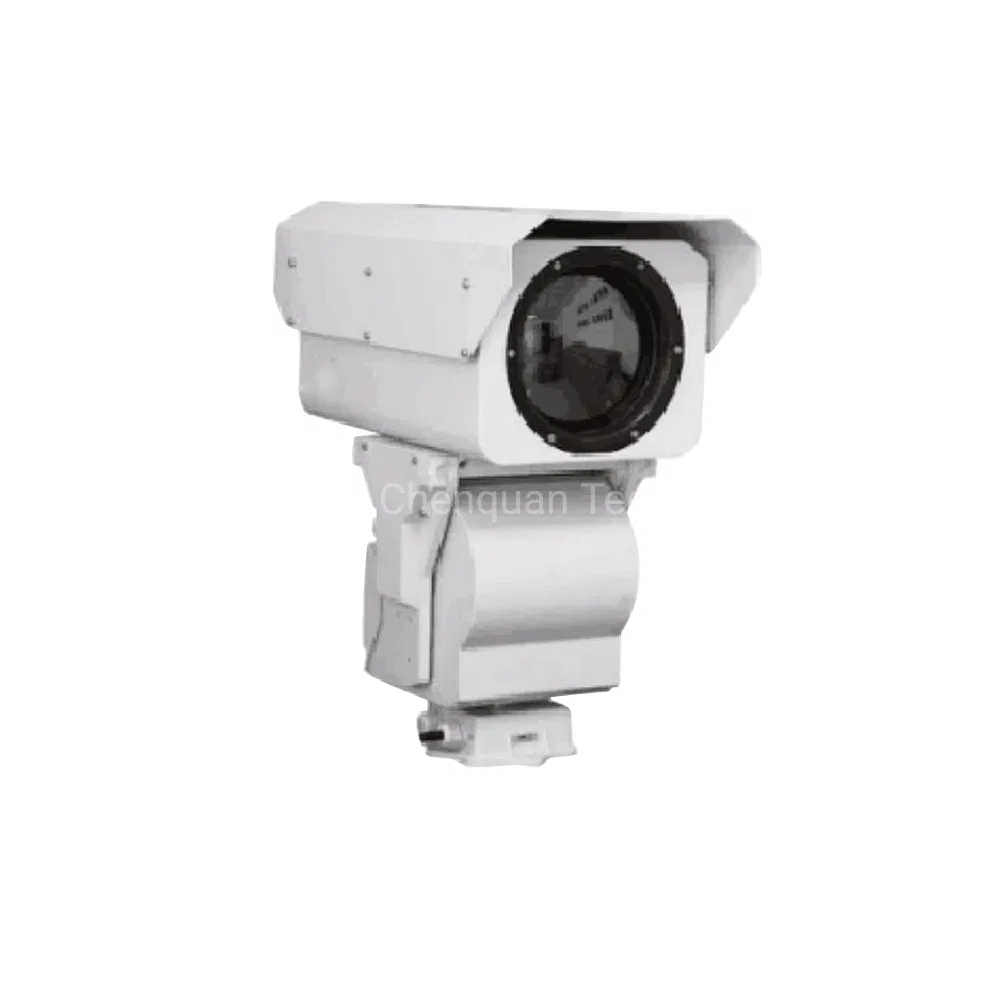

Coal Mine Long Range Fire Pre-Warning 2- Fov IR Thermal Camera

Model

CQ-TC41C021(PT)- S

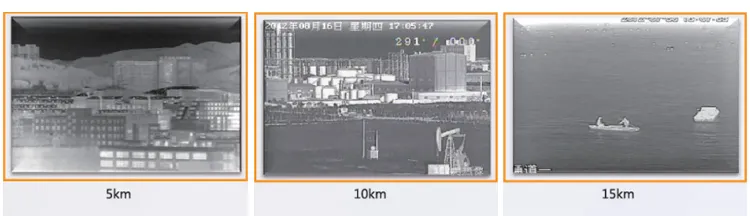

Detection*

Vehicle: 17400m
Human: 6800m

Recognition

Vehicle: 4800m
Human: 1800m

Sensor

1, Detector: 5th generation UFPA Vox Detector;

2, Resolution : 336x256 , (640X512 optional)

3, NETD : 50mK ( @25°C F1.0 )

4, Spectral range : 7.5 ~ 14um

NETD

50mK ( @25°C F1.0 )

Focal length

1, Length: 21 ~ 210mm

2, FOV : 16° x 12° ~ 1.6° x 1.2°

3, Motorized zoom,focus (auto focus optional)

4, AS+DOE advanced optical design, high infrared transmission

5, Applied 3CAM high precision design

IFOV

0.08 ~ 0.85mrad

Image processing

1. stable operational temperature, starting time less than 4 seconds

2. SDE digital image processing

3.10 pseudo color and B/W, B/W inverse

4. AGC

5. 2X digital amplification

Housing

1. Material : aluminum alloy housing , waterproof

2. Structure : Integral single window design

3. Surface : PTA coating,anti sea water corrosion

4. Sealing rate : IP66

5. Built-in temperature controller, thermal balance design

6. Interface : aviation waterproof connector

PTZ (optional)

1. Load : 50kg military level digital PT

2. Angle : pan0~360°, tilt -45°- +45°

3. Speed : 0.01 ~ 30°/S high precision variable speed control and locking

4. Preset: 80 presets , support lens zoom and focus memory , variable speed scanning 0~ 30°/S , support apple peel scanning function

5. Protocol : Pelco-P,Pelco-D

6. Baud rate : 2400,4800,9600,19200 optional

Consumption,weight

1. Consumption ( PT included ) : min.40W , max.120W

2. Weight ( PT included ) : ≤40kg

Interface

1. RS-485 ( PELCO D protocol, baud rate 2400bps ),RS-232 ( option )

2. Remote OSD setting

3. PAL/NTSC video output

4. AC24V( DC12V option)

5. Waterproof connector

Environment indicator

1. Working temperature : -25°C~ +55°C (-40°C optional)

2. Storage temperature : -35°C ~ +75°C

3. Humidity : <90%

4. Anti-shock : 0.2g ( GB/T15211-20135.4 harshest level 2 standard )

5. Anti-resistance : 15g ( GB/T15211-20135.3 harshest level 3 standard )

6. Anti-lightening : power 4000V , signal 2000V

7. Anti salty : PH6.5~7.2 , continuous sprarying 48 hours

8. Protection rate : IP66
