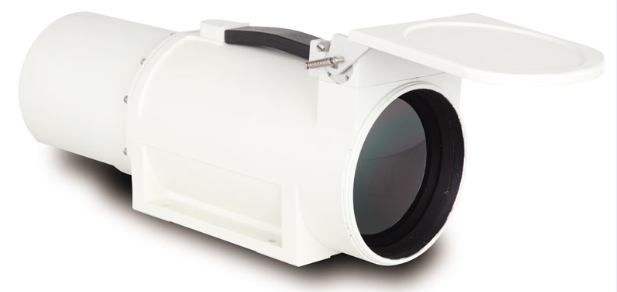

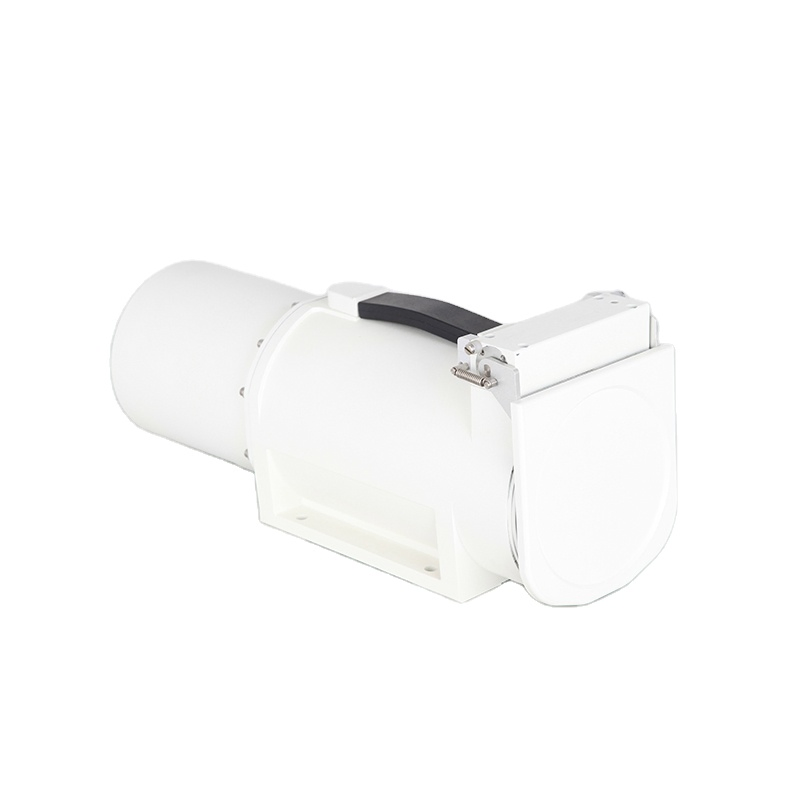

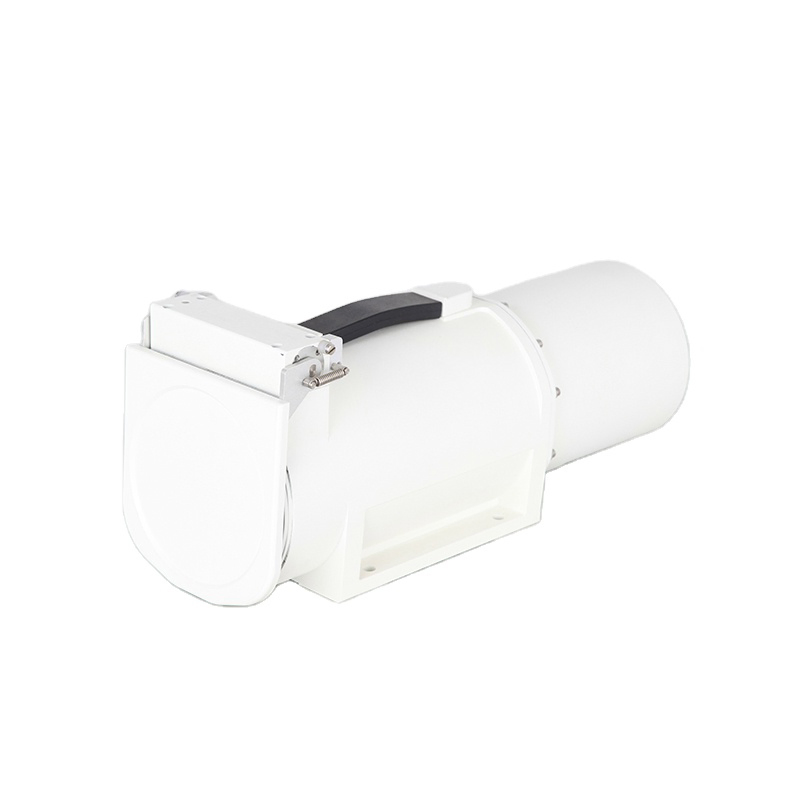

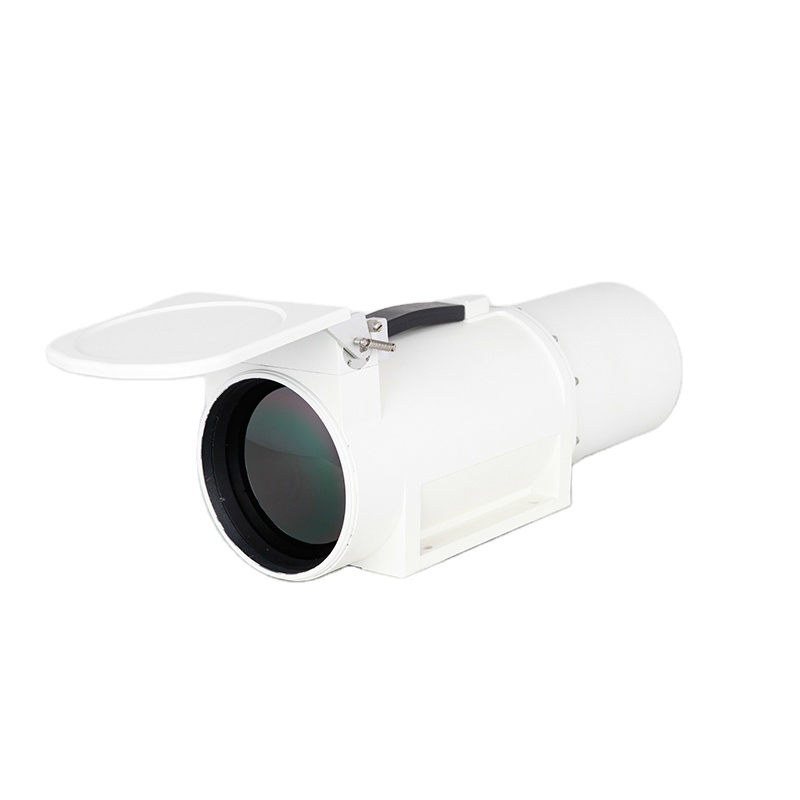

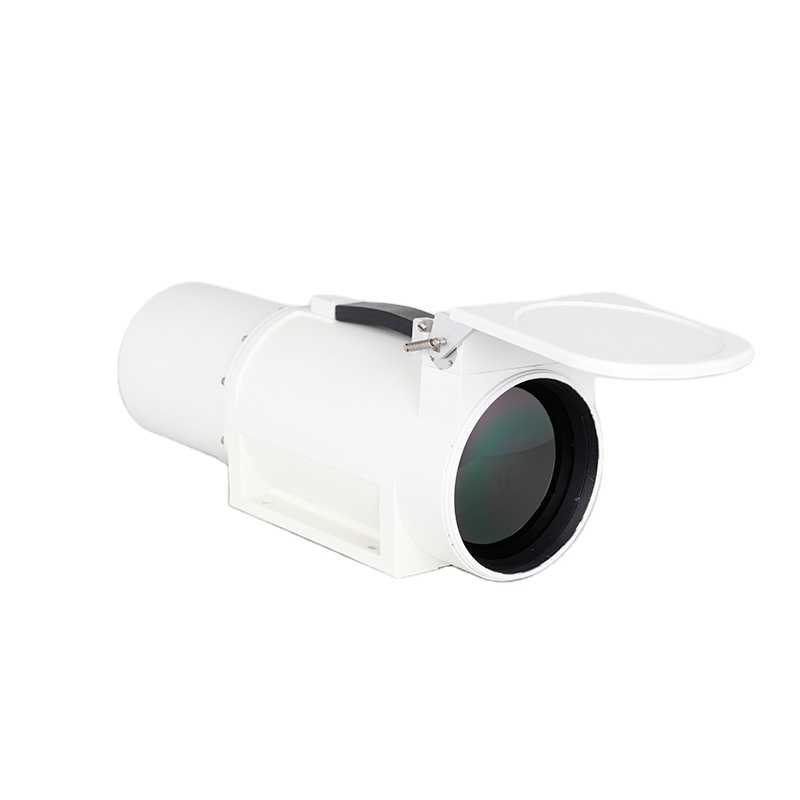

Dali Durable and Cheap Camera Laser Monitor Portable Thermal Imaging Camera
As a listed company focus on infrared technology for more than 30 years. Produce thermal detector, thermal module, handheld thermal camera, thermal monocular, thermal binocular, thermal weapon sights, thermal CCTV camera, thermal network camera, etc. Have R&D team to solve complex situati......
Send Inquiry
Product Description
As a listed company focus on infrared technology for more than 30 years. Produce thermal detector, thermal module, handheld thermal camera, thermal monocular, thermal binocular, thermal weapon sights, thermal CCTV camera, thermal network camera, etc.
Have R&D team to solve complex situation. Welcome to our R&D base to discuss the application and technology of infrared or your concerns requests.
Selling points
640*512 HgCdTe cooled FPA
50hz full real-time imaging, ultralong distance observation
Auto focus
15-330mm continuous zoom, high sensitivity and clear image
Variety of custom configuration.
Specification
Item | DLD-M330 | |
Detector | Detector type | HgCdTe cooled FPA |
Array size | 640×512 | |
Pixel size | 15μm | |
NETD | ≤20mk | |
Frame rate | 50Hz | |
Spectral range | 3.7-4.8μm | |
lens | Focus | 15~330mm |
FOV | 36.7°×29.3°~1.7°×1.3° | |
Thermal operation | Preheating time | <8min(normal working) |
Brightness/Gain | Auto/Manual | |
Polarity | Black/White-hot | |
Electrical zoom | 2X | |
Calibration | Manual/auto | |
Image enhancement | Yes | |
Denoise | Yes | |
Power supply system | External power | DC 24V |
Consumption | ≤25W(normal working) | |
Environmental parameter | Working temperature | -40- +55 |
Storage temperature | -45- +65 | |
Protection level | IP54 | |
Interface | Power supply interface | Yes |
Analog video interface | PAL | |
Serial Port | RS422 | |
Distance | Detect human | 19800 m |
Detect vehicle | 25300 m | |
Identify human | 6600 m | |
Identify vehicle | 12650 m | |
