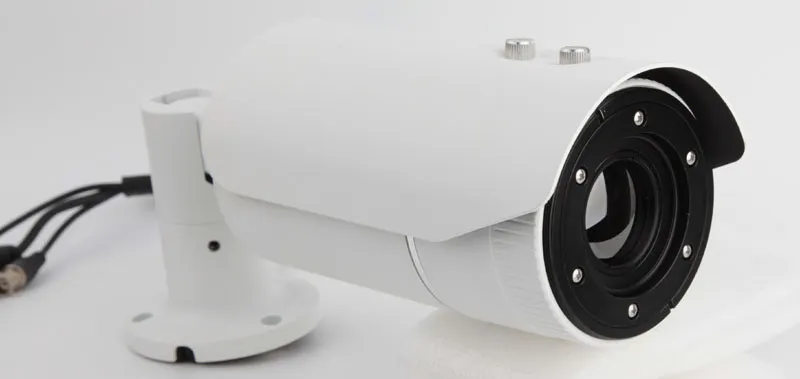

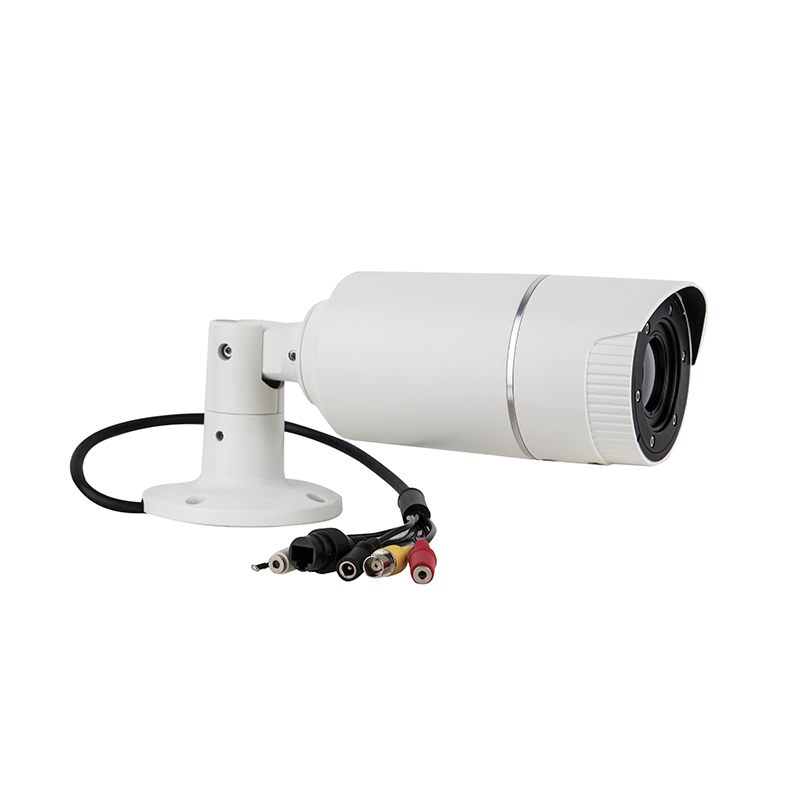

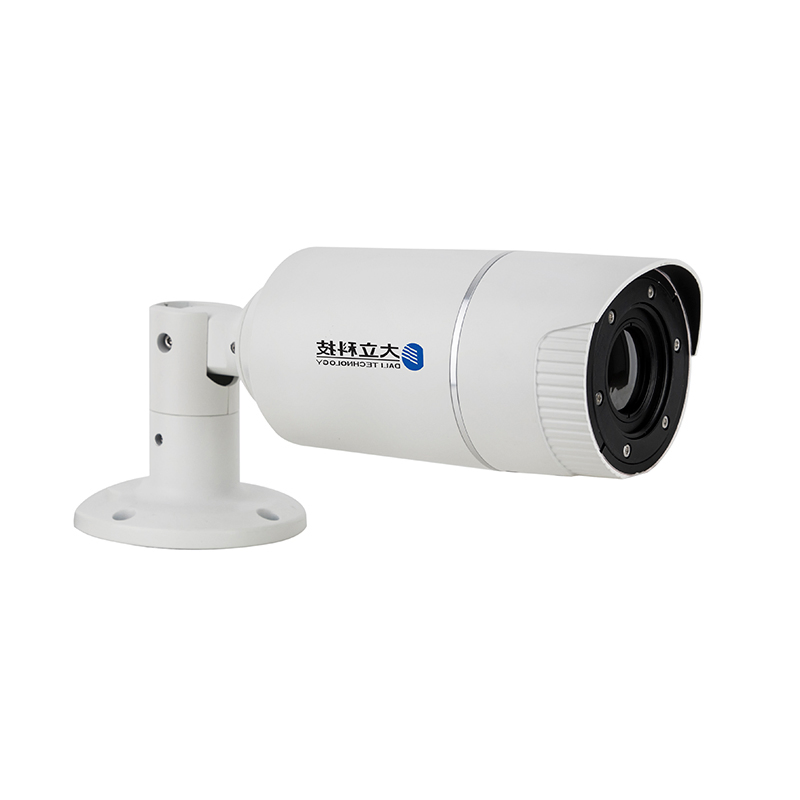

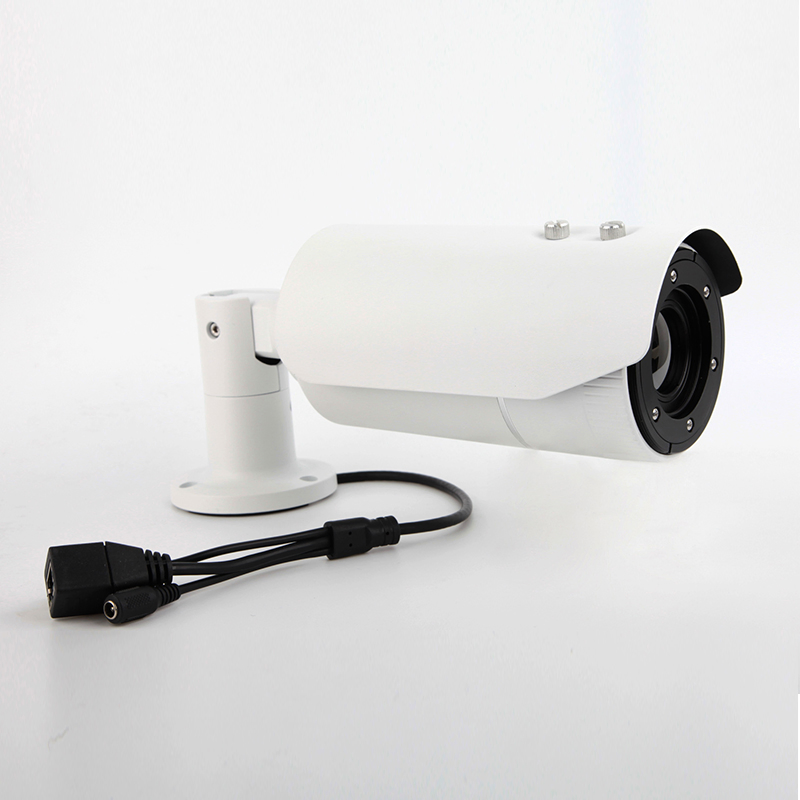

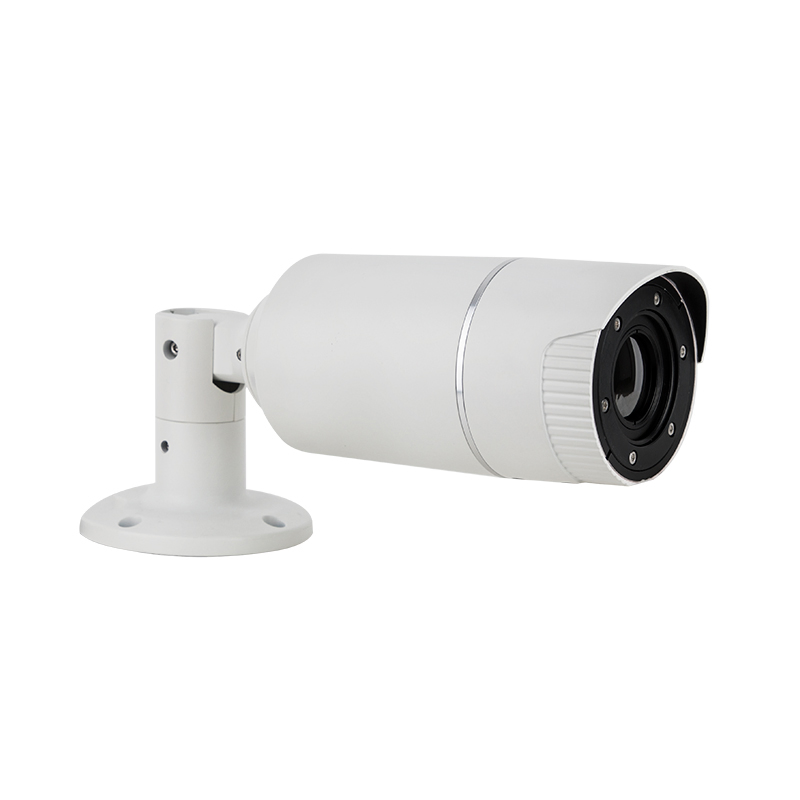

Dali Senior Customized Compact New Style Waterproof Compact Thermal Camera
As a listed company focus on infrared technology for more than 30 years. Produce thermal detector, thermal module, handheld thermal camera, thermal monocular, thermal binocular, thermal weapon sights, thermal CCTV camera, thermal network camera, etc. Have R&D team to solve complex situati......
Send Inquiry
Product Description
As a listed company focus on infrared technology for more than 30 years. Produce thermal detector, thermal module, handheld thermal camera, thermal monocular, thermal binocular, thermal weapon sights, thermal CCTV camera, thermal network camera, etc.
Have R&D team to solve complex situation. Welcome to our R&D base to discuss the application and technology of infrared or your concerns requests.
Specification
Video | Detector type | Uncooled FPA | |
Array Pixel | 384×288 | 640×480 | |
Pixel pitch | 25um | 17um | |
NETD | < 100mK | ||
Spectral range | 8-14μm | ||
Frame rate | 50Hz | ||
Video output | CVBS, 1.0 Vp-p / 75Ω composite, 720x480(N),720x576(P), | ||
Lens | Focus length, FOV | 9mm, 61.1°×45.9° | 9mm, 69.3°×52.0° |
18mm, 30.6°×22.9° | 18mm, 34.6°×26.0° | ||
37mm, 14.9°×11.2° | 37mm, 16.9°×12.6° | ||
50mm, 11.0°×8.1° | 50mm, 12.5°×9.4° | ||
Focus method | Fixed athermal, lens water-proof, hard carbon film | ||
F number | F1.1 | ||
Tilt | Tilt range | 0-90 degree | |
Operation | Electric zoom | 1X/ 2X/3X/4X | |
Brightness/gain | Manual | ||
Denoise | Close/open | ||
Image enhancement | Close/open | ||
Pseudo color | 12 mode switching | ||
Calibration | Manual, auto, timing | ||
Flip/mirror | Close/open | ||

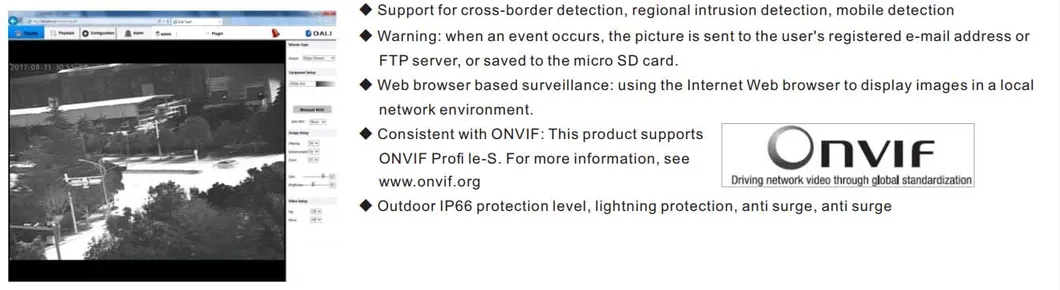

Alarm triggering | Gray level alarm, mobile detection, area intrusion, cross boundary alarm, network disconnection, IP conflict, memory full, memory error | ||
Alarm event | upload the file via FTP inform via e-mail when an event occurs, local storage or record event | ||
Network | Ethernet | RJ-45 (10/100BASE-T) | |
Video compression | H.264, Motion JPEG | ||
Resolution | 720x576,720x480,640x480,384x288,320x240 | ||
Maximum frame | H.264, maximum 30 fps | ||
Video quality modulation | H.264, compressed level, target bit rate level control | ||
Bit rate control | H.264, CBR or VBR | ||
Audio compressed | G.711A, G.711U, G.726 | ||
IP | IPv4 | ||
Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, FTP, ICMP, IGMP, ARP, DNS, DDNS | ||
Safety | HTTPS(SSL) validate logon Classified validate logon IP address filter User access log 802.1X authentication method | ||
Storage | Micro SD- download the moving image recorded in SD NAS- support to record to NAS | ||
Programming interface | OnVif Profile S | ||
Web viewer | Supported wed browser, Microsoft Internet Explorer (vision 9~11) | ||
Environment | Working temperature | -20~+50 scalable to -40~ +60 | |
Storage temperature | -45~ +70 | ||
Input voltage/current | DC12V±10% PoE(IEEE802.3af, Class3) | ||
Consumption | 6W(normal working) | ||
Protection level | IP66 | ||
Machine | Color/material | Ivory/aluminum | |
Dimension | Length, 323mm Maximum outside diameter:100mm | ||
Weight | 1.24Kg | ||

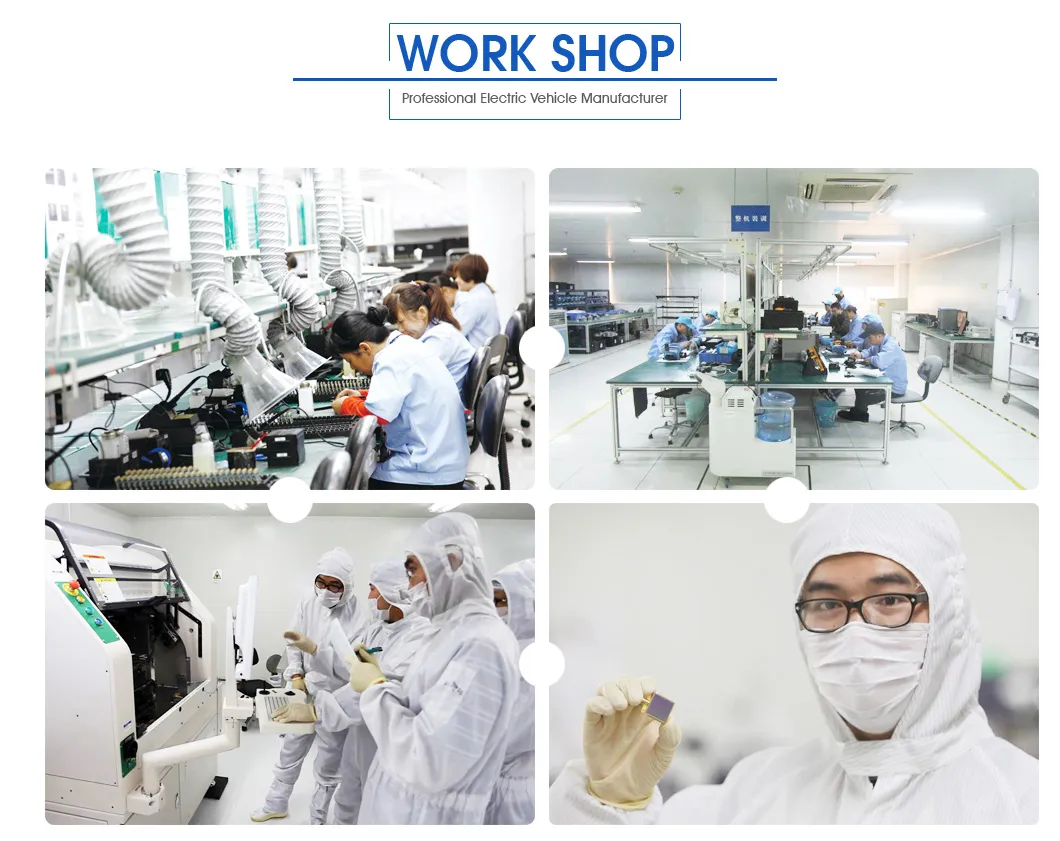

Production field
