Digital Camera HD WDR Portrait Camera
Product Features·1/3" Industrial HD wide dynamic image sensor·100DB Super wide dynamic, suitable for complex light environment, especially strong backlight environment·90°Ultra wide angle(F=1.8)HD 3MP industrial lens·40cm to infinity clear ima......
Send Inquiry
Product Description
·1/3" Industrial HD wide dynamic image sensor
·100DB Super wide dynamic, suitable for complex light environment, especially strong backlight environment
·90°Ultra wide angle(F=1.8)HD 3MP industrial lens
·40cm to infinity clear imaging
·1300TVL definition
·25 frames Max, no drag
·0.1lux Ultra low effect
·1W ultra low power consumption
·-30ºC~+70ºC Wide temperature range and stable operation
·Comply with professional USB-IF WHQL RoHS Ce (4KV / 8KV) certification
·Face recognition tracking / digital zoom function
·USB2.0 High speed transmission
·Low bandwidth demand (62% bandwidth demand, realizing the simultaneous operation of more than 4 cameras on a single platform)
·The description information such as device name and manufacturer can be customized
·UVC architecture, compatible with Windows XP /7/8.1/10/vista/seven/Mac linux2.6.2(include UVC ) OS
·3-year warranty & 30,000 hours MTBF
·Zn-mg alloy housing for high strength collision protection
·Basic:CPU 1.7GHZ 512MB Storage 40GB Hard Disk XP SP2 OS
| Signal | NTSC | PAL | REMARKS | |||
| Scanning System() | Progressive scan | |||||
| Scanning Frequency(H)() | 30HZ | 25HZ | ||||
| Scanning Frequency(V) | 59.9HZ | 50HZ | ||||
| Image Sensor() | 1/3 " CMOS | Aptina | ||||
| Effective Pixels() | 2048X1536 | |||||
| Pixel size() | 2.2umX2.2um | |||||
| Image sensor Data output() | Raw Data 12bits | |||||
| Maximum Resolution&Frame Rates(MJPG) () | 2048X1536 at 15fps 1920x1080at 25fps 1600X1200at 25fps 1280x1024 at 25fp 1280x720 at 25fps 1024x768 at25fps 800x600 at 25fps 640x480 at 25 fps 352x288 at 25fps 320x240 at25fps 160x120 at 25fps | 5fps/step | ||||
| Maximum Resolution&Frame Rates(YUY2) () | 2048X1536 at 3fps 1920x1080at 4fps 1600X1200at 5fps 1280x1024 at 5fps 1280x720 at 9fps 1024x768 at10fps 800x600 at20fps 640x480 at 25 fps 352x288 at 25fps 320x240 at 25fps 160x120 at 25fps | 5fps/step | ||||
| Band with() | Less then 13%at Windows 7 | Ultra low bandwidth requirements | ||||
| SNR max() | >=39dB | |||||
| Dynamic range() | >=100dB | |||||
| Video output() | MJPG/YUY2 | |||||
| Min. Illumination() | 0. 1LUX at F1.2 | |||||
| Digital interface() | 5-pin 1.25mm USB2.0 | |||||
| Transfer rates() | 480Mb/S | |||||
| General Purpose(GPIO) | 7-pin 1.25mm 4pin for I/O control;1pin for 5v power 1pin for 3.3v power(200Ma max);1pin for DGND | |||||
| Power requirements() | 5V±5% | |||||
| Power Consumption () | Max 1W | |||||
| Weight() | TBD | |||||
| Operating temperature(ºC)() | -30~70 ºC | |||||
| Storage temperature(ºC)(&) | -40~100 ºC/0~90RH | |||||
| Compliance() | USB-IF WHQL CE RoHS | |||||
| Lens mount() | M12X2.8mm | |||||
| Lens view() | M12/90° | 90° | ||||
| Warranty() | 3years | |||||
| OS() | Windows XP /7/8.1/10/vista/seven/Mac linux2.6.2(include UVC ) | |||||
| General Purpose(GPIO) | 1 | 5V | output(200mA max) | |||
| 2 | GND | DGND | ||||
| 3 | 3.3V | output(150mA max) | ||||
| 4 | GPIO_0 | INPUT | ||||
| 5 | GPIO_2 | Output | ||||
| 6 | GPIO_5 | I/O | ||||
| 7 | GPIO_4 | I/O | ||||

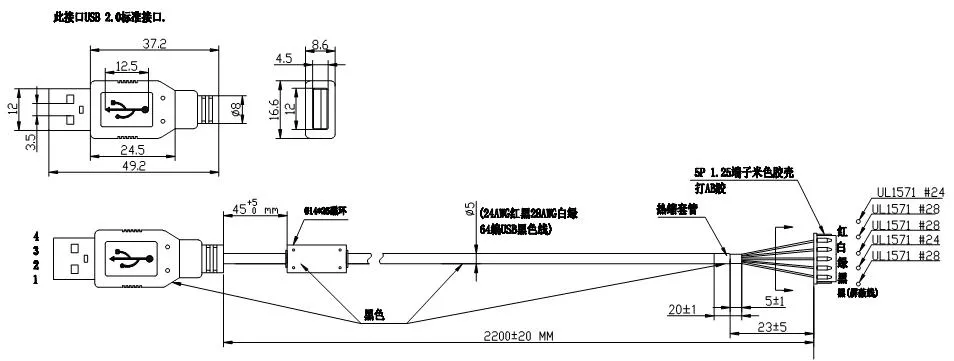

| 1 | 5V | USB POWER | 500mA | |||
| 2 | DM | - | D- | |||
| 3 | DP | - | D+ | |||
| 4 | GND | - | DGND | |||
| 5 | COVER | - | shield | |||

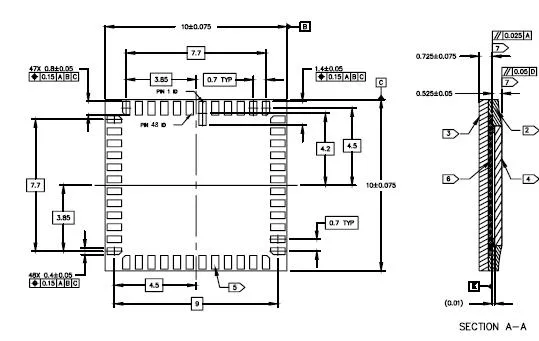

Sensor Dimension

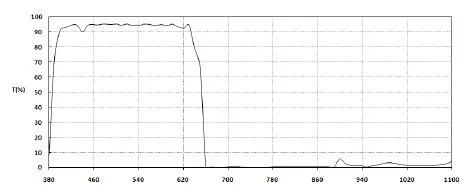

Color-IR Filter wavelength
Tolerance range of 0.1~0.5 is allowed if the tolerance is not marked
| NO. | Component | proportion | NOTE |
| 1 | ZN | 96.2000% | |
| 2 | CU | 0.0160% | |
| 3 | Aluminum | 3.7000% | |
| 4 | Fe | 0.0030% | |
| 5 | Pb | 0.0025% | |
| 6 | Sn | 0.0004% | |
| 7 | Mg | 0.0030% |
