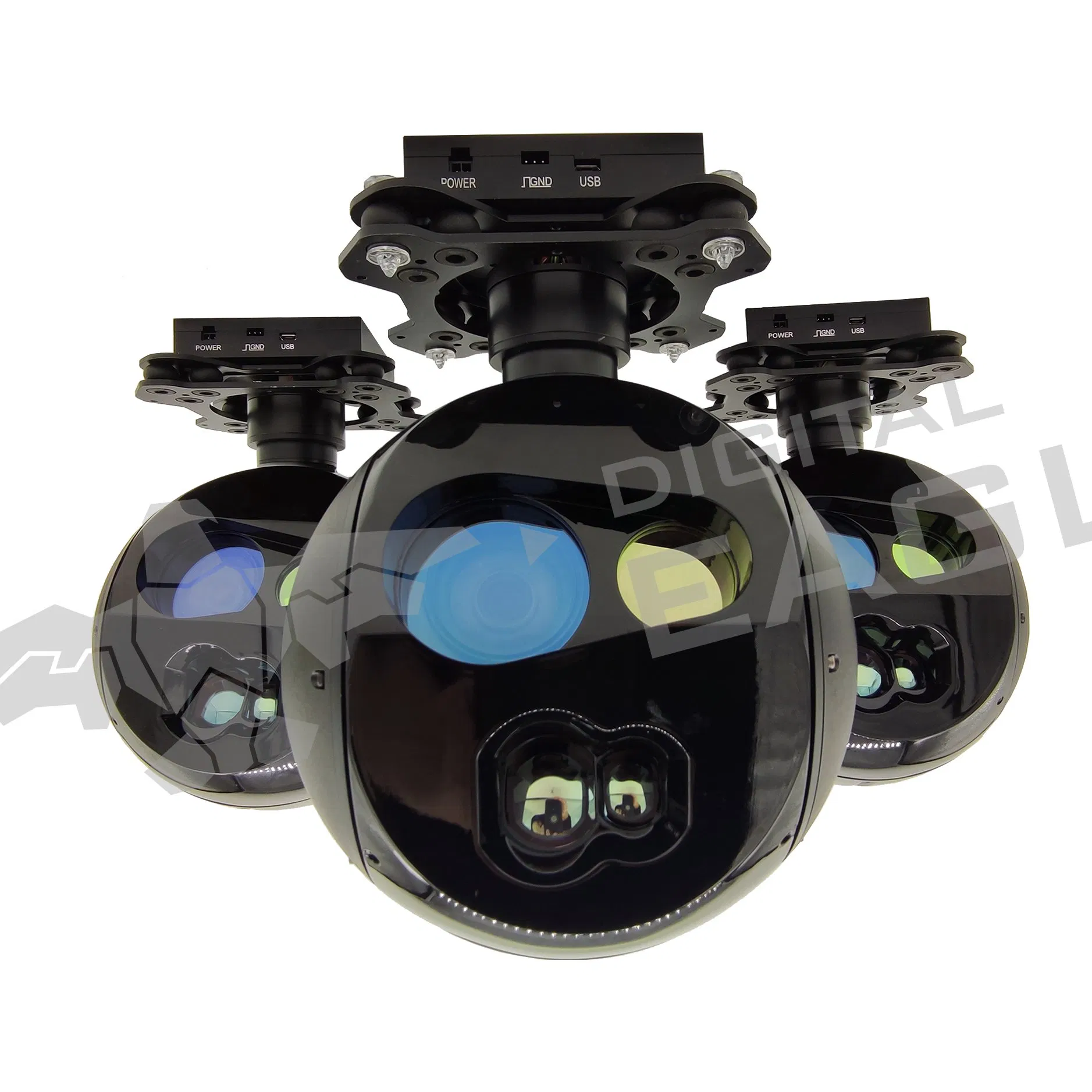

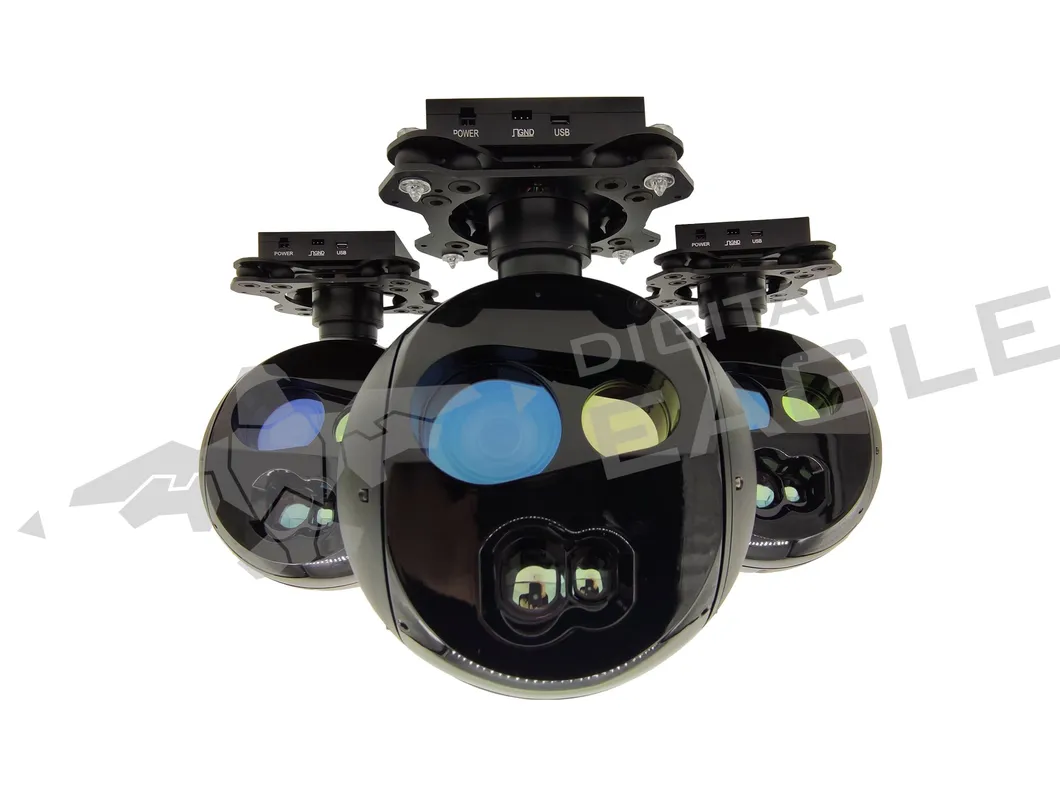

Digital Eagle HD Eo/IR/RF Flir Drone Thermal Laser Range Finder Camera for Surveillance and Patrol Drone Uav
Product DescriptionDetailed PhotosProduct ParametersVisible Light Camera (EO)Video record1920*1080AIS advanced image stablePower consumption2.9-3.7wSD/SDHC memory cardOptical zoom30xFocal lengthF=4.3-129MMPixels2million Thermal Image parameters (IR)Wavelength range8-14umPixel640*480power consumptio......
Send Inquiry
Product Description

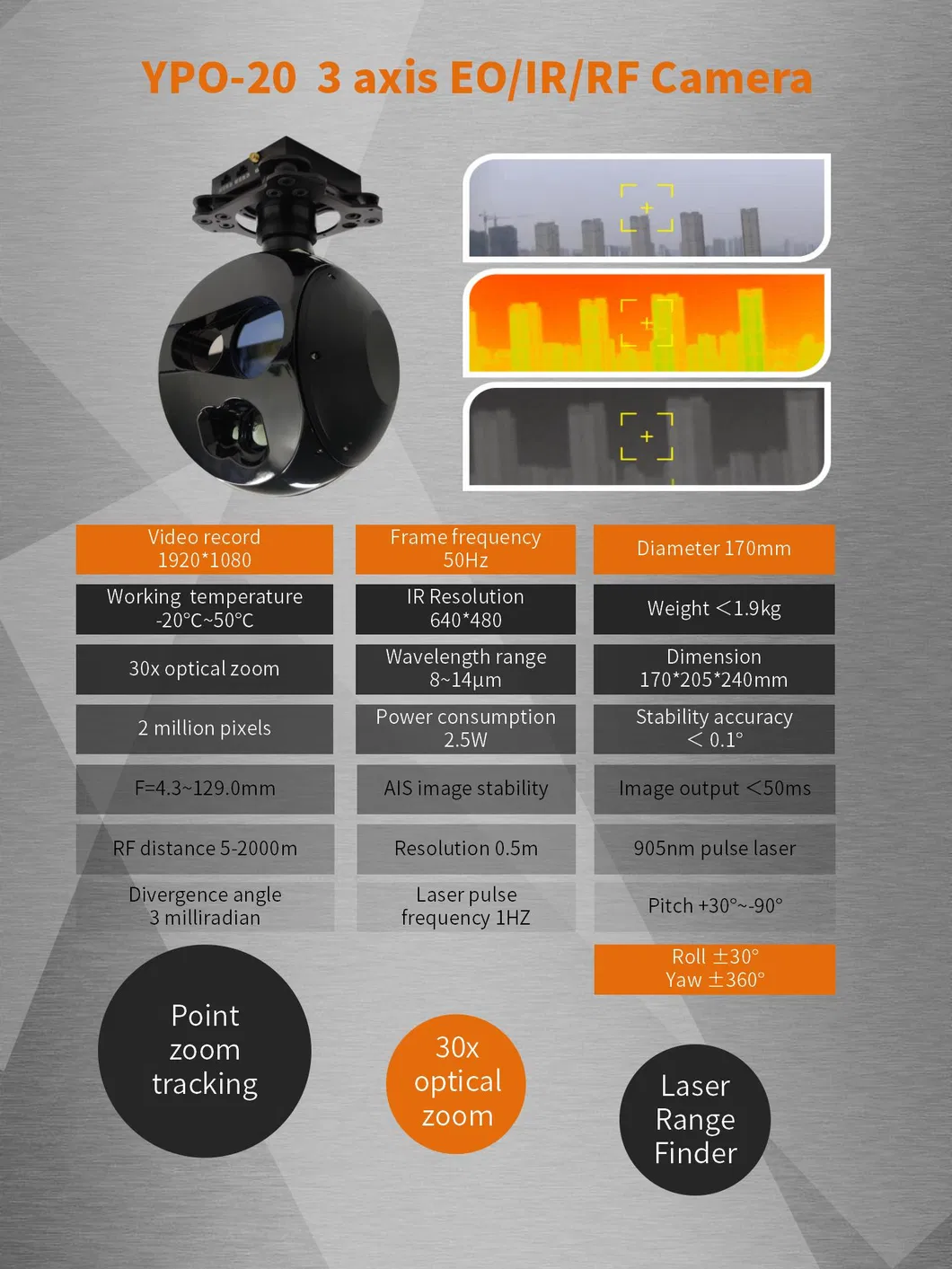

Visible Light Camera (EO) | |||
Video record | 1920*1080 | AIS advanced image stable | |
Power consumption | 2.9-3.7w | SD/SDHC memory card | |
Optical zoom | 30x | Focal length | F=4.3-129MM |
Pixels | 2million | ||
Thermal Image parameters (IR) | |||
Wavelength range | 8-14um | Pixel | 640*480 |
power consumption | 3.5w | Frame frequency | 50Hz |
Field angle | 19.5*14.7° | Digital zoom | 2/4/8/16x |
Image denoising | Digital filtering | Humidity | ≤95% |
Laser Range Finder parameters (RF) | |||
Range | 5-2000 meter | Resolution | 0.5m |
Beam | 905nm pulse laser | Beam Divergence | 3mrad |
Laser pulse frequency | 1HZ | Power | <1mW, eye safe |
Physical parameters | |||
Diameter | 170mm | Rotational angular velocity | ≤120°/s |
Demension | 170mm*205*240mm | Steady angular velocity | ≥1°/s |
Weight | 1.9kg | Pitch | +30°~-90° |
Stabilization accuracy | better than 0.1° | Roll±30° Yaw ±360°N | |
Video output: | HDMI | Operating temperature | 40ºC~45ºC |

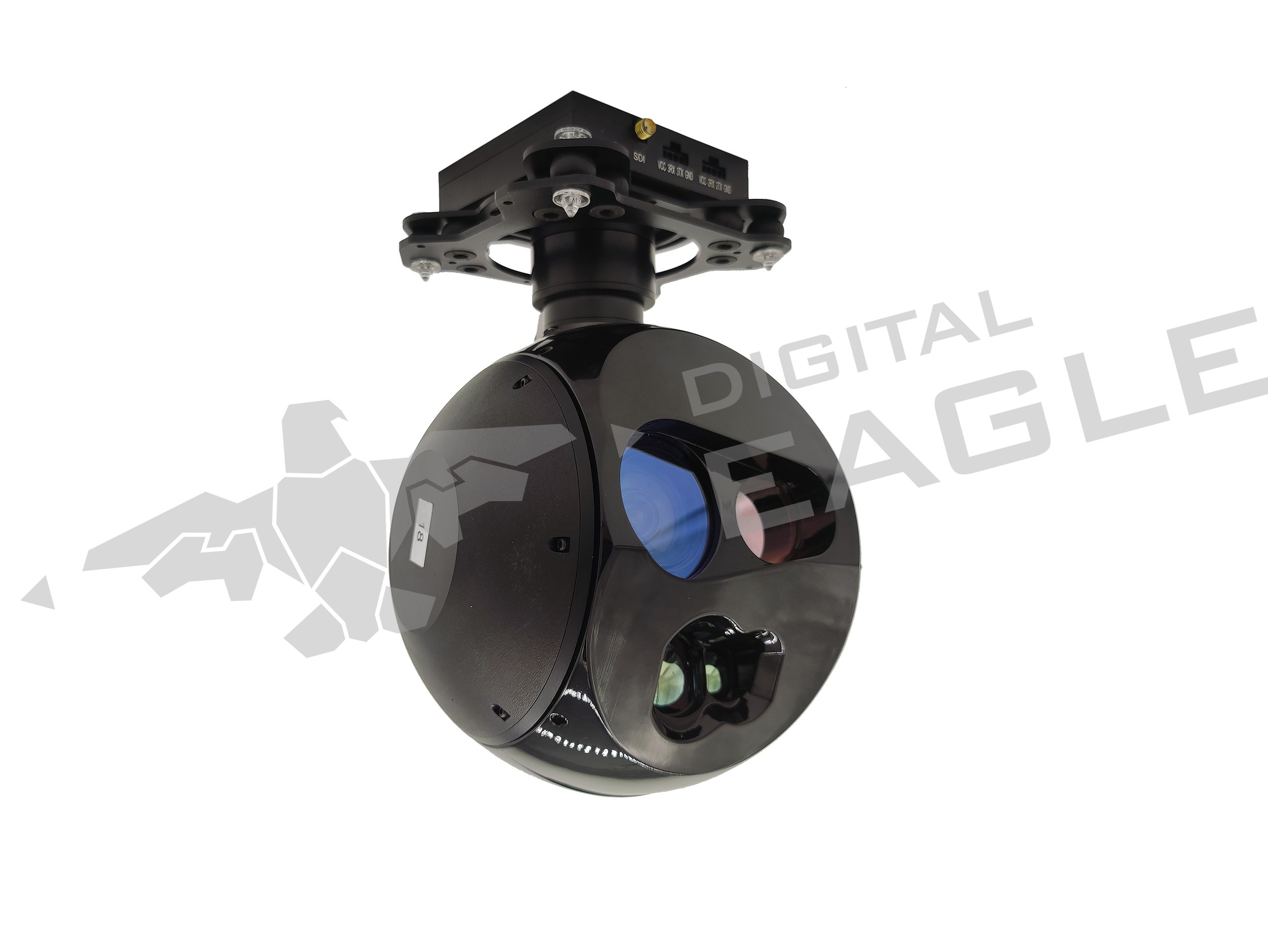

The cameras are integrated with high-definition visible light module, infrared thermal imaging module and additional modules to achieve infrared temperature measure, target tracking and other additional features, greatly facilitate the system used in various industries.
Digital Eagle cameras can be mounted on multi-rotor drones, fixed-wing drones, helicopter, aircraft and other types of flying vehicles.

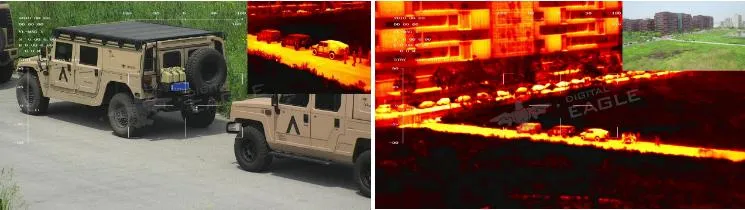

Visible light image with 30x optical zoom Thermal image for night vision, infrared viewOne key switch to thermal lens Support picture in picture

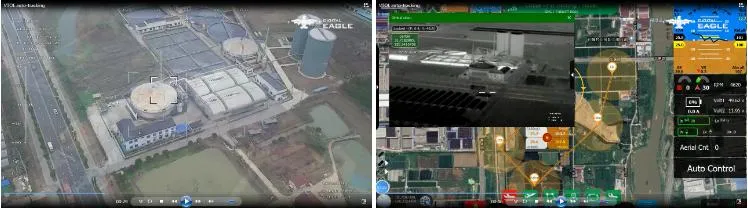

Point zoom target tracking Real time video transmission to command center

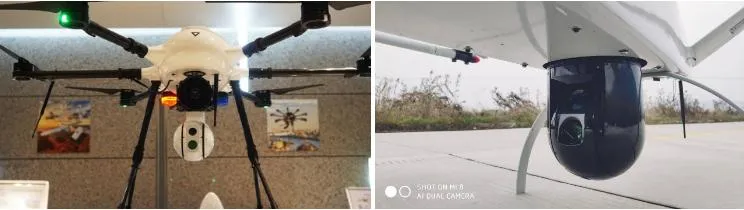

Mounted on multi-rotor drones Mounted on fixed-wing drones

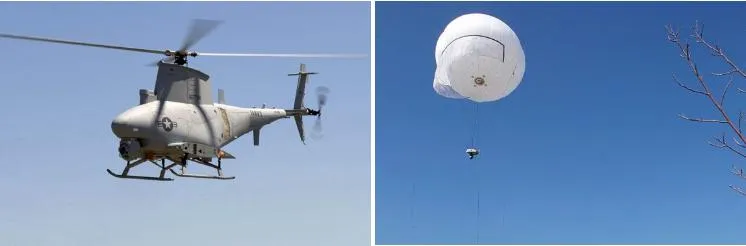

Mounted on helicopter Mounted on hot air balloon

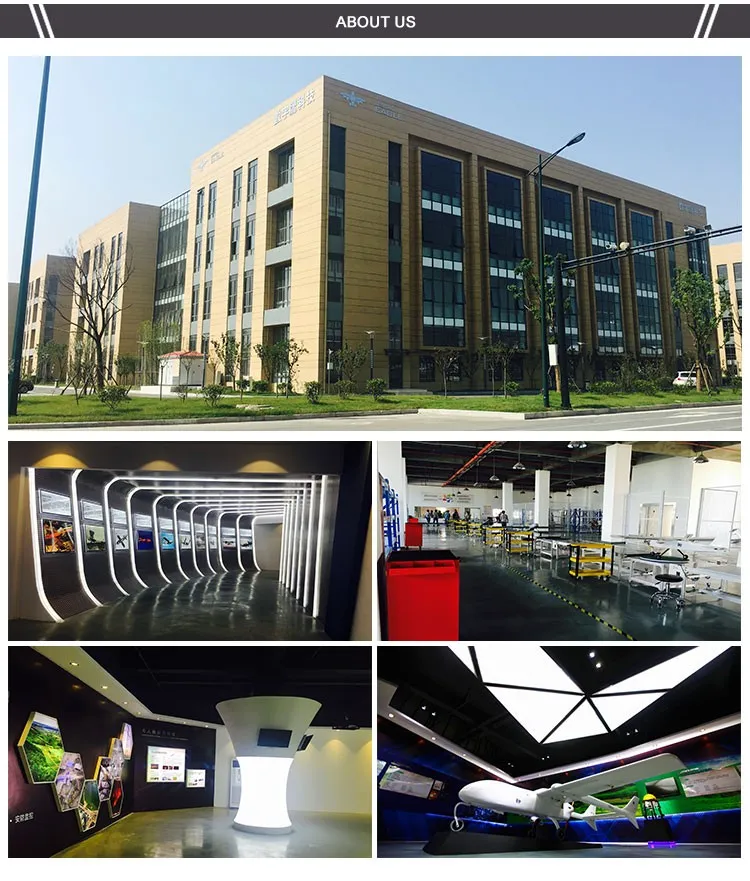

Jiangsu Digital Eagle S&T Development Co., Ltd (DE) is one high-tech enterprise that has independently developed UAV systems and UAV counter systems since 2013, owning R&D center in Wuxi, Factories in Yancheng, Taizhou, Anhui & Qingdao.
At present, DE has formed major production lines for:
- Police security drones
- Agricultural spraying drones
- Anti-drone system
- EO/IR gimbal camera
1. What's your best price?
We offer customized design, and the price is based on quantity or optional parts. Contact us to get more!
2. How do you provide training service?
All our products are modular-design, easy to operate and maintain for anyone from anywhere.
We also provide on-line courses and 3-5 day off-line training in our company.
Every client will be required to pass the exam before operating.
3. What can I buy from you?
Agriculture Drone, Multi-rotor Drone, Fixed Wing Drone, Drone Camera, Anti Drone Device.
4. What's your advantage compared with other suppliers?
- Own R&D center, four factories in China, more than 350 patents.
- Professional teams
- Long time experiences
- Global markets coverage
5. What about the warranty of FIXED WING UAV DRONE?
1 year warranty for drone frame and software, three months for wearing parts.
6. Do you support customized products?
Yes, we welcome the customized products for the client.
Digital Eagle has its own R&D departments in Wuxi and 4 factories in China Yancheng, Anhui, Qingdao, Taizhou.
