Dual Lens Web Cam RGB+IR USB Binocular Camera Module with M8 Lens USB Camera Module
Dual Lens Web Cam RGB+IR USB Binocular Camera Module with M8 Lens USB Camera Module:1. 1/2.7 inch AR0230 Cmos Camera Module2. Doule 2Mega Face Recognition Cmos USB Camera Module3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB Camera Module with 73.5 d......
Send Inquiry
Product Description
Dual Lens Web Cam RGB+IR USB Binocular Camera Module with M8 Lens USB Camera Module:
0514 Lens Options
Model No. HP8009A HP7021-D1 HP6205 HP6150-F1 HP3420-A1
Optical Format 1/2.7" 1/2.7" 1/2.7" 1/2.7" 1/2.7"
EFL 4.25 3.0 2.9 3.0 4.42
BEL 1.56 3.46 3.79 3.41 2.11
Construction 4P+IR 2G2P 3G2P+IR 2G2P+IR 4E+IR
F/No 2.0 2.5 2.4 2.4 2.0
FOV 1/2.7" 74.38/66.91/40.91 95/86/55 98/89/57 94/86/56 73.5/65.5/40
FOV 1/3" 89/76/60 90/76/60
IR Filter 650 650 650 650 650
MOD M12*0.5 M12*0.5 M12*0.5 M12*0.5 M8*0.35
NOTE1: The M12 Lens kit for the USB Camera module,4 lens are included.
NOTE2:For the sample order,please order the lens you need to replace separately and contact us in advance for customization if you would like to replace the lenses on the camera boar

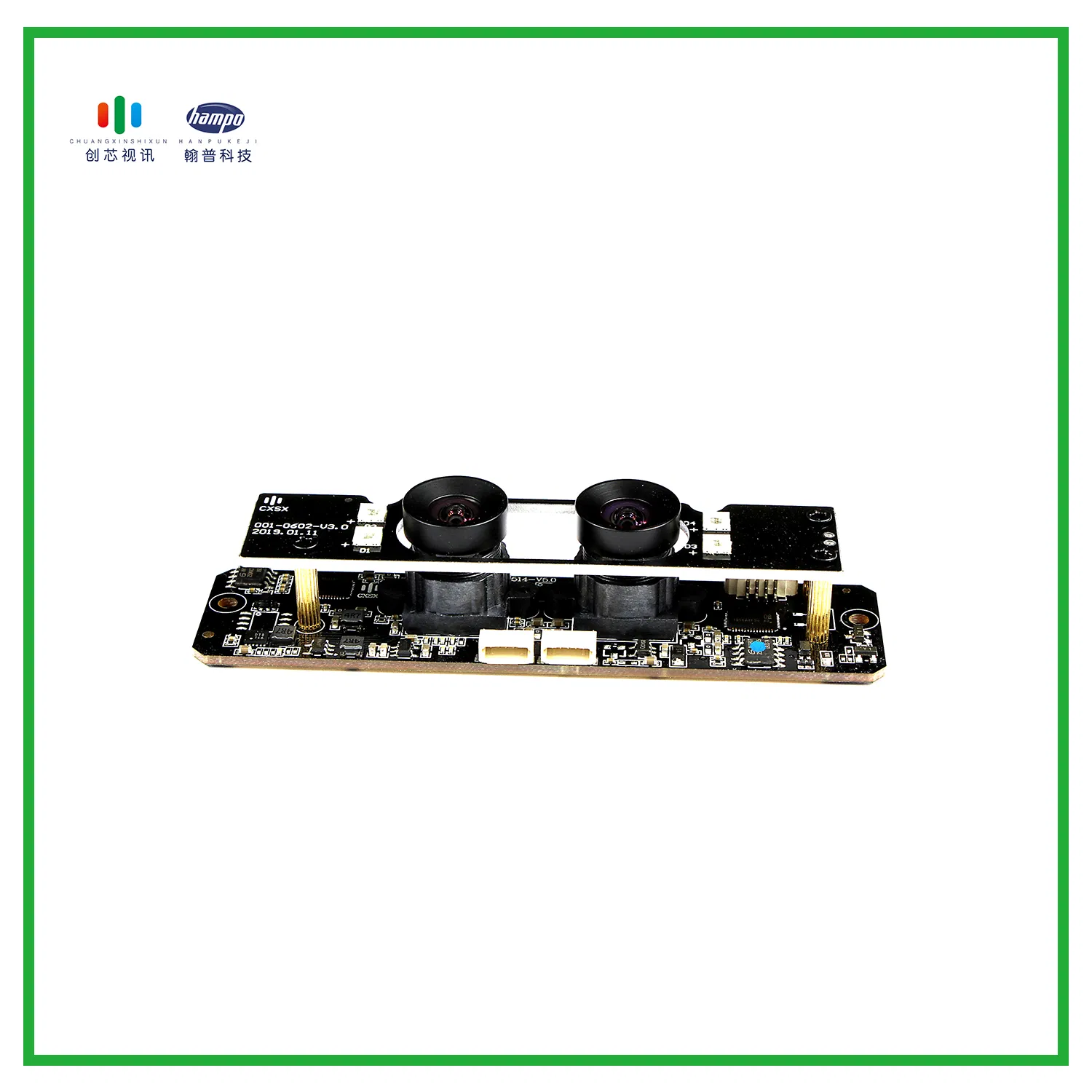

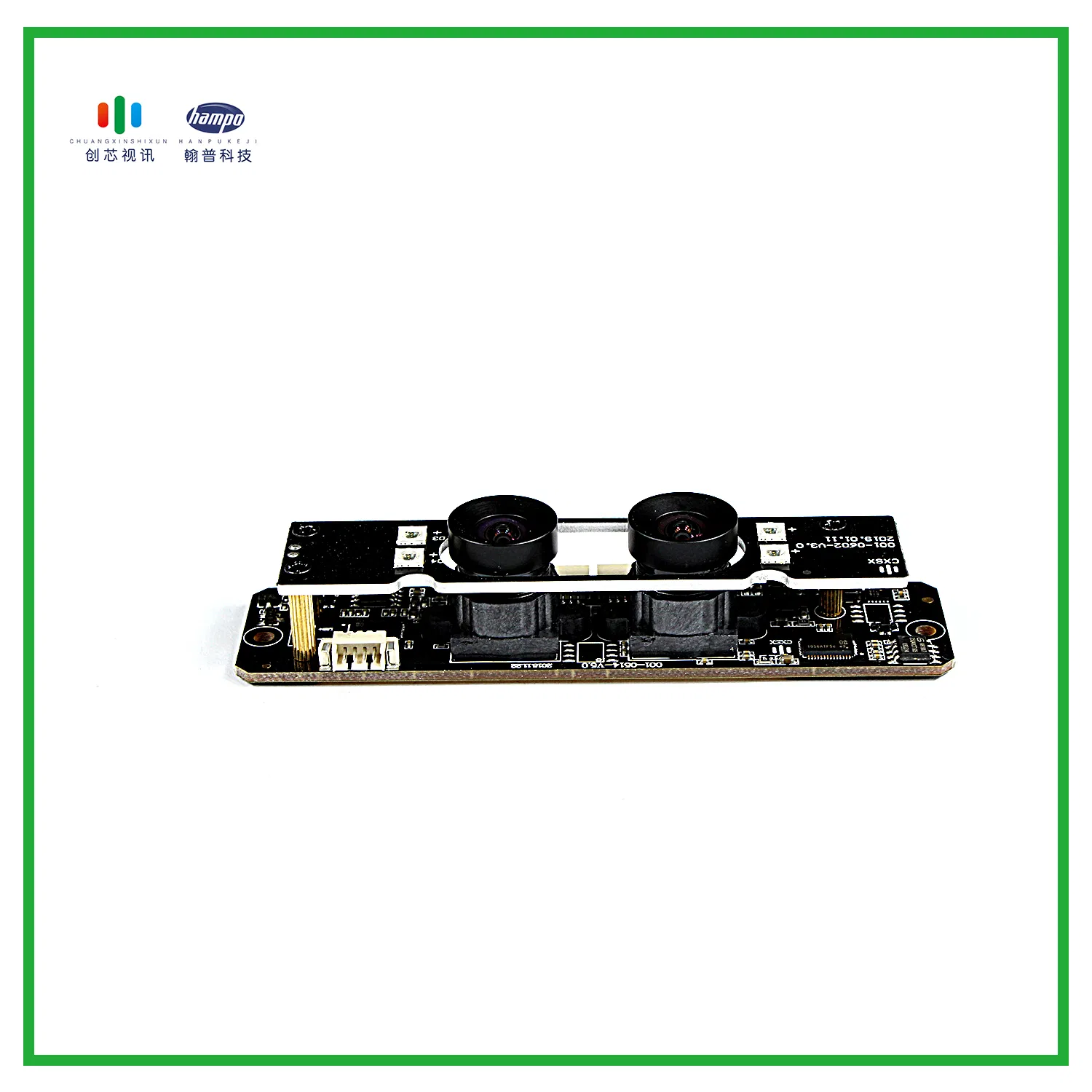

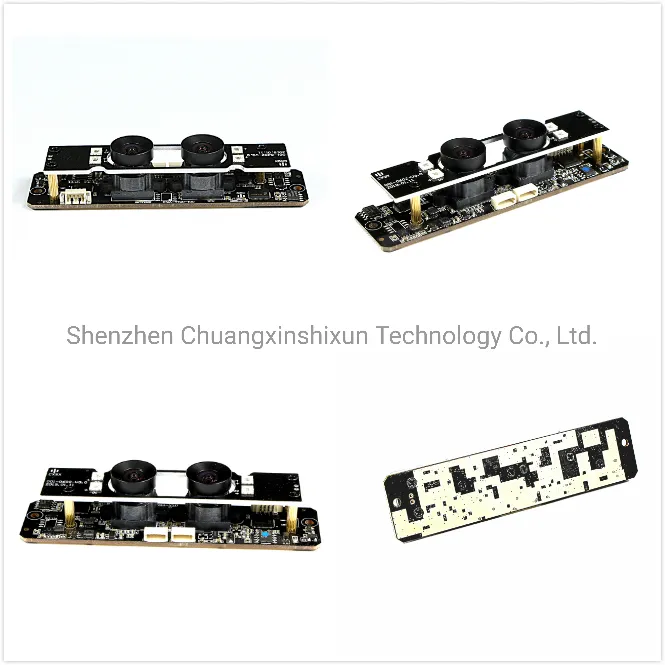

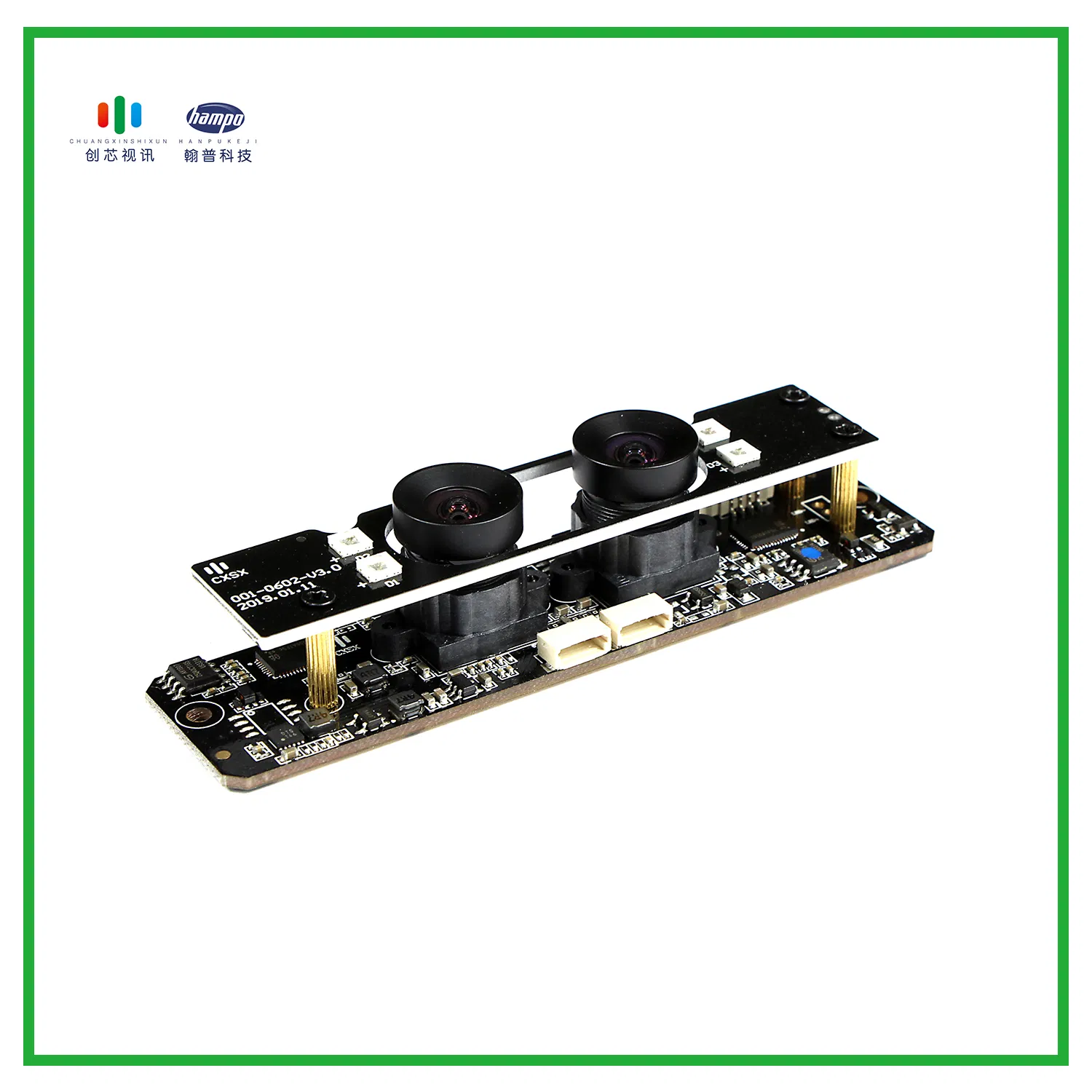

Pictures Display:

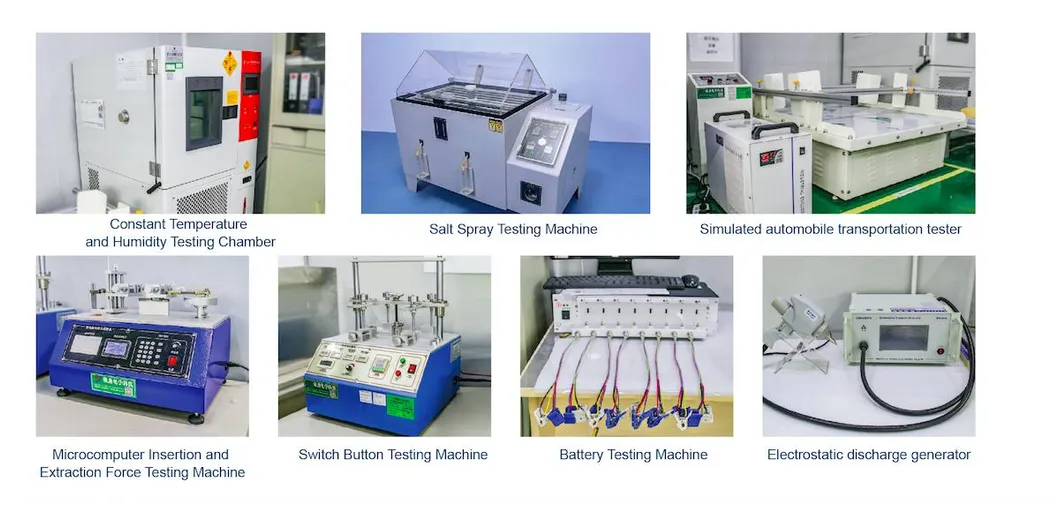

Quality Control:

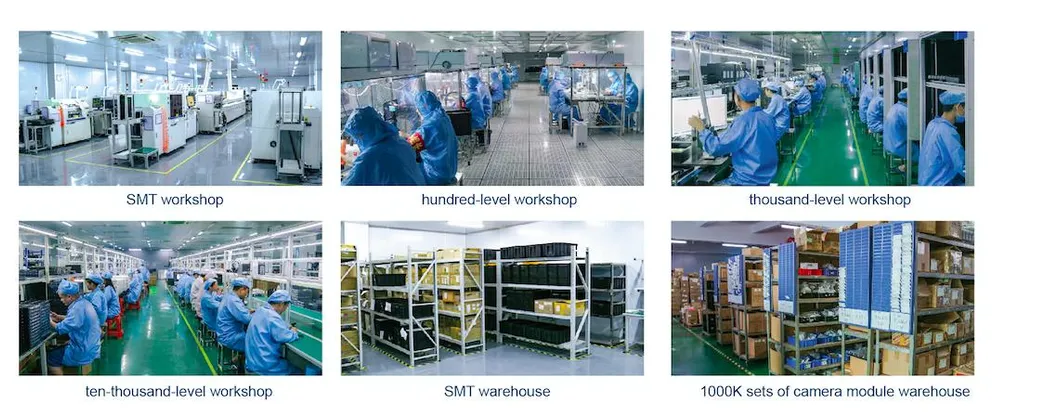

Company Information:
Shenzhen Chuangxinshixun(Dongguan Hampo) Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Main products: Camera modules such as USB camera modules,PEEPHOLE DOOR VIEWER camera module,MIPI camera modules and DVP camera modules; cameras such as PC CAMERA and VIDEO CONFERENCE camera; OID devices such as TALKING PEN and SMART PEN.
Cooperative Companies: Midea and A4 tech, Baidu, Alibaba Group, Huawei, Samsung, Sony,Haier,Orion, and many research institutes.
Technology
Bring in advance technology and machinery equipment, won the title of National High-Tech Enterprise. Having a prossional team on R&D and engineering.
Primary service
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. From the PCBA ,lens assembly to the finished camera.We could provide a complete survice for you.
1. 1/2.7 inch AR0230 Cmos Camera Module
2. Doule 2Mega Face Recognition Cmos USB Camera Module
3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB Camera Module with 73.5 degree
5. 92*22*17mm mini micro USB board camera
6. Applications: Widely used for the video surveillance system, live streaming, record lesson and conference, and other vision applications.
Specification:
| Items | Parameters | |
| IR Camera | RGB Camera | |
| SENSOR | OV2710, color photosensitive chips | AR0230, wide dynamic color photosensitive chips |
| Lens Size | 1/2.7 inch | 1/2.7 inch |
| Maximum Effective resolution | 1920*1080 | 1928*1088 |
| Data Format | MJPG/YUY2 | MJPG/YUY2 |
| Pixel Size | 1920*1080,1280*720,640*480,320*240 | 1920*1080,1280*720,640*480,320*240 |
| Dynamic Range | Up to 69dB | Up to 105dB |
| Lens | FOV :D= 73.5° | |
| Optical length :8.61MM | ||
| lens construction:4E+IR | ||
| mount :M8*P0.35mm | ||
| Focusing | Fixed focus | |
| Frame Rate | 30fps | |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure | |
| Audio | \ | |
| Voltage | DC 5V | |
| Working Current | MAX 200mA | |
| USB Connector | USB2.0 | |
| Storage Temperature | -20ºC to +70ºC | |
| Working Temperature | 0ºCto +60ºC | |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 | |
| 2,Linux or OS with UVC driver | ||
0514 Lens Options
Model No. HP8009A HP7021-D1 HP6205 HP6150-F1 HP3420-A1
Optical Format 1/2.7" 1/2.7" 1/2.7" 1/2.7" 1/2.7"
EFL 4.25 3.0 2.9 3.0 4.42
BEL 1.56 3.46 3.79 3.41 2.11
Construction 4P+IR 2G2P 3G2P+IR 2G2P+IR 4E+IR
F/No 2.0 2.5 2.4 2.4 2.0
FOV 1/2.7" 74.38/66.91/40.91 95/86/55 98/89/57 94/86/56 73.5/65.5/40
FOV 1/3" 89/76/60 90/76/60
IR Filter 650 650 650 650 650
MOD M12*0.5 M12*0.5 M12*0.5 M12*0.5 M8*0.35
NOTE1: The M12 Lens kit for the USB Camera module,4 lens are included.
NOTE2:For the sample order,please order the lens you need to replace separately and contact us in advance for customization if you would like to replace the lenses on the camera boar
Pictures Display:
Quality Control:
Company Information:
Shenzhen Chuangxinshixun(Dongguan Hampo) Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Main products: Camera modules such as USB camera modules,PEEPHOLE DOOR VIEWER camera module,MIPI camera modules and DVP camera modules; cameras such as PC CAMERA and VIDEO CONFERENCE camera; OID devices such as TALKING PEN and SMART PEN.
Cooperative Companies: Midea and A4 tech, Baidu, Alibaba Group, Huawei, Samsung, Sony,Haier,Orion, and many research institutes.
Technology
Bring in advance technology and machinery equipment, won the title of National High-Tech Enterprise. Having a prossional team on R&D and engineering.
Primary service
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. From the PCBA ,lens assembly to the finished camera.We could provide a complete survice for you.
