Product Description

Product Features

*Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance
*Infrared detector with high temp sensitivity, with min temp resolution of 50mK
*Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring
*Optional auto focusing function, realizing multiple focusing mode and triggering mode
*Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency
*3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability
*Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain

Specification

Operating distance	Visible light	1000m
	Thermal imaging	object	human(1.8m×0.5m)	Vehicle(2.3m×2.3m)
		Detection distance	3600m	9900m
		Recognition distance	900m	2470m
		Identification distance	450m	1200m
Camera and video coding	Sensor type	1/2.8" Progressive Scan CMOS
	Total pixels	2.1MP
	Lens focal length	f=4.5~135mm, 30× optical zooming
	Camera control	Auto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switch
	Coding format	H.264
	Video resolution	1920x1080
	Video frame rate	1~30f/s
	Image adjustment	brightness, contrast ratio, saturation
Infrared lens	Focal length	30~150mm, 5× optical zoom
	FOV	3.1°×2.4°~15.2°×12.2°
	F value	F1.0~F1.2
	Lens control	electric zooming, electric focusing(auto focusing optional)
Detector	Detector type	uncooled microbolometer focal plane array(VOx)
	Effective pixels	384×288 (640×512/1024×768 optional)
	Spectral range	8~14μm
	Temp sensitivity	≤[email protected],300K
	Frame rate	25Hz
	Image processing	DDE, pseudo color
Pan-tilt	Carrying capacity	22kg(top load)
	Angle	Horizontal 360°continuous rotation,pitching -45°~+45°
	speed	Horizontal 0°~9°/s,pitching 0.1°~4°/s
	Preset bits	255
	Cruising	8 paths,10 bits each path
	Anti-lightning	2000V
Interface	Power supply interface	AC24V
	Network interface	1×10Base-T/100Base-TX,RJ45
	Other interfaces	RS485,BNC video output
Environment indicators	Working temp	-25ºC~+55ºC
	Storage temp	-40ºC~+65ºC
Power supply	Whole machine power supply	24VAC±10%,appendant 220VAC~24VAC/5A water proof power supply
	Whole machine power consumption	≤60W
Physical features	Whole machine weight	21kg
	Installation method	Outdoor pedestal mounting

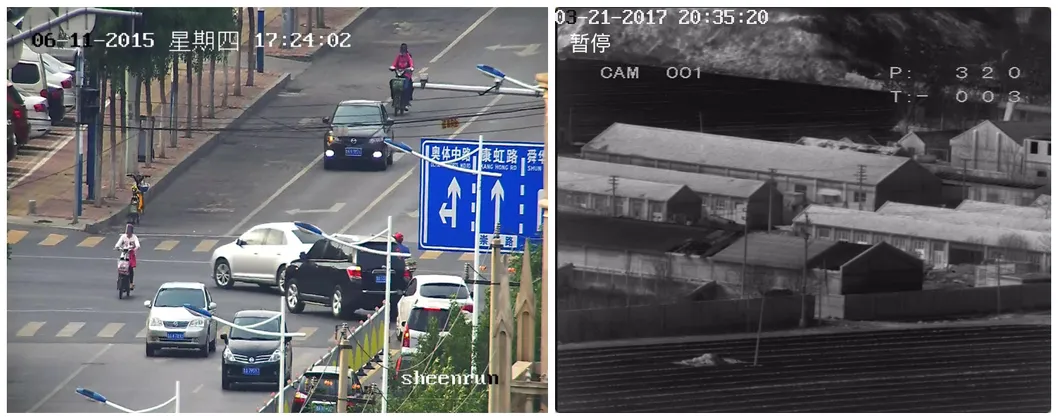

Effection Demo

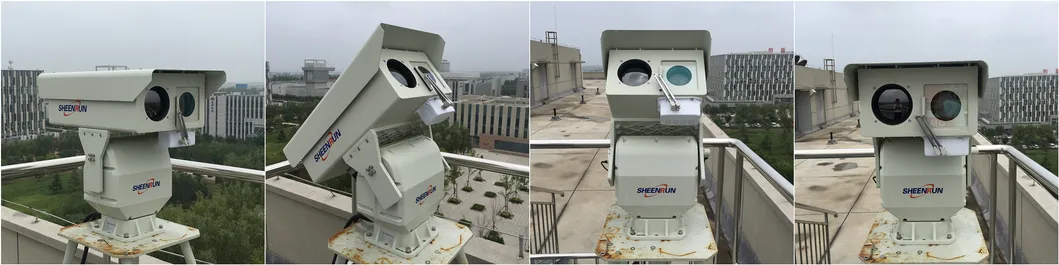

Dual Spectrum Military Infrared PTZ Thermal Imaging Surveillance Camera

Our Services

(a) We generally offer one year warranty. Extended warranty is also available.
(b) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed.
(c) We accept OEM.
(d) We offer customized product.
(5) Remote control test provided. (Appointment needed)

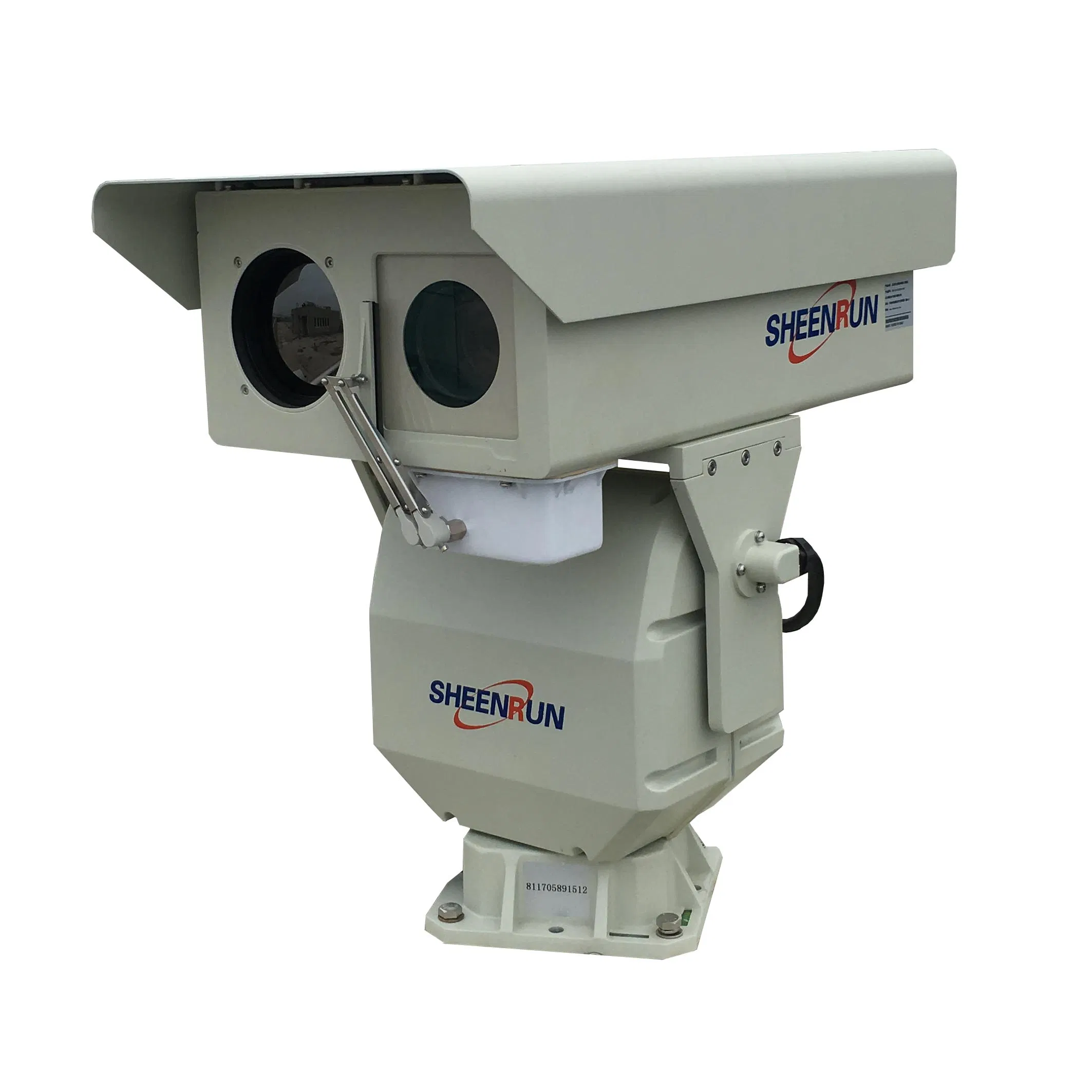

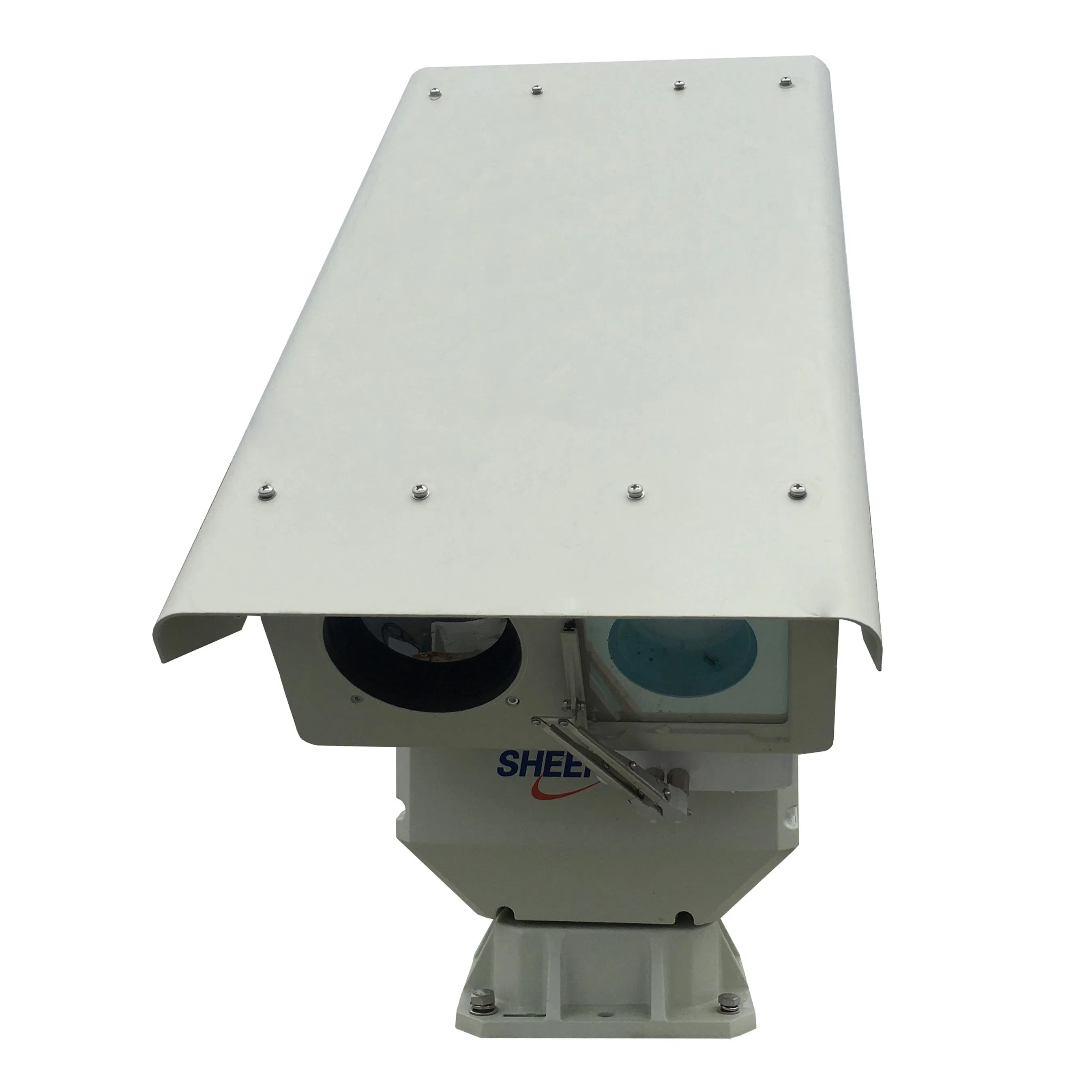

Dual Spectrum Military Infrared PTZ Thermal Imaging Surveillance Camera

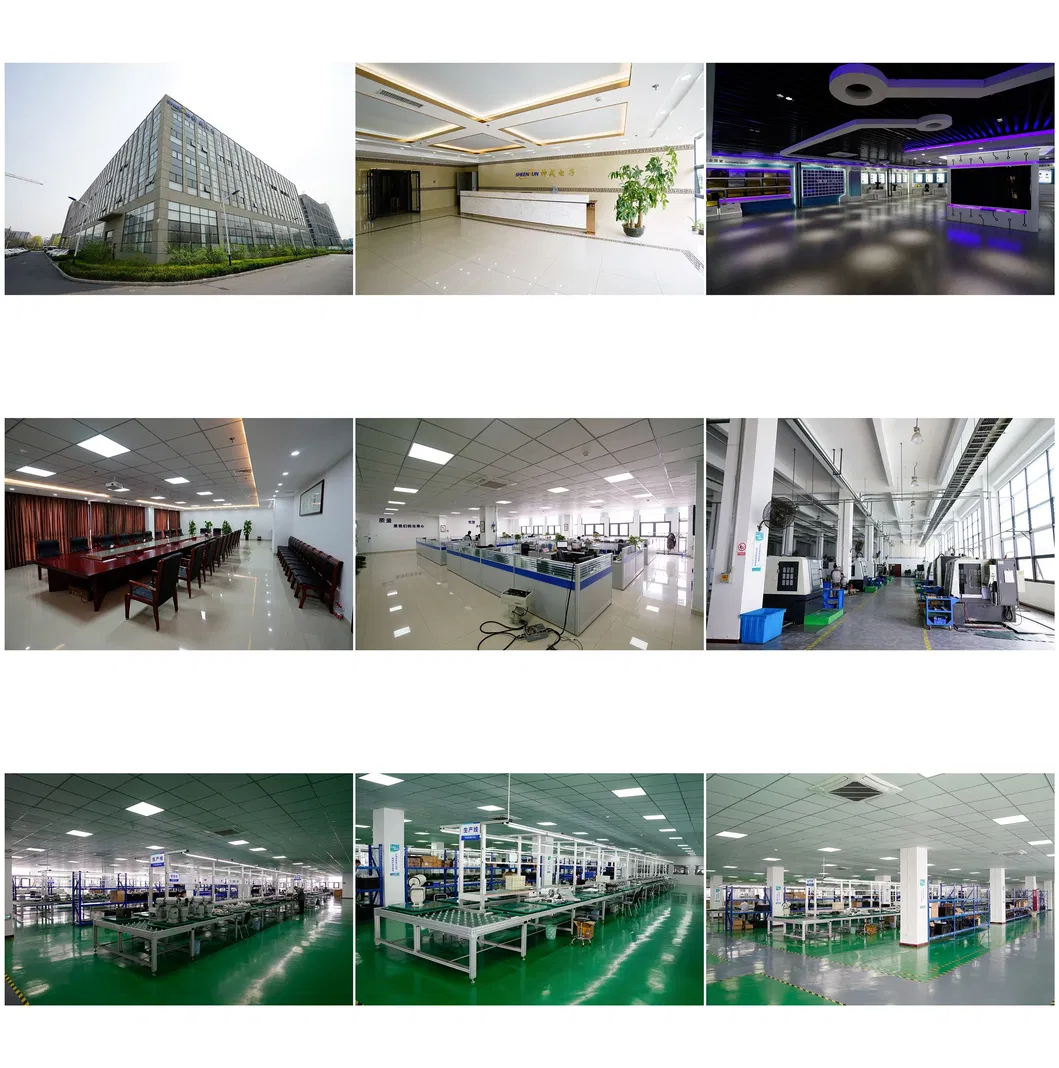

Company Photos

Company Introduction

China Sheenrun Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, Sheenrun adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
Sheenrun's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability.
