Product Description

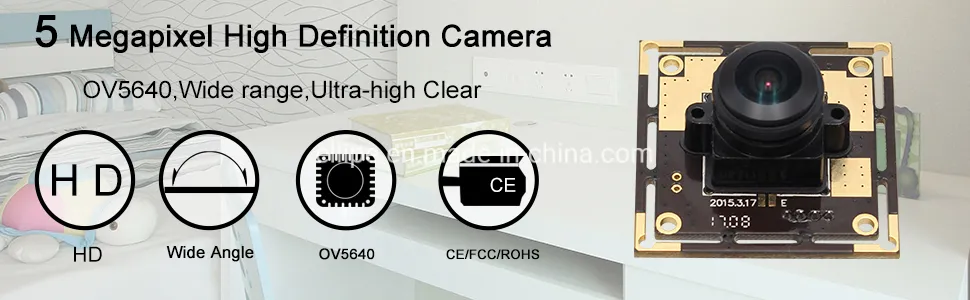

ELP 170Degree 5MP Camera Module Wide Angle USB Webcam CMOS OV5640 Fisheye lens USB Camera for Android ,Linux,Windows

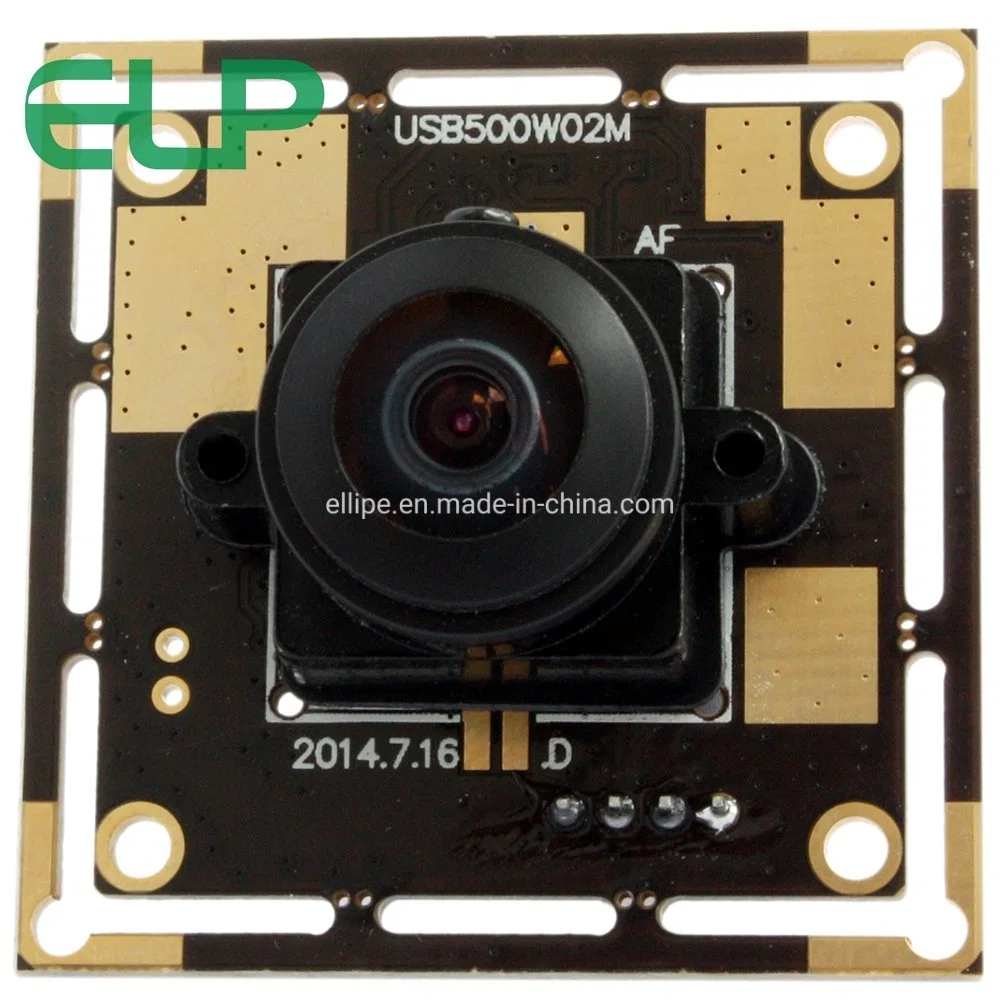

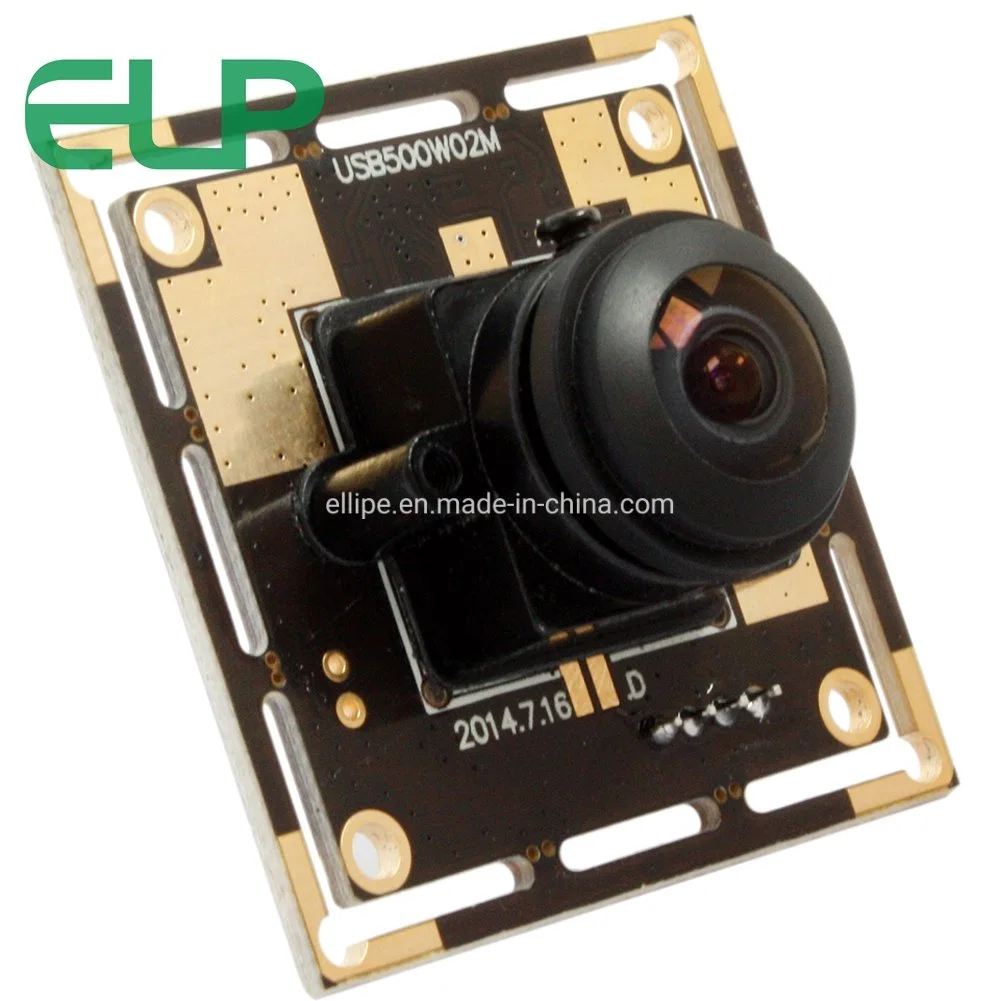

ELP-USB500W02M-L170 is 5megapixel 2592x1994 super high resolution USB cameras with fisheye wide angle lens for Linux Android Windows etc. OS system.
Main Features
*5 Megapixel HD Webcam for portable video system
*1/4inch CMOS OV5640 sensor , *Wide Angle fisheye lens

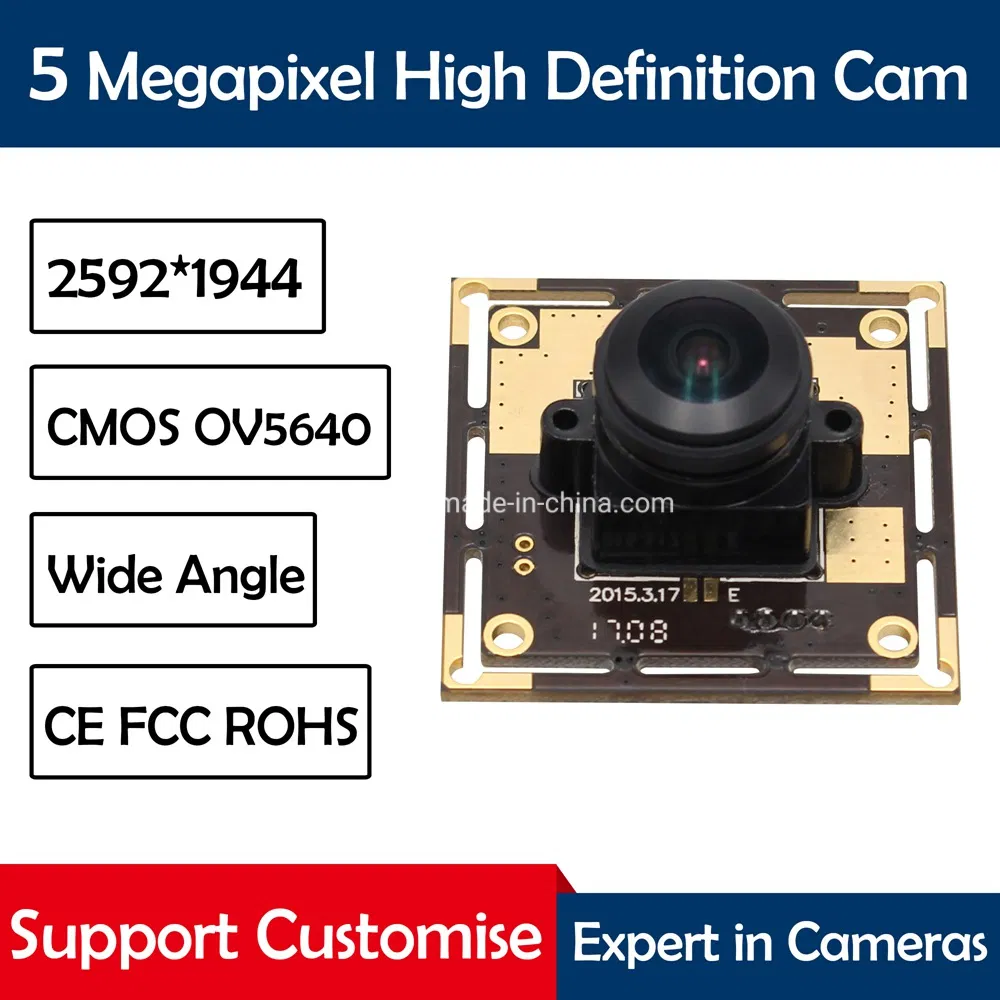

*2592x1944 super HD resolution for faster, smoother HD experiences

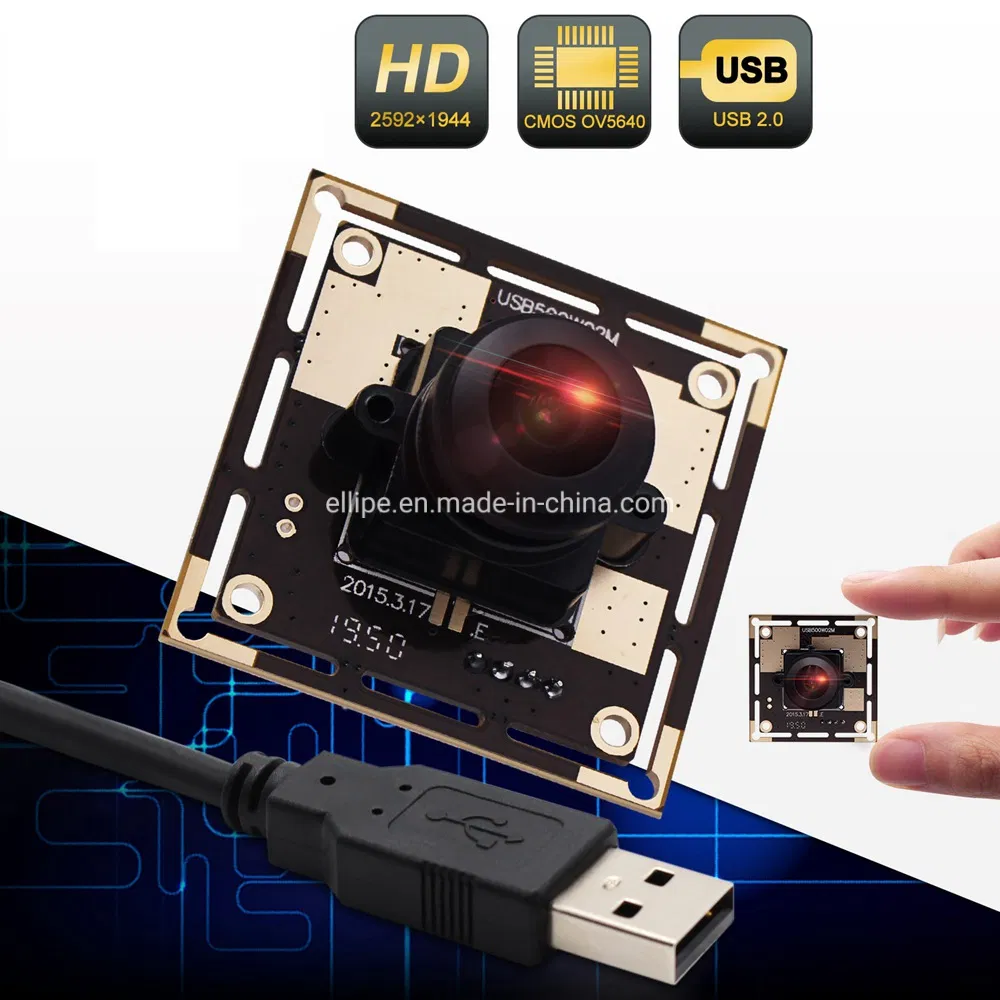

*high speed USB1.1&2.0 compatible, occupy less bandwidth
*Support Free driver, camera with UVC

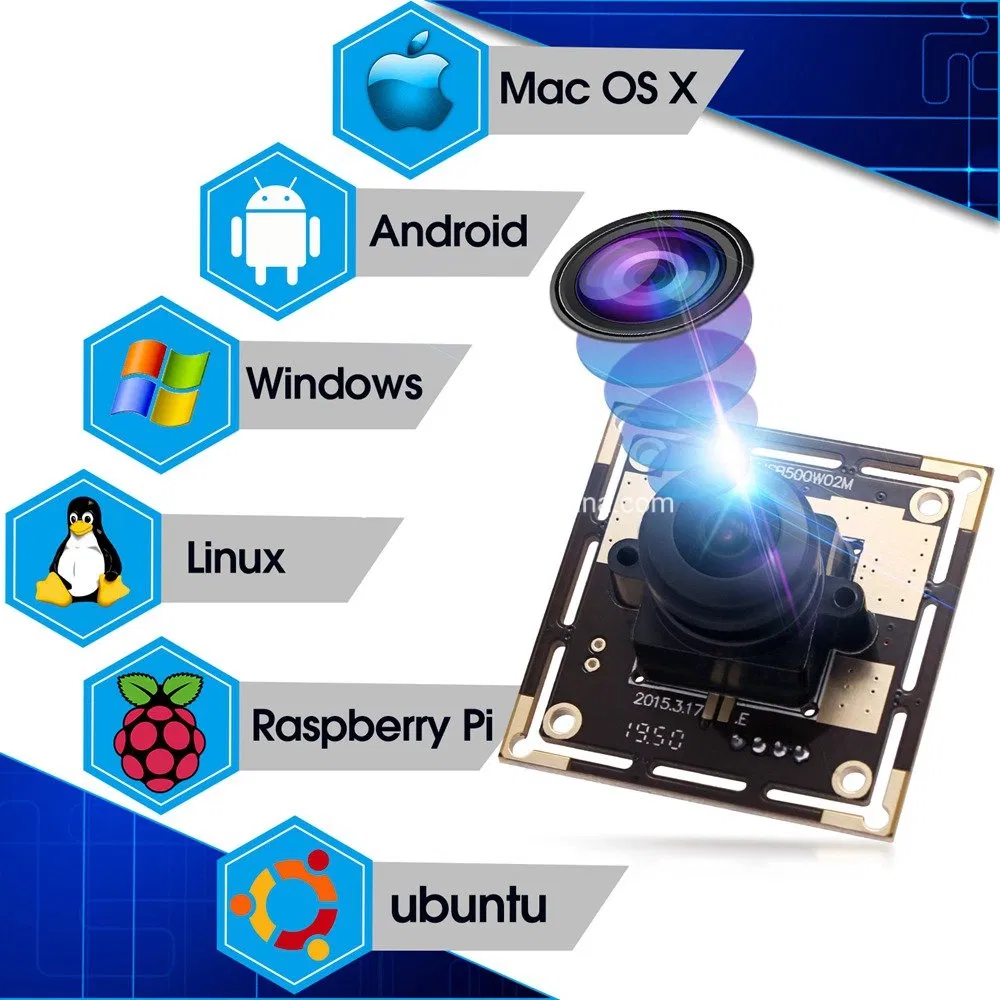

*UVC Class camera for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
Camera Specifications
| Module: ELP-USB500W02M-L170 | |||
| Resolution& Frame Rate | 2592x1944@ 15fps MJPEG / 2048x1536@ 15fps MJPEG 1600x1200@ 15fps MJPEG / 1920x1080@ 15fps MJPEG 1280x1024@15fps MJPEG/ 1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG | ||
| Sensor | OV5640 (1/4inch ) | Output Formats | YUYV/MJPEG |
| Pixel Size | 1.4µm x1.4µm | Lens Parameter | Standard Fishey lens, optional 2.8/3.6/6/8/12mm/ FOV(D)170 Degree |
| Image area | 3673.6µmx2738.4µm | Object distance | 5CM-100M |
| Max. Resolution | 2592 (H) *1944 (V) | USB Cable | 1M(2M/3M/5M Optional) |
| Resolution | 600LW/PH (Center) | Module Size | 38×38mm (optional 32X32mm) |
| S/N Ratio | 36dB | Weight | about 30g |
| Dynamic Range | 68dB | AGC/AEC/AWB/ABF | Auto |
| Sensitivity | 600mV/ Lux-sec | Certifications | FCC and CE |
| Shutter | Rolling shutter/ frame exposure | Camera Board Assembly technique | SMT (ROSH) |
| interface | USB 2.0 High Speed | Adjustable parameter | Brightness Contrast Hue Gamma White Balance Exposure Focus |
| protocol | USB Video Class(UVC) | ||
| LED board power connector | Support 2P-2.0mm socket | Package | CSP, Bare Die |
| Power supply | USB BUS POWER 4P-2.0mm socket | Package | LQFN-40pin |
| Operating Voltage | DC5V | Work Temperature | -20°C to 70°C |
| Power consumption | 150mW (VGA); 200mW (QSXGA); | Storage Temperature | 0°C to 60°C |
| Operating system request | Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC | ||
