Product Description

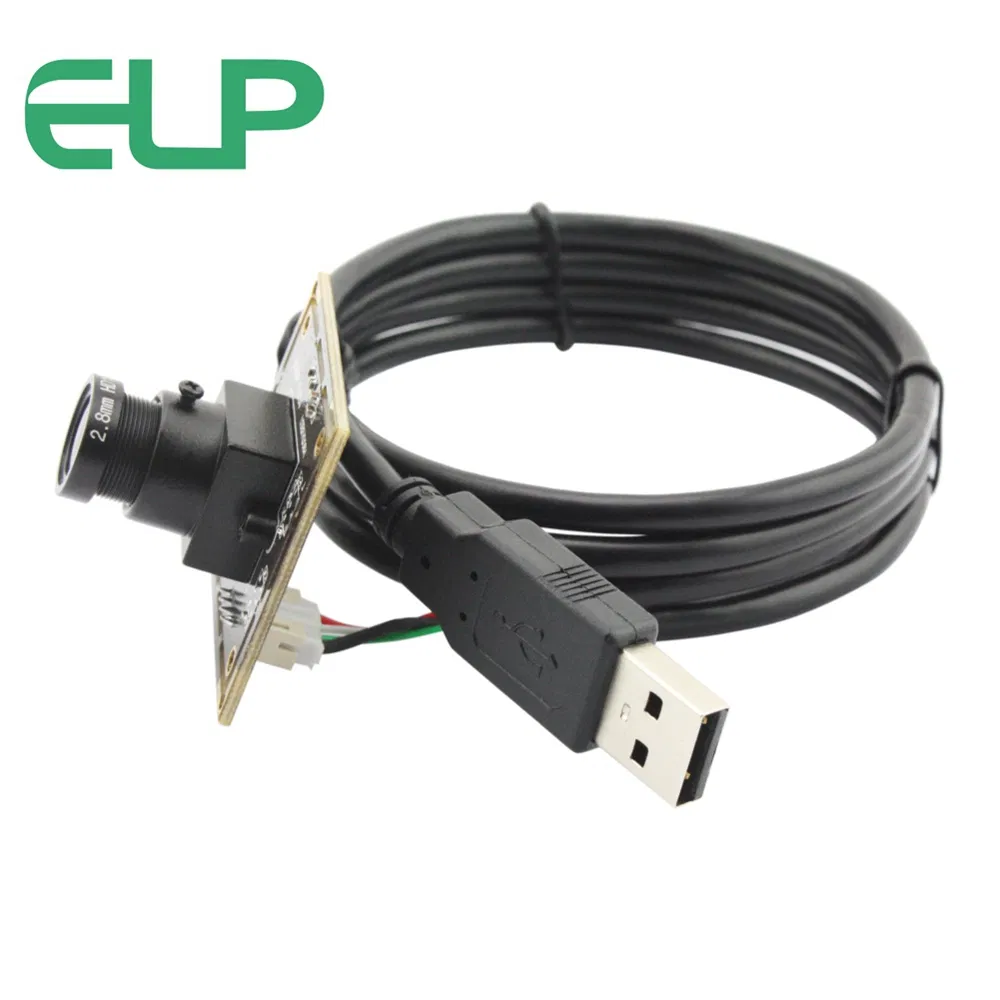

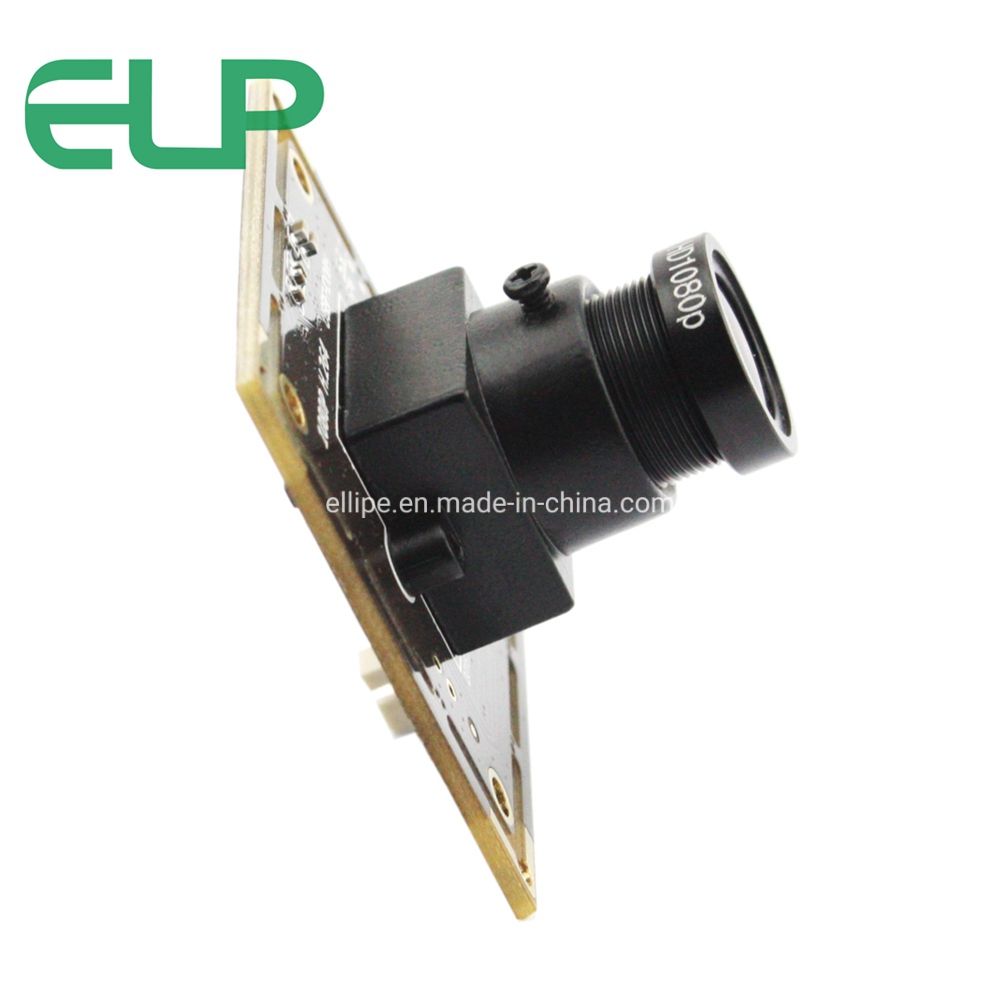

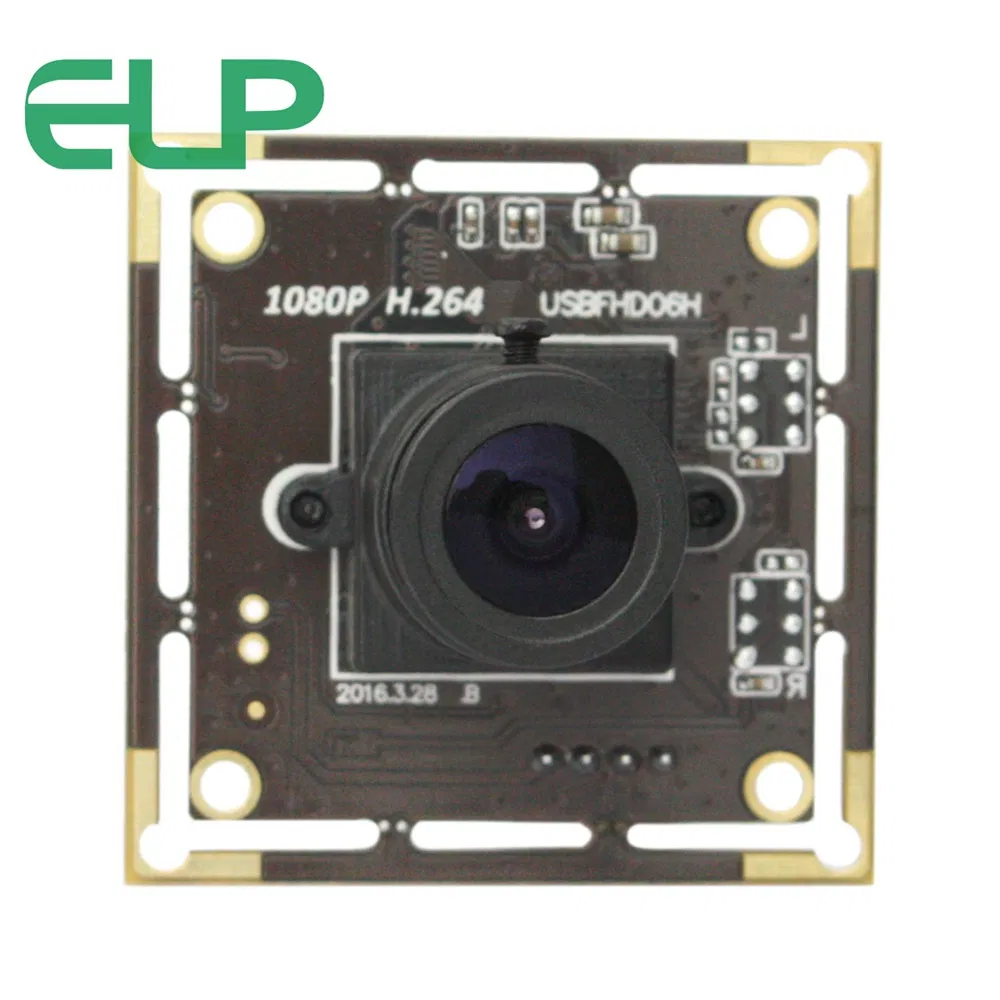

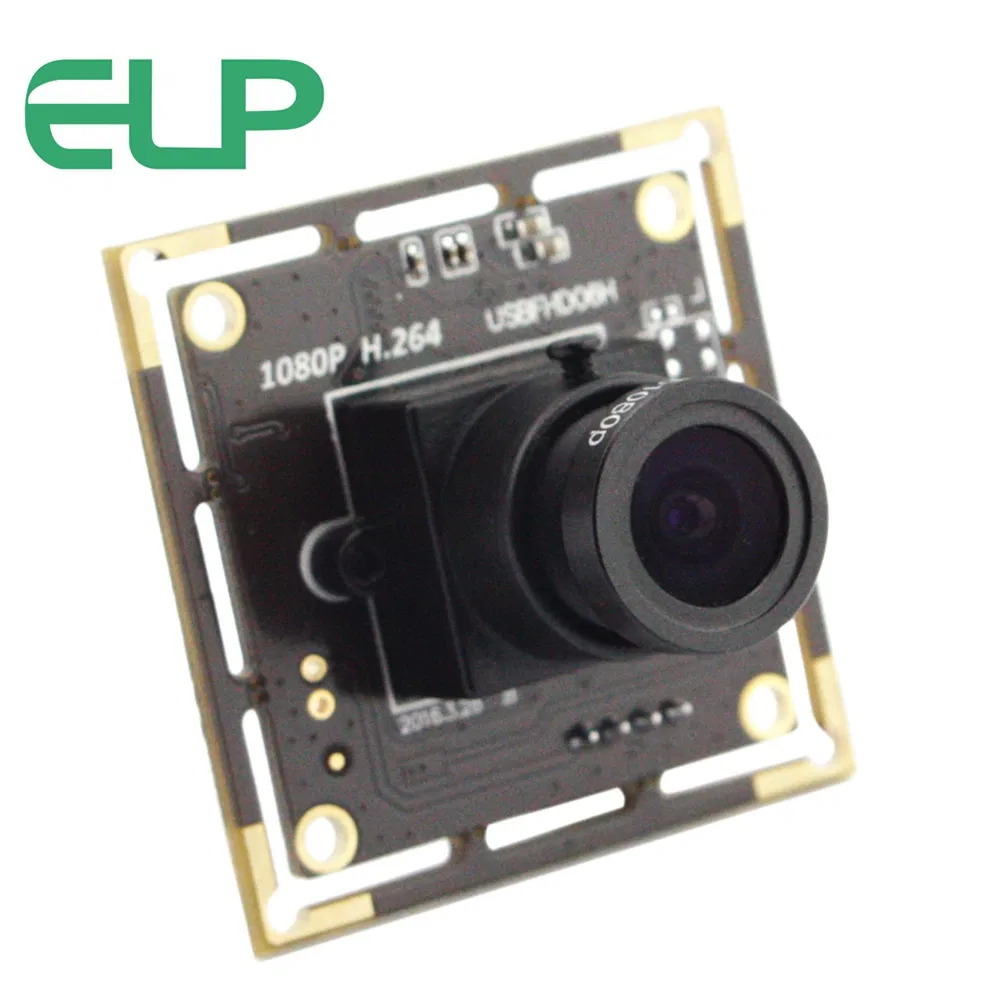

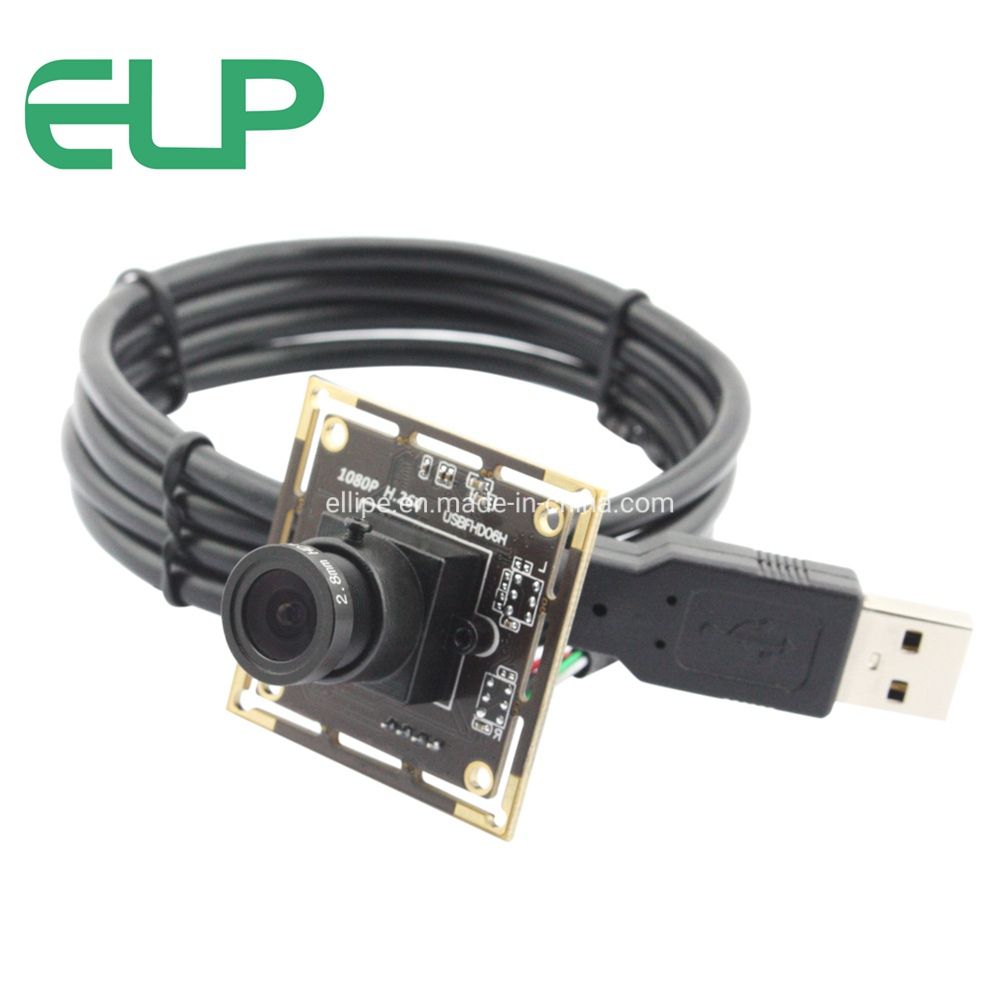

Elp 2.0 Magepixels1080P H.264 Camera Module 0.01lux Low Illumination Imx323 12mm Lens USB Camera with Microphone
Features
*Ultra Low light Camera, Minimum illumination 0.01lux
*Highly advanced Sony IMX323 Sensor
*Max resolution :1920*1080P ,2.0 Megapixel
* Compression format : H264 /MJPEG / YUV2(YUYV)
*Come with microphone on the board which support single channel and dual channel.
*Support IR Cut, optional to add IR LED Board for night vision
*Equiped with 2.1/2.8/3.6/6/8/12mm lens
*USB 2.0 High speed port
*Support OTG protocal: can connect your mobile via OTG cable
*White balance adjustable: Resolve color reduction and tone processing issues
| Model : ELP-USBFHD06H-L12 | |||
Resolution & frame rate | H264: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps MJPEG: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps YUV: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps | ||
| Sensor | 1/29 inch SONY IMX323 | Picture format | H.264/MJPEG / YUY2(YUYV) |
| image area | 2000(H)X1121(V) approx. 2.24 M pixels | Lens Parameter | Standard 3.6mm, FOV(D) 170/180 Degree |
| Pixel Size | 12.8μm x 11.6μm | USB Cable | Standard 1M/ Optional 2m,3m,5m |
| Max. Resolution | FULL HD 1920(H)x1080(V)pixels | Board Size/ Weight | 38*38mm/32mm*32mm optional / about 30g |
| S/N Radio | 42dB | Mini illumination | 0.01lux |
| Dynamic Rangde | 86dB | Sensitivity | 5V/lux-sec@550nm |
| Interface | USB2.0 High speed | Shutter Type | Electronic rolling shutter / Frame exposure |
| Support free driver | USB Video Class(UVC) | Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Exposure White balance, Backlight Contrast, |
| USB Protocol | USB2.0 HS/FS | Digital Audio | High quality digital MIC, support single, dual channel |
| OTG protocol | USB2.0 OTG | AEC, AEB,AGC | Supoort |
| Power Supply | DC 5V | Working temperatur | -10~70 degree |
| Working Current | 130mA~190mA | Storage temperatur | -20~85 degree |
LED board power connector | Support 2P-2.0mm socket | IR CUT Connector | Support 2P-1.25mm socket |

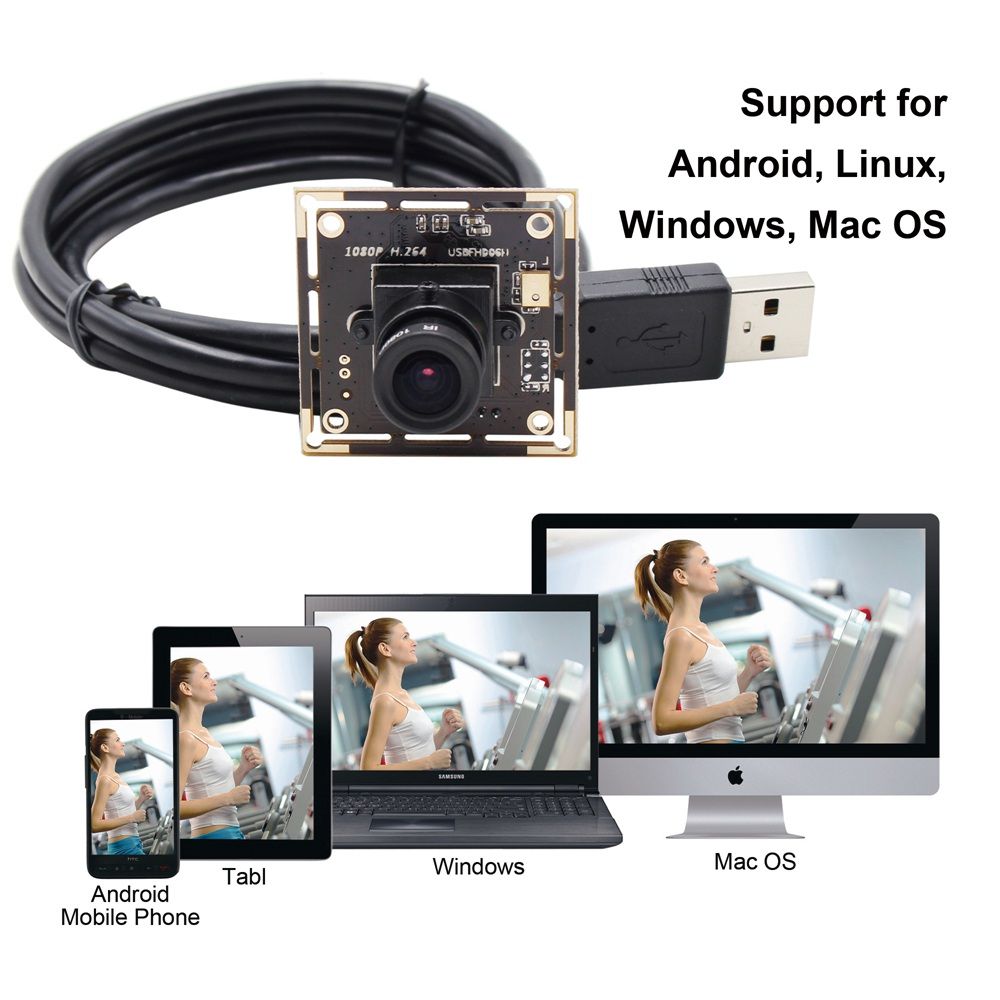

| Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above | ||
