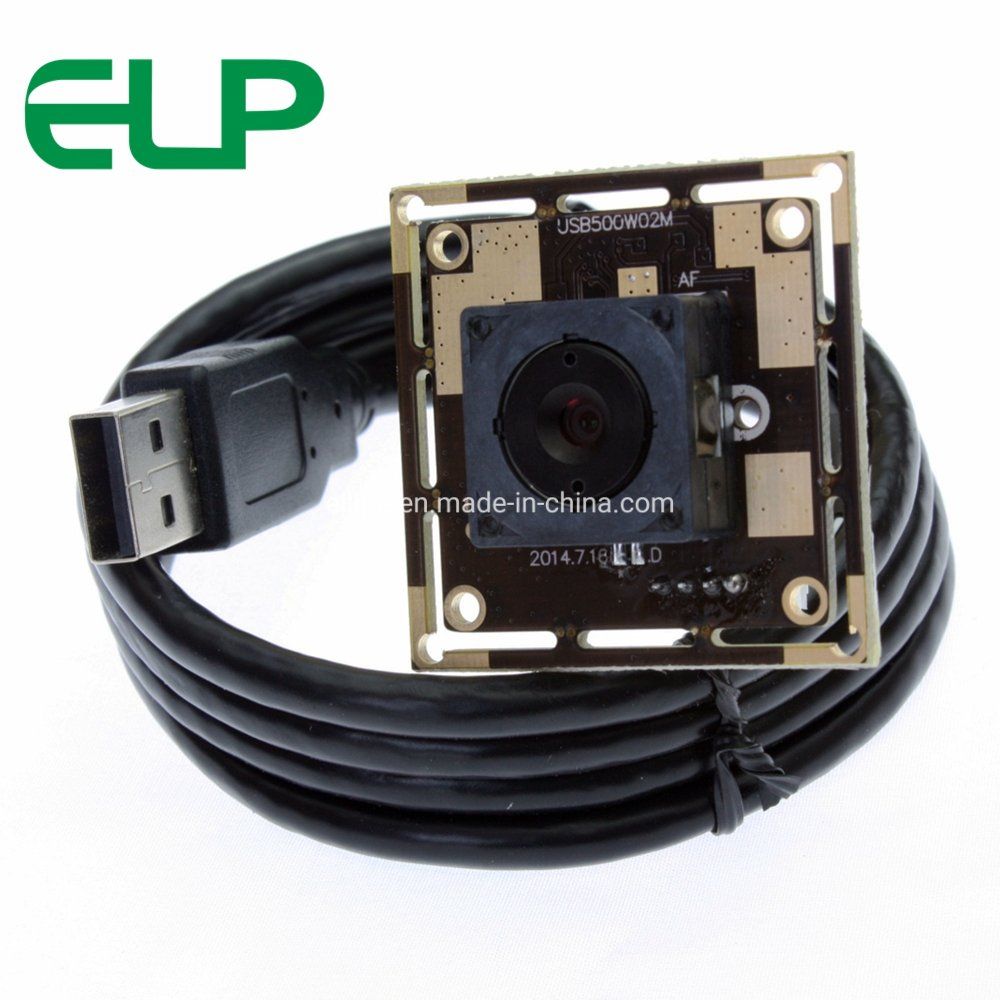

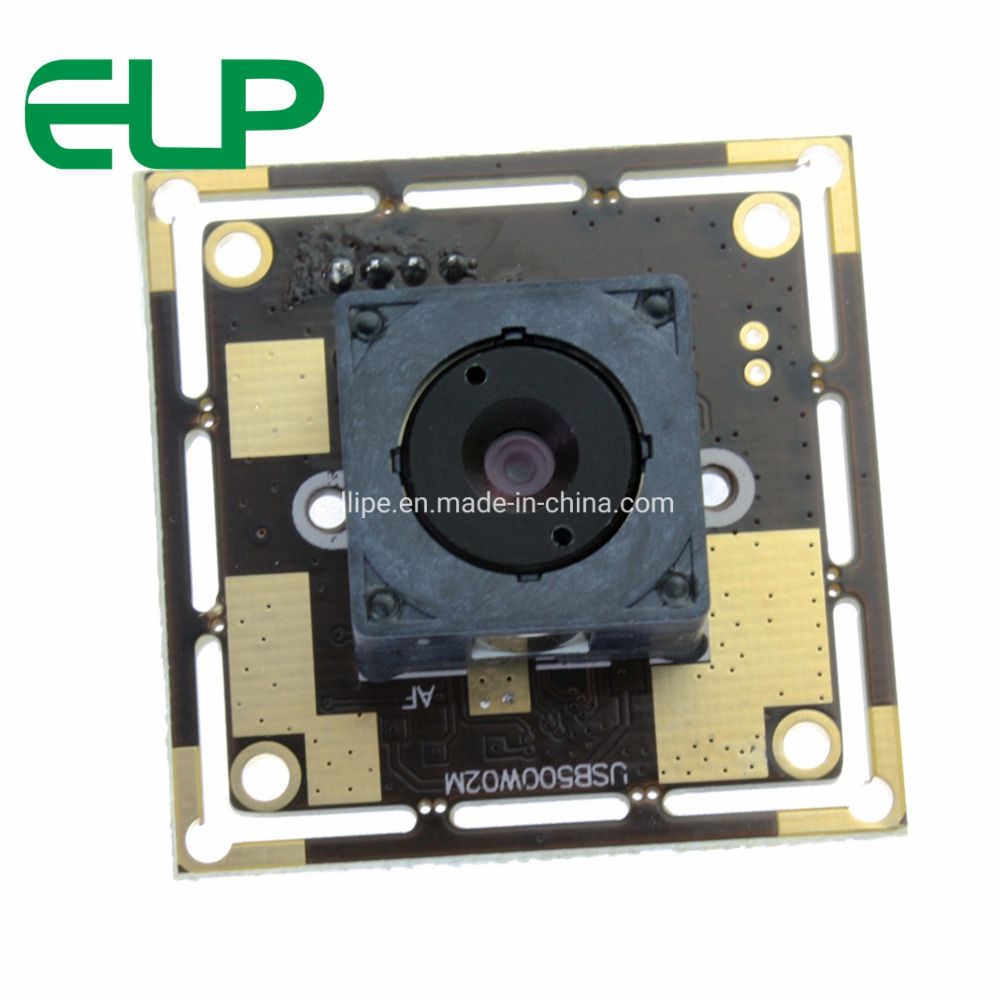

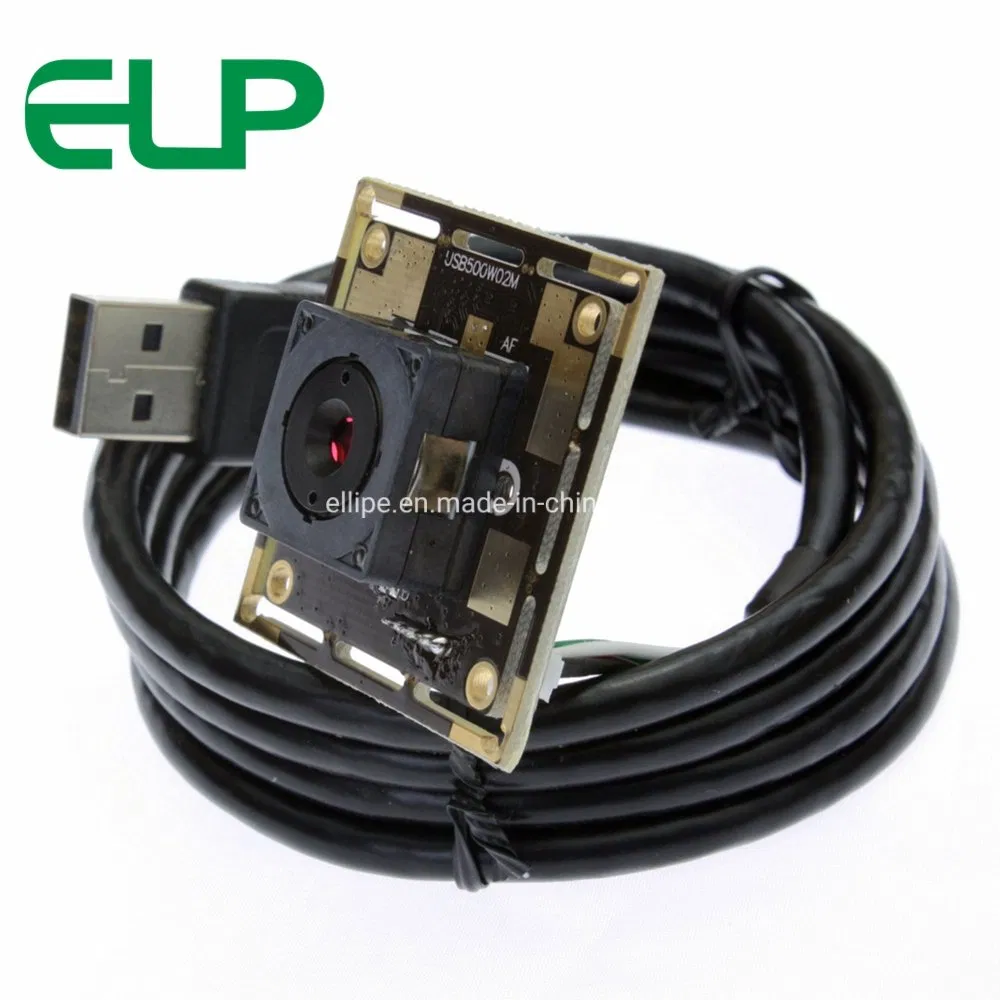

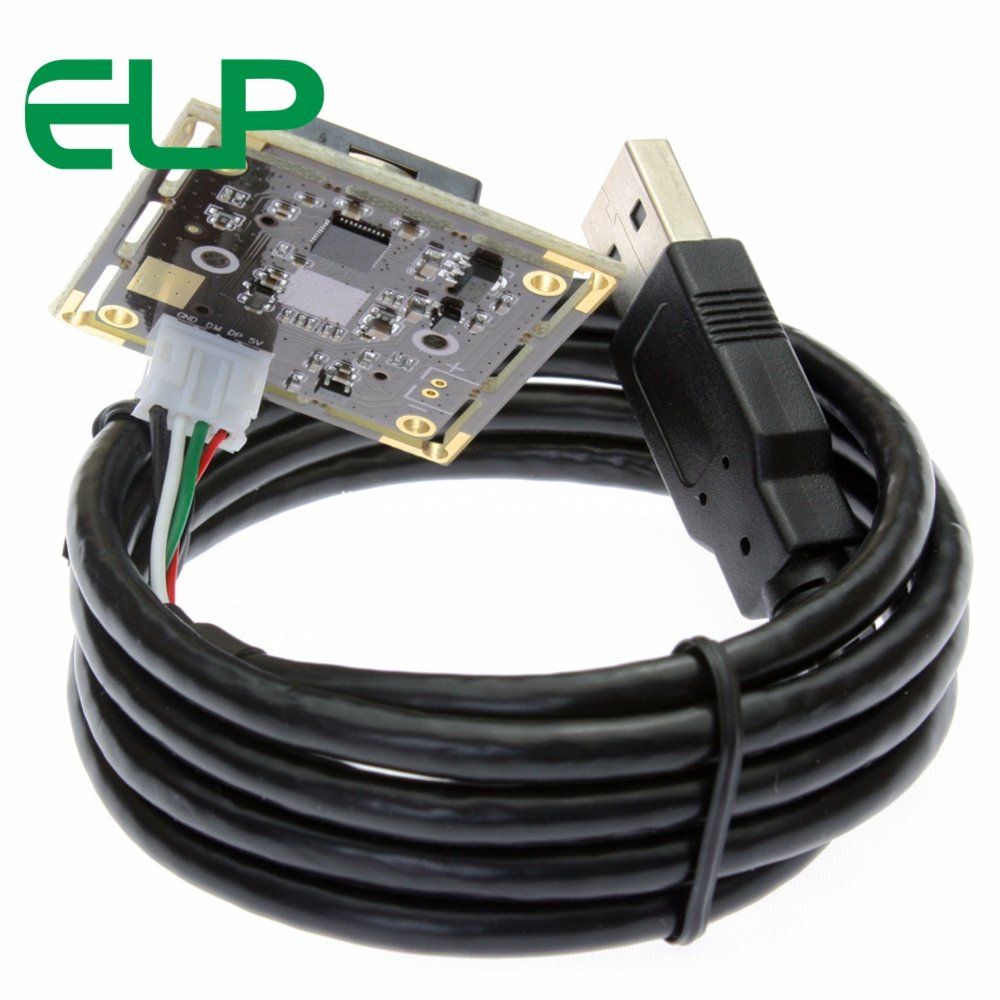

Elp 5.0 Megapixel Camera Module HD USB Camera with Auto Focus Lens at 30fps Elp-USB500W02m-Af30

ELP 5.0 Megapixel Camera Module HD USB Camera with Auto Focus Lens at 30fps ELP-USB500W02M-AF30



Features
*500W Auto Focus HD Lens
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

Parameters
Image Sensor: OmniVision1/4" Color CMOS image sensor OV5640
LENS: HD Auto Focus Lens
(can also choose other suitable lens as your required view angle)
CABLE: 1m USB cable (2M/3M/5M optional)
(can also make the other special length cable according to your requirement)
Effective Pixels:
2592 (H) x 1944 (V) pixels
2048 (H) x 1536 (V) pixels
1600 (H) x 1200 (V) pixels
1920 (H) x 1080 (V) pixels
1280 (H) x 1024(V) pixels
1280 (H) x 720 (V) pixels
1024 (H) x 768 (V) pixels
800 (H) x 600 (V) pixels
640 (H) x 480 (V) pixels
320 (H) x 240 (V) pixels
(Other special size resolution is customized)
Signal Output: Serial data for USB standard compliant 2.0 and 1.1
Performance:
2592 (H) x 1944 (V) pixels  MJPEG 8fps
2048 (H) x 1536 (V) pixels  MJPEG 10fps
1600 (H) x 1200 (V) pixels  MJPEG 12fps
1920 (H) x 1080 (V) pixels  MJPEG 12fps
1280 (H) x 1024 (V) pixels  MJPEG 12fps
1280 (H) x 720 (V) pixels   MJPEG 30fps
1024 (H) x 768 (V) pixels   MJPEG 30fps
800 (H) x 600 (V) pixels    MJPEG 30fps
640 (H) x 480 (V) pixels    MJPEG 30fps
320 (H) x 240 (V) pixels    MJPEG 30fps

Operating System: Linux 2.6.26 or above, Windows XP SP2or above
UVC: Windows XP SP2 or above
Operating temperature: -30°C-70°C
Power Consumption: 5V 120mA
Dimensions (mm): 32mm*32mm/38mm*38mm
(can make other dimension as customers' requirement)

APPLICATION
