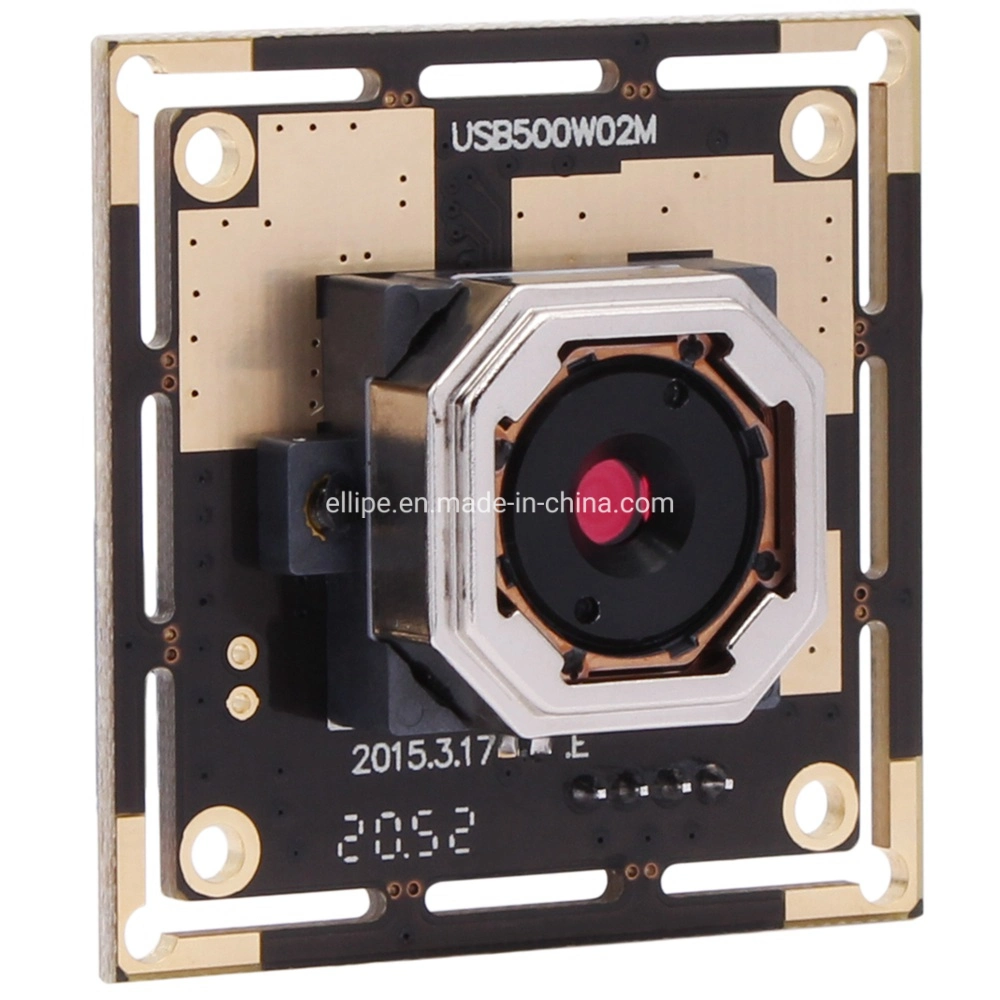

Elp 5.0magepixel USB2.0 Camera Moduel 60 Degree Autofocus Lens CMOS Ov5640 USB Camera for Android Linux Windows
ELP 5.0Magepixel USB2.0 Camera Moduel 60 Degree Autofocus Lens CMOS Ov5640 USB Camera for Android Linux WindowsFeatures*500W Auto Focus HD Lens*5Megapixel CMOS sensor for high quality image.*High speed USB 2.0 interface for high resolution PC camera interface.*high pixel technology for sharp image a......
Send Inquiry
Product Description
ELP 5.0Magepixel USB2.0 Camera Moduel 60 Degree Autofocus Lens CMOS Ov5640 USB Camera for Android Linux Windows
Features
*500W Auto Focus HD Lens
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Parameters
5MP High Pixel USB Camera Module with technology for sharp Image and Accurate Color Reproduction
5MP High resolution autofocus usb webcam, max resolution is 2592X1944 @15fps.
Equipped with high-tech optics and lenses, 5-megapixel webcam delivers razor-sharp videos.
Clearly see all of the details and colors that pop out on screen.
ELP 5MP High Resolution 2152x1944@15fps USB Camera with ov5640 Sensor Plug and Play for Video Conforence
USB camera adopt to advance OV5640 image sensor,Max resolution: 2152x1944@15fps.
Compression format :MJPEG / YUV2(YUYV).which provides you the excellent quality video.
USB webcam is specially designed and optimized for professional video production, surveillance system manufacturing, industrial vision.
ELP High Speed USB2.0 Free Driver Plug and Play 5MP USB Camera/Webcam Autofocus 60 degree lens USB Camera
USB power cable, no additional driver required.
You just need to plug the usb camera into your device's usb port, then you can use video software
such as video conference,machine vision,3D scanner VR, USB2.0 plug and play for MAC Linux Windows Raspberry Pi,PC Laptop Notebook for Video Conference Live Steaming
5MP USB Webcam Autofocus OV5640 Mini USB Camera for Windows Linux Raspberry Pi
USB webcam work with most video apps including MAC Window Linux Raspberry Pi and more.
Compatible with Windows 2000/XP/7/8/10 and above, Android 5.0 or higher version,
Mac OS, Chrome OS, Smart TV.
and other camera industry like Industial equipment, UAV, monitor,VR and so on.
Certification: CE, FCC, RoHS, UL
In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.
Features
*500W Auto Focus HD Lens
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Parameters

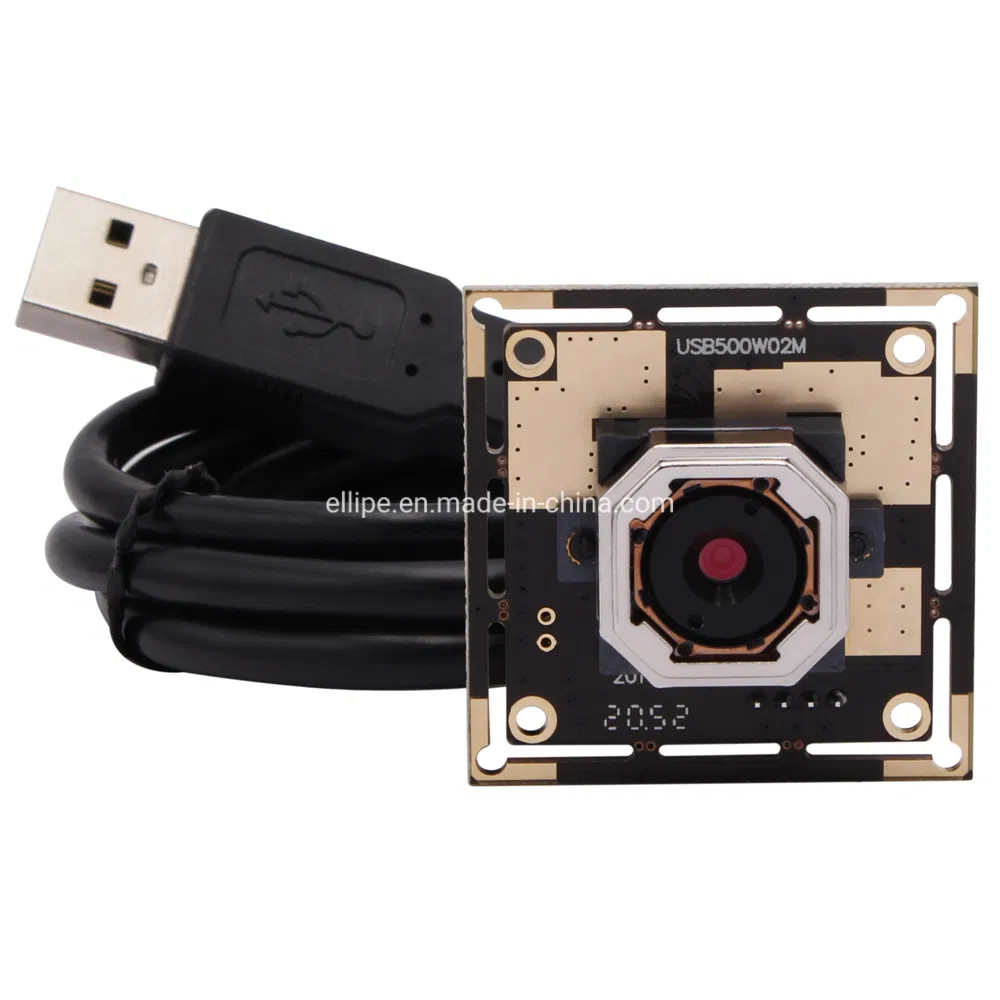

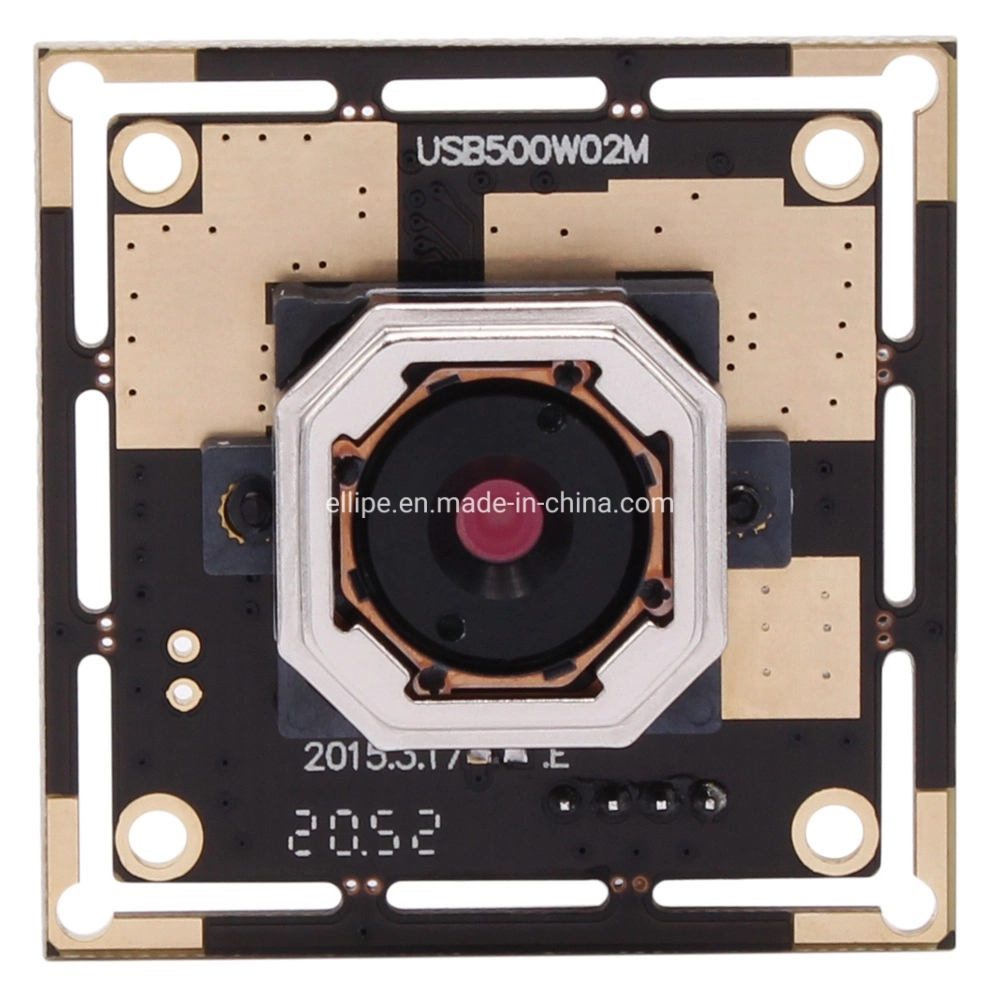

Optional models | ELP-USB500W02MA-AF60 |
Sensor | 1/4" CMOS OV5640 |
Lens size | 500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels |
Lens | 800W Auto Focus HD Lens |
Max. Resolution | 2592X1944 |
Picture format | MJPEG |
USB Protocal | USB2.0 HS/FS, USB1.1 FS |
Support free driver | USB Video Class (UVC) |
Auto exposure AEC | Support |
Auto white blance AEB | Support |
Frame rate | 2592 (H) x 1944 (V) pixels MJPEG 15fps YUY2 3fps 2048 (H) x 1536 (V) pixels MJPEG 15ps YUY2 3fps 1600 (H) x 1200 (V) pixels MJPEG 15fps YUY2 3fps 1920 (H) x 1080 (V) pixels MJPEG 15fps YUY2 3fps 1280 (H) x 1024 (V) pixels MJPEG 15fps YUY2 7.5fps 1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 7.5fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 15fps 800 (H) x 600 (V) pixels MJPEG 30fps YUY2 30fps 640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 30fps YUY2 30fps |
Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
Night vision | optional, can choose IR board |
view angle | 30-150 degree optional |
voltage | DC 5V |
current | 150mA |
work temperature | DEGREES(-20~70) |
Size | 32x32mm/38*38 |
Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |
5MP High Pixel USB Camera Module with technology for sharp Image and Accurate Color Reproduction5MP High resolution autofocus usb webcam, max resolution is 2592X1944 @15fps.
Equipped with high-tech optics and lenses, 5-megapixel webcam delivers razor-sharp videos.
Clearly see all of the details and colors that pop out on screen.
ELP 5MP High Resolution 2152x1944@15fps USB Camera with ov5640 Sensor Plug and Play for Video ConforenceUSB camera adopt to advance OV5640 image sensor,Max resolution: 2152x1944@15fps.
Compression format :MJPEG / YUV2(YUYV).which provides you the excellent quality video.
USB webcam is specially designed and optimized for professional video production, surveillance system manufacturing, industrial vision.

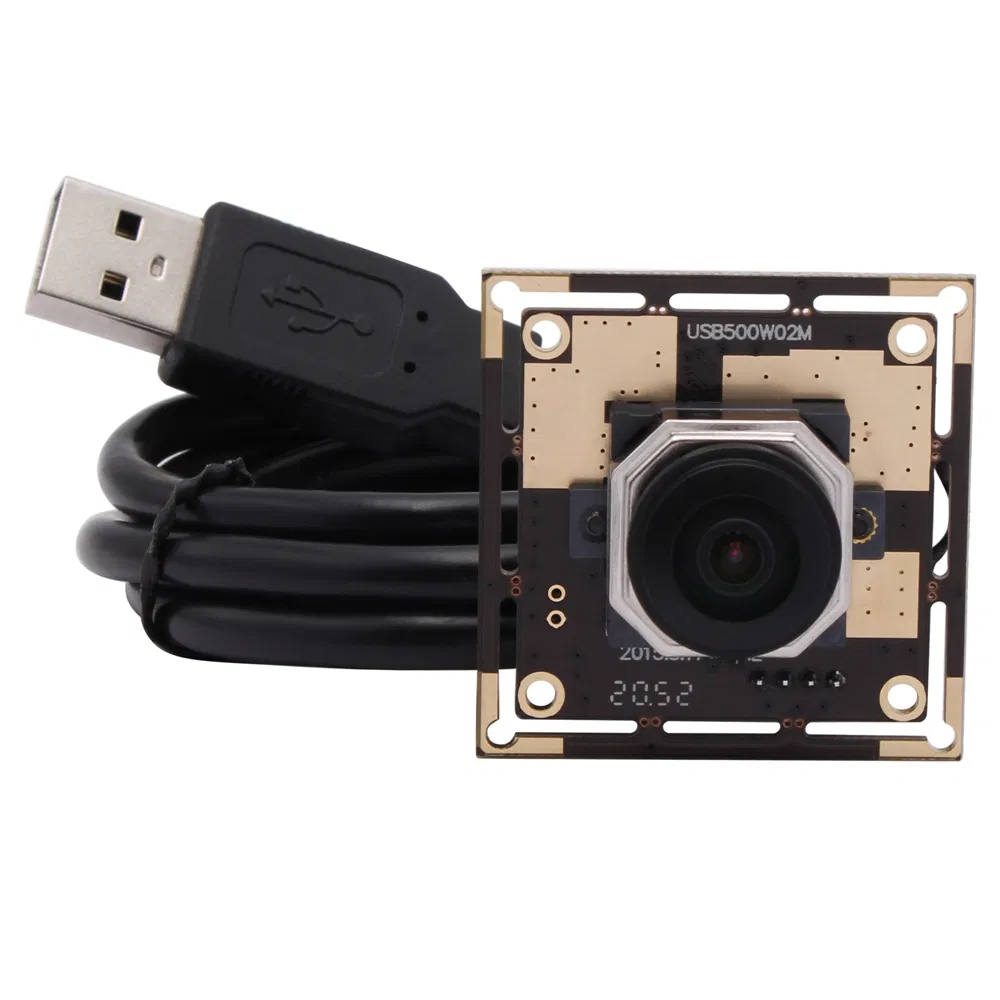

ELP High Speed USB2.0 Free Driver Plug and Play 5MP USB Camera/Webcam Autofocus 60 degree lens USB CameraUSB power cable, no additional driver required.
You just need to plug the usb camera into your device's usb port, then you can use video software
such as video conference,machine vision,3D scanner VR, USB2.0 plug and play for MAC Linux Windows Raspberry Pi,PC Laptop Notebook for Video Conference Live Steaming
5MP USB Webcam Autofocus OV5640 Mini USB Camera for Windows Linux Raspberry PiUSB webcam work with most video apps including MAC Window Linux Raspberry Pi and more.
Compatible with Windows 2000/XP/7/8/10 and above, Android 5.0 or higher version,
Mac OS, Chrome OS, Smart TV.
1944P USB Camera Module OV5640 Sensor Autofocus Mini Camera with Wide Application
5MP autofocus USB Camera for all robot industry, self service industry, teaching industryand other camera industry like Industial equipment, UAV, monitor,VR and so on.
Certification: CE, FCC, RoHS, ULPayment
T/T: 100% payment before shipping; Western Union, Paypal, all available.In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.
