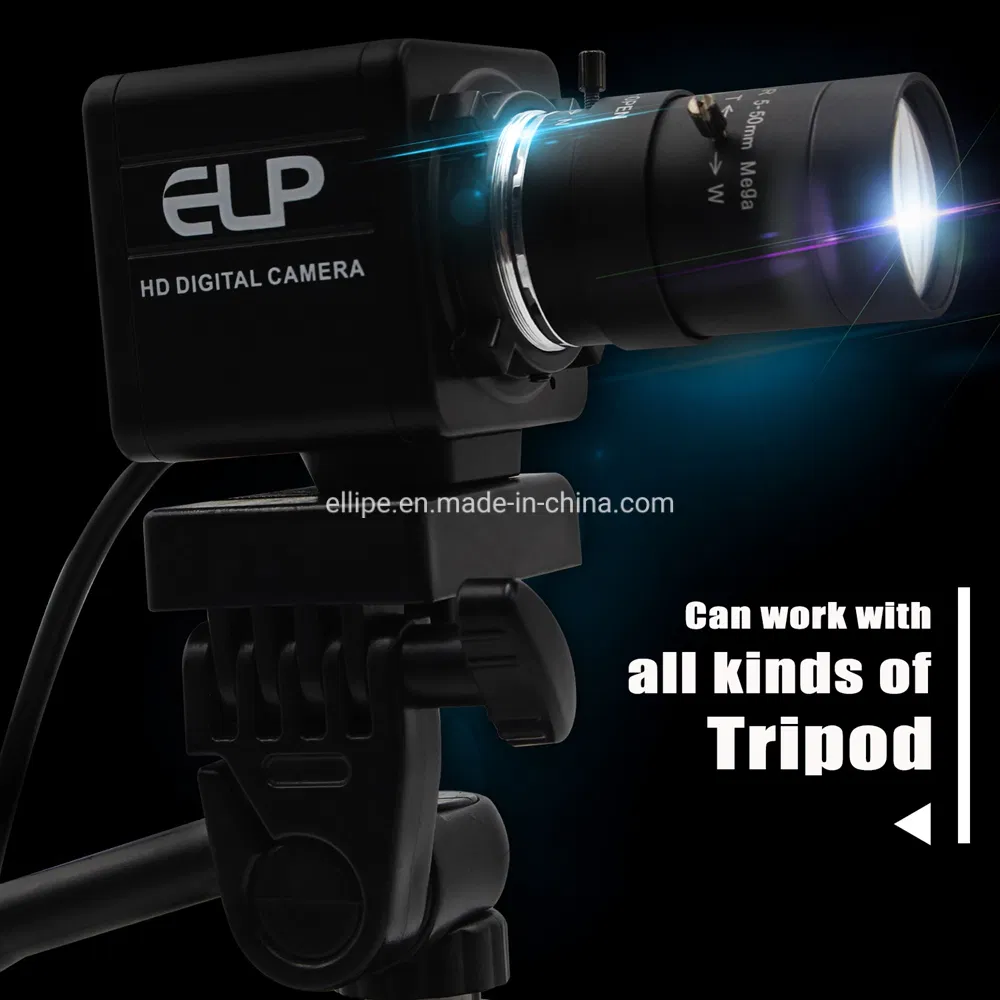

China Elp 5MP 2592 X 1944 Aptina Mi5100 Webcam HD Mjpeg 5-50mm Varifocal Lens Optical Zoom USB2.0 Camera

Product Description

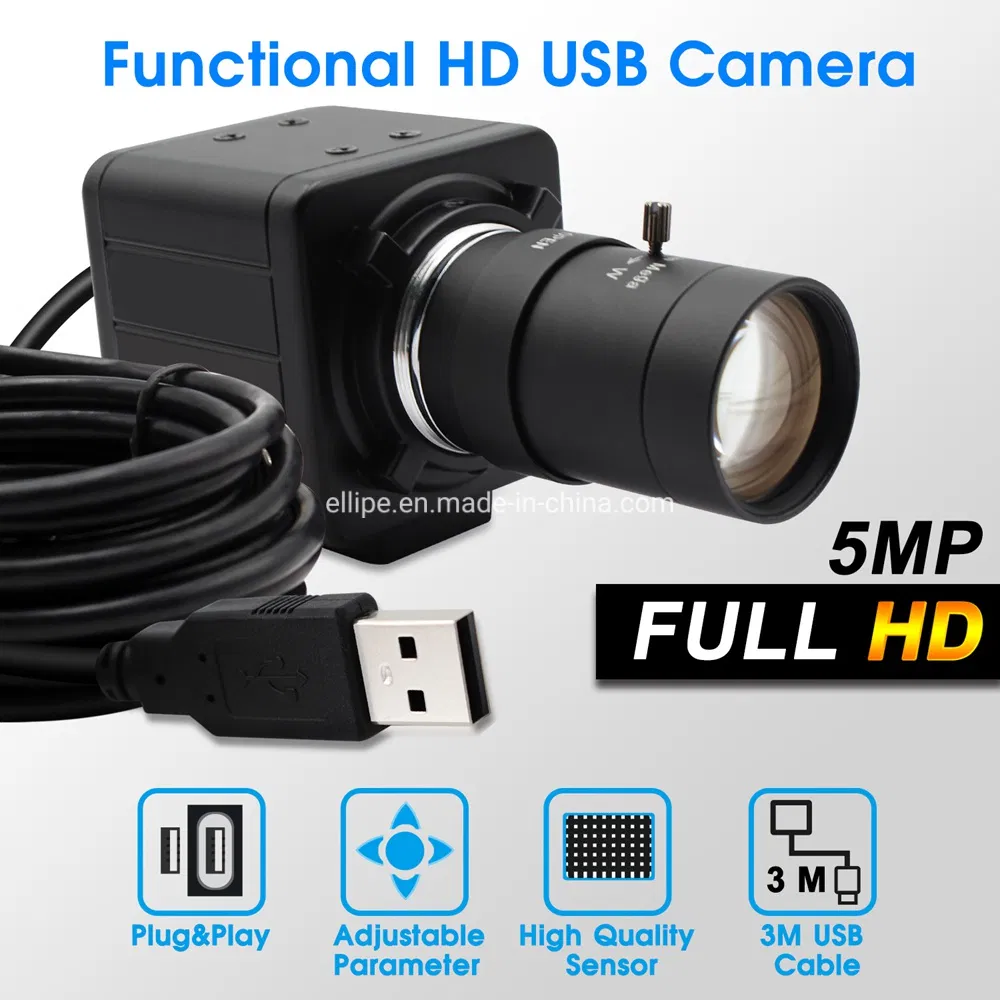

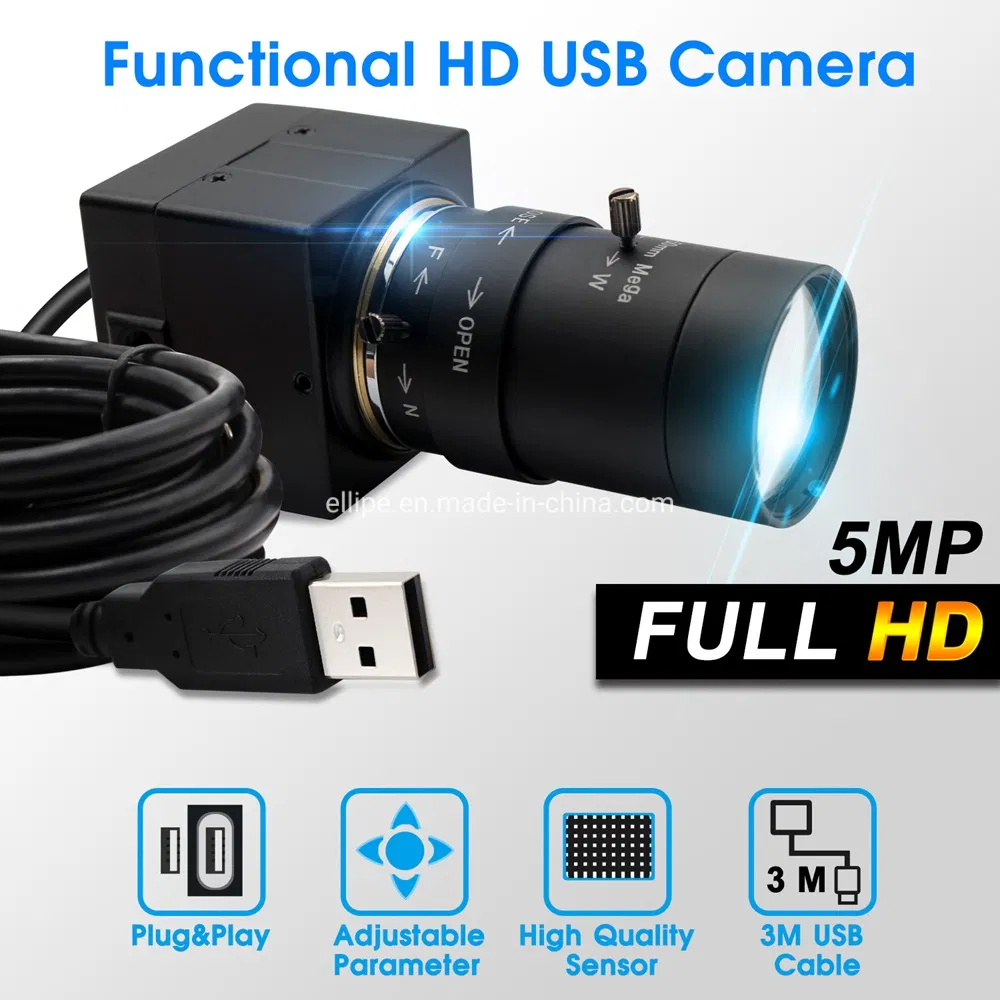

ELP 5MP 2592 X 1944 Aptina MI5100 Webcam HD MJPEG 5-50mm Varifocal Lens optical zoom USB Camera

Fetures

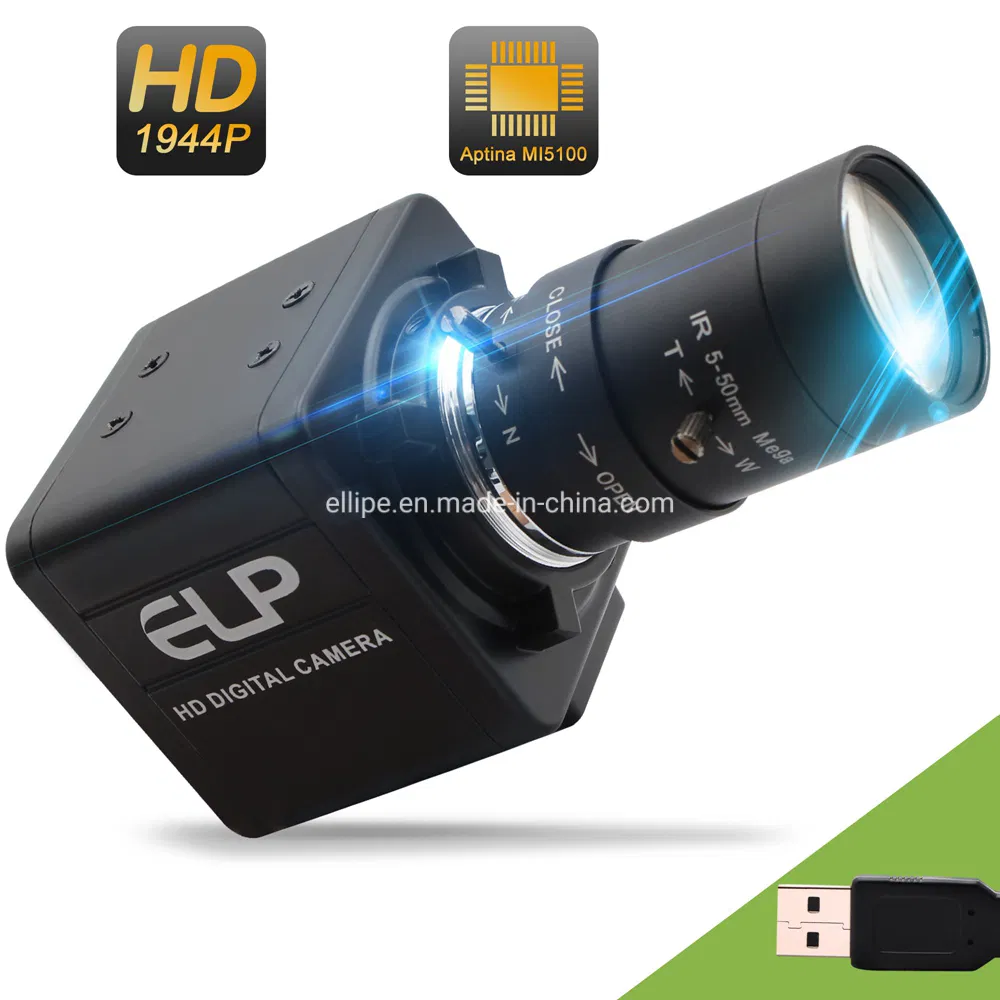

* 1/2.5" Aptina MI5100 Sensor for sharp image
* Resolution up to 2592*1944

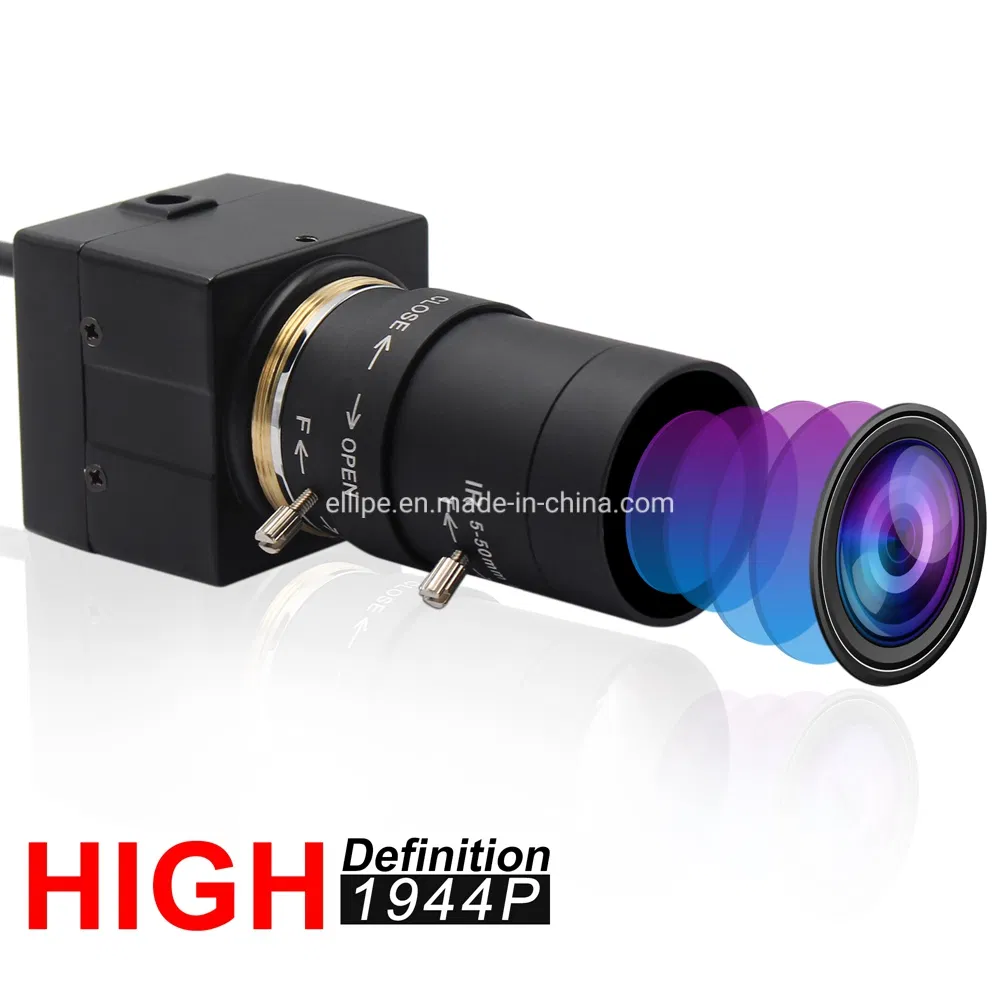

*Manual Focus Vrifocal lens 2.8-12mm, 5-50mm optional

* Support USB2.0 OTG, which can connect to mobile phone, tablet etc.

*with a OTG USB-Micro USB convert cable

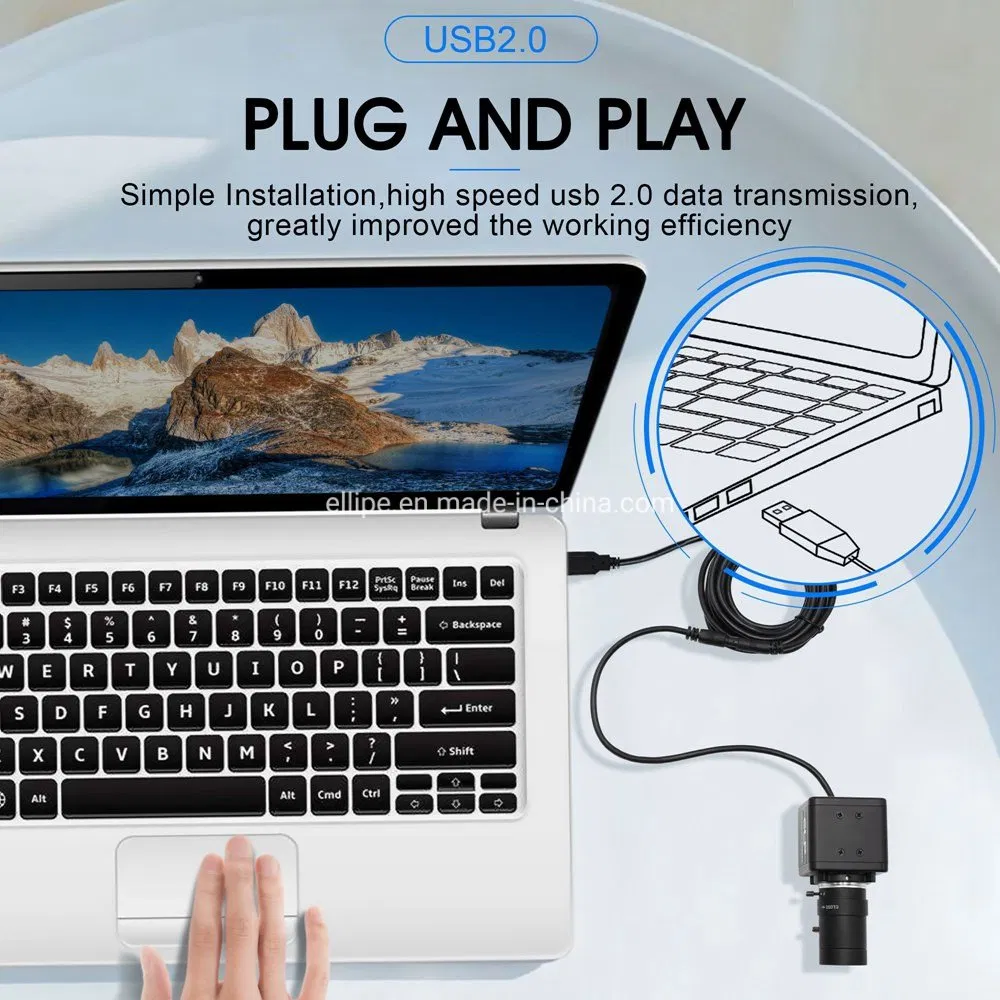

*USB 2.0 High speed port

*Support Win7 Win8 Win10 Win11 / Linux 2.6 or above / Android 4.0 or above

Specification

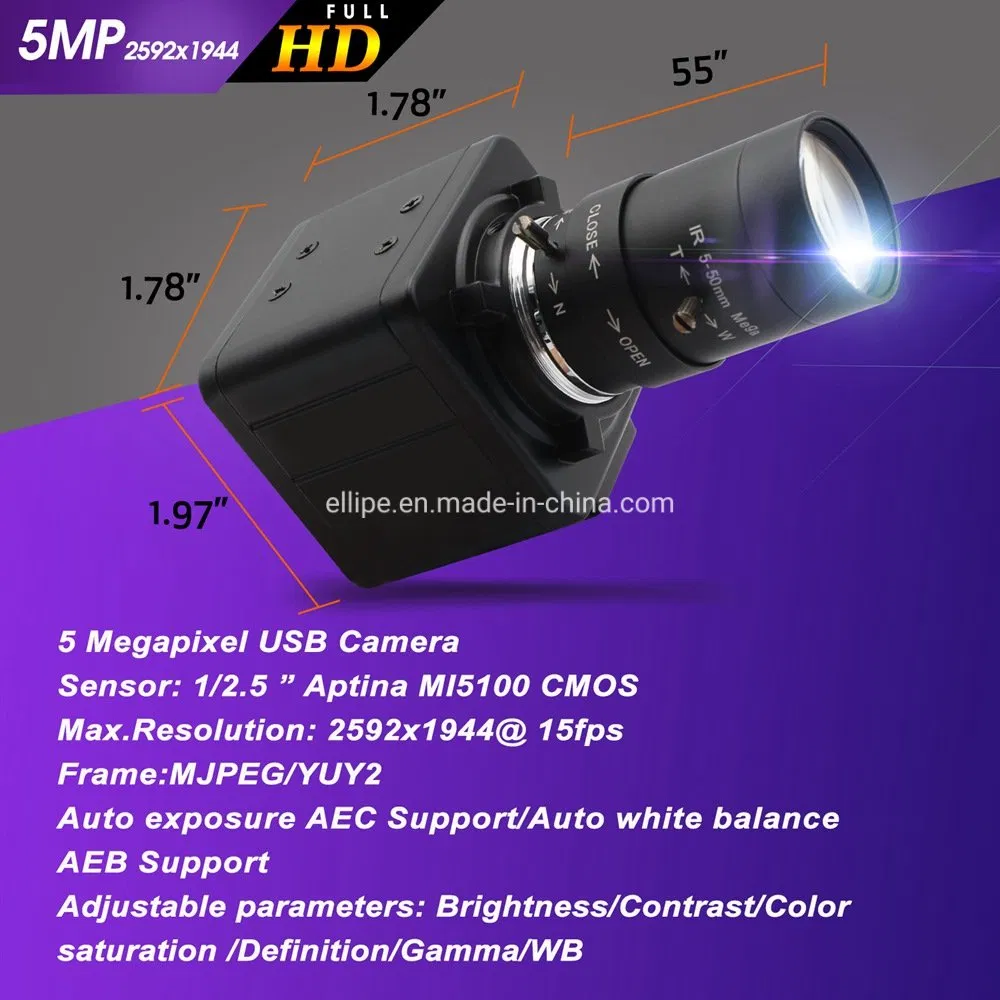

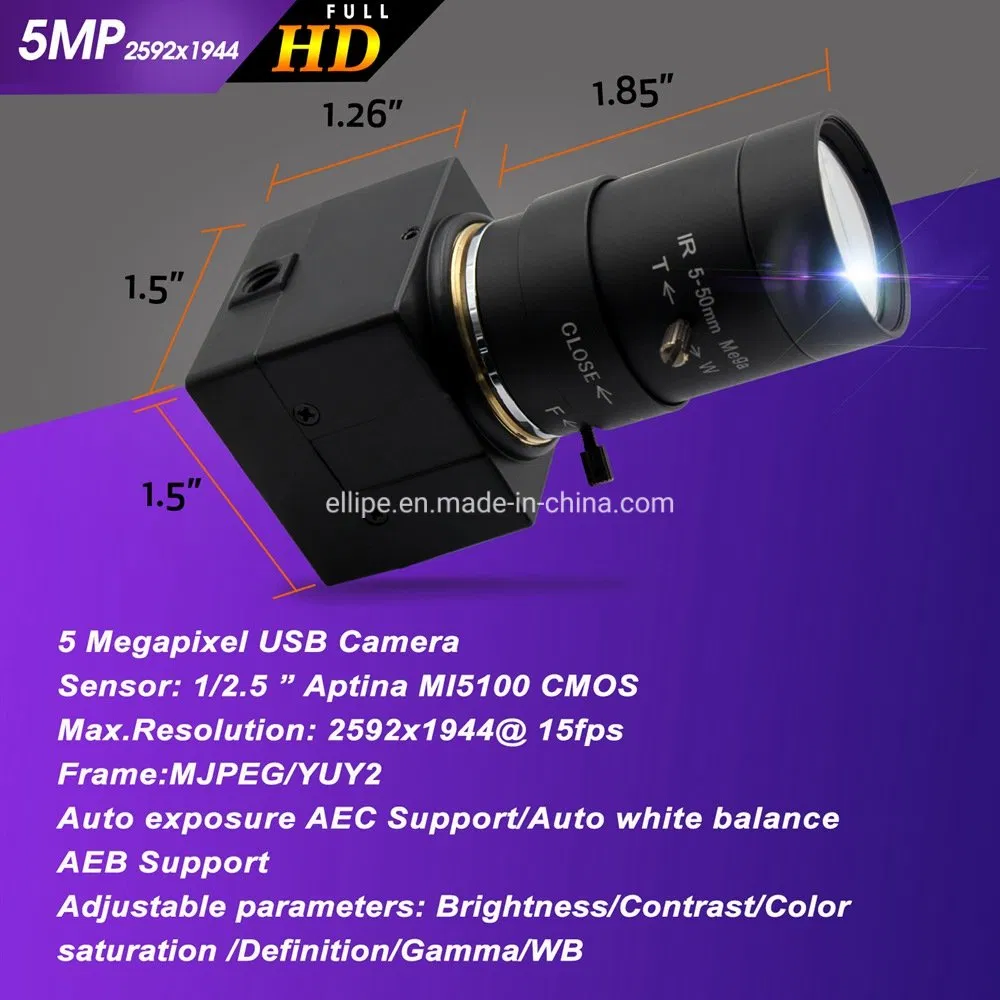

Module: ELP-USB500W05G-MFV
Maximum Image &Transfer Rate	2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG 1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG 1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG 800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG
Sensor	Aptina MI5100 1/2.5 inch	Output Formats	MJPEG / YUV2(YUYV)
Pixel Size	2.2µm	Lens Parameter	Standard CS Varifocal lens optional 2.1/2.8/3.6/6/8/12mm/ FOV(D)180 Degree, 100 no distortion lens
Image area	5.7mm x 4.28mm	USB Cable	Standard 1M ( 2M/3M/5M Optional)
Max. Resolution	2592 (H) *1944 (V)	Module Size	38×38mm (compatible 32X32mm)
Mini illumination	0.1 lux	Weight	about 30g
S/N Ratio	38dB	Sensitivity	1.4V/ Lux-550sec
Dynamic Range	70dB	Shutter	Rolling shutter/ frame exposure
OTG protocol	USB2.0 OTG	AEC/AGC/AEB	Auto
interface	USB 2.0 High Speed	Certifications	FCC and CE
protocol	USB Video Class(UVC)	Camera Board Assembly technique	SMT (ROSH)
LED board control interface	Support 2P-1.25mm socket	Adjustable parameter	Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus
LED board power connector	Support 2P-2.0mm socket	Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V	Operation Temperature	-20°C to 70°C
Power consumption	150mW ~200mW;	Stable Temperature	0°C to 60°C

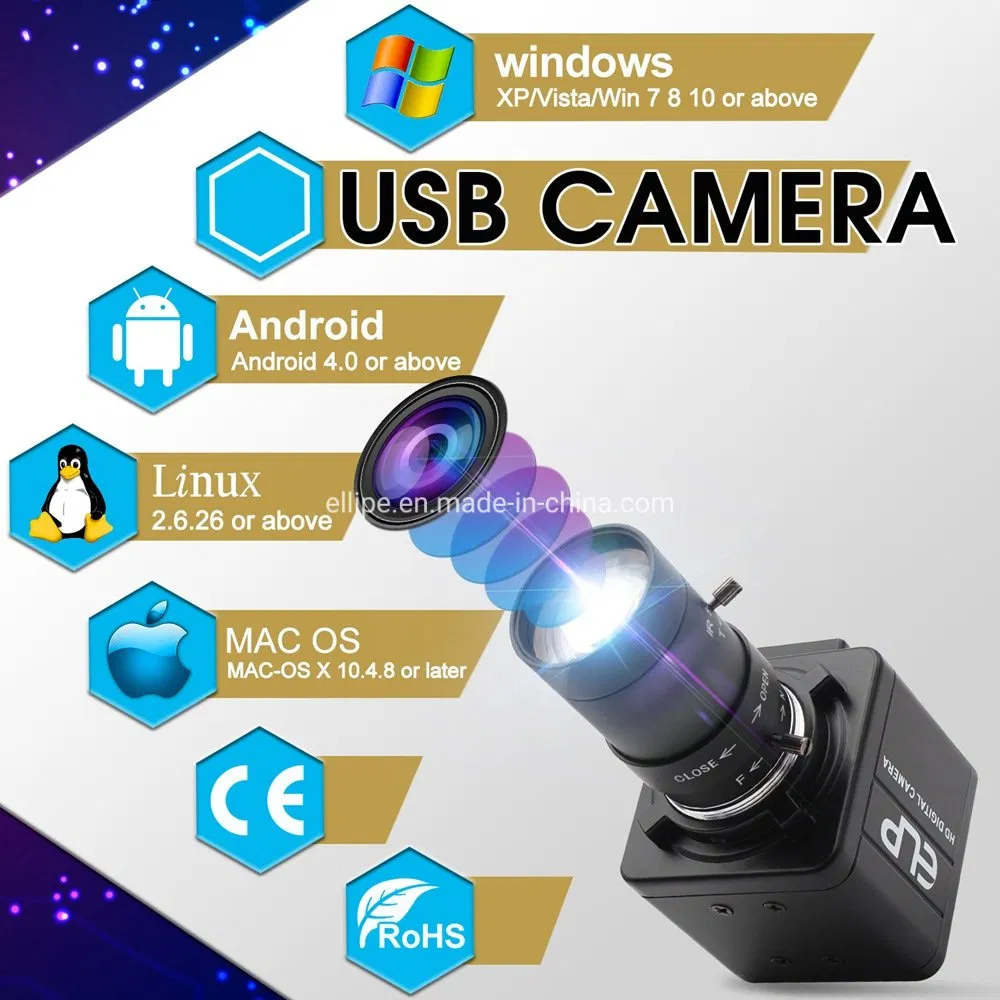

Operating system request	Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/ Android 4.0 or above with UVC
