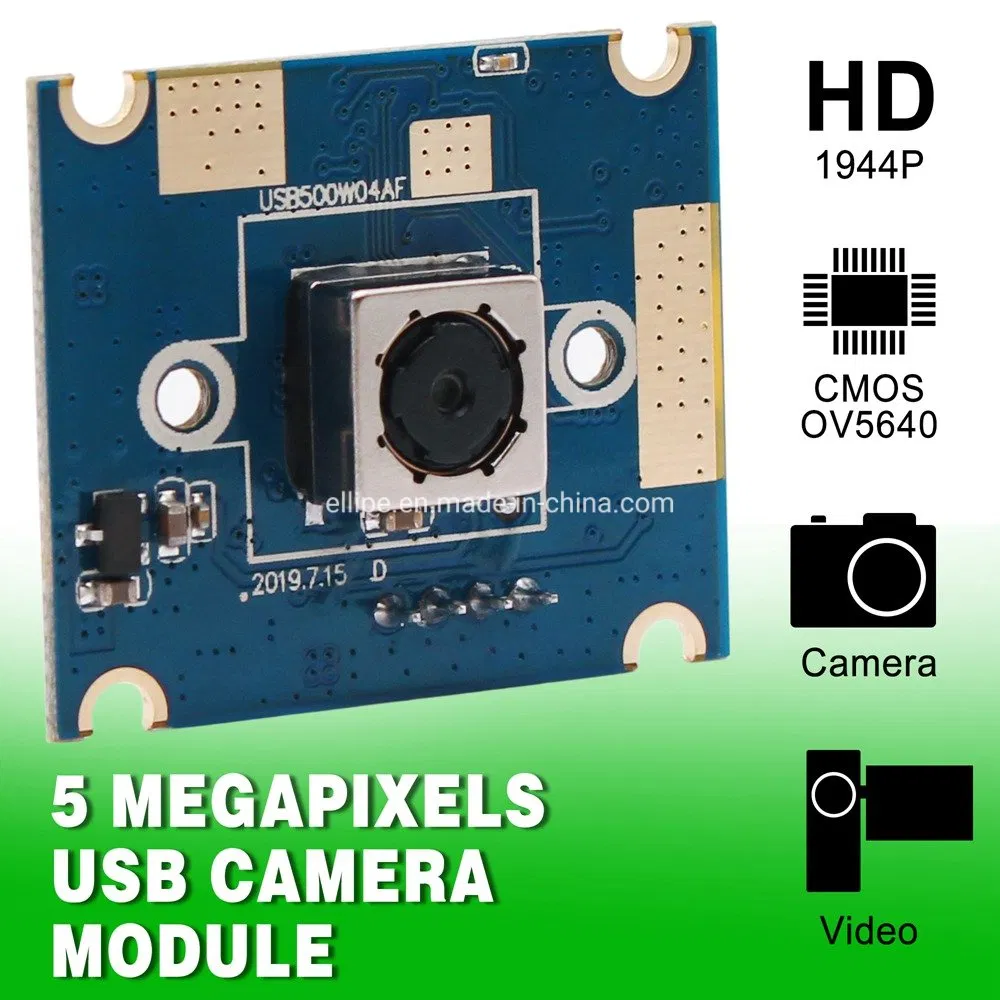

Elp 5MP Camera Module 2592* 1944 Micro Mini Document Capture CMOS Ov5640 UVC USB Inspection Camera with 60 Degree Lens
ELP 5MP Camera Module 2592*1944 Micro Mini Document Capture CMOS OV5640 UVC USB Inspection Camera with 60 degree lensFetures* OV5640 CMOS Sensor for sharp image* 5mega pixels,Resolution up to 2592*1944* Super small 25*30mm size outline and thin profile for embedded applications* With 60degree FIXED ......
Send Inquiry
Product Description

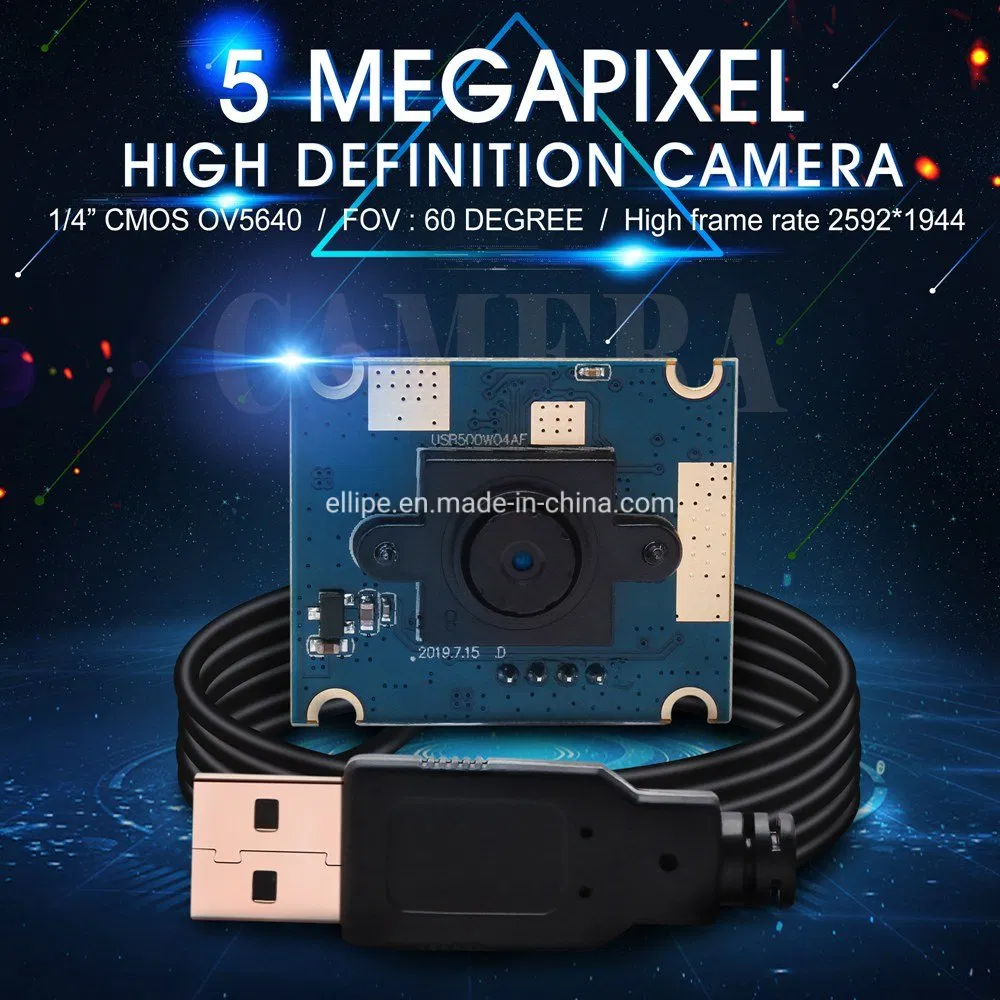

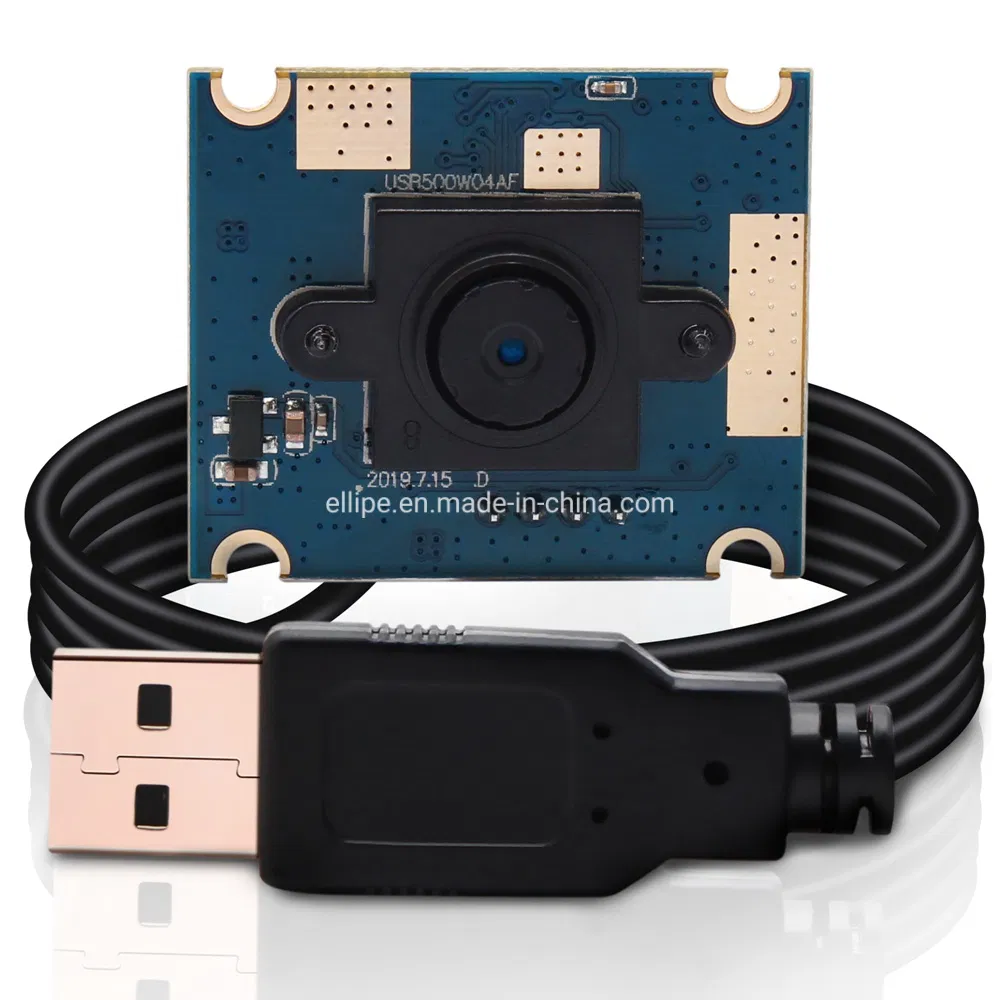

ELP 5MP Camera Module 2592*1944 Micro Mini Document Capture CMOS OV5640 UVC USB Inspection Camera with 60 degree lens
* OV5640 CMOS Sensor for sharp image
* 5mega pixels,Resolution up to 2592*1944

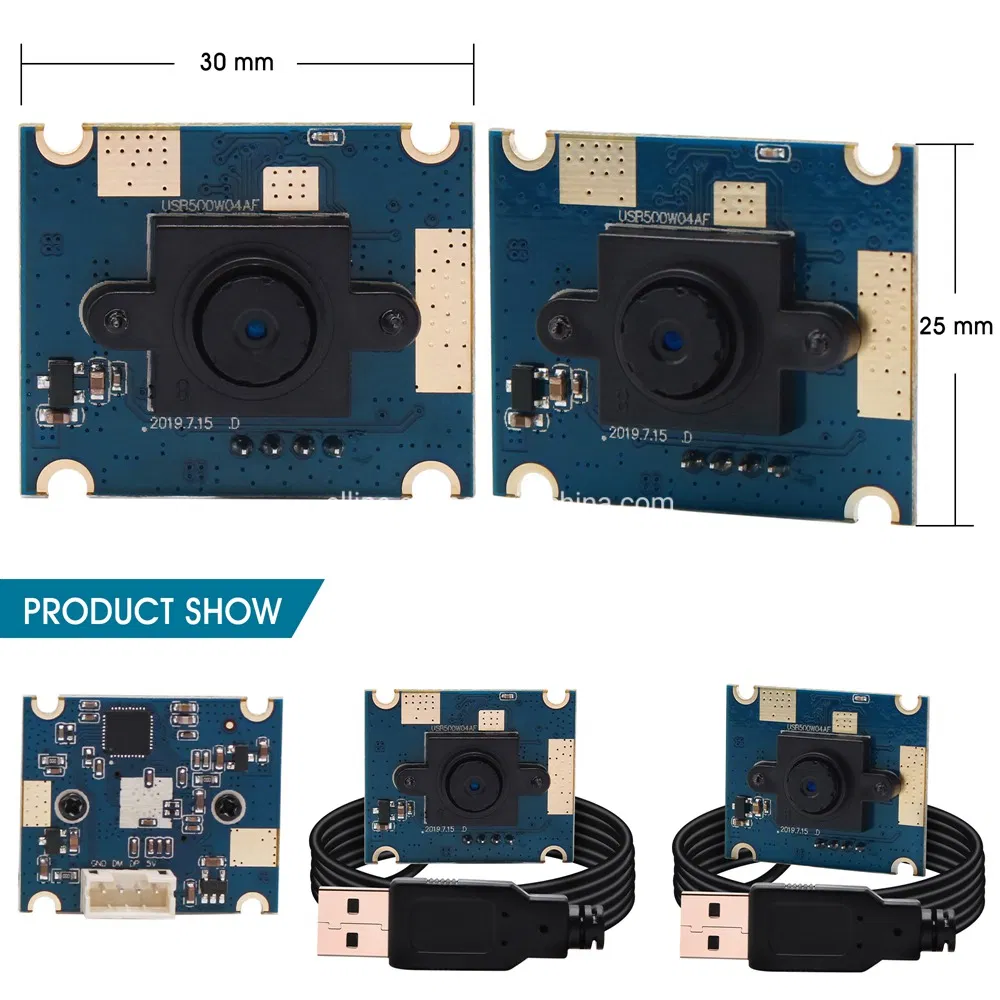

* Super small 25*30mm size outline and thin profile for embedded applications
* With 60degree FIXED focus lens, Support focus auto mode and manual mode
* Image quality controls - Brightness,Contrast,hue,satuaration,sharpness,gamma,white balance
*Support UVC protocol, Free Driver
for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
| Module: ELP-USB500W04AF-L60 (60Degree lens) | |||
| Maximum Image & Transfer Rate | 2592x1944@ 15fps MJPEG / 2048x1536@ 15fps MJPEG 1600x1200@ 15fps MJPEG / 1920x1080@ 15fps MJPEG 1280x1024@15fps MJPEG/ 1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG | ||
| Sensor | OV5640 (1/4inch ) | Output Formats | YUYV/MJPEG |
| Pixel Size | 1.4µm x1.4µm | Lens Parameter | Size: 1/4, Iris: F2.8, Focus: 3.2mm, FOV: 65Degree |
| Image area | 3673.6µmx2738.4µm | Object distance | 5mm-100M |
| Max. Resolution | 2592 (H) *1944 (V) | USB Cable | 1M(2M/3M/5M Optional) |
| Resolution | 600LW/PH (Center) | Module Size | 30x25mm |
| S/N Ratio | 36dB | Weight | about 20g |
| Dynamic Range | 68dB | AGC/AEC/AWB/ABF | Auto |
| Sensitivity | 600mV/ Lux-sec | Certifications | FCC and CE |
| Shutter | Rolling shutter/ frame exposure | Camera Board Assembly technique | SMT (ROSH) |
| interface | USB 2.0 High Speed | Adjustable parameter | Brightness Contrast Hue Saturation Sharpness Gamma White |
| protocol | USB Video Class(UVC) | ||
LED board power connector | Support 2P-2.0mm socket | Package | CSP, Bare Die |
| Power supply | USB BUS POWER 4P-2.0mm socket | Package | LQFN-40pin |
| Operating Voltage | DC5V | Work Temperature | -20°C to 70°C |
Power consumption | 150mW (VGA); 200mW (QSXGA); | Storage Temperature | 0°C to 60°C |
Operating system request | Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/ Android 4.0 or above with UVC | ||
