Elp 5MP Ov5640 Free Driver USB Camera Module 2592X1944 High Speed 8mm Lens HD USB2.0 Surveillance Camera for Android Linux Windows
Cmos 5mp USB camera module OV5640 Sensor Surveillance Camera 2592 X 1944 High Speed HD MJPEG 30fps at 1280P 8mm lens Surveilla Fetures *Ultra 5MP HD USB Camera Board*UP to 2592 (H) x 1944 (V) resolution*5Megapixel CMOS sensor for high quality image.*High speed USB 2.0 interface for high resolution P......
Send Inquiry
Product Description
Cmos 5mp USB camera module OV5640 Sensor Surveillance Camera 2592 X 1944 High Speed HD MJPEG 30fps at 1280P 8mm lens Surveilla

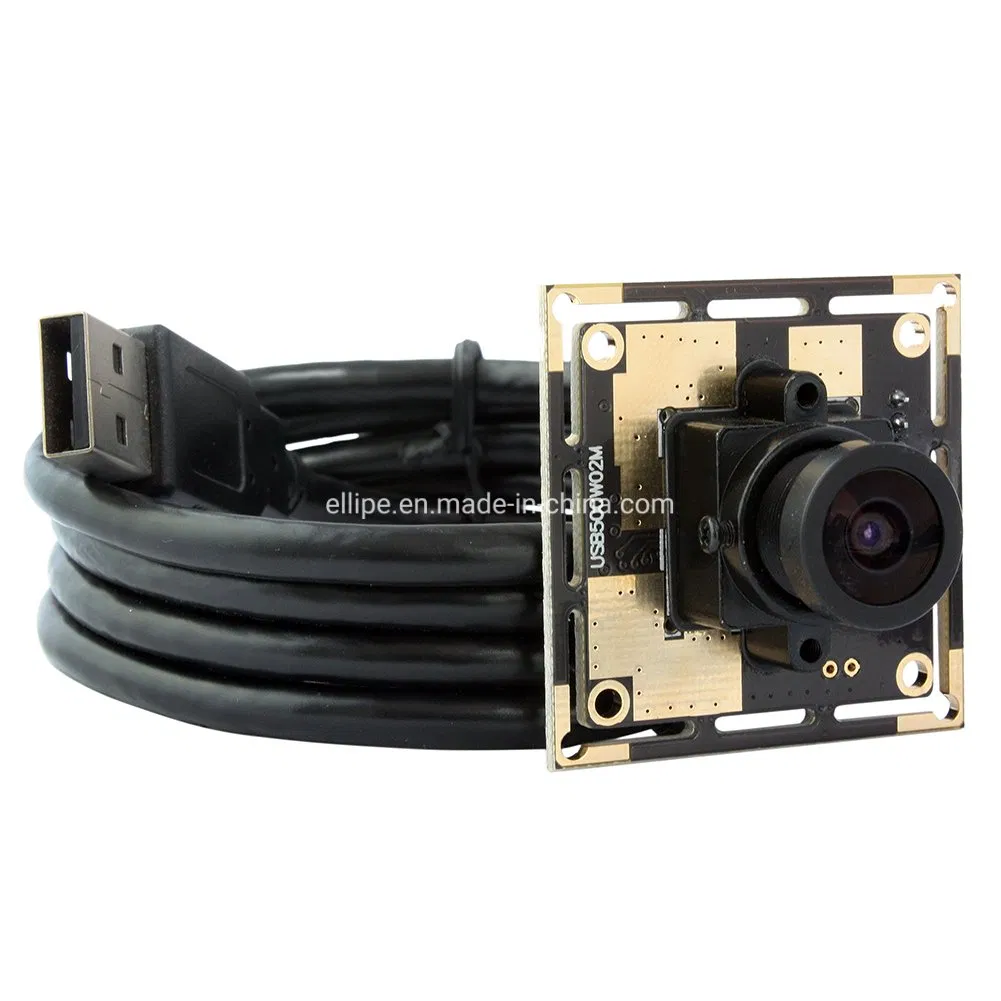

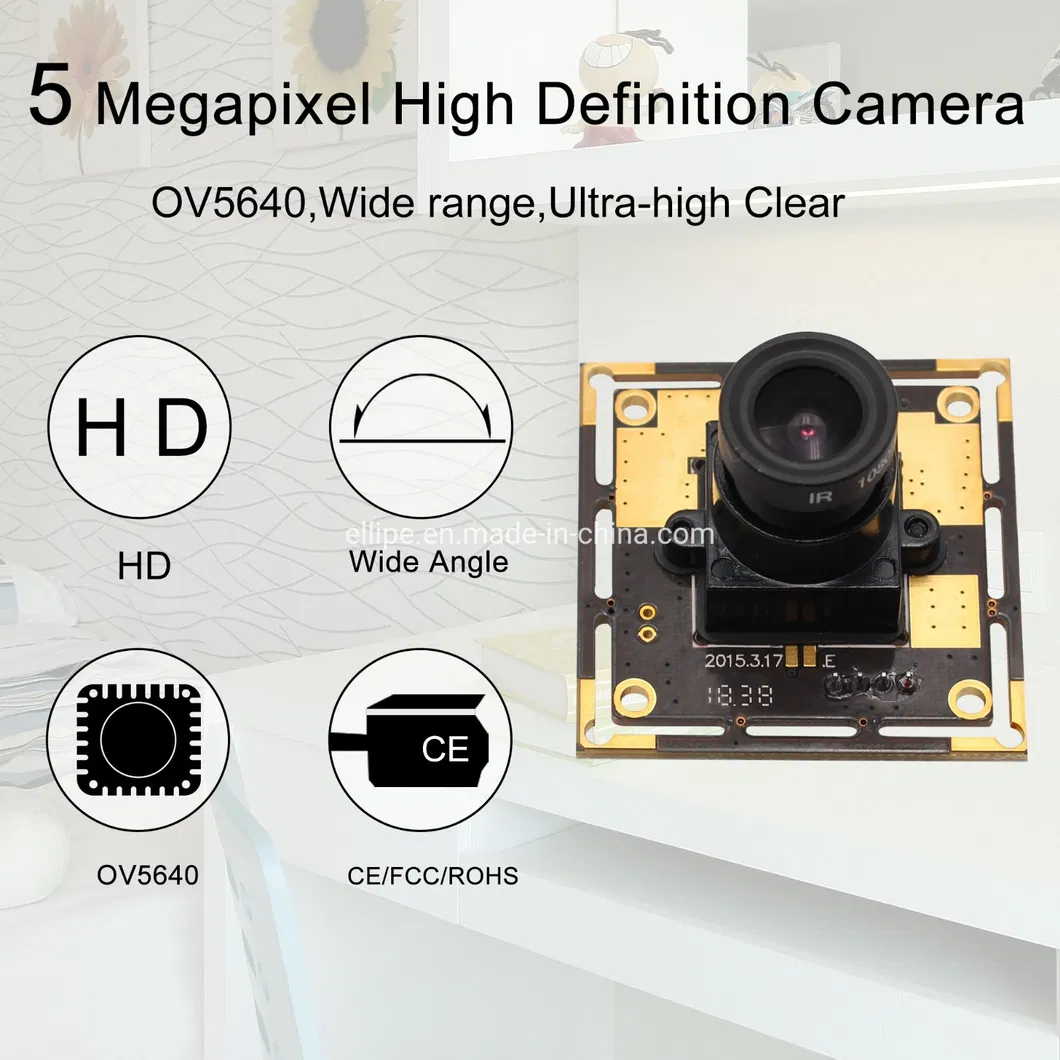

*Ultra 5MP HD USB Camera Board
*UP to 2592 (H) x 1944 (V) resolution
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance - ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate-30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption - ideal for portable equipment.

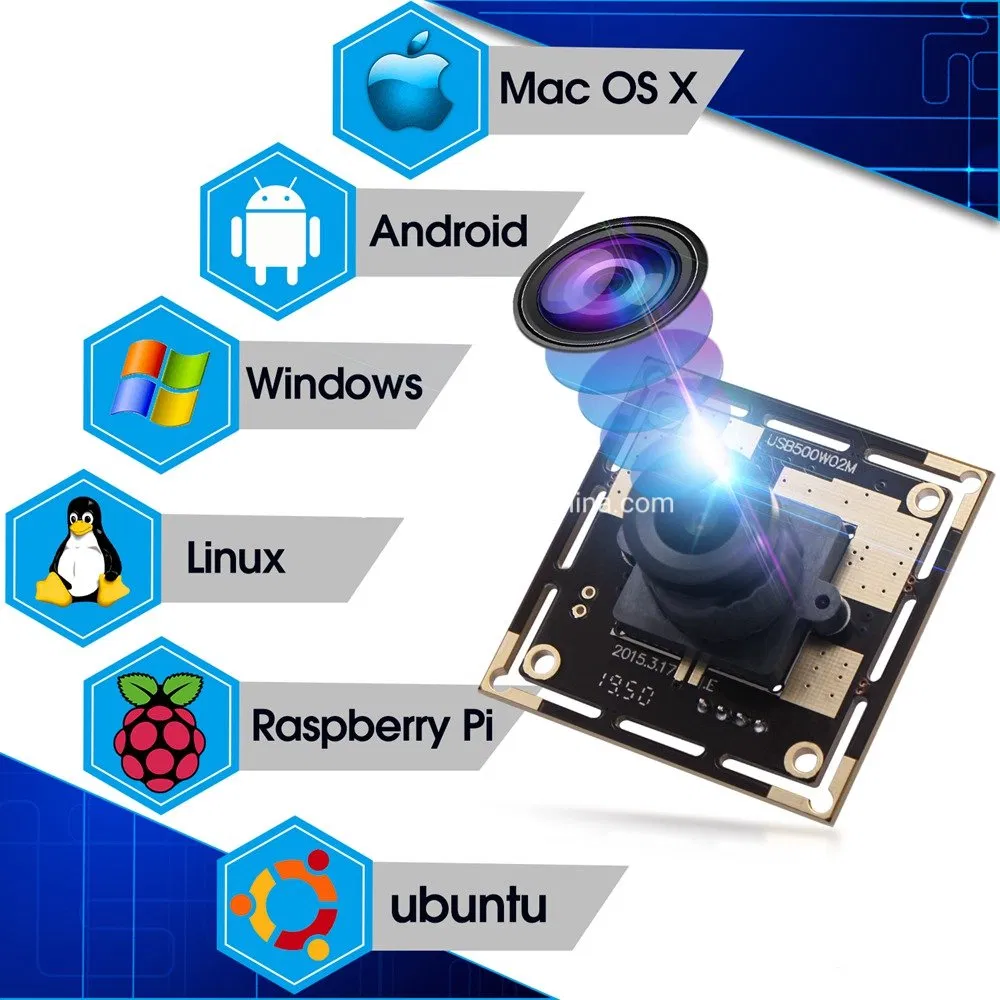

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
| Optional models | ELP-USB500W02M-L21(2.1mm lens) | Frame rate | 2592 (H) x 1944 (V) pixels MJPEG 15fps YUY2 3fps |
| ELP-USB500W02M-L28(2.8mm lens) | 2048 (H) x 1536 (V) pixels MJPEG 15ps YUY2 3fps | ||
| ELP-USB500W02M-L36(3.6mm lens) | 1600 (H) x 1200 (V) pixels MJPEG 15fps YUY2 3fps | ||
| ELP-USB500W02M-L60(6mm lens) | 1920 (H) x 1080 (V) pixels MJPEG 15fps YUY2 3fps | ||
| ELP-USB500W02M-L80(8mm lens) | 1280 (H) x 1024 (V) pixels MJPEG 15fps YUY2 7.5fps | ||
| ELP-USB500W02M-L12(12mm lens) | 1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 7.5fps | ||
| Sensor | 1/4" CMOS OV5640 | 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 15fps | |
| Lens size | 500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels | 800 (H) x 600 (V) pixels MJPEG 30fps YUY2 30fps | |
| Max. Resolution | 2592X1944 | 640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps | |
| Picture format | MJPEG | 320 (H) x 240 (V) pixels MJPEG 30fps YUY2 30fps | |

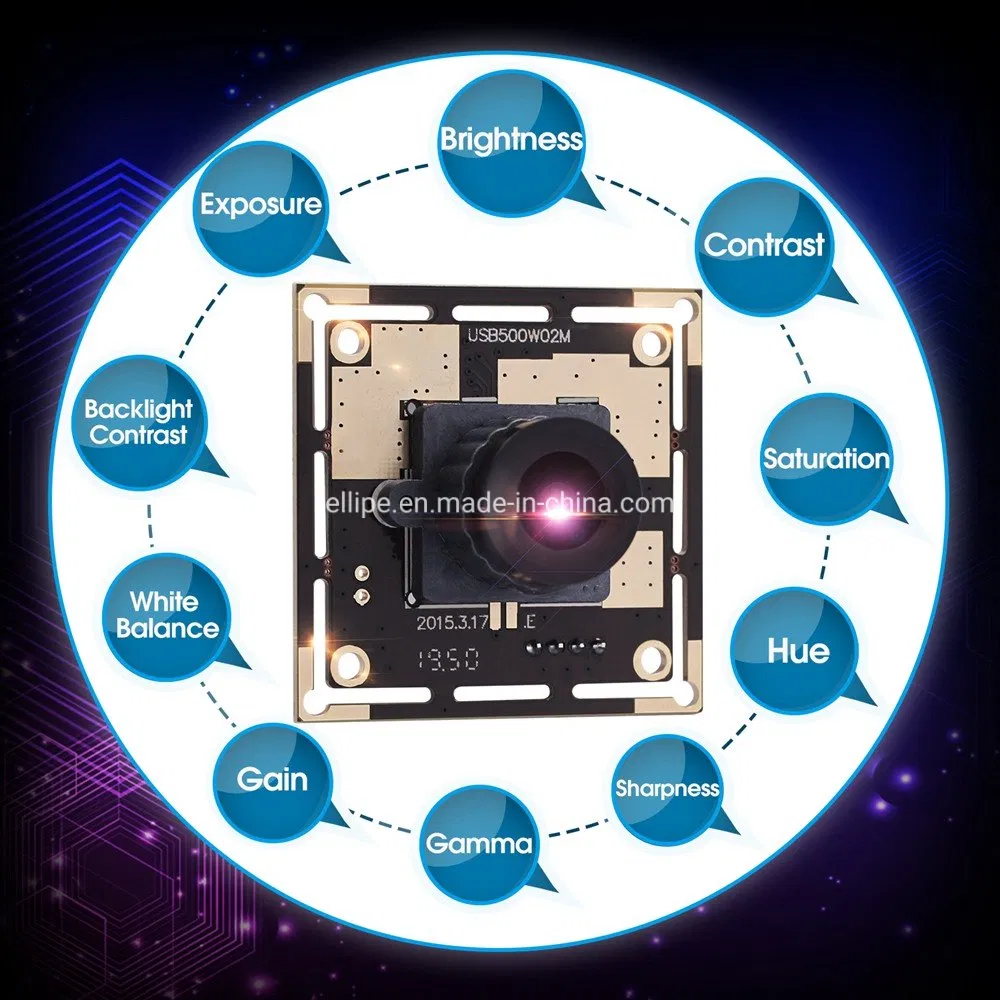

| USB Protocal | USB2.0 HS/FS, USB1.1 FS | Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| Support free driver | USB Video Class(UVC)1.1 | Night vision | optional, can choose IR board |
| Auto exposure AEC | Support | view angle | 30-150 degree optional |
Auto white blance AEB | Support | voltage | DC 5V |
| Support OS | WinXP/Vista/WIN7/WIN8 | current | 150mA |
| Linux with UVC | work temperature | DEGREES(-20~70) | |
| Mac-OS X 10.4.8 or later | Size | 32x32mm/38*38 | |
| Wince with UVC | |||
| Android 4.0 or above |
