Product Description

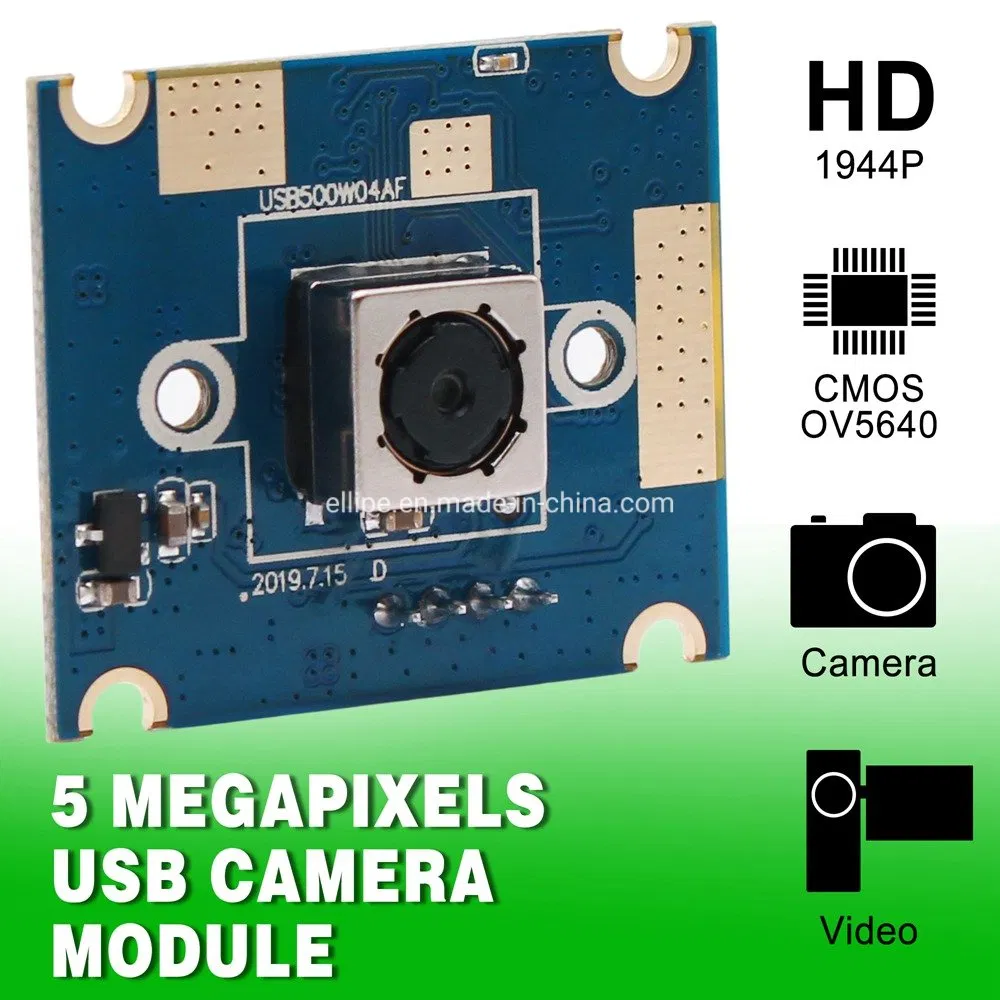

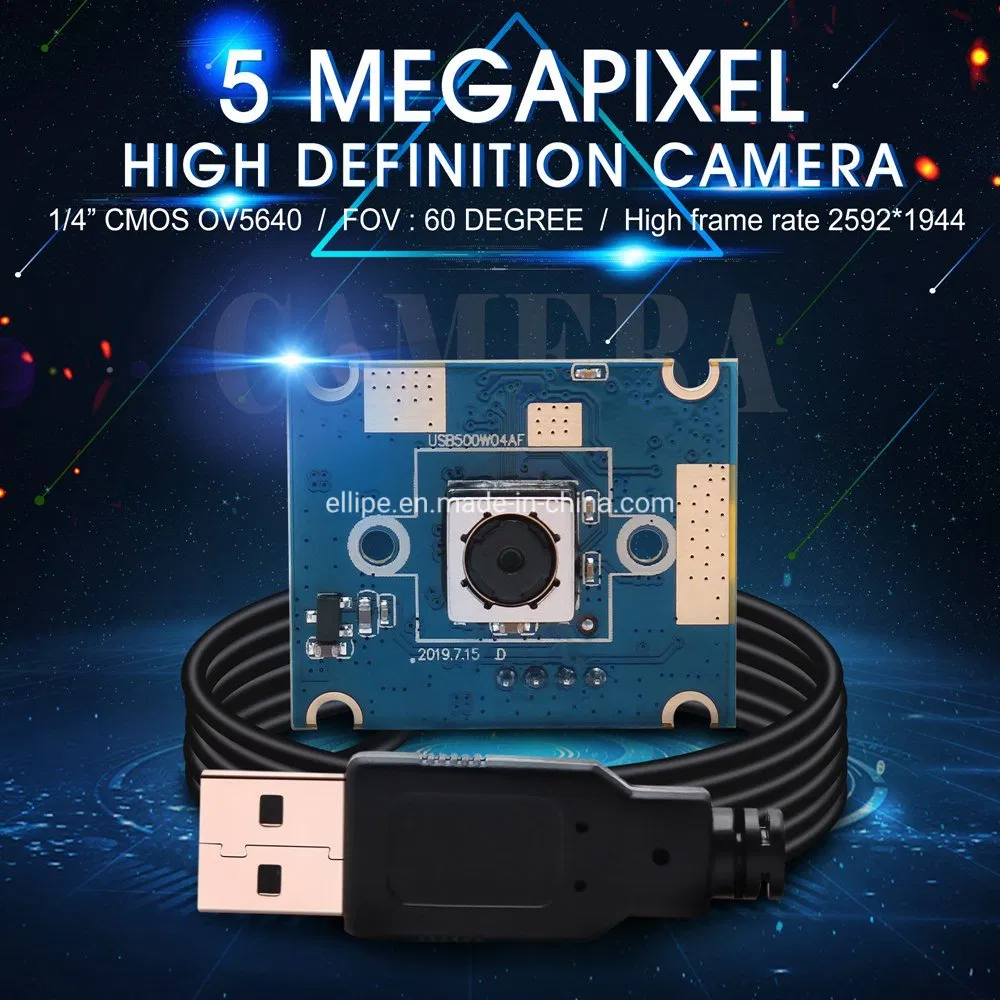

ELP CMOS OV5640 Camera Module Mini Support Focus Auto Mode 5Mega Pixels USB Camera with 60degree Autofocus lens

Fetures

* OV5640 CMOS Sensor for sharp image

* 5mega pixels,Resolution up to 2592*1944

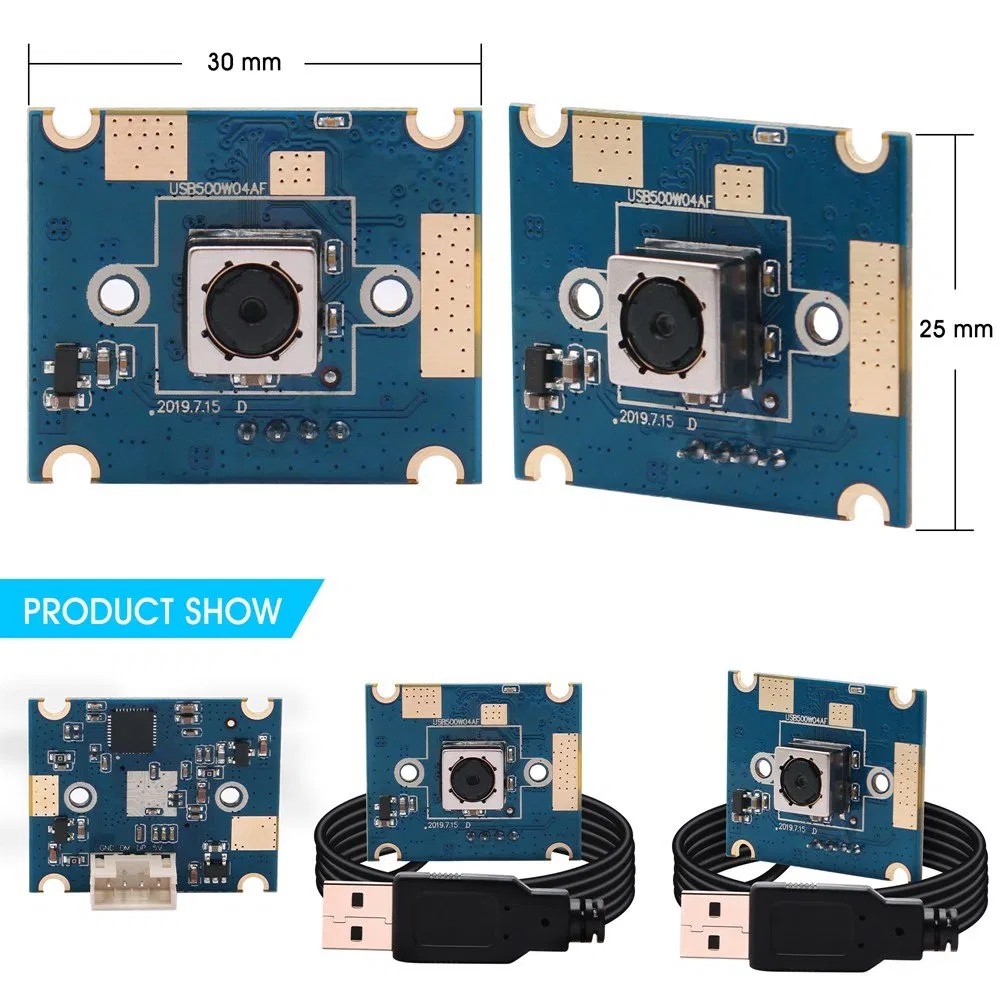

* Super small 25*30mm size outline and thin profile for embedded applications
* With 60degree autofocus lens, Support focus auto mode and manual mode

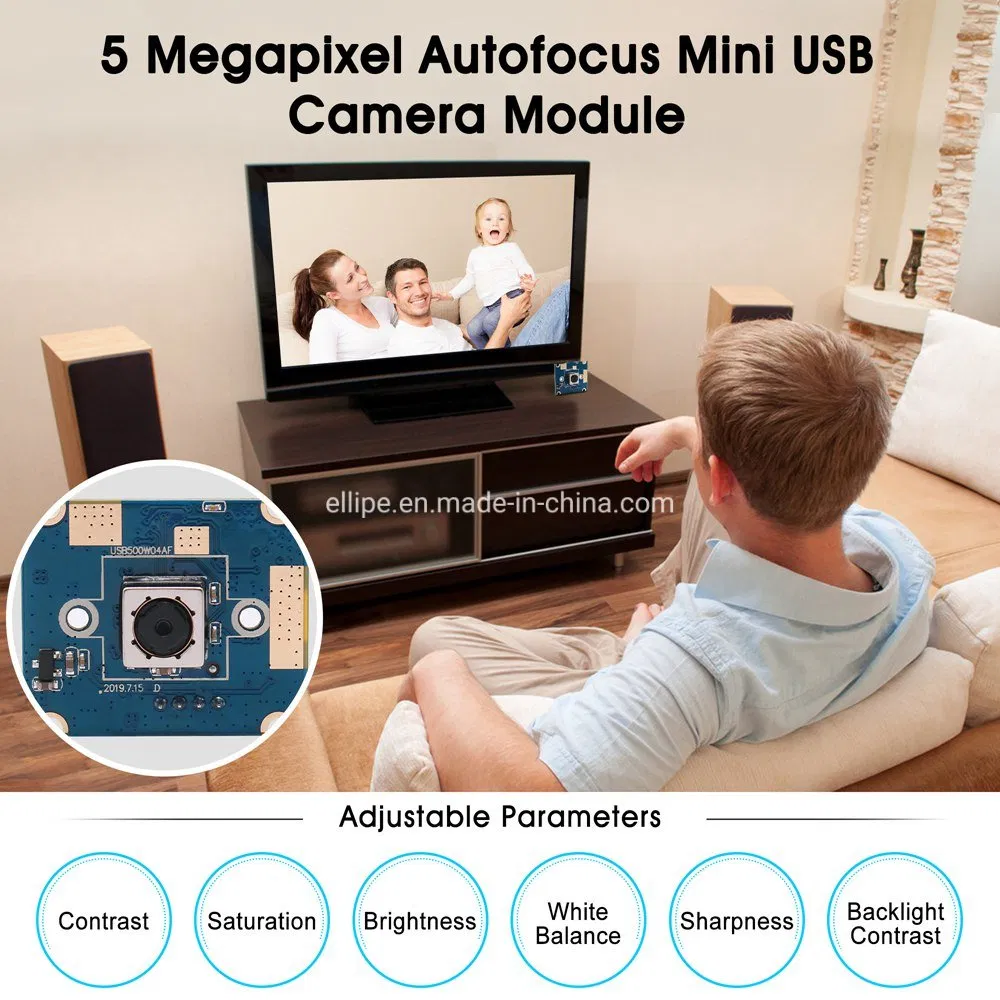

* Image quality controls - Brightness,Contrast,hue,satuaration,sharpness,gamma,white balance

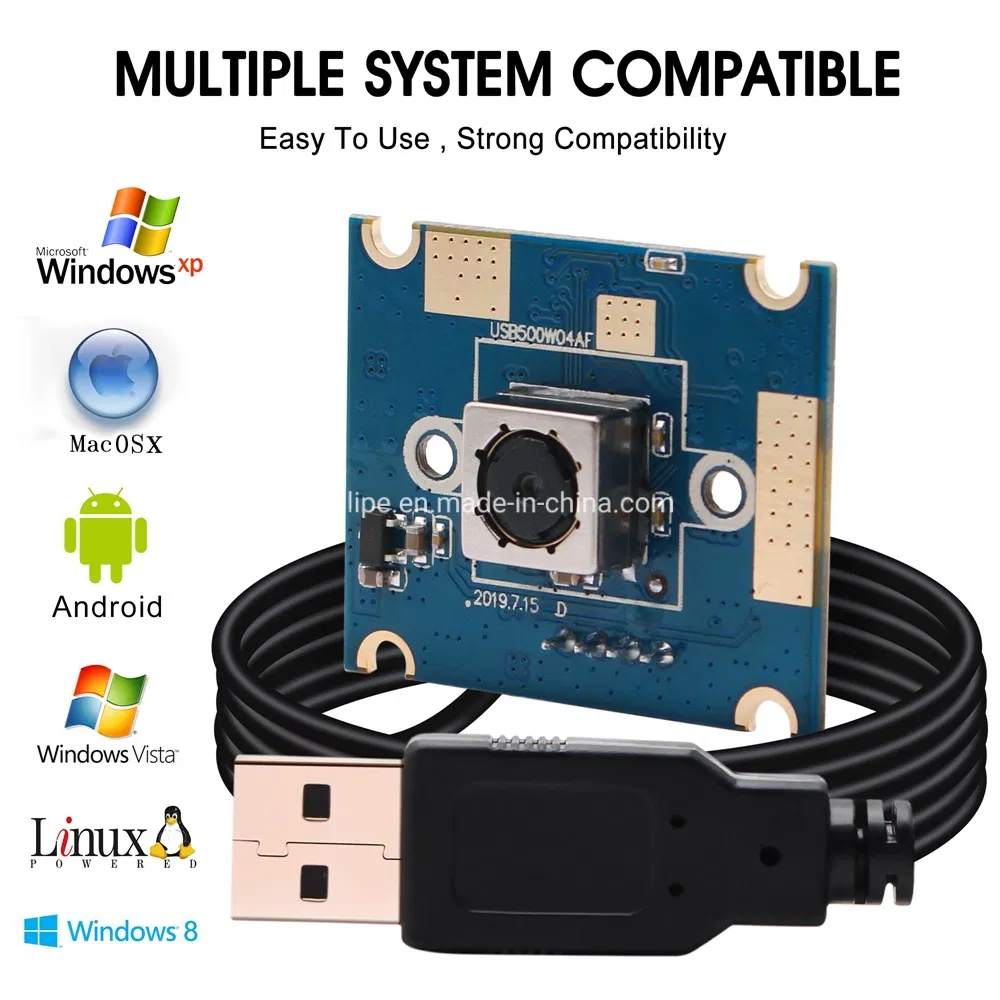

*Support UVC protocol,

for use in Linux, Windows XP, WIN CE, MAC, SP2 or above

Product Description

Module: ELP-USB500W04AF-A60 (60Degree auto focus lens)
Maximum Image & Transfer Rate	2592x1944@ 15fps MJPEG / 2048x1536@ 15fps MJPEG 1600x1200@ 15fps MJPEG / 1920x1080@ 15fps MJPEG 1280x1024@15fps MJPEG/ 1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
Sensor	OV5640 (1/4inch )	Output Formats	YUYV/MJPEG
Pixel Size	1.4µm x1.4µm	Lens Parameter	Size: 1/4, Iris: F2.8, Focus: 3.2mm, FOV: 65Degree Relative Illumination (Sensor): 70% IR Filter: 650±10nm
Image area	3673.6µmx2738.4µm	Object distance	5CM-100M
Max. Resolution	2592 (H) *1944 (V)	USB Cable	1M(2M/3M/5M Optional)
Resolution	600LW/PH (Center)	Module Size	30x25mm
S/N Ratio	36dB	Weight	about 20g
Dynamic Range	68dB	AGC/AEC/AWB/ABF	Auto
Sensitivity	600mV/ Lux-sec	Certifications	FCC and CE
Shutter	Rolling shutter/ frame exposure	Camera Board Assembly technique	SMT (ROSH)
interface	USB 2.0 High Speed	Adjustable parameter	Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus
protocol	USB Video Class(UVC)
LED board power connector	Support 2P-2.0mm socket	Package	CSP, Bare Die
Power supply	USB BUS POWER 4P-2.0mm socket	Package	LQFN-40pin
Operating Voltage	DC5V	Work Temperature	-20°C to 70°C
Power consumption	150mW (VGA); 200mW (QSXGA);	Storage Temperature	0°C to 60°C
Operating system request	Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/ Android 4.0 or above with UVC
