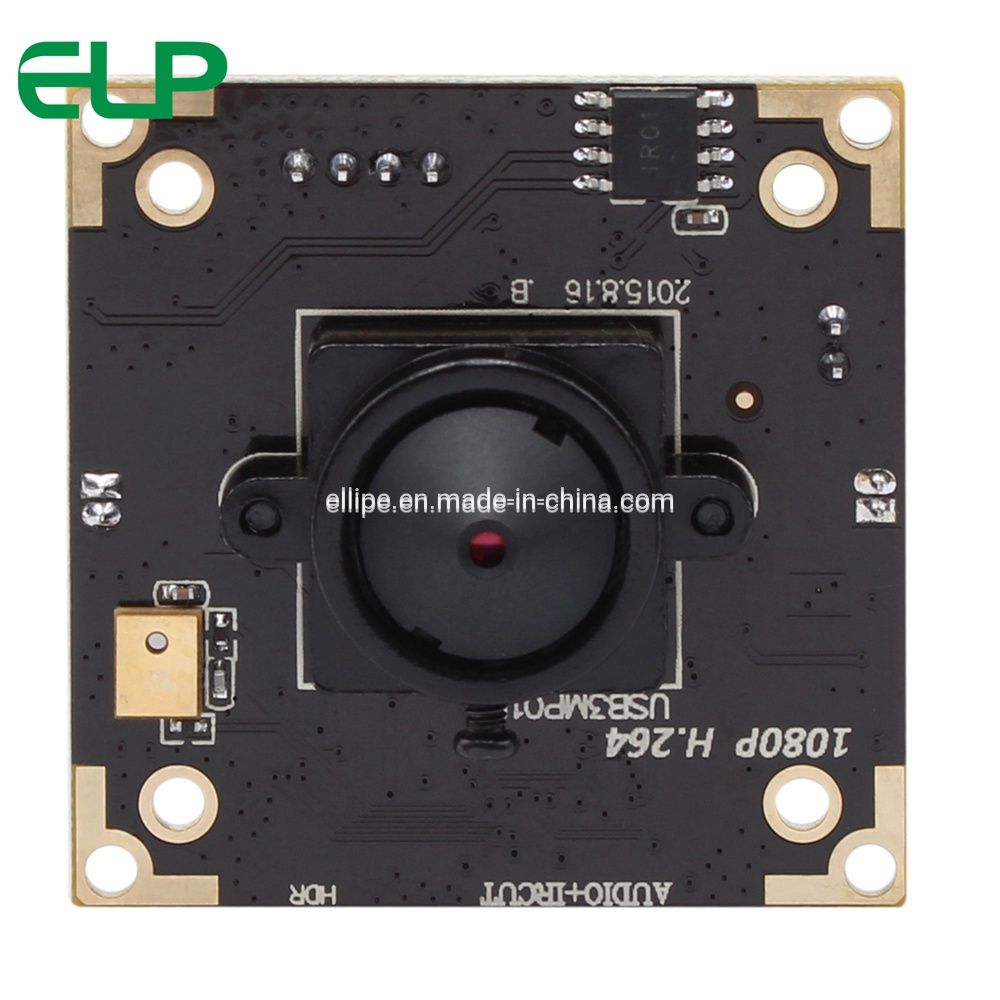

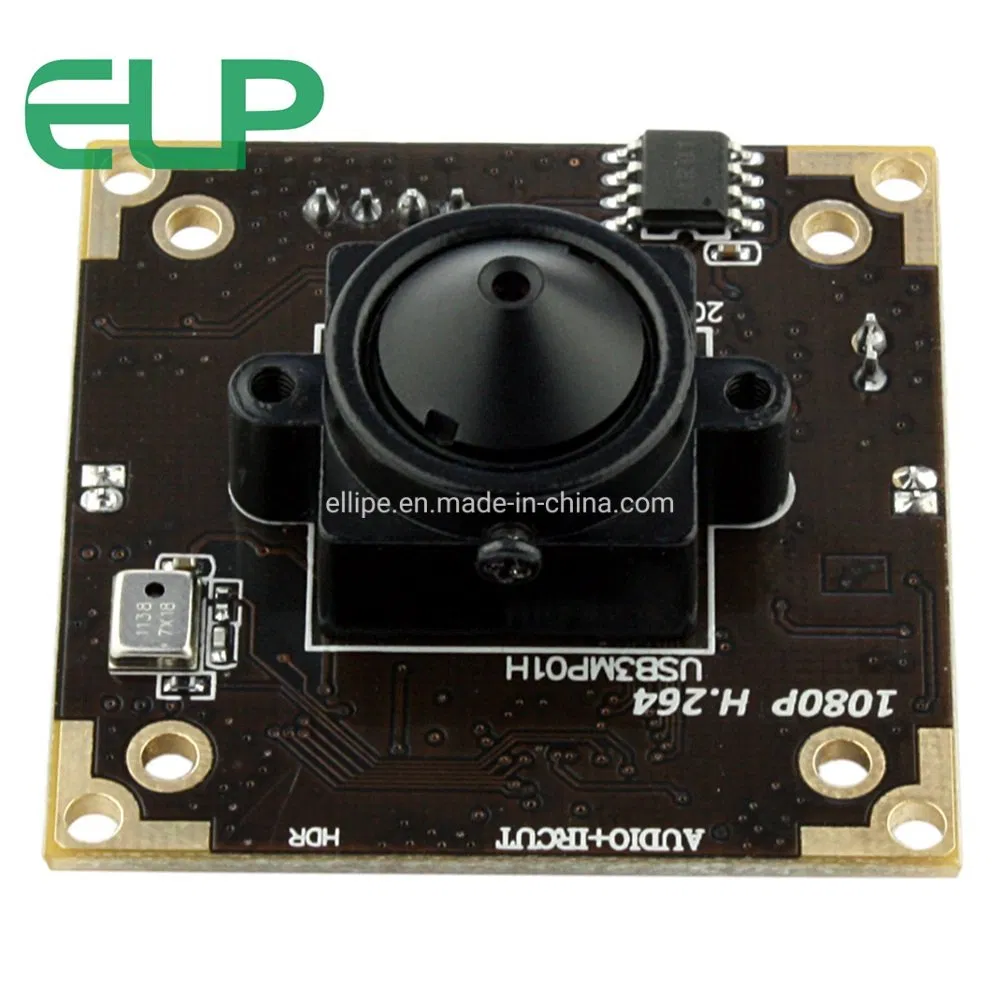

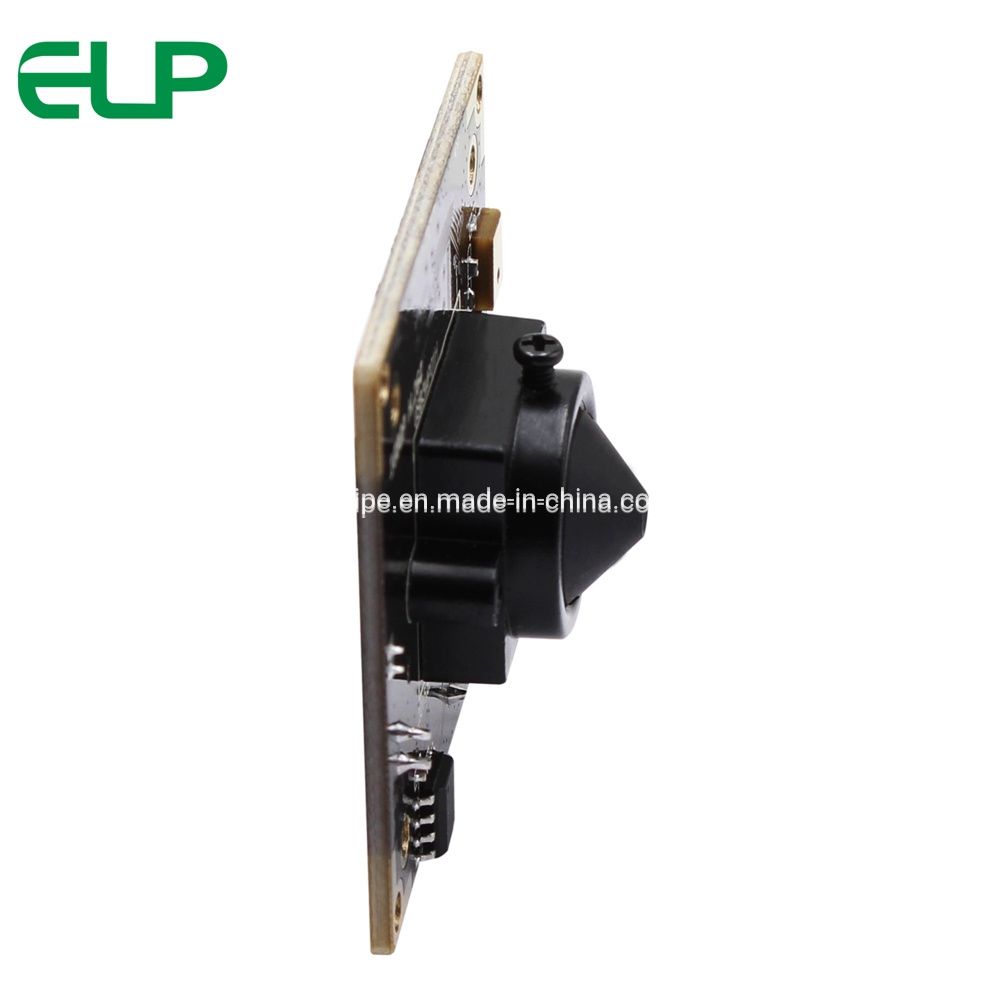

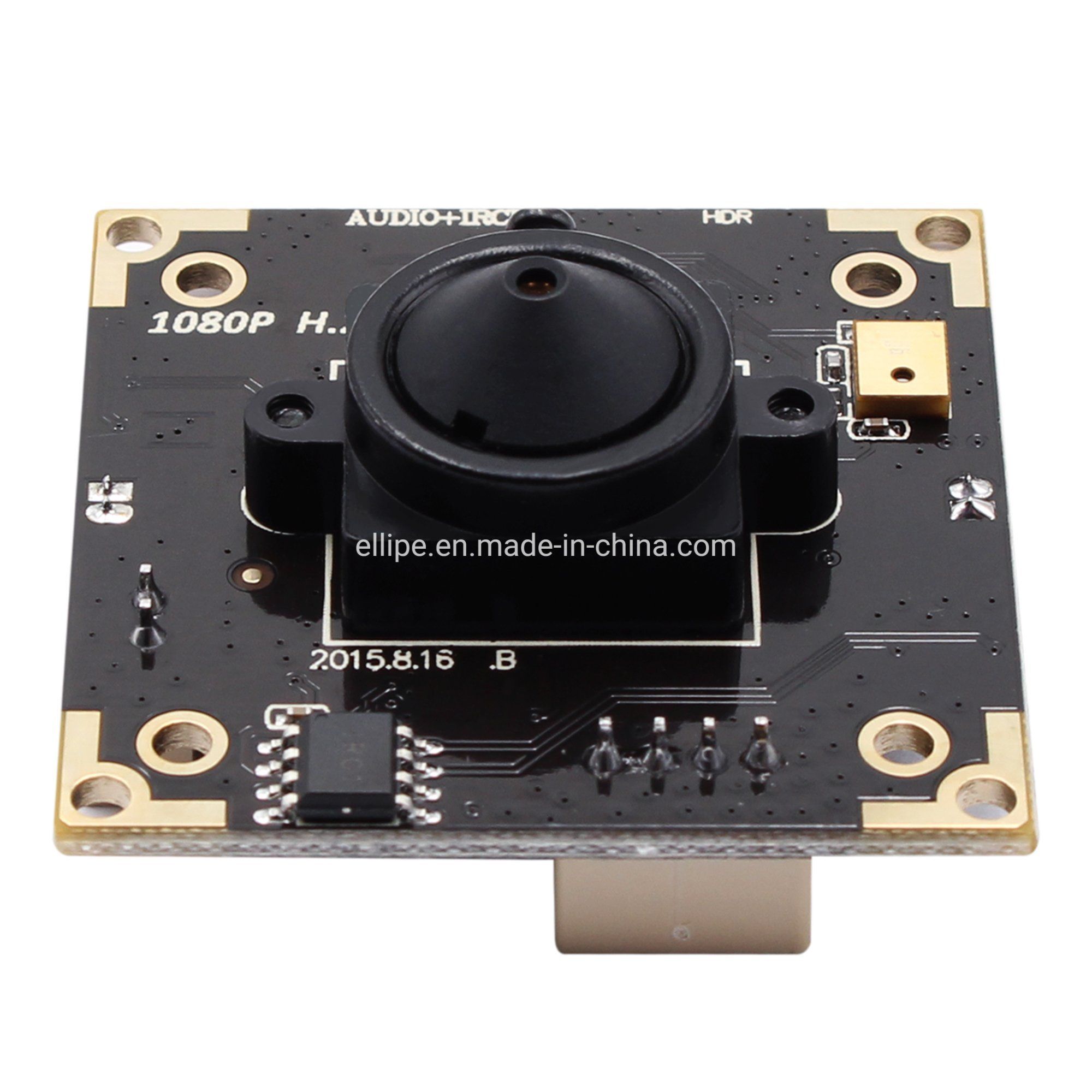

Elp Free Driver 100dB 3.0 Megapixels Webcam HD 30fps H264 WDR Camera Module Mini Hidden Pinhole Camera with Audio Microphone
ELP Free Driver 100dB 3.0 Megapixels Webcam HD 30fps H264 WDR Camera Module Mini Hidden Pinhole Camera With Audio MicrophoneModel: ELP-USB3MP01H series, is 3.0megapixel 2048X1536 High resolution USB cameras, feature as WDR dynamic range up to 100dB,H.264 Format, compatible with system Linux Android ......
Send Inquiry
Product Description

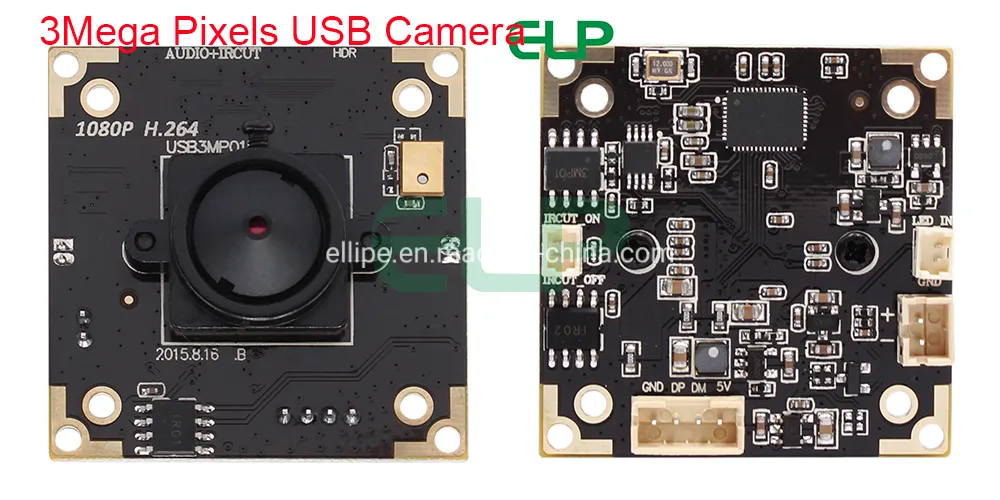

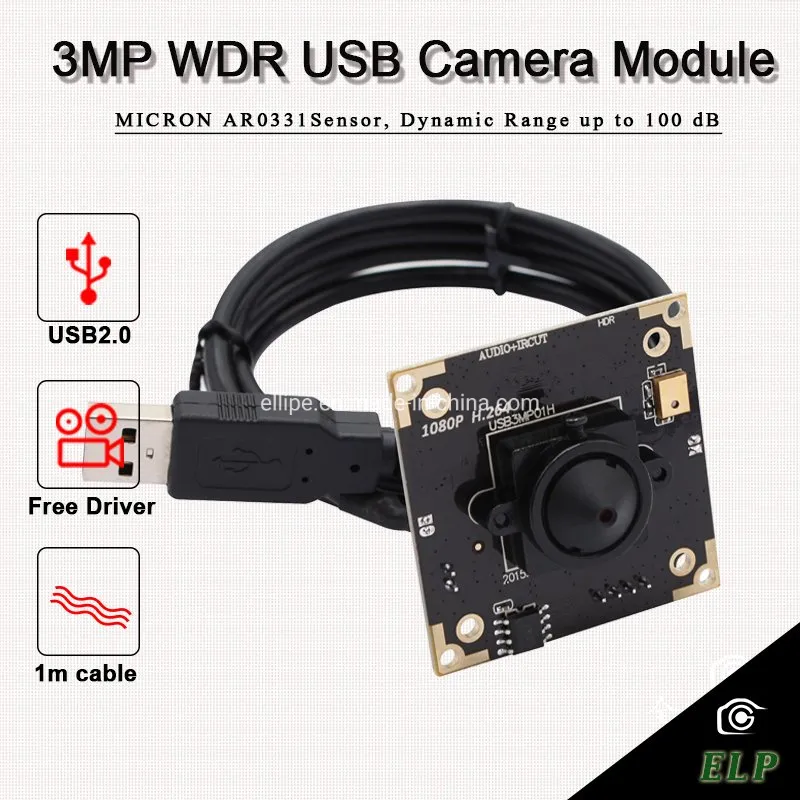

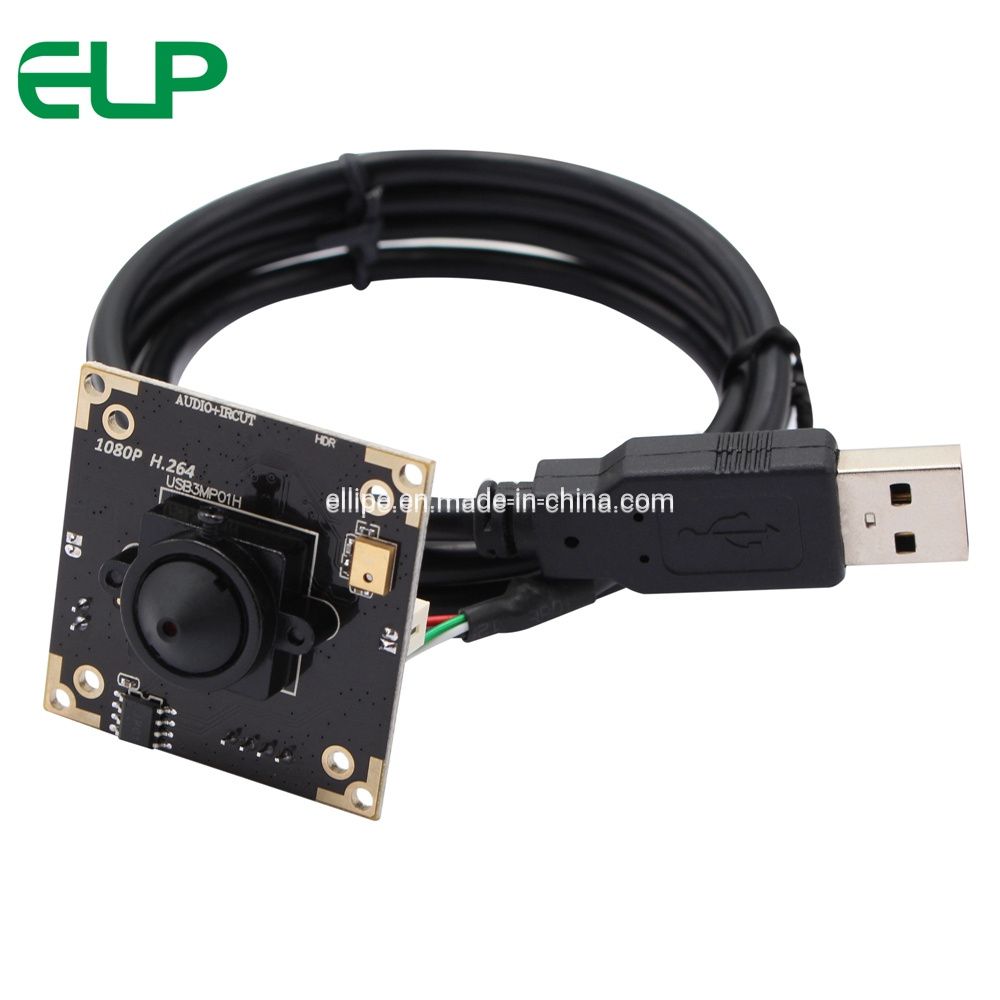

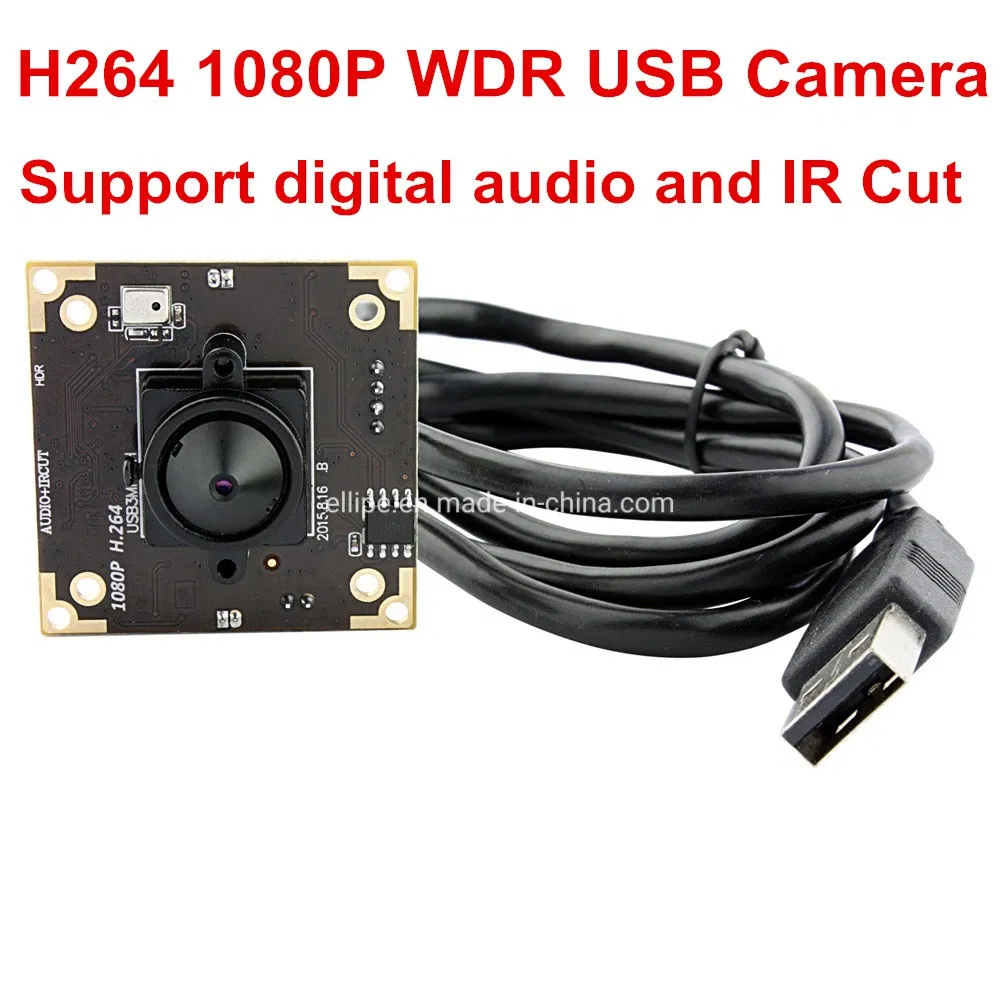

Model: ELP-USB3MP01H series, is 3.0megapixel 2048X1536 High resolution USB cameras, feature as WDR dynamic range up to 100dB,H.264 Format, compatible with system Linux Android Windows etc.
*1/3inch AR0331 CMOS Sensor
*3megapixels, Highest resolution 2048X1536
*WDR function, Dynamic Range up to 100dB
*With H.264/MJPEG/ YUY2 High profile compression.
*Can drive 1920*1080 30FPS
*Come with microphone on the board which support single channel and dual channel.
*With 2P-2.0mm socket for connecting IR LED Board for night vision
*USB 2.0 High speed port
*Camera with UVC, Support Win7 Win8 Win10 Win11 / Linux 2.6 or above / Android 4.0 or above
| Model ELP-USB3MP01H-L37 | |||
| Resolution & frame | H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps MJPEG: 640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@ 30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps YUV: 640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@ 5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps | ||
| Dynamic Rangde | Up to 100 dB | Picture format | H.264 /MJPEG / YUV2(YUYV) |
| Sensor | AR0331 | Lens Parameter | Standard 3.7mm pinhole lens, optional 2.1/3.6/3.7/6/8/12mm/ FOV(D)80 Degree No distortion LENS |
| Sensor Size | 1/3 inch | Cable | Standard 1M/ Optional 2m,3m,5m |
| Pixel Size | 2.2μm x 2.2μm | Board Size/Weight | 38X38mm/ about 30g |
| Image Area | 3888μm x 2430μm | Sensitivity | 2V/lux-sec@550nm |
| Max. Resolution | 1920(H)X1080(V) | Shutter Type | Electronic rolling shutter &GRR |
| S/N Radio | 39dB | Connecting Port Type | USB2.0 High speed |
| Mini illumination | 0.05lux | OTG protocol | USB2.0 OTG |
| AEC,AEB,AGC | Support | Free Drive Protocol | USB Video Class(UVC) |
| Power Supply | DC 5V | Work Temperature | -10~70 Degree |
| Operating Voltage | 140mA~220mA | Storage Temperature | -20~85 Degree |
| Digital audio | High quality digital MIC, support single, dual channel | Adjustable parameters | Brightness, Contrast, Saturation, Backlight Contrast, Exposure |
| IR CUT Connect | Support 2P-1.25mm socket | LED board power connector | Support 2P-2.0mm socket |
| Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above | ||
