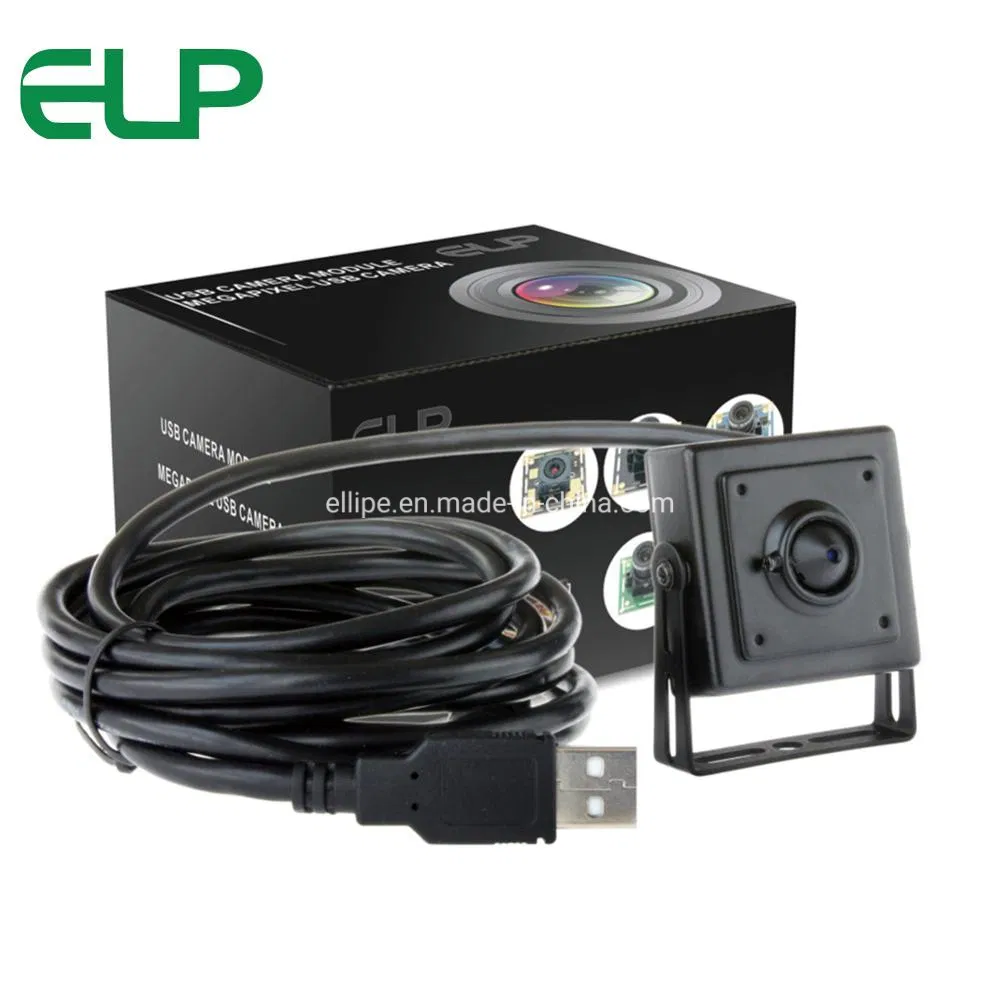

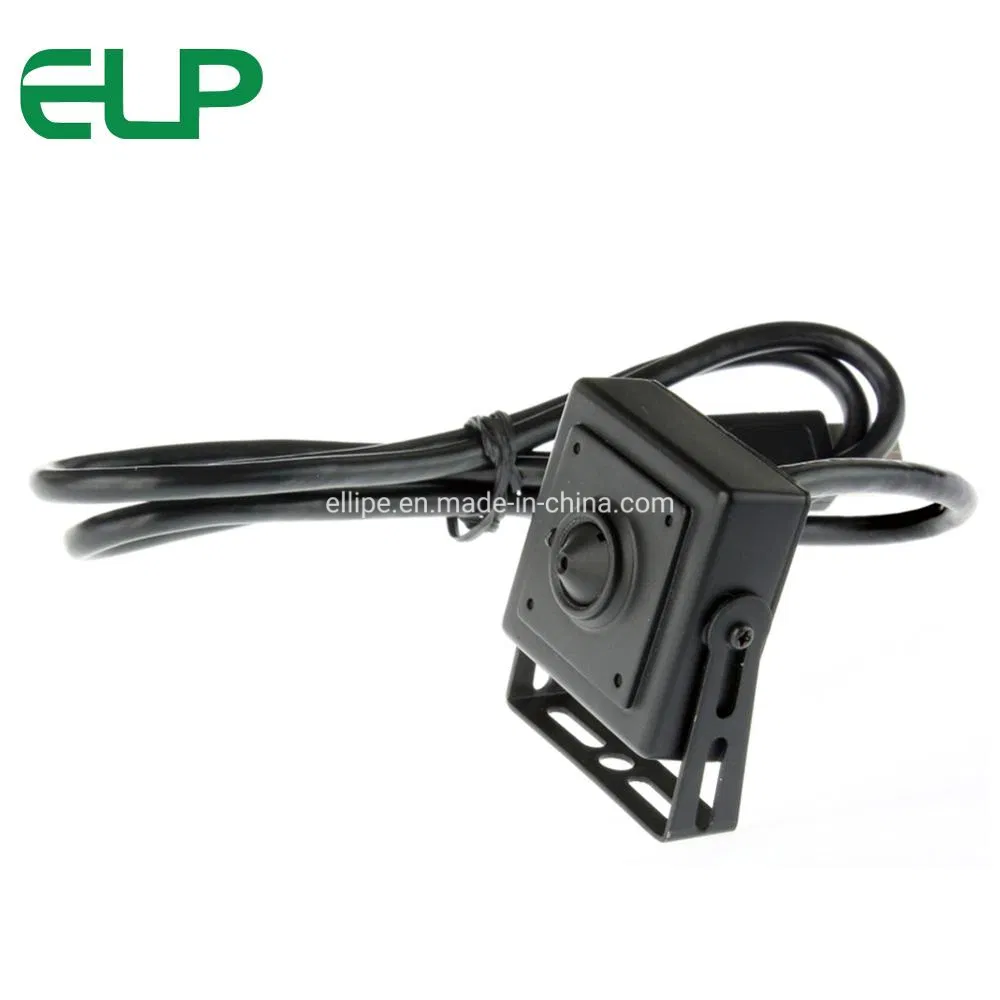

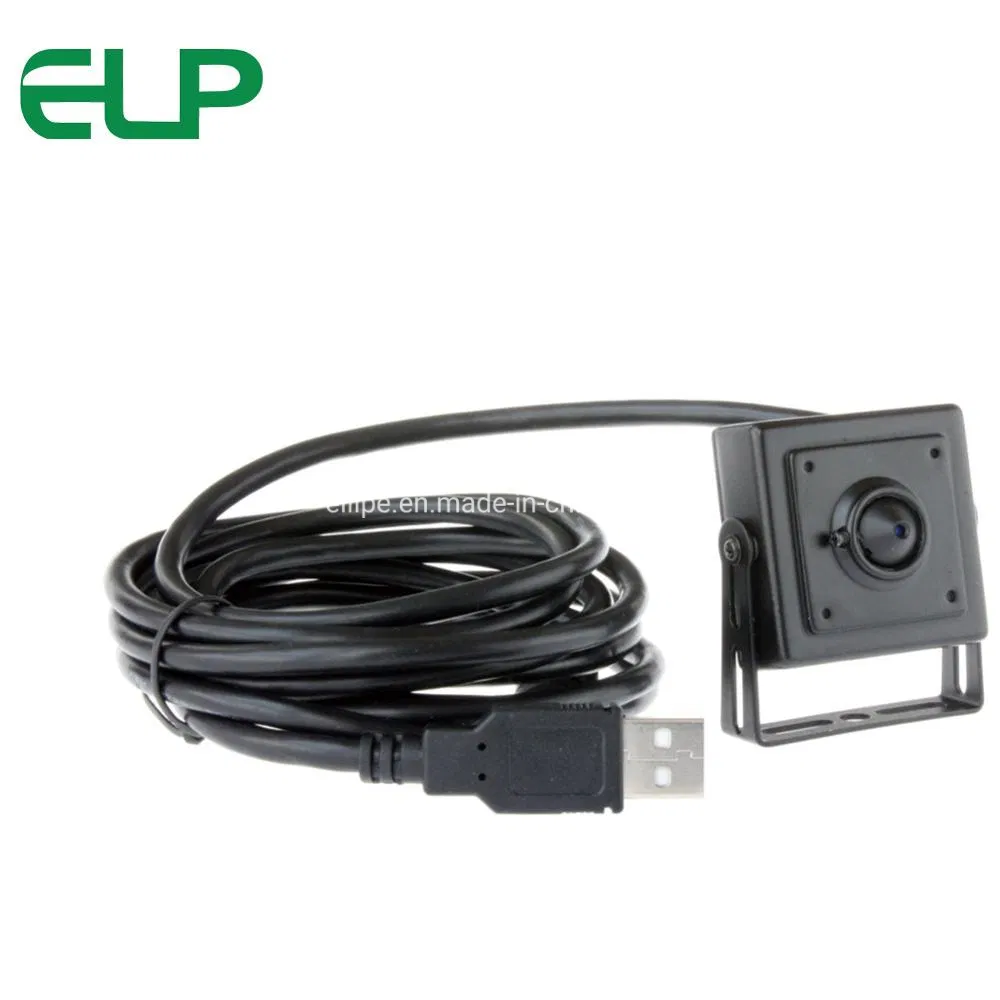

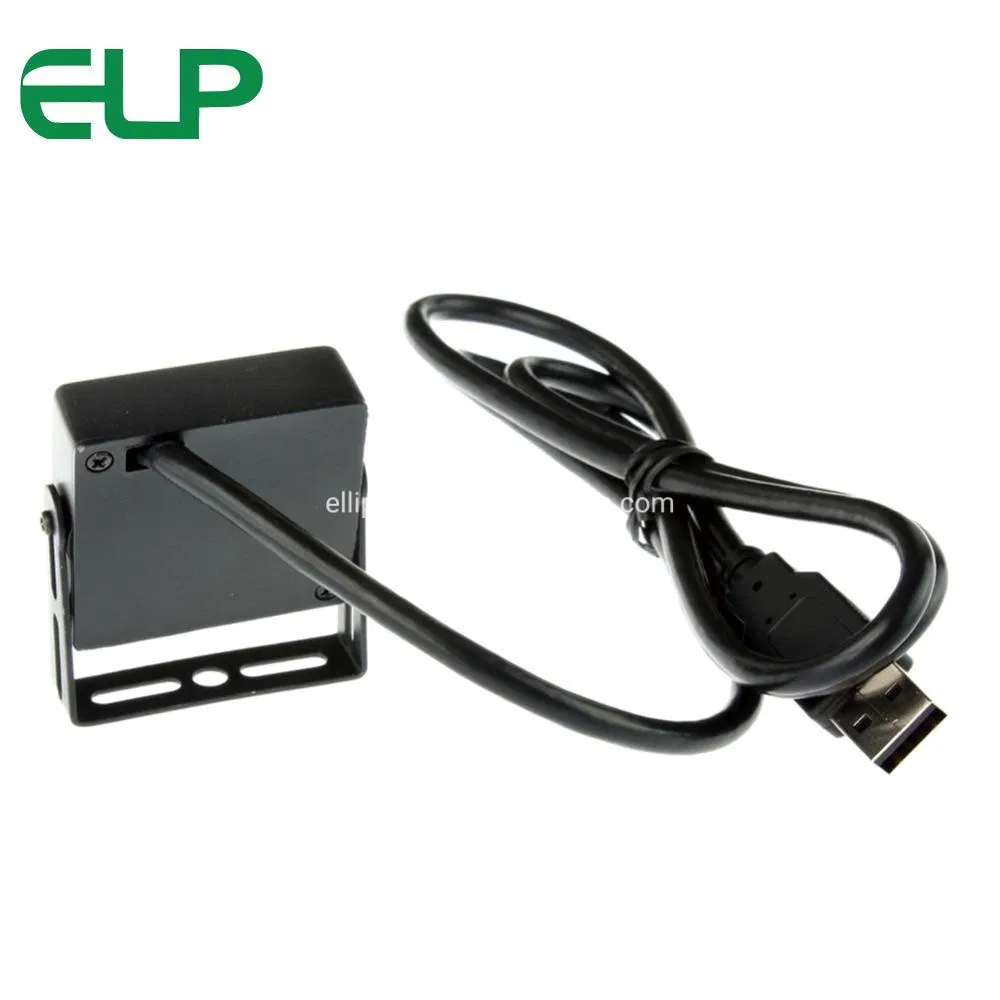

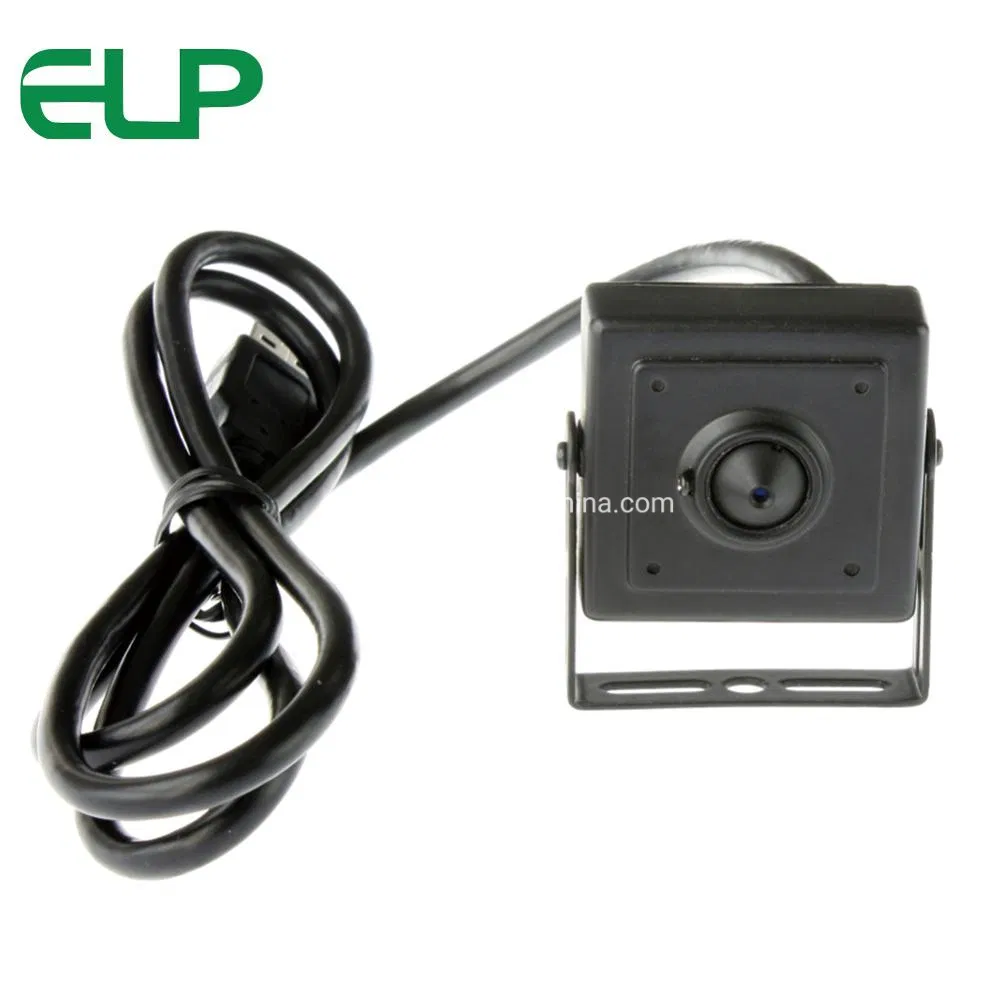

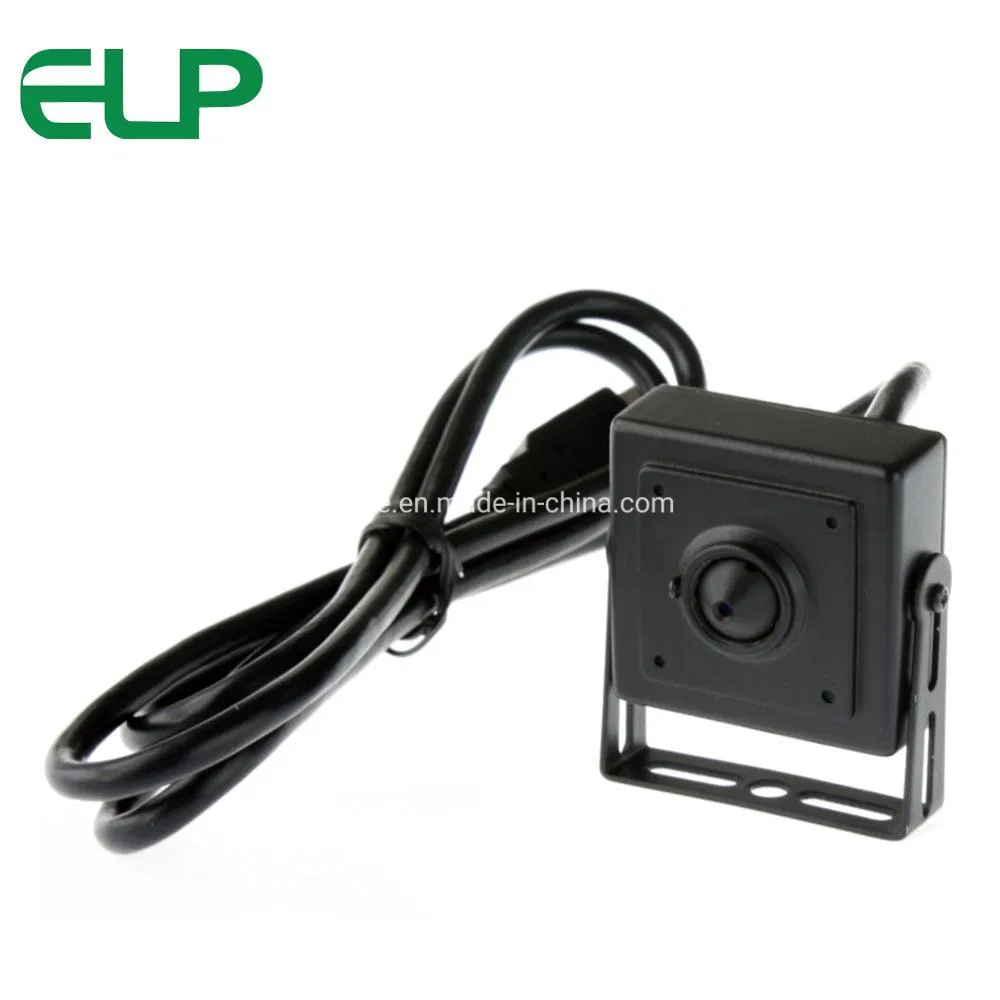

Elp Free Driver Pinhole 5.0 Megapixel Webcam Mjpeg Full HD Hidden Android External USB Camera
mini lens 5mp usb camera with YUY2/MJPEG outputFeature:*Ultra 5MP HD Wide Angle View USB Camera Board*Equiped with 170 degree wide angle fisheye lens*UP to 2592 (H) x 1944 (V) resolution*5Megapixel CMOS sensor for high quality image.*High speed USB 2.0 interface for high resolution PC camera interfa......
Send Inquiry
Product Description
mini lens 5mp usb camera with YUY2/MJPEG output
Feature:
*Ultra 5MP HD Wide Angle View USB Camera Board
*Equiped with 170 degree wide angle fisheye lens
*UP to 2592 (H) x 1944 (V) resolution
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
General Description
The HD 5Megapixel USB CMOS board camera module(model: ELP-USB500W02M serials) is ideal for many applications like security
Systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by
OmniVision OV5640, one of the world leaders in this field of electronics.
The USB camera are ideal for equipment manufacturers, experimenters and hobbyists.
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
Used for all kinds of machine as below:
Machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
Vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
Enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
Automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
Shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
Surveillance, endoscope, Medical auxiliary equipment, etc.
APPLICATION
Feature:
*Ultra 5MP HD Wide Angle View USB Camera Board
*Equiped with 170 degree wide angle fisheye lens
*UP to 2592 (H) x 1944 (V) resolution
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
General Description
The HD 5Megapixel USB CMOS board camera module(model: ELP-USB500W02M serials) is ideal for many applications like security
Systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by
OmniVision OV5640, one of the world leaders in this field of electronics.
The USB camera are ideal for equipment manufacturers, experimenters and hobbyists.
Applications
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
Used for all kinds of machine as below:
Machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
Vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
Enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
Automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
Shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
Surveillance, endoscope, Medical auxiliary equipment, etc.
Optional models | ELP-USB500W02M-L21(2.1mm lens) ELP-USB500W02M-L28(2.8mm lens) ELP-USB500W02M-L36(3.6mm lens) ELP-USB500W02M-L60(6mm lens) ELP-USB500W02M-L80(8mm lens) ELP-USB500W02M-L12(12mm lens) |
Sensor | 1/4" CMOS OV5640 |
Lens size | 500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels |
Max. Resolution | 2592X1944 |
Picture format | MJPEG |
USB Protocal | USB2.0 HS/FS, USB1.1 FS |
Support free driver | USB Video Class(UVC)1.1 |
Auto exposure AEC | Support |
Auto white blance AEB | Support |
Frame rate | 2592 (H) x 1944 (V) pixels MJPEG 15fps YUY2 3fps 2048 (H) x 1536 (V) pixels MJPEG 15ps YUY2 3fps 1600 (H) x 1200 (V) pixels MJPEG 15fps YUY2 3fps 1920 (H) x 1080 (V) pixels MJPEG 15fps YUY2 3fps 1280 (H) x 1024 (V) pixels MJPEG 15fps YUY2 7.5fps 1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 7.5fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 15fps 800 (H) x 600 (V) pixels MJPEG 30fps YUY2 30fps 640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 30fps YUY2 30fps |
Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
Night vision | optional, can choose IR board |
view angle | 30-150 degree optional |
voltage | DC 5V |
Current | 150mA |
work temperature | DEGREES(-20~70) |
Size | 32x32mm/38*38 |
Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |
APPLICATION
