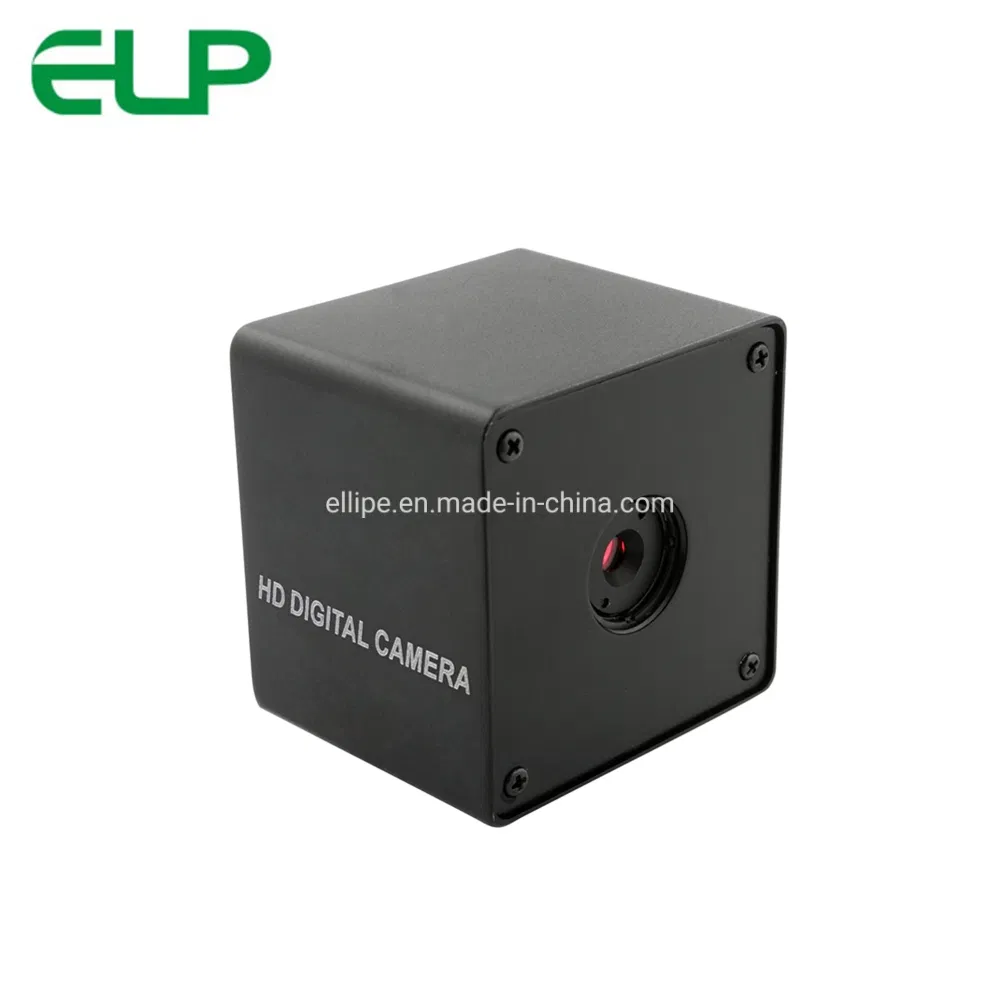

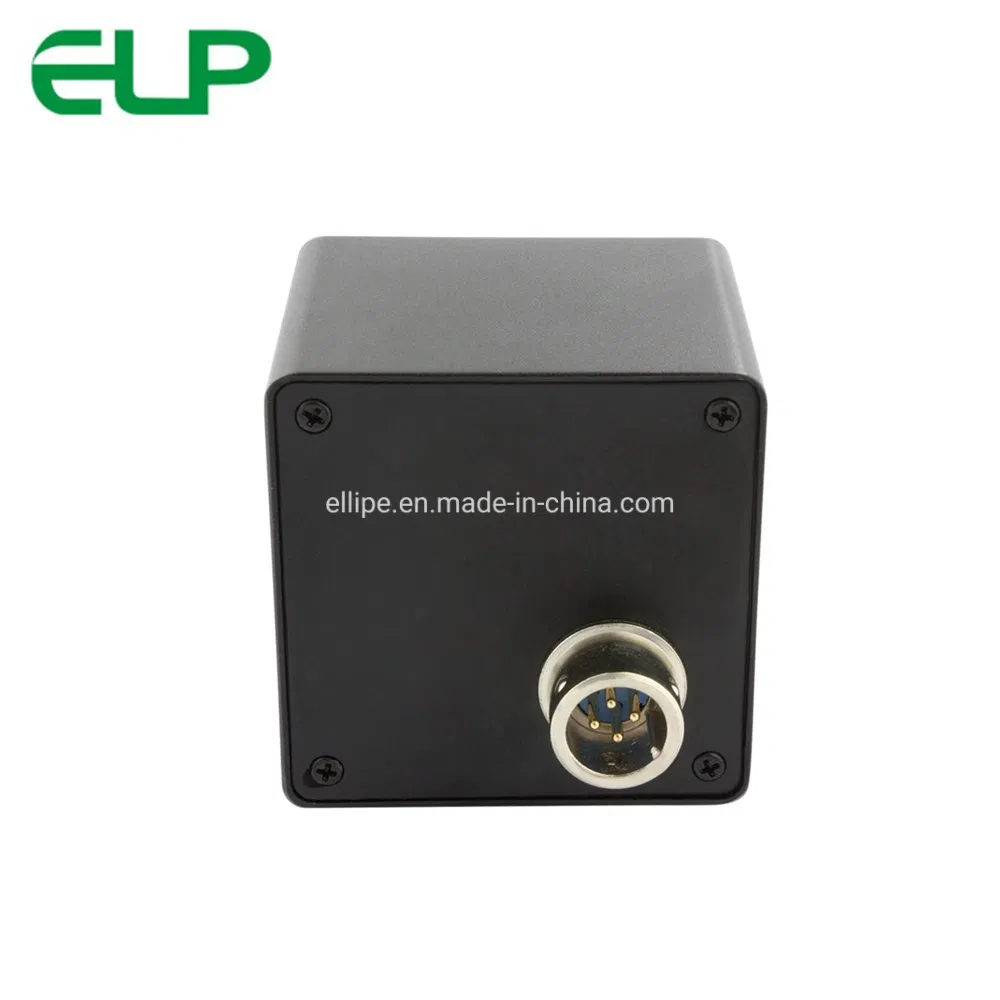

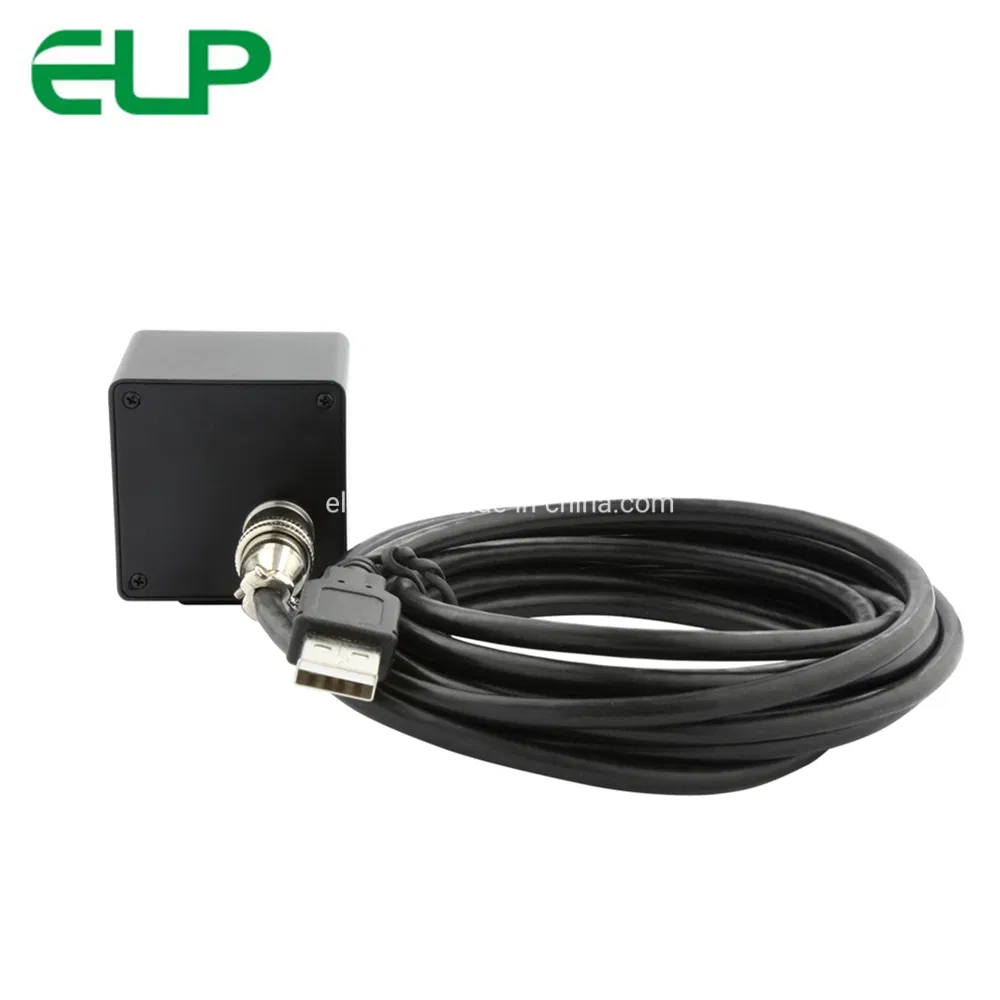

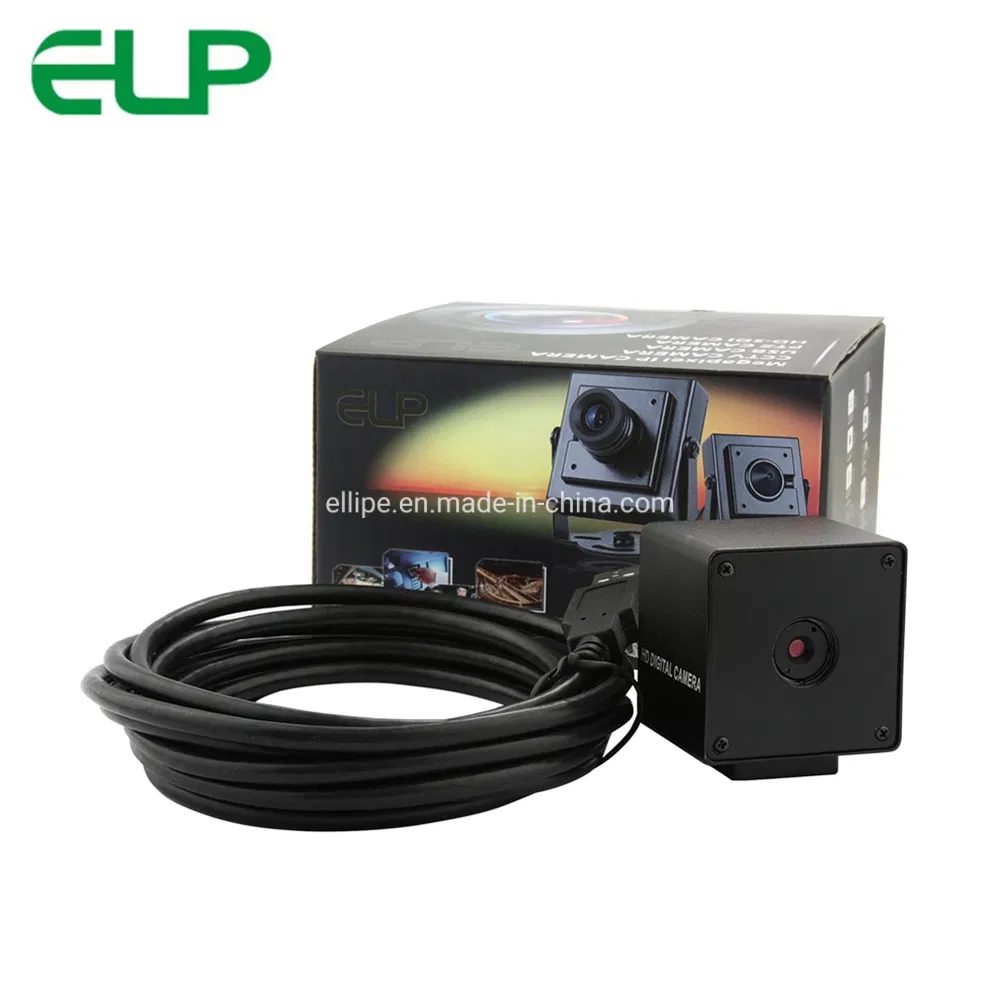

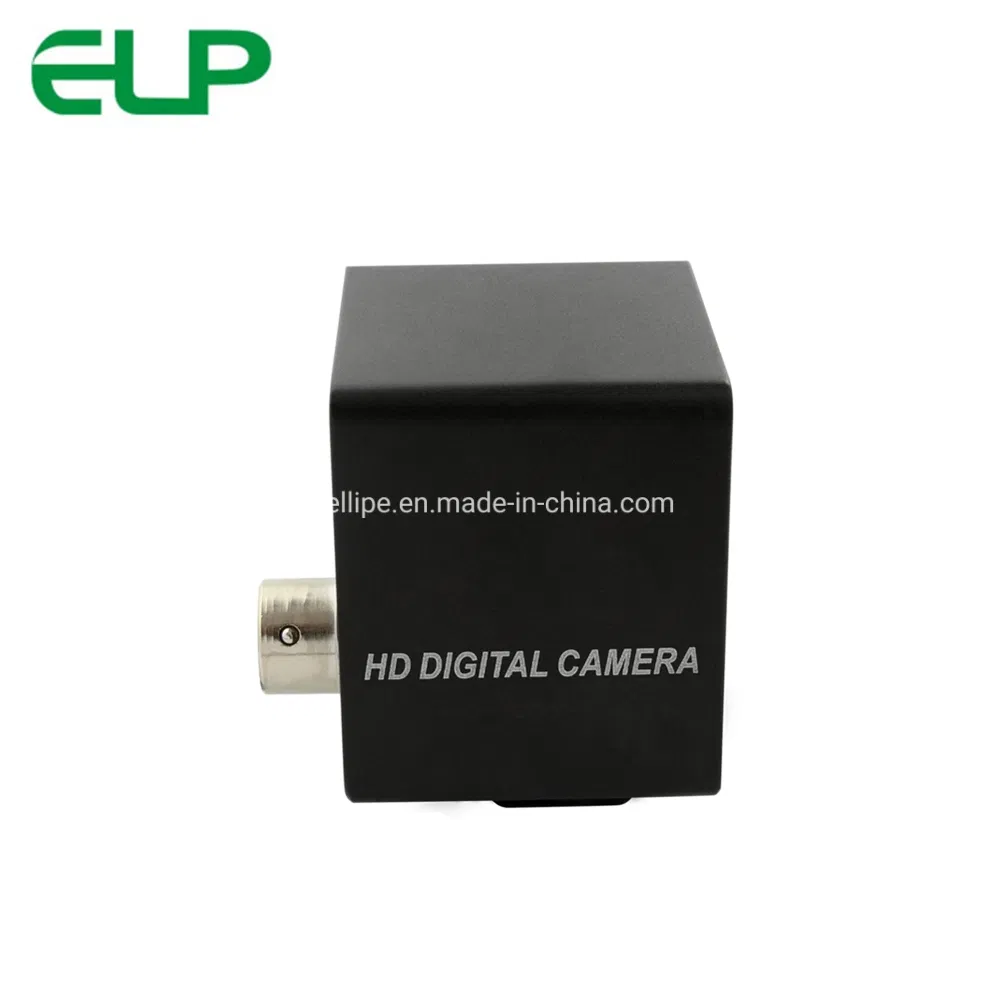

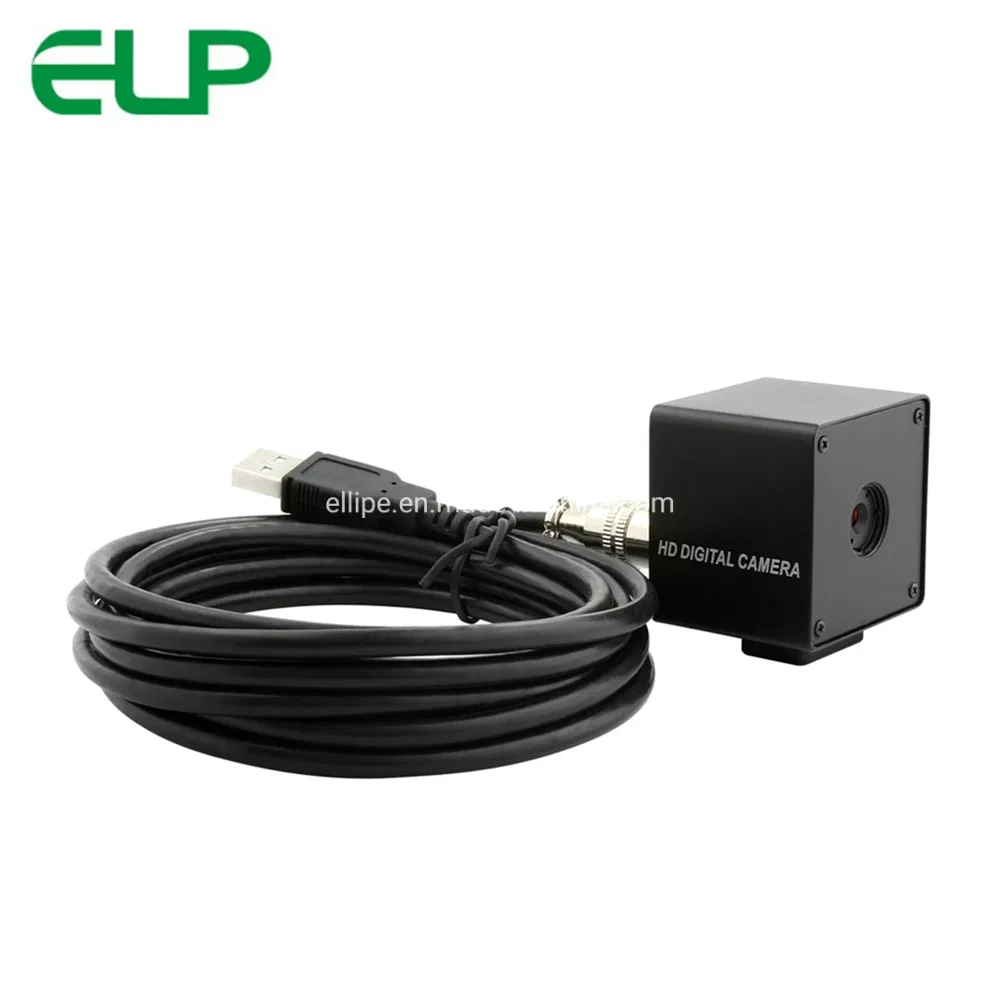

Elp High Definition 5.0MP CCTV Security 2592X1944 USB Camera Module CMOS Ov5640 Auto Focus 30 Degree Lens USB Camera
ELP High definition 5.0MP CCTV Security USB Camera Module CMOS OV5640 auto focus USB CameraFetures*5Megapixel CMOS sensor for high quality image. *High speed USB 2.0 interface for high resolution PC camera interface.*high pixel technology for sharp image and accurate color reproduction.*low light......
Send Inquiry
Product Description
Fetures
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance - ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate-30 fps in 640X480 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption - ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
| Optional models | Silver | Frame rate | 2592 (H) x 1944 (V) pixels MJPEG 15fps YUY2 3fps |
| ELP-USB500W02M-AFC30S | 2048 (H) x 1536 (V) pixels MJPEG 15ps YUY2 3fps | ||
| ELP-USB500W02M-AFC45S | 1600 (H) x 1200 (V) pixels MJPEG 15fps YUY2 3fps | ||
| ELP-USB500W02M-AFC65S | 1920 (H) x 1080 (V) pixels MJPEG 15fps YUY2 3fps | ||
| Blue: | 1280 (H) x 1024 (V) pixels MJPEG 15fps YUY2 7.5fps | ||
| ELP-USB500W02M-AFC30B | 1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 7.5fps | ||
| ELP-USB500W02M-AFC45B | 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 15fps | ||
| ELP-USB500W02M-AFC65B | 800 (H) x 600 (V) pixels MJPEG 30fps YUY2 30fps | ||
| Black: | 640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps | ||
| ELP-USB500W02M-AFC30K | 320 (H) x 240 (V) pixels MJPEG 30fps YUY2 30fps | ||
| ELP-USB500W02M-AFC45K | Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB | |
| ELP-USB500W02M-AFC65K | Night vision | optional, can choose IR board | |
| Sensor | 1/4" CMOS OV5640 | view angle | 30/45/65 degree optional |
| Lens size | 500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels | voltage | DC 5V |
| Lens | 800W Auto Focus HD Lens | current | 150mA |
| Max. Resolution | 2592X1944 | work temperature | DEGREES(-20~70) |
| Picture format | MJPEG | Size | 40*40*35mm |
| Support OS | WinXP/Vista/WIN7/WIN8 | USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Linux with UVC | Support free driver | USB Video Class(UVC)1.1 | |
| Mac-OS X 10.4.8 or later | Auto exposure AEC | Support | |
| Wince with UVC | Auto white blance AEB | Support | |
| Android 4.0 or above |
APPLICATION
