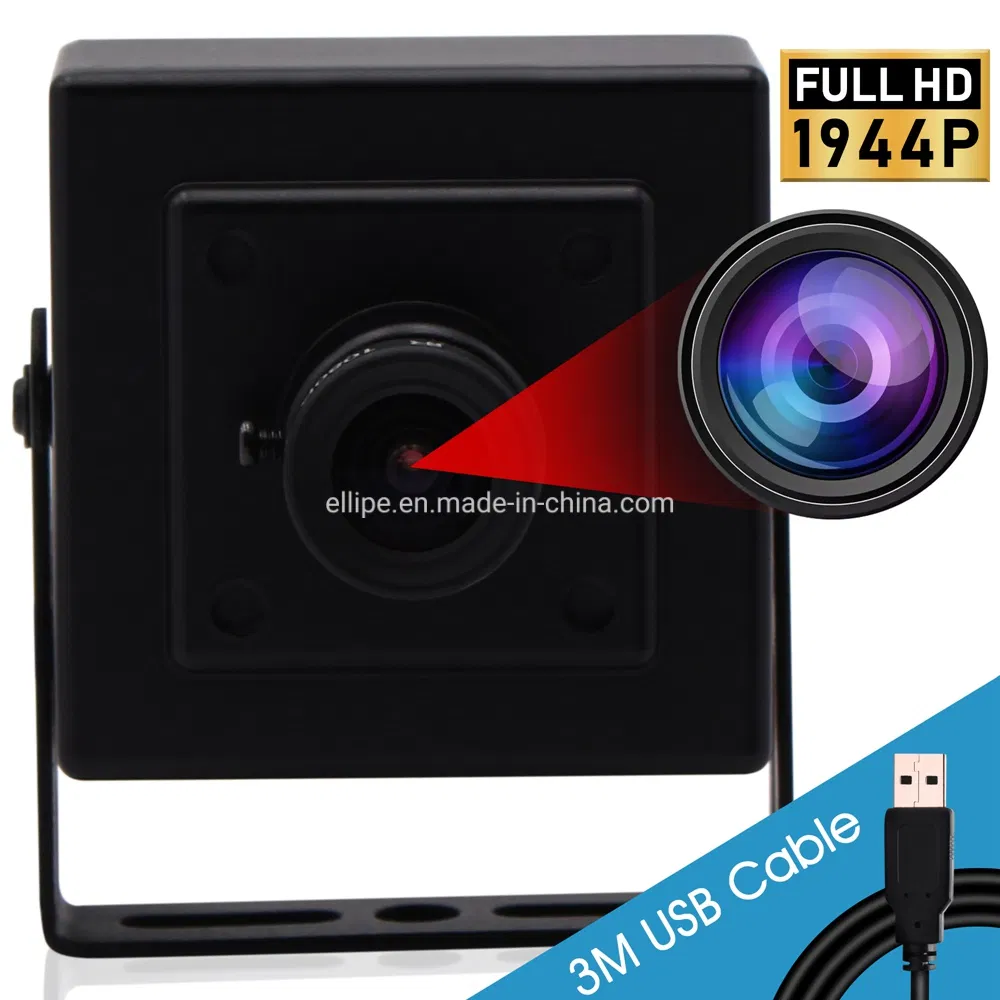

Elp Mini Box Webcam 5.0megapixel Ov5640 CMOS 8mm Lens Video USB Camera for Security or Industrial Machine Vision System
Elp Mini Box Webcam 5.0Megapixel Ov5640 CMOS 8mm Lens Video USB Camera for Security or Industrial Machine Vision System Main Features: *Ultra 5MP HD USB Camera Board*UP to 2592 (H) x 1944 (V) resolution*5Megapixel CMOS sensor for high quality image.*High speed USB 2.0 interface for high resolution P......
Send Inquiry
Product Description
Main Features:
*Ultra 5MP HD USB Camera Board
*UP to 2592 (H) x 1944 (V) resolution
*5Megapixel CMOS sensor for high quality image.

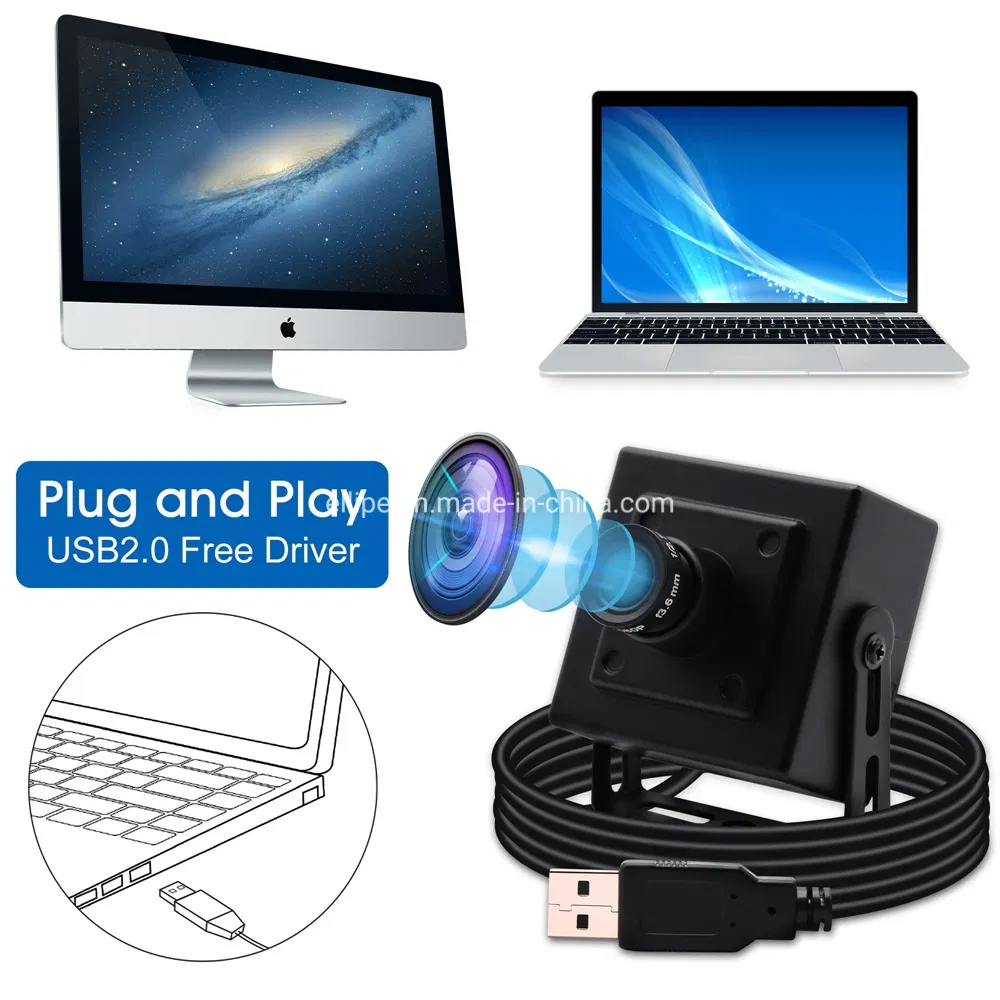

*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance - ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate-30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption - ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Technical Specification:
| Module Model | ELP-USB500W02M-BL80 |

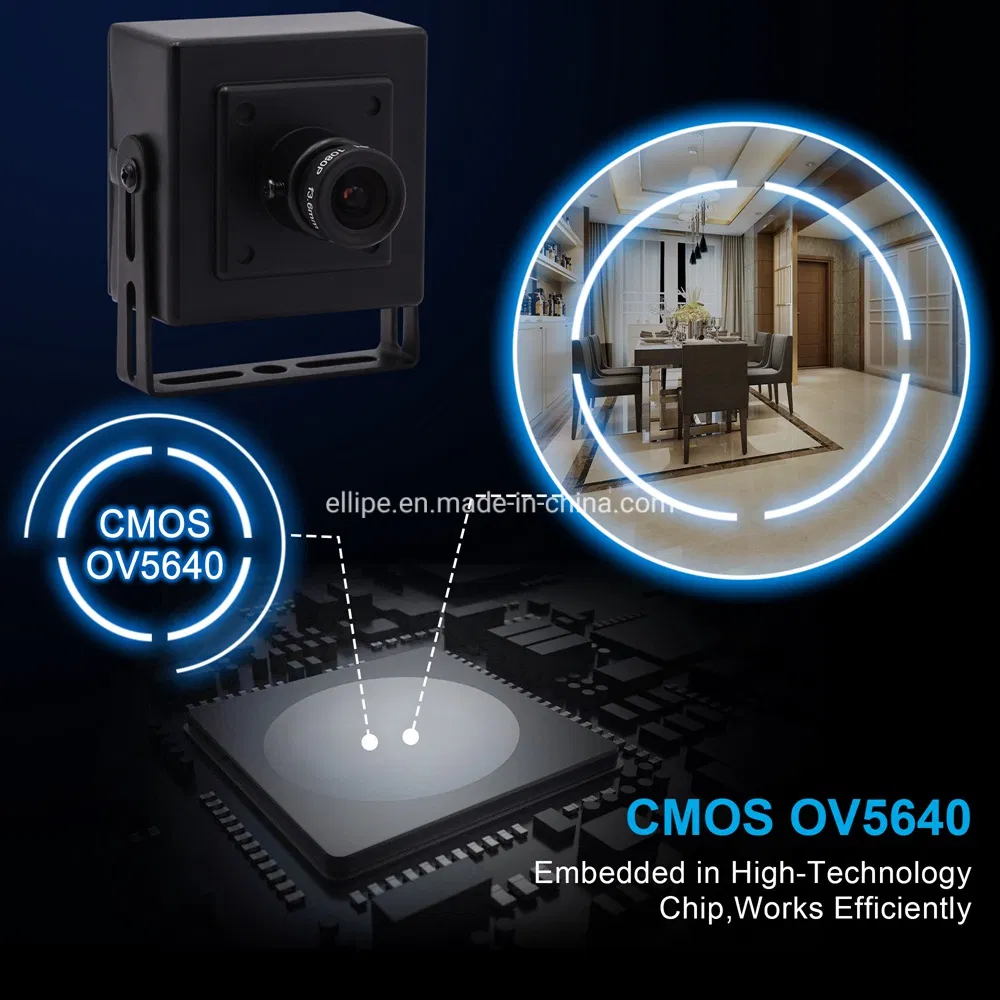

| Sensor | OV5640 (1/4inch ) |
| Max. Resolution | 2592 (H) *1944 (V) |
| Sensitivity | 600mV/ Lux-sec |
| Pixel Size | 1.4µm x1.4µm |
| Image area | 3673.6µmx2738.4µm |
| Maximum Image Transfer Rate | 2592x1944@ 15fps MJPEG / 2048x1536@ 15fps MJPEG 1600x1200@ 15fps MJPEG / 1920x1080@ 15fps MJPEG 1280x1024@15fps MJPEG/ 1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG |
| Camera Board Assembly technique | SMT (ROSH) |
| Object distance | 5CM-100M |
| Resolution | 600LW/PH (Center) |
| interface | USB 2.0 High Spee |
| protocol | USB Video Class( UVC) |
| S/N Ratio | 36dB |
| Dynamic Range | 68dB |
| Shutter | Rolling shutter/ frame exposure |
| Package | CSP, Bare Die |
| AGC/AEC/AWB/ABF | Auto |
| Output Formats | YUYV/MJPEG |
| Adjustable parameter | Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus |
| Package | LQFN-40pin |
| Lens Parameter | Standard 3.6mm, optional 2.1/2.8/3.6/6/8/12mm/ FOV(D)170 Degree |
| LED board power connector | Not Support |
| Power supply | USB BUS POWER |
| Operating Voltage | DC5V |
| Power consumption | 150mW ( VGA) ; 200mW ( QSXGA) |

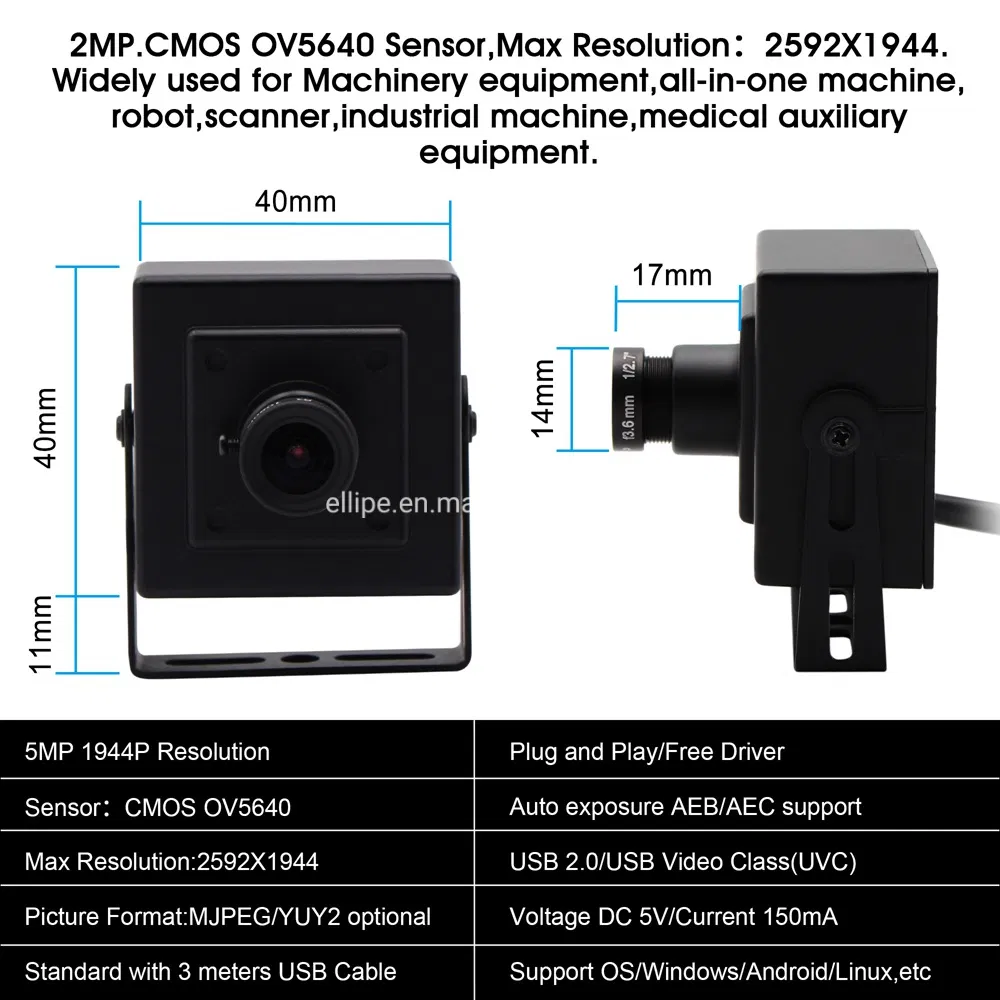

| Size | 41X41X41.5MM |
| Temperature (Operation) | (-20°C to 70°C) |
| USB Cable | 3M(2M/5M Optional) |

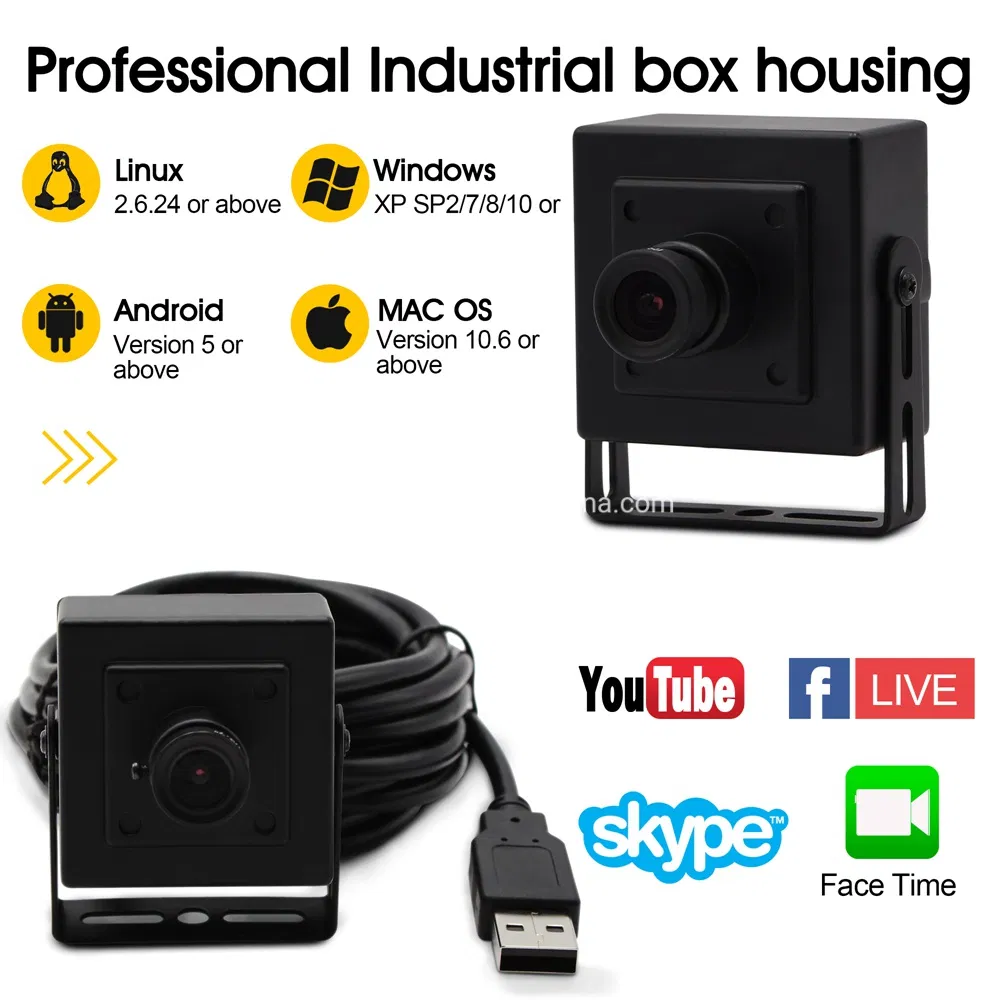

| Operating system request | Win XP/Vista/Win7/Win8 / Linux with UVC( above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
| Certifications | FCC and CE |
