China Elp Wide Angle 170 Degree Fisheye Lens Webcam 2.0magepixel UVC 1080P Full HD USB Surveillance Camera

Product Description

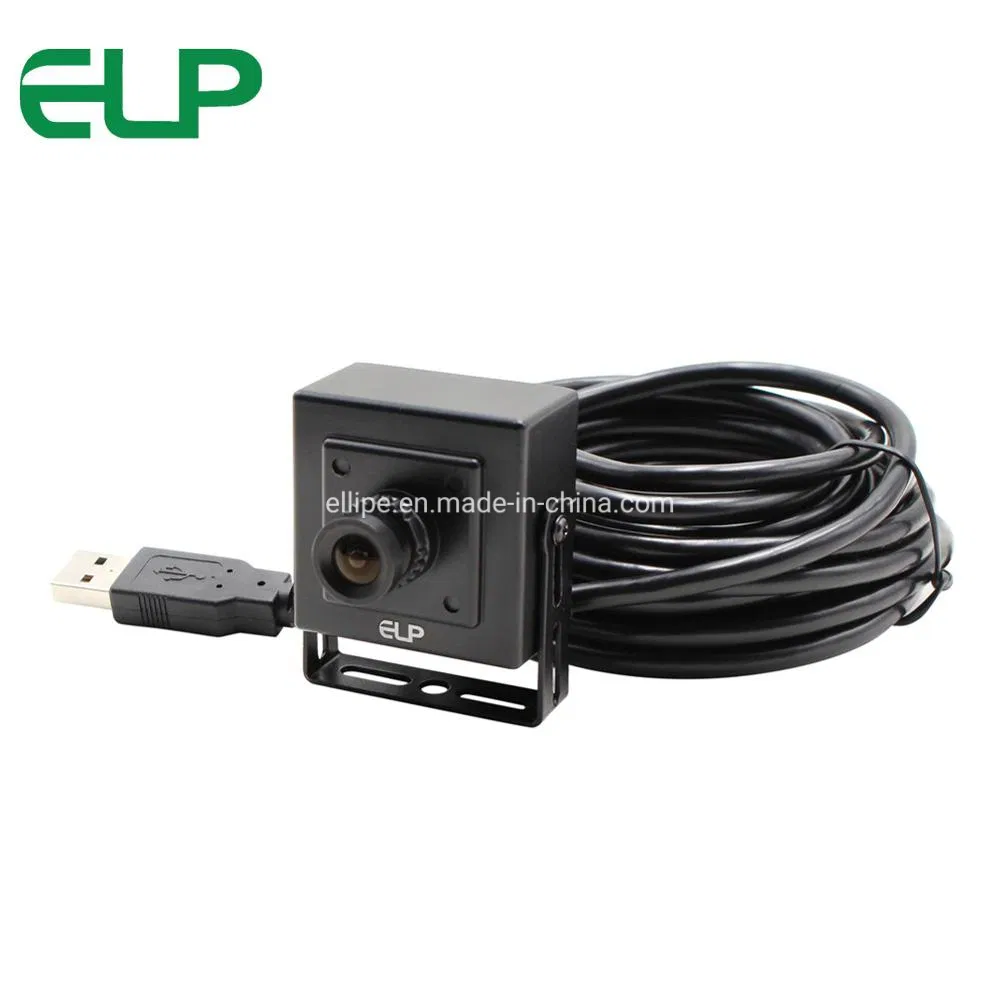

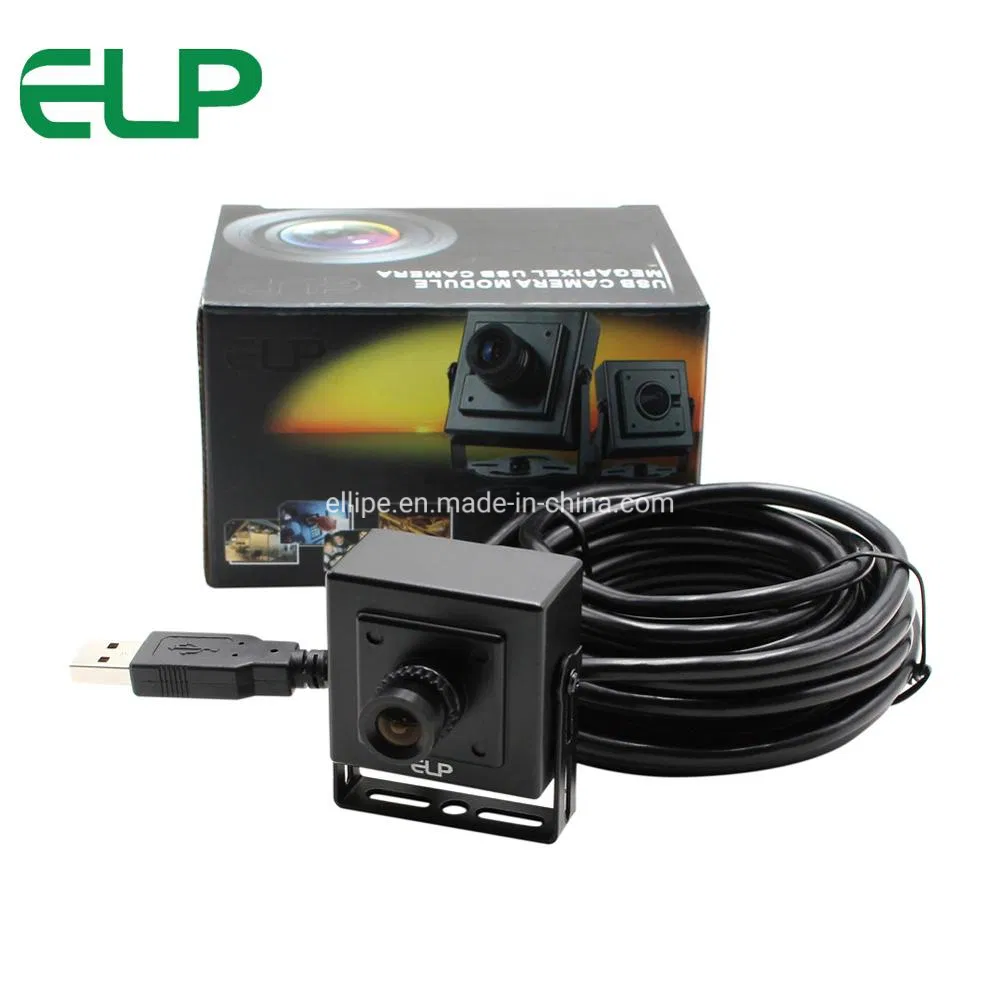

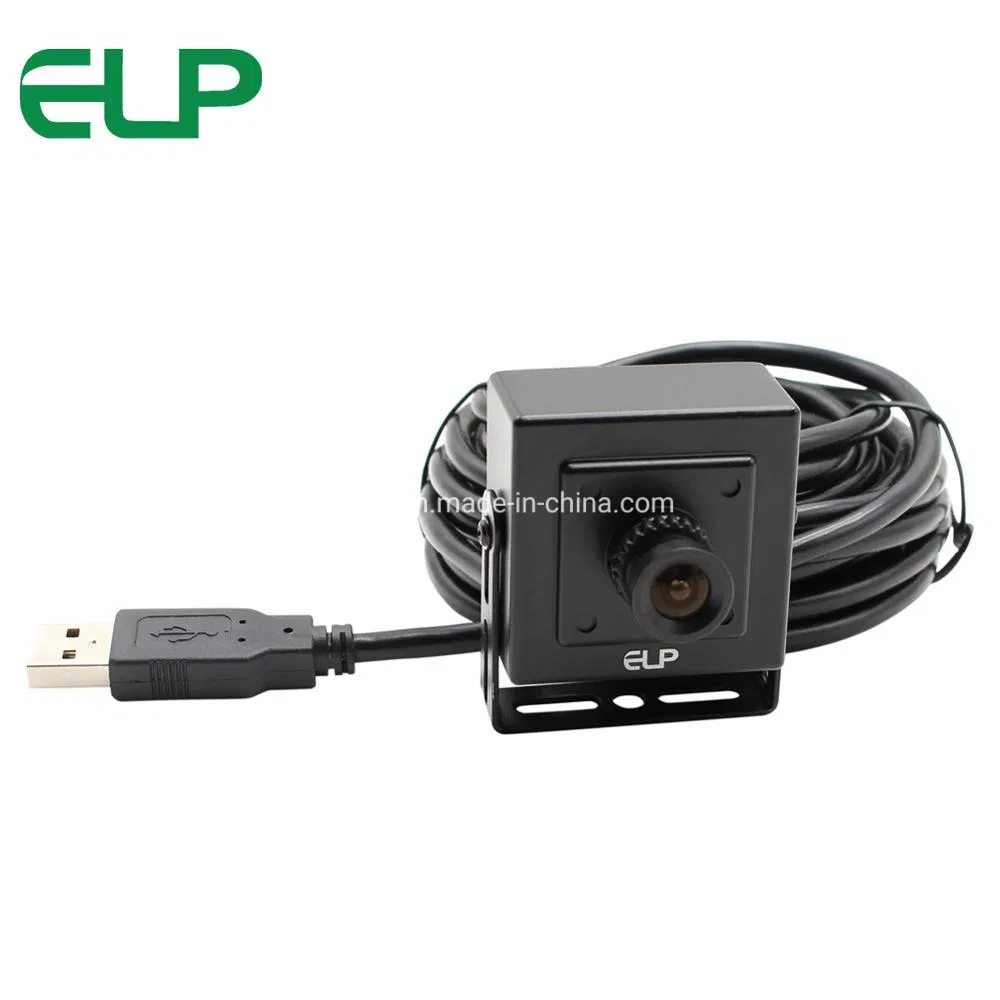

ELP 170 Degree Fisheye Wide Angle 2.0MP Webcam UVC 1080P Full HD High Speed USB CCTV Camera

Features

* Full HD 1080P free driver USB2.0 high speed 60, 120, 260fps usb camera

* USB Camera with 1/3" OV4689 CMOS Sensor

* High speed Mjpeg 260fps @ 640x480, 120fps @1280x720, 60fps @1920x1080 USB webcam

* Mini micro USB digital Camera, with standard 3m cable (1m, 2m, 5m optional).

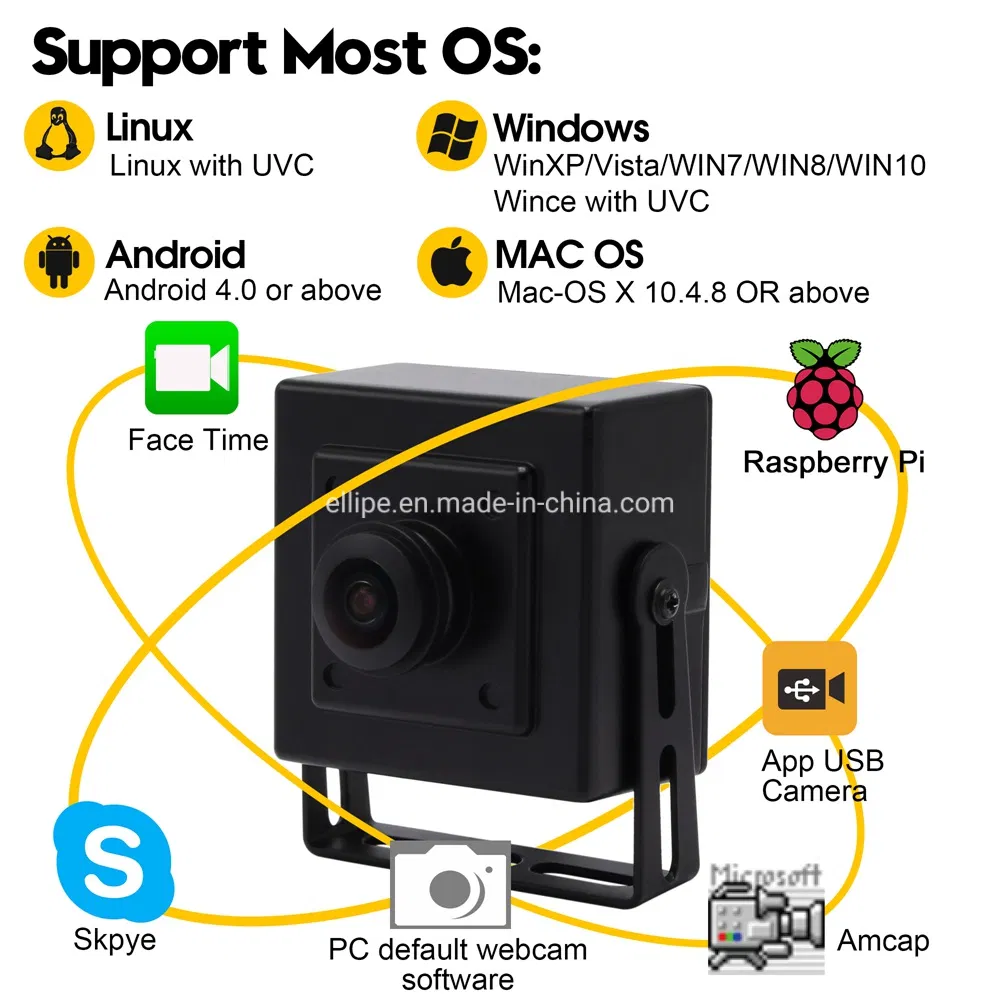

* USB with camera for WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

* Compatible with raspberry pi, Opencv, Amcap and many other camera software and hardware.

Specification

Model	ELP-USBFHD08S-BL170

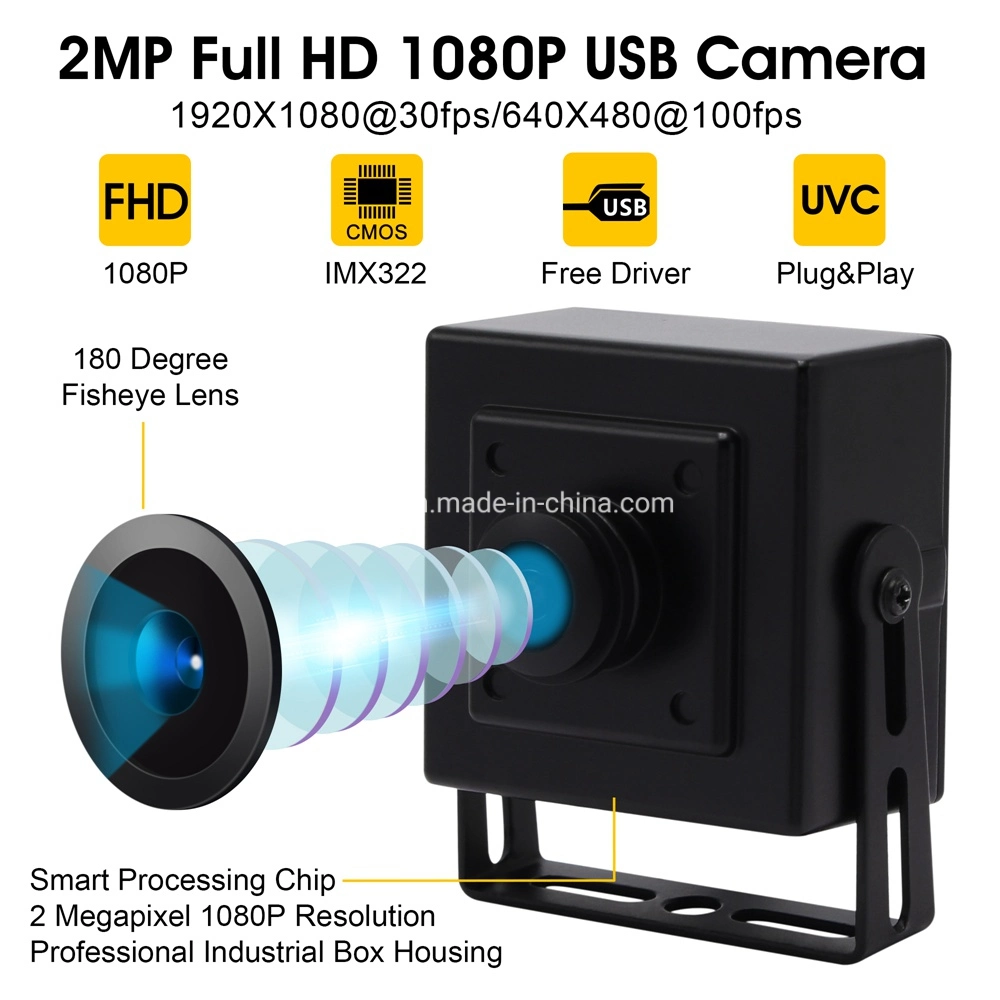

Optional Model	ELP-USBFHD08S-BL21 (2.1mm) ELP-USBFHD08S-BL28 (2.8mm) ELP-USBFHD08S-BL29 (2.9mm) ELP-USBFHD08S-BL60(6mm) ELP-USBFHD08S-BL80 (8mm) ELP-USBFHD08S-BL12(12mm) ELP-USBFHD08S-BL170(fisheye lens, HFOV about 120 degree) ELP-USBFHD08S-BL180 (fisheye lens, HFOV >180 degree) ELP-USBFHD08S-BL100 (No distortion Lens) All above models, specifications are same, just lens different
Resolution & FPS	1920X1080 MJPEG@ 60fps 1280X720 MJPEG@ 120fps 640X360MJPEG@ 260fps
Sensor	OV4689 Sensor	Connecting Port Type	USB2.0 High speed
Sensor Size	1/3 inch	Support free driver	USB Video Class(UVC)
Pixel Size	2.0μm x 2.0μm	Shutter Type	Electronic rolling shutter/ Frame exposure
Mini illumination	0.1Lux	AEC	Support
Max. Resolution	FULL HD 1920(H)x1080(V)pixels	AEB	Support
Picture format	MJPEG or YUY2(YUYV)	AGC	Support
Lens Parameter	3.6mm lens (2.1mm/ 2.8mm/2.9mm, 6mm/ 8mm/ 12mm/ No distortion /Fisheye 170 180Degree optional)	Adjustable parameters	Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast
Cable	Standard 3m/ Optional 1m,2m,5m	work temperature	DEGREES(-20~70)

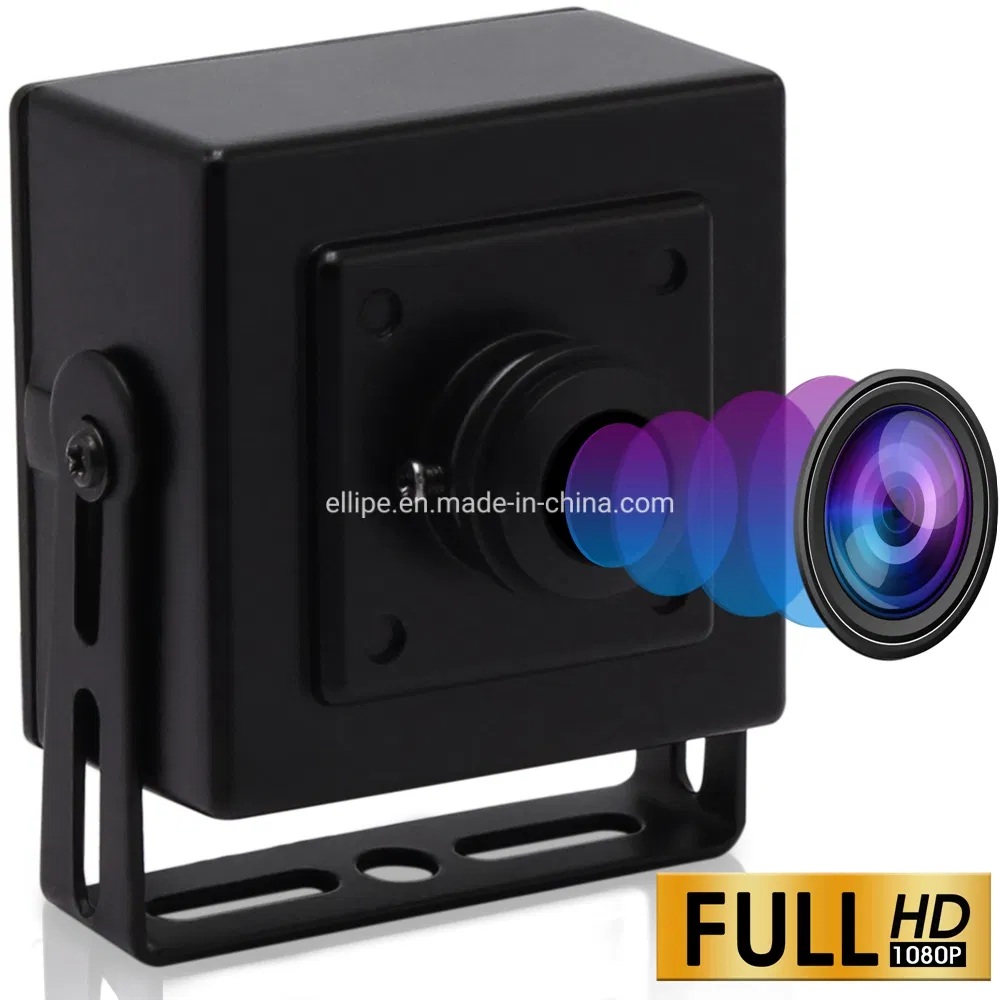

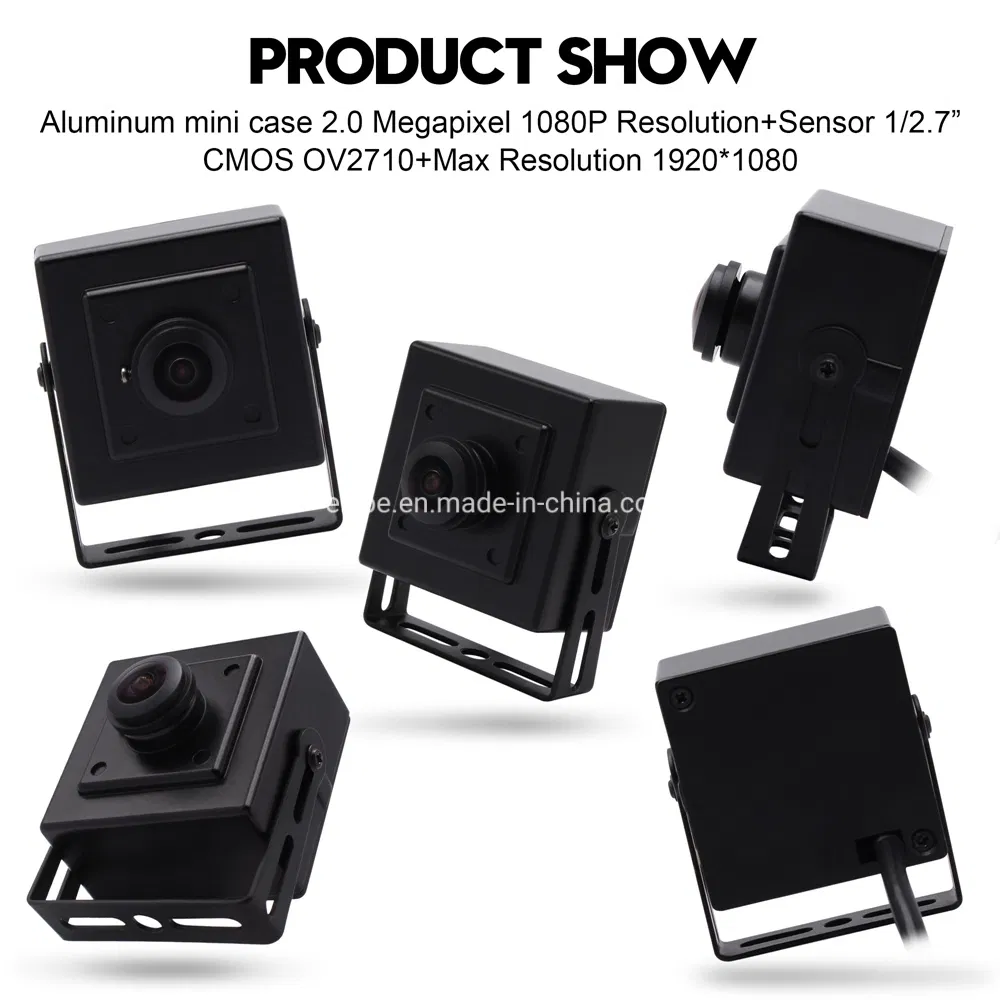

Case	With aluminum 41x41mm box case	Certifications	FCC and CE
Power supply	USB BUS POWER	Power Supply	DC 5V
USB Protocol	USB2.0 HS/FS	Operating Voltage	150mA~220mA
OTG protocol	USB2.0 OTG	Special function	High FPS
Night vision	Without (Do not advice Connect IR LED Board)	LED board power connector	Support, 2P-2.0mm socket
Support OS	WinXP/Vista/WIN7/WIN8 / WIN9/WIN10 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above
