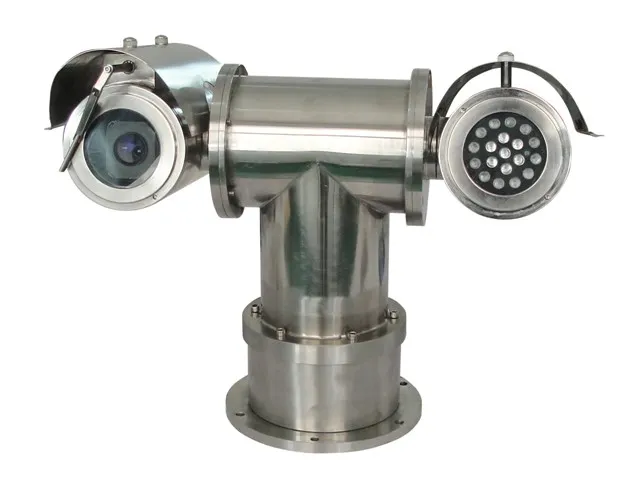

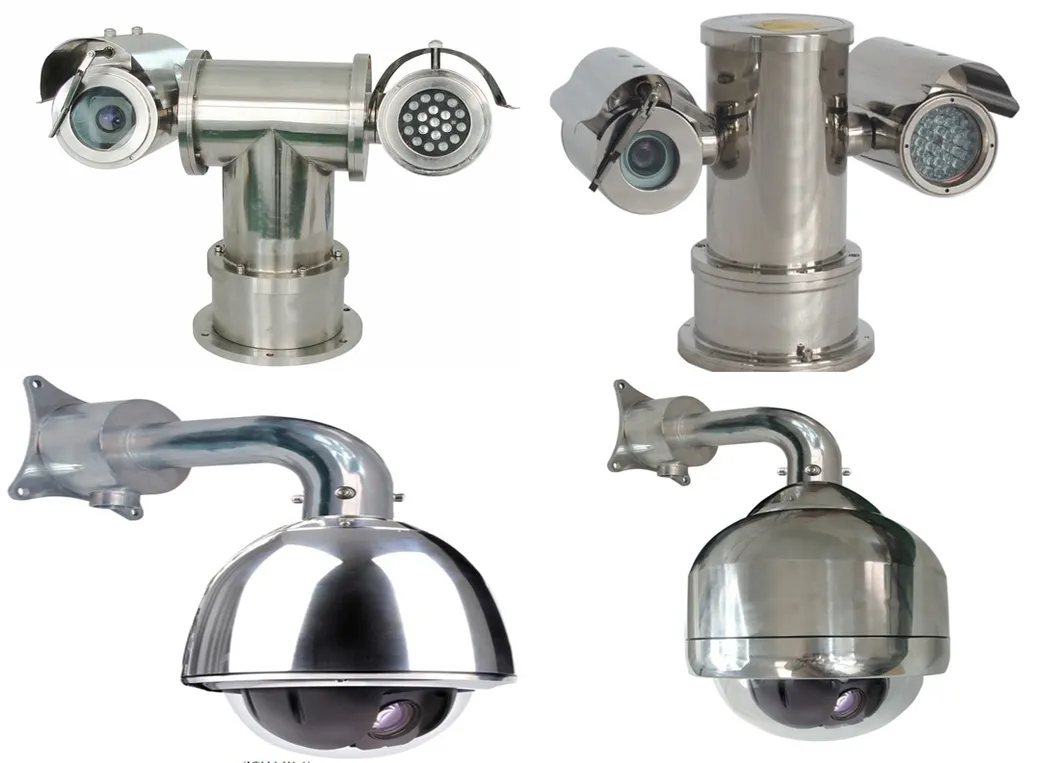

Explosion-Proof HD PTZ Security Camera (SHJ- TB536 -2180S1)
Explosion-Proof HD PTZ CCD Camera (SHJ-TB536-2180S1)We are the leading Security CCTV Camera supplier, offer all Security CCTV Camera series, welcome to enquire Security CCTV Camera latest quote, Security CCTV Camera cover real Sony and Sharp project, Security CCTV Camera Series cover Bullet CCTV Cam......
Send Inquiry
Product Description
Explosion-Proof HD PTZ CCD Camera (SHJ-TB536-2180S1)
We are the leading Security CCTV Camera supplier, offer all Security CCTV Camera series, welcome to enquire Security CCTV Camera latest quote, Security CCTV Camera cover real Sony and Sharp project, Security CCTV Camera Series cover Bullet CCTV Camera, Dome CCTV Camera, Mini Dome CCTV Camera, thermal imaging CCTV Camera, Lasetr PTZ CCTV Camera, IR night version CCTV Camera, Explosion-proof CCTV Camera, IP CCTV Camera and PTZ Camera etc.
YC-TB536 explosion-proof HD PTZ camera is the HD camera, explosion-proof infrared lamp, explosion-proof PTZ, explosion decoder integration as one of the front-end explosion-proof video surveillance equipment, is a group level and temperature are the highest national standards requirements applicable to any gas (coke oven gas such as hydrogen vinyl acetylene, etc. ) explosion-proof applies; The product can be used alone in locations with explosive gas environment, to achieve the purpose of monitoring site. It is based on standard h. 264 main profile @ level 4 million algorithm pixel net camera. It uses a pixel perform scanned images sensors and resolution automatic zoom lens, 720p definition, can achieve the above 720TVL, 1080p definition. It can output 1000TVL high definition image of broadcasting standard.
Support 720p+720p real-time streams of code, video files can use the standard decoder decoding and direct. The software used to play.
In the same size rate it is better than the MPEG-4 picture, in the same quality; The rate is only one half of MPEG-4. Applicable to the high resolution, the need to Auto-focus, the outstanding image colors expression and of the whole frame rate and monitoring functions of video image details. This product comes with a mechanical wiper, while self-cleaning window glass with nano-features, have a good anti-fouling capability.
Feature:
Atmospheric Pressure: 80KPa ~ 106KPa
Ambient Temperature: -25º C ~ +60º C
Relative Humidity: Less than 95%(+25º C)
Ex-proof Marking ExdIICT6/DIP A20 TA, T6
Enclosure protection: IP68
Structural: Integration dome type structure, double-shade design
Manufacturing Materials: 316L Double stainless steel (marine environments chlorine tanker)
Double 304 stainless steel (acid-based chemical outdoor environments)
45 # carbon steel surface treatment (the environment does not support the use of corrosion-resistant)
Support long focal speed limit function
80 presets, and the track which contain maximum 80 presets
Support audio input and output, alarm input and output
Support linked alarm and motion detection alarm
Supports dual-stream encoding, high quality image low bit
Support IE browser
Track speed level 0 ° ~ 40 ° / S Vertical 0 ° ~ 60 ° / S
Horizontal 360 ° Unlimited rotation range, Vertical +90° ~-90°
Built-in surge and lightning protection devices
We are the leading Security CCTV Camera supplier, offer all Security CCTV Camera series, welcome to enquire Security CCTV Camera latest quote, Security CCTV Camera cover real Sony and Sharp project, Security CCTV Camera Series cover Bullet CCTV Camera, Dome CCTV Camera, Mini Dome CCTV Camera, thermal imaging CCTV Camera, Lasetr PTZ CCTV Camera, IR night version CCTV Camera, Explosion-proof CCTV Camera, IP CCTV Camera and PTZ Camera etc.
YC-TB536 explosion-proof HD PTZ camera is the HD camera, explosion-proof infrared lamp, explosion-proof PTZ, explosion decoder integration as one of the front-end explosion-proof video surveillance equipment, is a group level and temperature are the highest national standards requirements applicable to any gas (coke oven gas such as hydrogen vinyl acetylene, etc. ) explosion-proof applies; The product can be used alone in locations with explosive gas environment, to achieve the purpose of monitoring site. It is based on standard h. 264 main profile @ level 4 million algorithm pixel net camera. It uses a pixel perform scanned images sensors and resolution automatic zoom lens, 720p definition, can achieve the above 720TVL, 1080p definition. It can output 1000TVL high definition image of broadcasting standard.
Support 720p+720p real-time streams of code, video files can use the standard decoder decoding and direct. The software used to play.
In the same size rate it is better than the MPEG-4 picture, in the same quality; The rate is only one half of MPEG-4. Applicable to the high resolution, the need to Auto-focus, the outstanding image colors expression and of the whole frame rate and monitoring functions of video image details. This product comes with a mechanical wiper, while self-cleaning window glass with nano-features, have a good anti-fouling capability.
Feature:
Atmospheric Pressure: 80KPa ~ 106KPa
Ambient Temperature: -25º C ~ +60º C
Relative Humidity: Less than 95%(+25º C)
Ex-proof Marking ExdIICT6/DIP A20 TA, T6
Enclosure protection: IP68
Structural: Integration dome type structure, double-shade design
Manufacturing Materials: 316L Double stainless steel (marine environments chlorine tanker)
Double 304 stainless steel (acid-based chemical outdoor environments)
45 # carbon steel surface treatment (the environment does not support the use of corrosion-resistant)
Support long focal speed limit function
80 presets, and the track which contain maximum 80 presets
Support audio input and output, alarm input and output
Support linked alarm and motion detection alarm
Supports dual-stream encoding, high quality image low bit
Support IE browser
Track speed level 0 ° ~ 40 ° / S Vertical 0 ° ~ 60 ° / S
Horizontal 360 ° Unlimited rotation range, Vertical +90° ~-90°
Built-in surge and lightning protection devices
| Camera specification | |
| Type | SHJ-TB536-2180S1 |
| Image sensor | 1/3″CMOS,2.0MP |
| Lens | f4.7-84.6 mm, F1.6-2.8 Day Night ICR filter switch, Auto-focus Min. focus distance:10mm(wide), 800mm(Tele) horizontal view angle:3.2°- 55.2° |
| Min.illumination | Color: 0.2 Lux @ 30IRE, F1.6 B/W: 0.01 Lux @ 30IRE, F1.6 |
| Auto-control | AWB/AGC/AE |
| Electronic shutter | 1/2000s to 1/25s |
| zoom | 18Xoptical, 20X digital, Total 360 |
| Audio and video | |
| Video compression | H.264 Main Profile @ Level 4.1 / Motion JPEG |
| Max. resolution | SXGA(1280x1024),30fps HD/720p(1280x720,30fps)+Full D1(720x480,30fps) 720P(H.264)+720P(MJPEG) PAL/NTSC |
| Horizontal Resolution | >1000TVL(1920x1080pixels) |
| Double code | HD/720p(1280x720,30fps)+Full D1(720x480,30fps)or 720P(H.264)+720P(MJPEG) |
| Frame rate | 25/30 fps |
| video | H. 264 and M - JPEG video, in the Max. Resolution, with 25/30 fps frame speed to video output at same time. speed and the frame can be adjusted, H. 264 support VDR/CBR |
| Audio compression | 16kHz 16bit 32kbps MP2 |
| Network | |
| Protocol | IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP, SOCKS |
| Safety | Password protecting, many users to access control |
| System Integration | |
| API | For the integration API, including SDK and VMP video management centre platform |
| Alarm Trigger | Video motion detection, on the external trigger sensors |
| Alarm linkage | Through FTP, HTTP and photo server to upload the video information and documents ; start SD SDHC; relays output ; |
| Network interface | RJ45 10Base-T/100Base-TX PoE (IEEE802.3af) |
| PTZ | |
| Tilt Range | 360°continuously |
| Pan speed | 0.1°~100°/s |
| Tilt Range | +90°~-90° |
| Tilt speed | 0.1°~60°/s |
| Tracks | 2 scanning tracks 4 programmable tracks, Each track can set 16 presets |
| Power | 50W |
| Size | 180×385×226mm(H) |
| Work Temperature | -20°C~+50°C |
