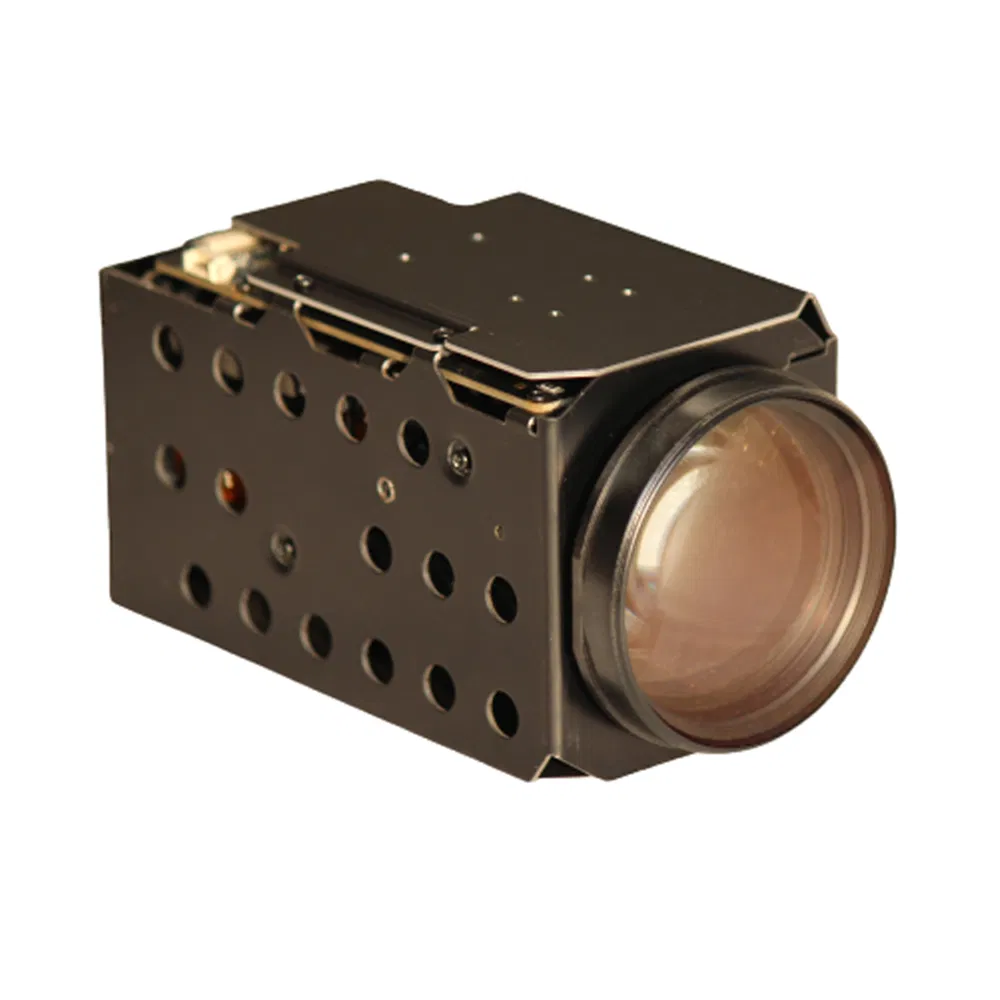

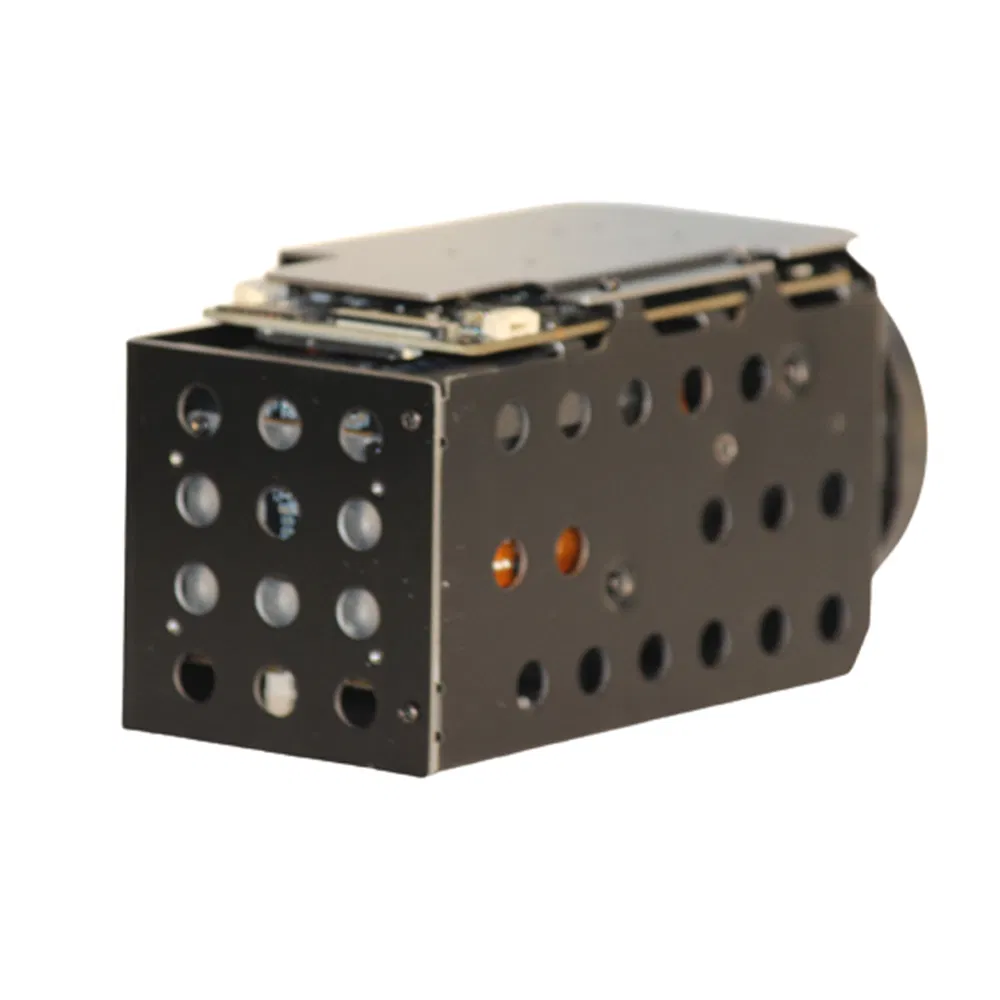

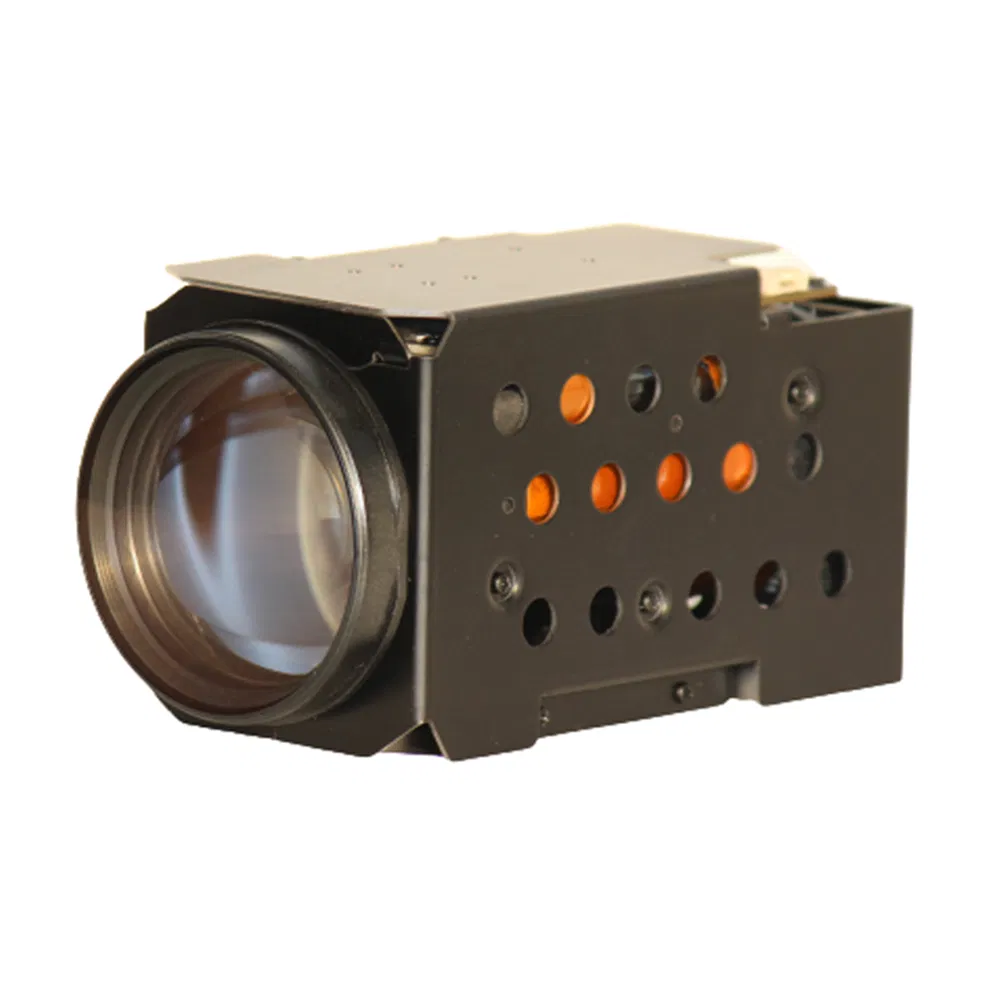

China Factory Price CCTV IP 4MP 37X Zoom Camera Block for Industrial Photography

Product Description

Features:

> 1/1.8" progressive scan CMOS
> 4MP, 2560X1440 HD resolution
> 37x Optical Zoom, Lens: 6.5~240mm
> EIS, Optical Defog support;
> Support 3D Noise Reduction, BLC, EIS
> 255 Preset, 8 patrols
> Support Micro SD / SDHC / SDXC card storage up to 256G

1.Specification

Model No.	SOAR-CB4237
Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	Color:0.0005 Lux @(F1.5,AGC ON);
	Black:0.0001Lux @(F1.5,AGC ON);
Shutter Time	1/25 to 1/100,000s
Day & Night	IR Cut Filter
Lens
Focal Length	6.5- 240mm; 37x optical zoom;
Digital zoom	16x digital zoom
Aperture Range	F1.5-F4.8
Field of View	70.0-2.51° (wide-tele)
Working Distance	100mm-1000mm (wide-tele)
Zoom Speed	Approx. 3.5s (optical lens, wide-tele)
Compression
Video Compression	H.265 / H.264 / MJPEG
Audio Compression	G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
Resolution	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Setting	Corridor mode, saturation, brightness, contrast and sharpness can be adjusted by client or browser
BLC	Support
Exposure Mode	Automatic exposure/aperture priority/shutter priority/manual exposure
Focus Control	Auto focus/one-time focus/manual focus
Area Exposure/Focus	Support
Defog	Support
EIS	Support
Day &Night	Auto(ICR) / Color / B/W
3D Noise Reduction	Support
Image overlay	Support BMP 24 bit image overlay, optional region
ROI	ROI supports one fixed region for each three-bit stream
Network
Network Storage	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB; NAS (NFS, SMB/ CIFS)
Protocol	ONVIF(PROFILE S,PROFILE G) ,GB28181-2016
Interface
External interface	36pin FFC (Ethernet,RS485,RS232,CVBS,SDHC,Alarm In/Out)
General
Working Environment	-40°C to +60°C , Operating Humidity≤95%
Power supply	DC12V±25%
Consumption	2.5W MAX (ICR,4.5W MAX)

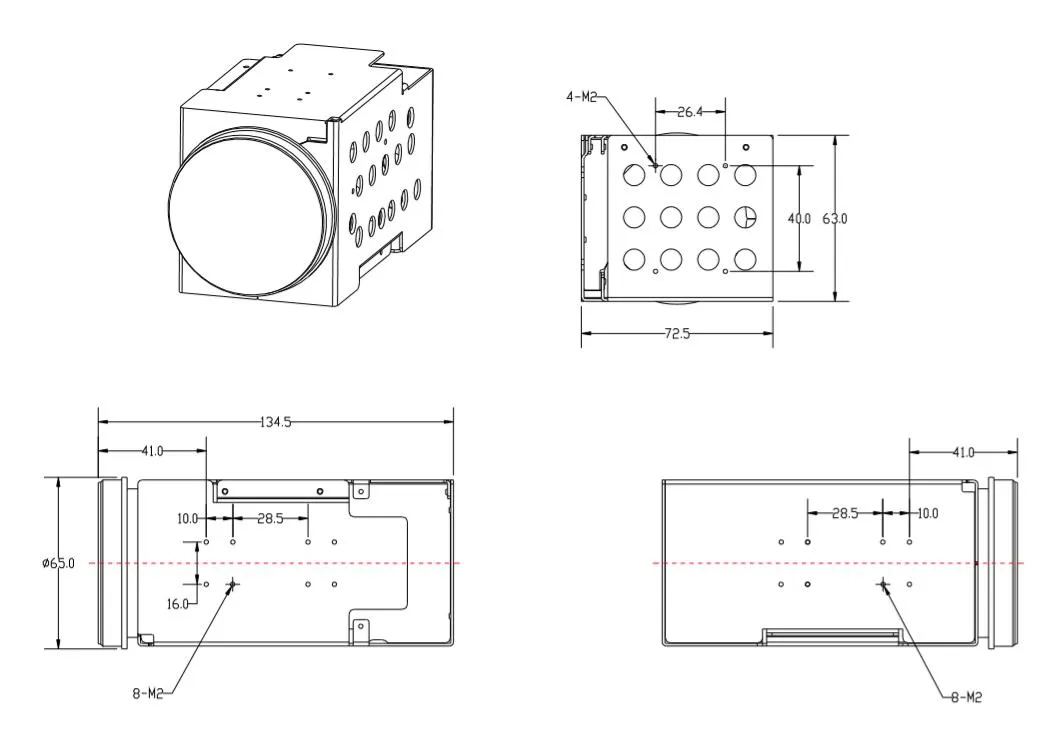

Dimensions	134.56372.5mm
Weight	450g

Applications:

> Intelligent Traffic Systems

> Security
> Surveillance

> Long range surveillance

> Marine surveillance

3.Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

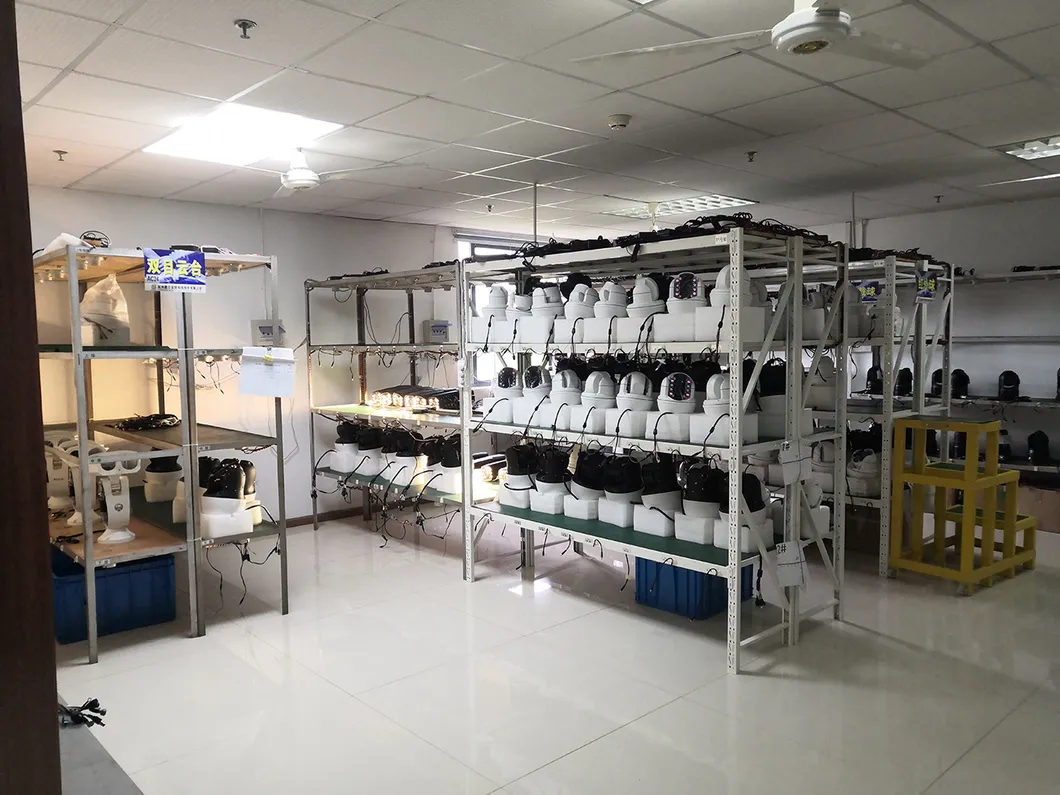

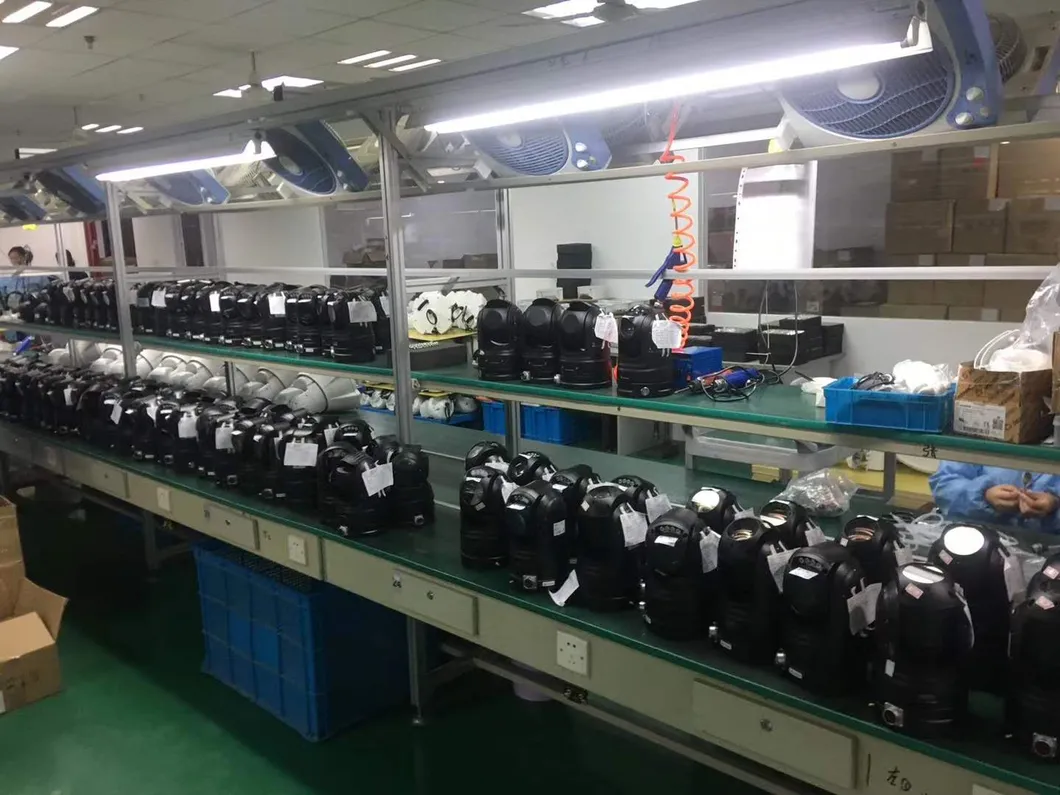

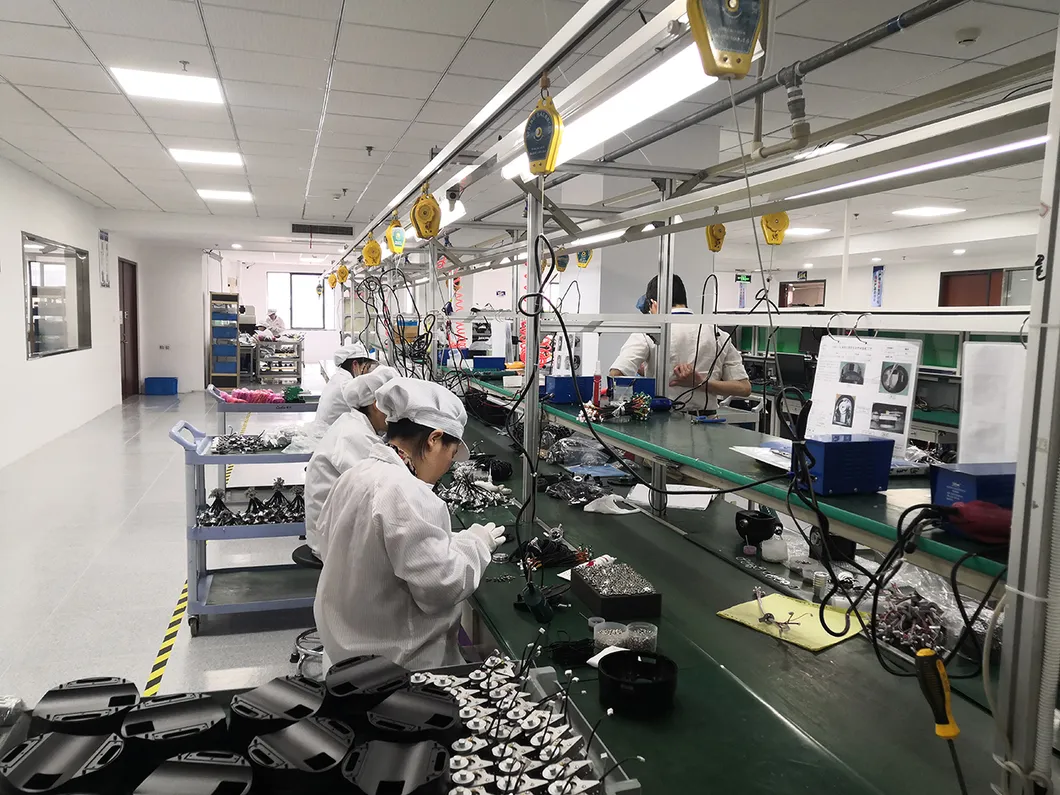

3.Company Profile

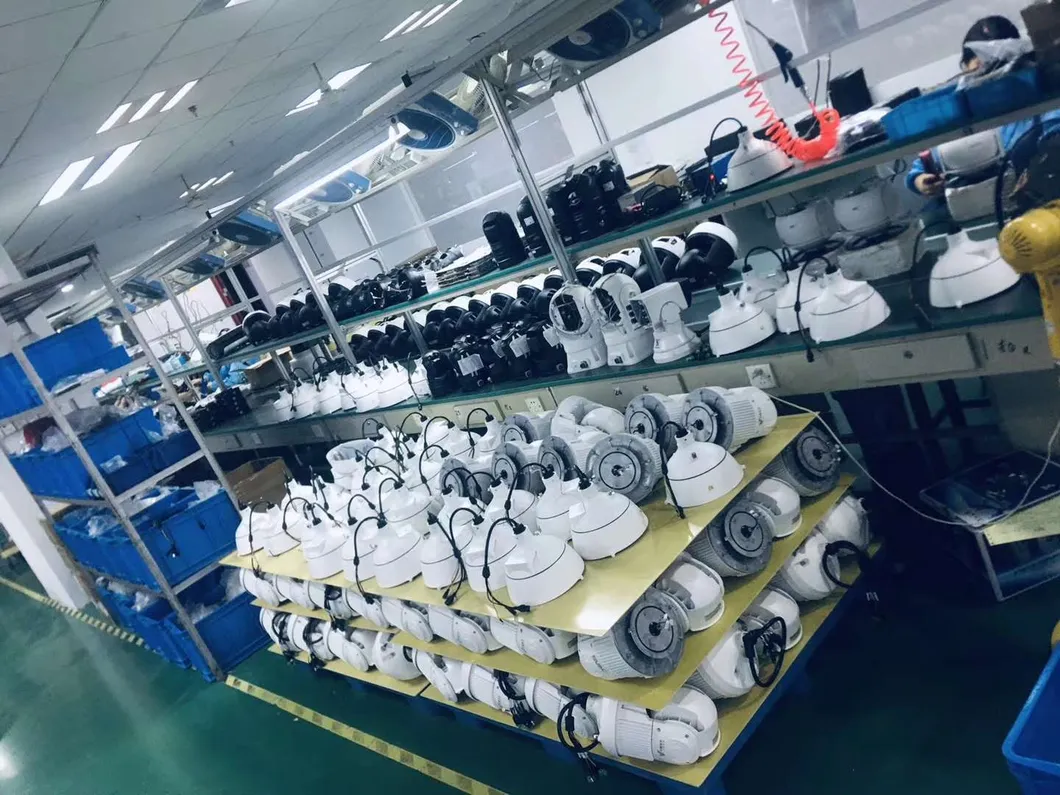

Hangzhou Soar Security Technology Co., Ltd is a professional video surveillance products provider, devoted in the front-end surveillance product design , manufacture and sales for more than 15 years, Since the foundation in 2005. We were honored as "national technical innovation enterprise" in 2015, and successfully listed in public Stock in 2016, stock code:839365.

Our R&D team consists of 60+ members of Masters and senior engineers majored in industrial design, FPGA, ISP, video analysis, AI algorithm, etc.

Our main products are various PTZ and Zoom camera module for vertical/niche market, passed ISO9001 quality certification.

Our products are widely sold all over the world. Meanwhile, we also provide OEM/ODM service. We focus on product innovation, to serve customers, create value for customers as the company's purpose.
