Home > Products > CCTV Camera > Factory Support OEM 2MP USB2.0 Camera Module with Box CMOS Bg0806 Web Camera
Factory Support OEM 2MP USB2.0 Camera Module with Box CMOS Bg0806 Web Camera
Factory Support OEM 2MP USB2.0 Camera Module with Box CMOS BG0806 Web Camera:1. 1/2.7 inch BG0806 Cmos camera module2. 2Mega OEM Cmos USB Camera Module3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB camera module with customizable lens5. 32*32mm m......
Send Inquiry
Product Description
Factory Support OEM 2MP USB2.0 Camera Module with Box CMOS BG0806 Web Camera:

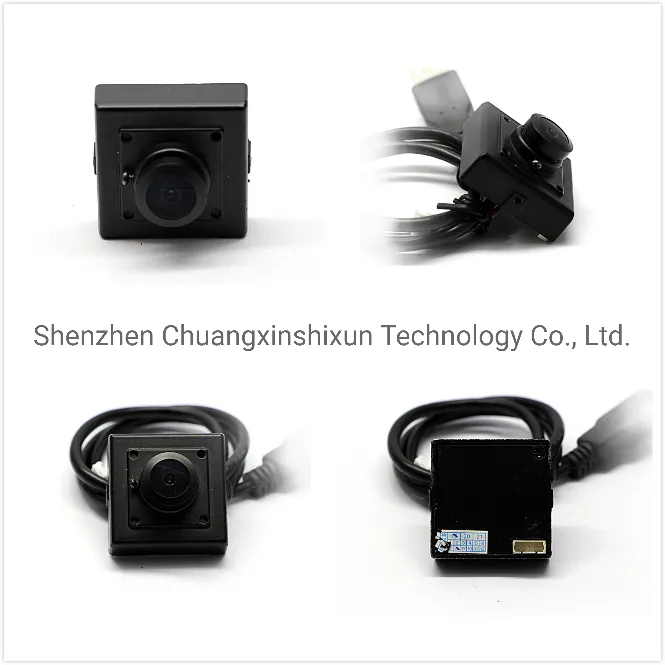

Pictures Display:
Quality Control:
Company Information:
1. 1/2.7 inch BG0806 Cmos camera module
2. 2Mega OEM Cmos USB Camera Module
3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB camera module with customizable lens
5. 32*32mm mini micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | BG0806 |
| Lens Size | 1/2.7" |
| Maximum Pixels | 2 millions |
| Maximum Effective Resolution | 1928*1088 |
| Data Format | MJPG/YUY2 |
| Pixel Size | 3.0*3.0μm |
| Dynamic Range | 70DB |
| Lens(customizable) | FOV :D= |
| Optical length : | |
| lens construction: | |
| mount : | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| Audio | High quality digital MIC, single or dual channel is optional |
| Voltage | DC 5V |
| Working Current | MAX 300mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20ºC to +70ºC |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
Quality Control:
Company Information:
