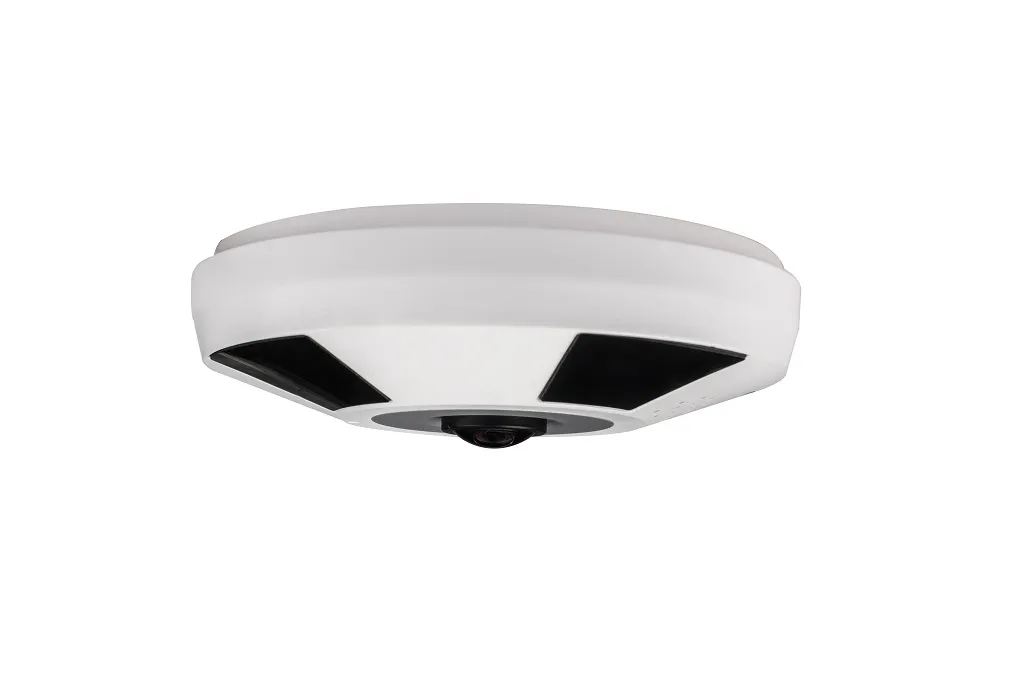

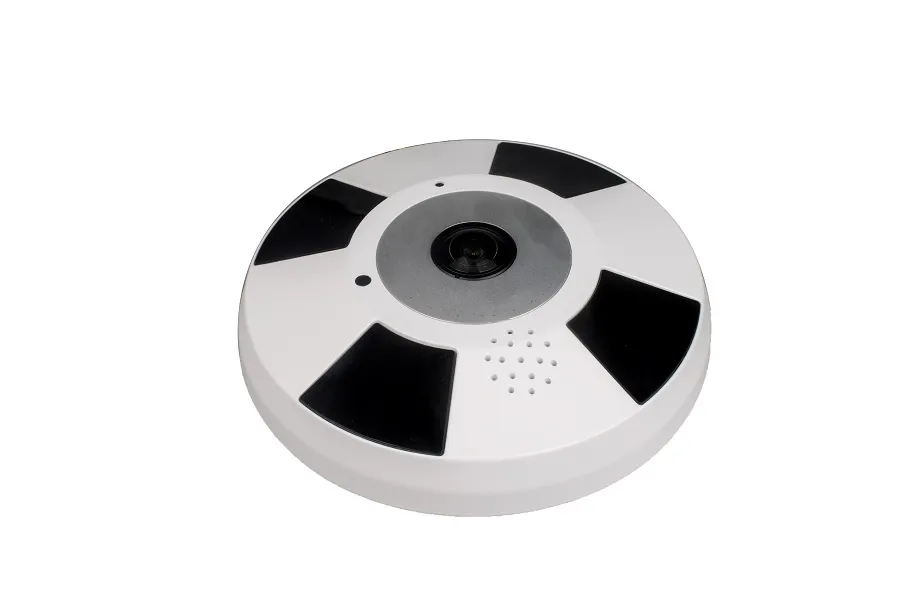

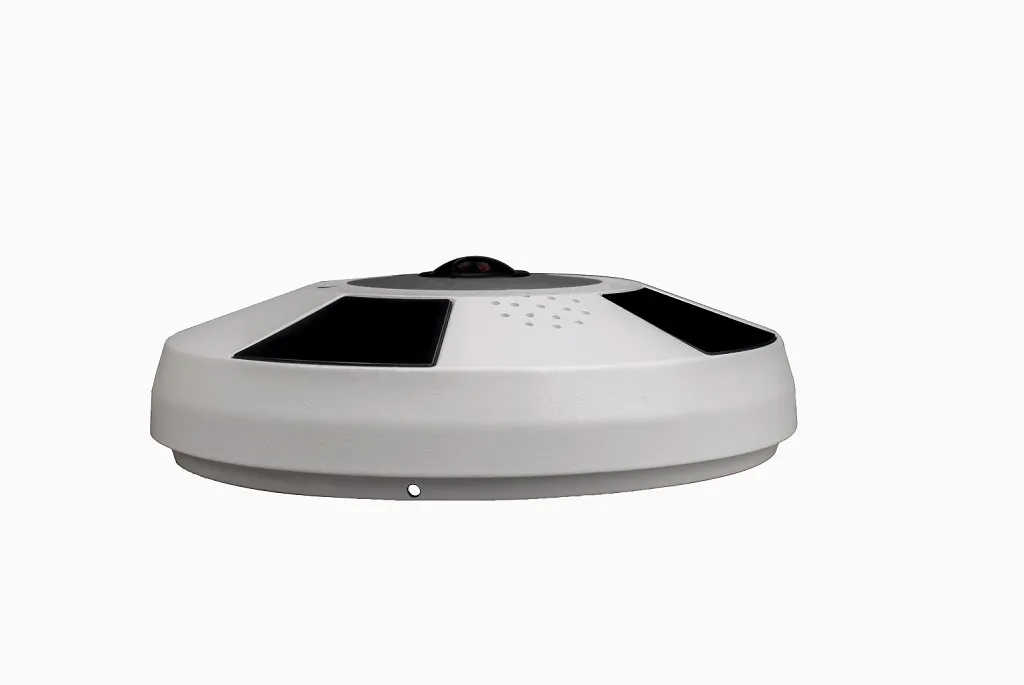

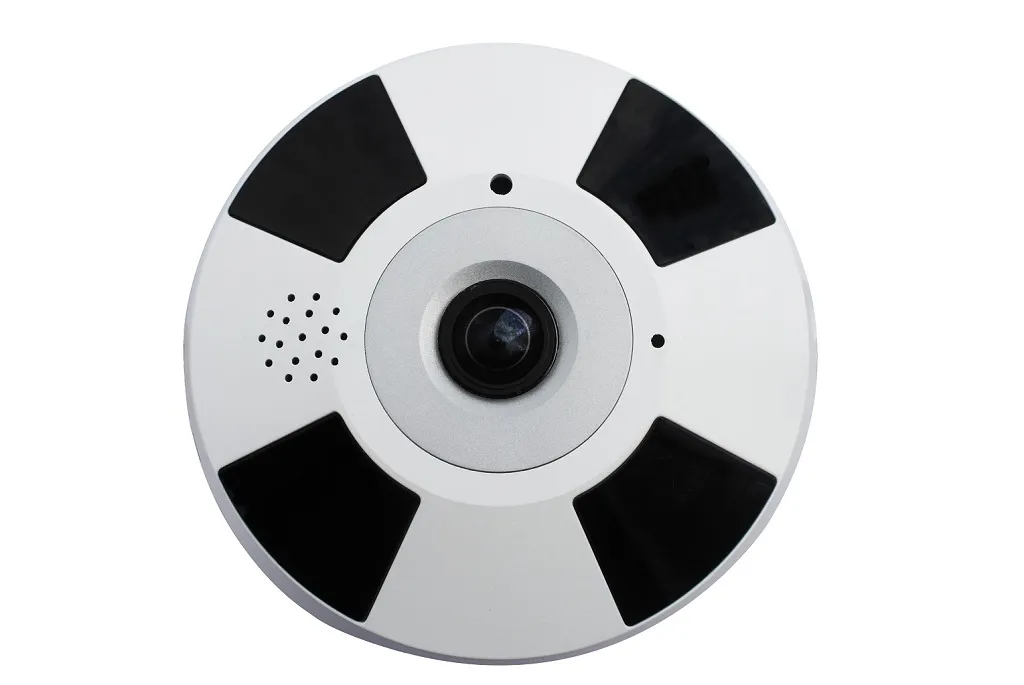

Fsan 12MP Starlight Smart IR Infrared Night Vision 360 Degree Fisheye Home Security Outdoor IP Poe Network HD Surveillance CCTV Camera
FSAN 12MP Starlight Smart IR Infrared Night Vision 360 Degree Fisheye Home Security Outdoor IP Poe Network HD Surveillance CCTV Camera FEATURES-Max resolution 12Mega(4000*3000@ 20fps)-Support low bit rate, low delay and ROI enhance encoding-H. 265 high effective compression, save bandwidth and stora......
Send Inquiry
Product Description
-Max resolution 12Mega(4000*3000@ 20fps)
-Support low bit rate, low delay and ROI enhance encoding
-H. 265 high effective compression, save bandwidth and storage space
-Support multi-line OSD, OSD color can be adjusted
-High efficient infrared leds, long service life, IR distance can reach 10-15m
-Support smart IR, prevent IR overexposure at night
-ICR infrared filter plate automatic switch, achieve real D/N monitoring
-Support PoE (optional)
-Support Micro SD Card(128G) local storage
-Support 3D digital N/R,DWDR
-Support auto electronic shutter function,adapt different monitoring environment
-Support Bidrectional talkback
-Support 2CH Alarm input/1CH Alarm output
-Support GB28181, Onvif access
-Support Email, FTP, NTP
-Support HTTPS encryption transmission
-Original equipment boot to modify password, ensure password security
| Model | W9131IHBB79A |
| CAMERA | |
| Image sensor | 1/1.7" 12 Mega Progressive Scan CMOS |
| Min.illumination | 0Lux(IR ON);Color: 0.1Lux/F1.4,B/W:0.05Lux/F1.4 |
| IR distance | 10-15M(4*IR array IR leds ) |
| Electronic shutter | Auto/ Manual(1/25~1/10000),FLK |
| Day/ Night | ICR switch, auto/color/B/W/ext |
| Lens | Fisheye lens |
| Lens interface | M12 |
| Output | PAL/NTSC adjustable |
| WDR | DWDR(Off/ Low/ Middle/ High) |
| Light board control | Auto/ Manual/ Off |
| 3D N/R | Off/ Low/ Middle/ High/ Higher |
| Defog | Off/ Low/ Middle/ High |
| Exposure control | Auto/ Manual |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| AUDIO/VIDEO ENCODING | |
| Video compression | H.265/H.264 |
| H.265 Encoding | Main Profile |
| H.264 Encoding | BaseLine / Main Profile / High Profile |
| Encoding features | Fisheye mode: main stream: 12MP(4000*3000) |
| Fisheye mode: sub-stream: D1(720*576) | |
| Fisheye+Panorama mode:main stream: fisheye:2048*2048, panorama:2048*2048 | |
| Fisheye+Panorama mode:sub-stream:D1(720*576) | |
| Fisheye+3ptz mode: main stream: fisheye:2048*2048, PTZ:1600*1200 | |
| Fisheye+3ptz mode: sub-stream: fisheye:D1(720*576), PTZ:VGA(640*480) | |
| Fisheye+4ptz mode: main stream: fisheye:2048*2048, PTZ:1600*1200 | |
| Fisheye+4ptz mode: sub-stream: fisheye:/, PTZ:VGA(640*480) | |
| Fisheye+Panorama+3PTZ mode:main stream: fisheye:2048*2048, panorama:2MP(2048*1024), PTZ:1600*1200 | |
| Fisheye+Panorama+3PTZ mode:sub-stream: fisheye:/, panorama: D1(720*576), PTZ:VGA(640*480) | |
| Max. Resolution | 4000*3000 |
| Video bit rate | Constant bit rate, variable bit rate (32kbps~16Mbps) |
| Video type | Complex stream/ Video stream |
| Audio compression | G.711u |
| Audio bit rate | 64Kbps |
| Audio Control | Support input/output volume gain control |
| ROI | Support 4 zones, multi-stage level |
| NETWORK | |
| Network protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP |
| Access protocol | ONVIF,RTSP |
| Browser | Support IE, Chrome, Firefox, Safari |
| Video preview meanwhile | 4 |
| User permission | User add/modify/delete, permission management |
| Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
| Motion detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering alarm | 1 zone |
| Privacy Mask | 4 zones |
| Intelligent analysis | / |
| Event linkage | Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
| Multicast function | Support |
| ANR | Support, match with NVR |
| Mobile surveillance | Support Apple, Android |
| Device exception detection | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| DST | Support |
| Snapshot | Support snapshot, snapshot resolution is encoding resolution |
| System Upgrade | Support remote upgrade |
| INTERFACE | |
| Network Interface | RJ45 10M/100M network adaptive |
| Analog video output | 1CH 1.0Vp-p Composite video output |
| Audio | Line Input/Output |
| Alarm input | 2CH |
| Alarm output | 1CH |
| Reset | Support |
| RS485 | Support |
| TF card | Support Max 128G, Micro SD(SDHC/SDXC)card local-storage |
| Microphones | Support |
| Loudspeaker | Support |
| Power supply | AV24V/DC12V/POE optional |
| PoE | optional |
| Power consumption (max) | <15W |

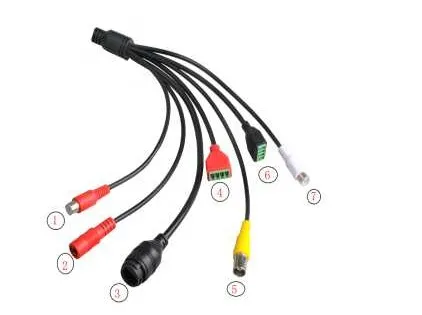

2. Power supply input
3. Network interface
4. Alarm input/alarm output
5. Analog video output
6. RS485
7. Audio output
Q: 1. Support sample order?
Yes, we support sample order for customer to test before bulk order place.
Q: 2. What is the lead time?
For sample order need 3-5days, for bulk order time can be negotiate.
Q: 3. Do you have any MOQ limit?
Sample order is no limit, but for bulk order once you need customized logo print or customized package then it will have MOQ limit.
Q: 4. How do you ship the goods and how long does it take arrive?
For sample order, usually we shipped by DHL, Fedex, UPS or TNT.
For bulk order, usually we shipped by customer appointed forwarder by air, by sea or by train.
Q: 5. What is the warranty for the products?
Our warranty is for 2 years.
Q: 6. How is your after-selling service?
We support online technical support.
Any problem with our product can contact us to solve problems at any time.
Q: 7. Do you supply OEM service?
Yes, we are professional OEM/ODM manufacturer.
We support customized logo print on products, customized package, customized GUI_language.
