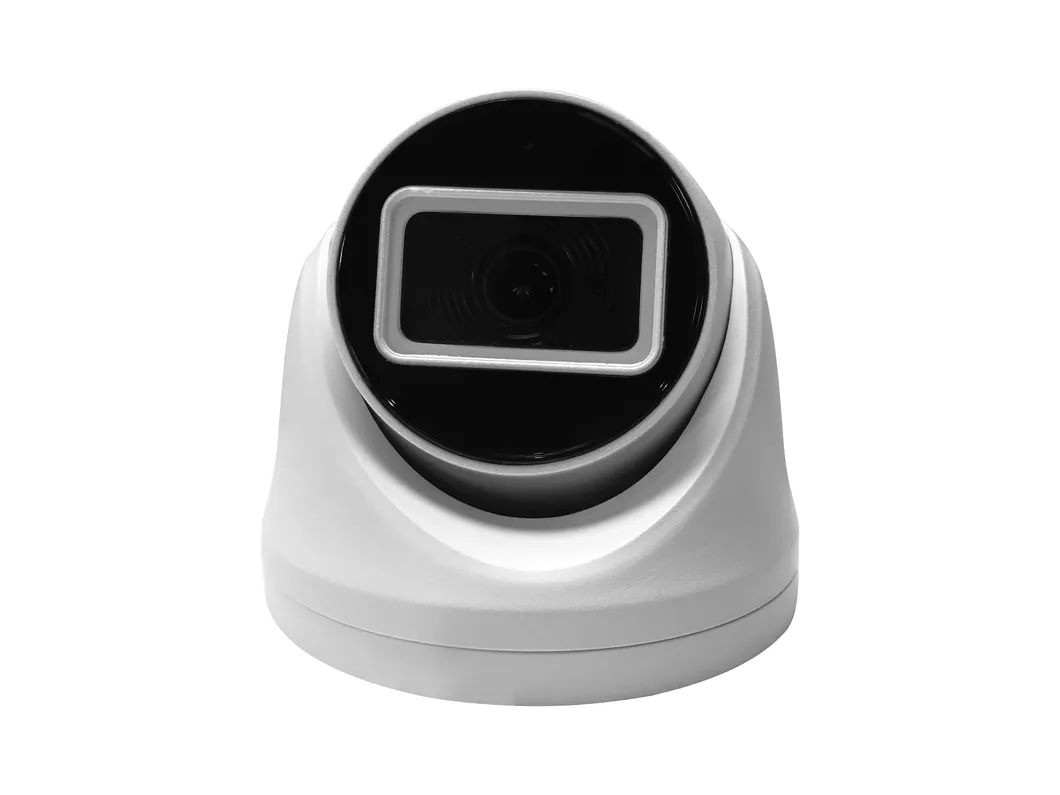

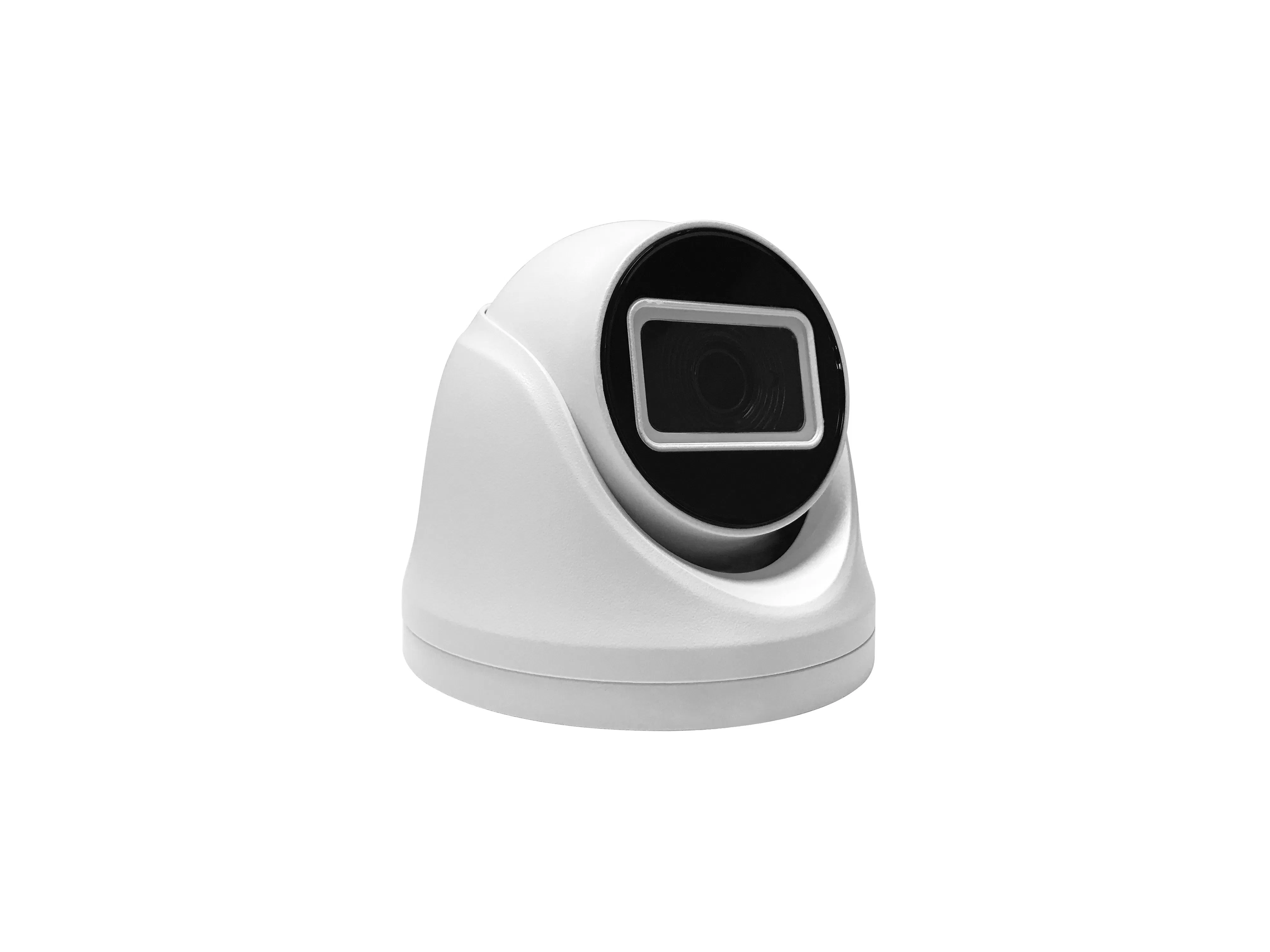

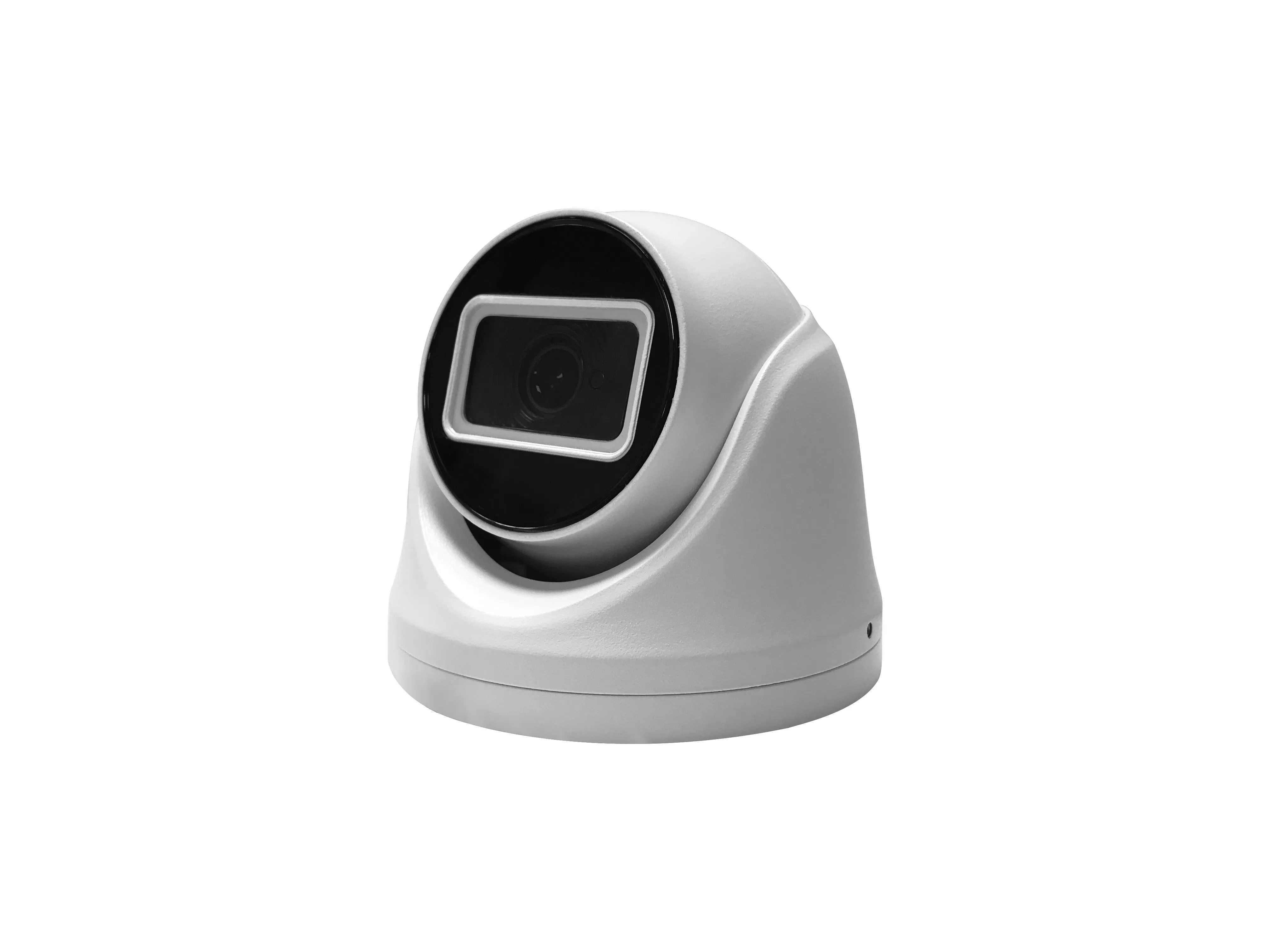

Fsan 3.0MP IR Fixed Dome IP Security Camera with Humanoid Capture Detection Function
FSAN 3.0MP IR Fixed Dome IP Security Camera with Humanoid Capture Detection Function Product DescriptionResolution 2mp/3mp (1920x1080@25fps@2mp; 2304x1296@20fps@3mp)Built-in Humanoid Detection algorithm;Detection frame 5fps, detect 5 people at the same time;Low consumption, low code stream, low dela......
Send Inquiry
Product Description
- Resolution 2mp/3mp (1920x1080@25fps@2mp; 2304x1296@20fps@3mp)
- Built-in Humanoid Detection algorithm;
- Detection frame 5fps, detect 5 people at the same time;
- Low consumption, low code stream, low delay;
- H.265 compression format, save bandwidth and storage space;
- Support Smart IR to avoid Infrared over-exposure at night;
- Support ICR auto switch, achieve best result for D&N video;
- Support PoE (option)
- Support 3D DNR and digital WDR;
- Support auto-electronic shuttle to suit different surveillance environment
- Support two-way audio intercom
- Support HTTPS encrypted transmission
- Support Onvif, email, NTP service
- Change the password during initial use to ensure the security of the password
Camera | |
DSP | T31N |
Sensor | Color 1/2.7" Low Illumination CMOS Sensor SC3335 |

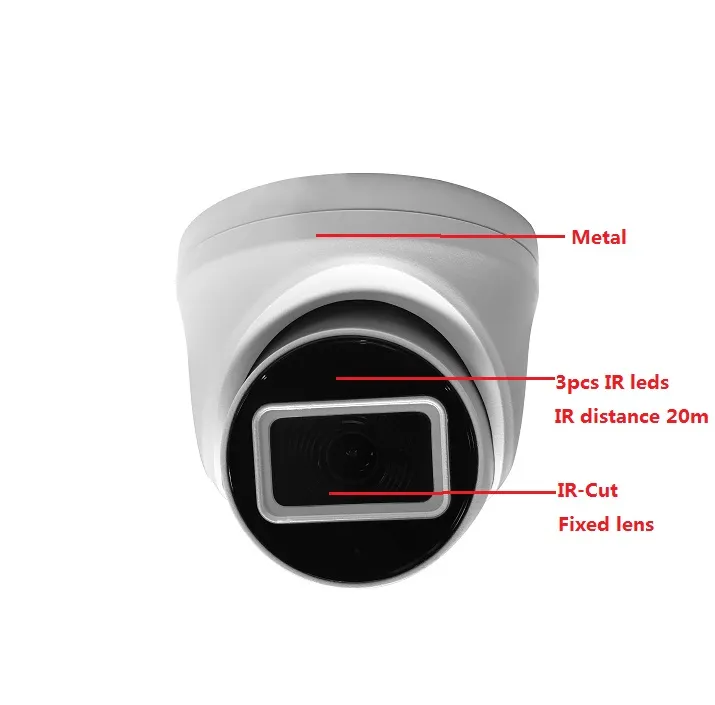

Lens | 4mm fixed ICR lens |
Lens interface | M12 |
IR distance | 20m(3*IR leds) |
| SNR | ≥50dB (AGC OFF) |
| Wide Dynamic | Close/digital wide dynamic |
Light board control | Automatic/manual/off |
D&N | ICR Switch, Auto/Color/B&W/CDS Trigger |
D-WDR | D-WDR (off/low/middle/high) |
IR Led Control | Auto/Manual/Off |
3D DNR | Off/Low/Middle/High/Higher |
Defog | Off/Low/Middle/High |
Mirror | Off/ Horizontal Mirror/Vertical Mirror/180-degree flip |
Image Setting | Brightness, Contrast, Sharpness, Saturation, Chroma |
Humanoid Detection | |
Detection Quantity | ≤5 people humanoid targets |
Humanoid Size | Humanoid Pixel ≥ 40*40, range 30-30 |
Detection Ratio | ≥99% (meet above requirement) |
Capture Corresponding Speed | ≤1s |
Max Detection Frame | 5fps/s |
Fault Detection Ratio | ≤2% |
Detection Part | People with any posture including half body, head, hand, shoulder |
Track People | Support |
Detection Mode | Support static and dynamic humanoid detection |
Detection method | Image detection during day time or night time with lights or IR LEDs |
Detection Area | Appointed area, default full-screen |
Upload Method | Upload it under private protocol |
Trigger Method | Video trigger |
Audio & Video Encoding | |
Video compression | H.265/H.264 |
| H.265 Encoding | / |
| H.264 Encoding | BaseLine / Main Profile / High Profile |
Encoding Feature | Main stream: 3MP 2048x1536@20fps, 2MP 1920x1080@25fps Sub-stream: D1(720*576), VGA (640*360) |
Max resolution | 3MP 2048x1536@20fps |
Video Code Rate | Fixed code rate, variable code rate (Main stream: 160Kbps-4000kbps) |
Video Type | Composited stream/video stream |
Audio Standard | G.711u / 64Kbps |
Network Function | |
Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP |
Connection Protocol | ON-VIF, GB28181 (Optional) |
User permission | User add/modify/delete, permissions management |
Security Mode | Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification |
Motion Detection | Set detection area, can set multi-level sensitivity |
Privacy Mask Alarm | Support 1 area |
Privacy Mask | Support 4 areas |
Schedule Linkage | Snapshot, email |
Device abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
Character Overlay (OSD) | Title, time and date overlay, multi-line, and color of characters optional |
| DST | Support |
| Snapshot | Supports capture, capture resolution for coding resolution |
System update | Support for Web-side upgrades |
Port | |
Network Port | RJ45 10M/100M network self-adaptation |
Audio | MIC Input/ Output |
General | |
Power Supply | DC12V /PoE (option) |
Working Temperature | -10°C ~ 50°C |
Working Humidity | 0%~90% |
