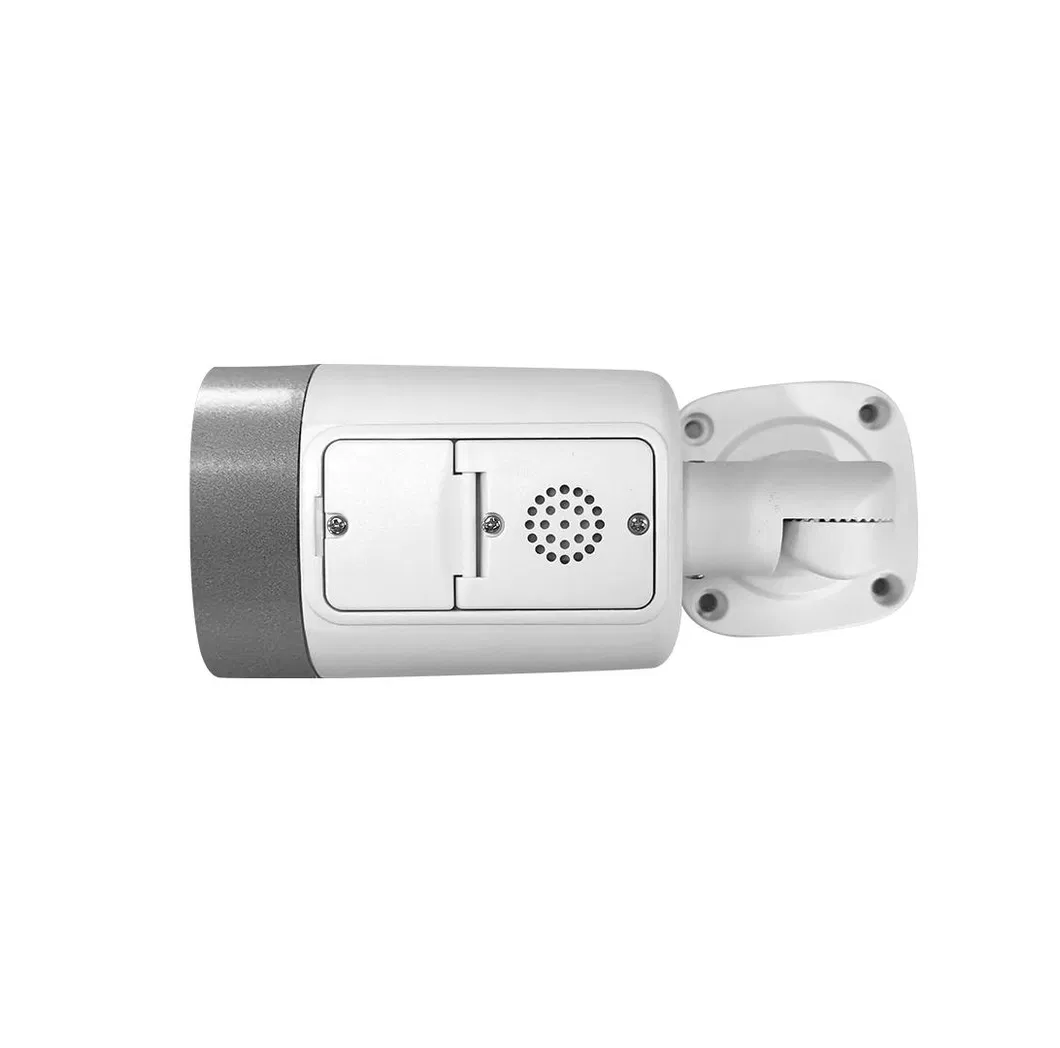

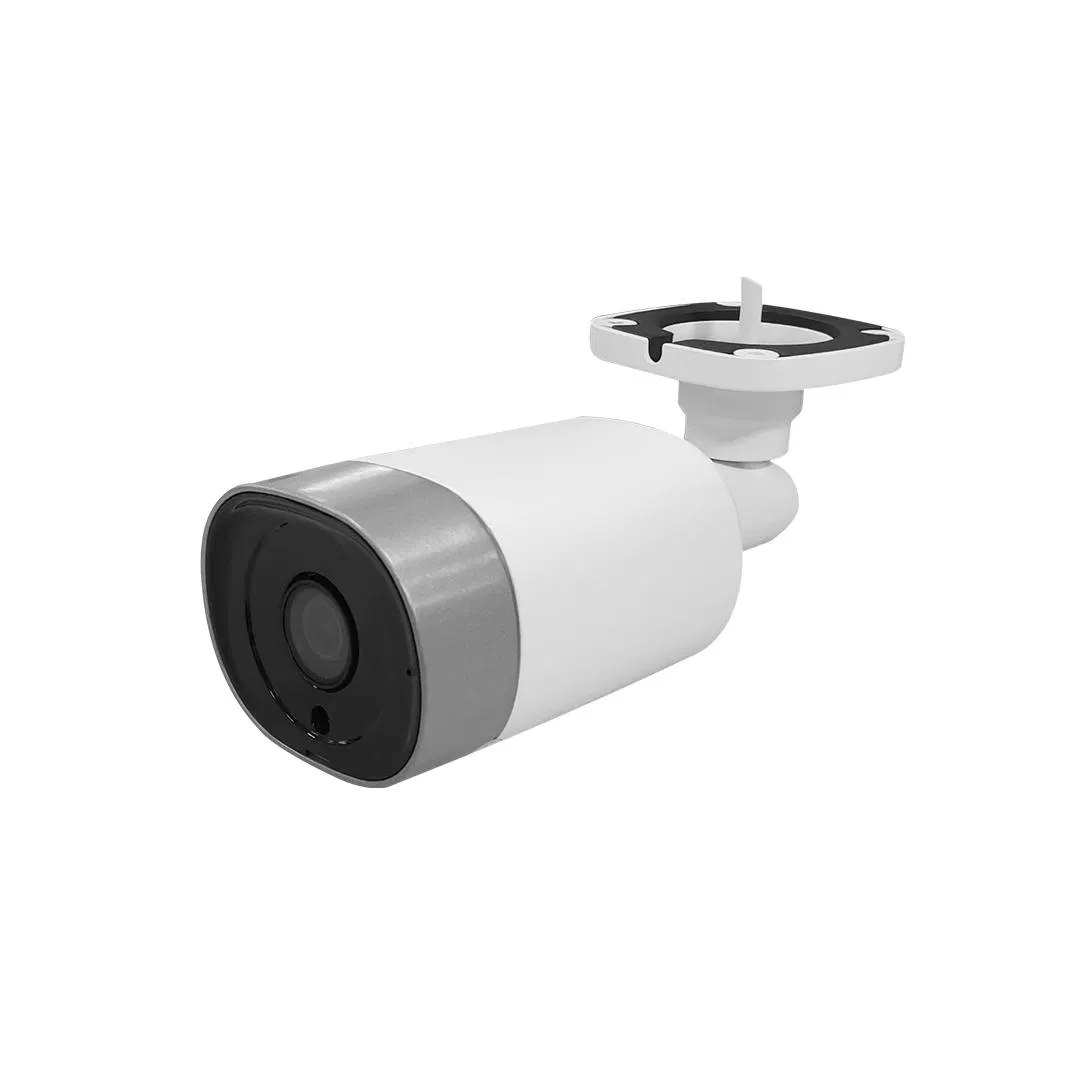

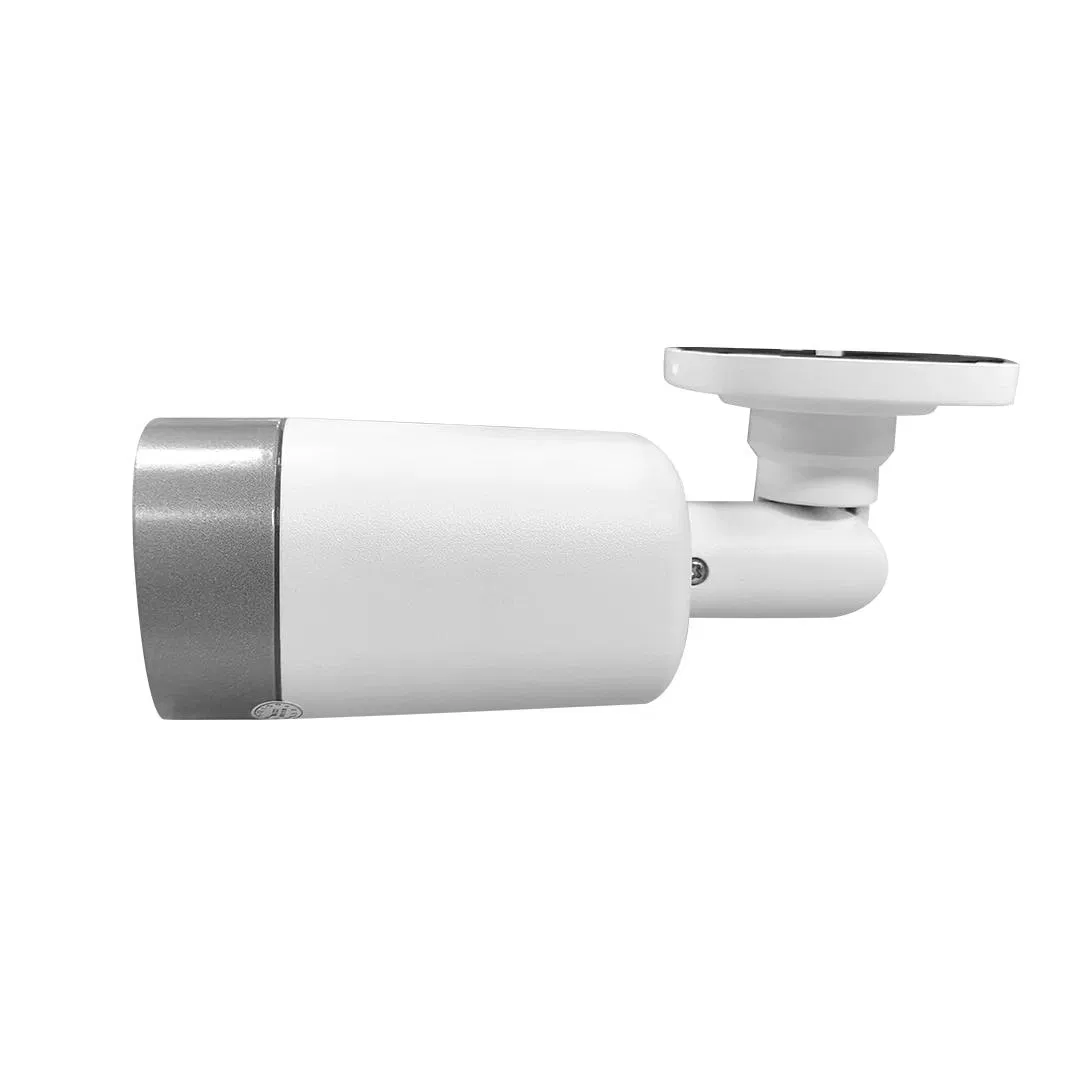

Fsan Outdoor Real 3MP IR Night Vision Fixed Bullet IP Camera with Humanoid Capture Detection

Product Description

FSAN Outdoor Real 3MP IR Night Vision Fixed Bullet IP Camera with Humanoid Capture Detection

Resolution 2mp/3mp (1920x1080@25fps@2mp; 2304x1296@20fps@3mp)
Built-in Humanoid Detection algorithm;
Detection frame 5fps, detect 5 people at the same time;
Low consumption, low code stream, low delay;
H.265 compression format, save bandwidth and storage space;
Support Smart IR to avoid Infrared over-exposure at night;
Support ICR auto switch, achieve best result for D&N video;
Support PoE (option)
Support 3D DNR and digital WDR;
Support auto-electronic shuttle to suit different surveillance environment
Support two-way audio intercom
Support HTTPS encrypted transmission
Support Onvif, email, NTP service
Change the password during initial use to ensure the security of the password

Camera
DSP	T31N
Sensor	Color 1/2.7" Low Illumination CMOS Sensor SC3335
Lens	4mm ICR lens
IR distance	20m(18pcs*IR leds)
D&N	ICR Switch, Auto/Color/B&W/CDS Trigger
D-WDR	D-WDR (off/low/middle/high)
IR Led Control	Auto/Manual/Off
3D DNR	Off/Low/Middle/High/Higher
Defog	Off/Low/Middle/High
Mirror	Off/ Horizontal Mirror/Vertical Mirror/180-degree flip
Image Setting	Brightness, Contrast, Sharpness, Saturation, Chroma
Humanoid Detection
Detection Quantity	≤5 people humanoid
Humanoid Size	Humanoid Pixel ≥ 40*40
Detection Ratio	≥99% (meet above requirement)
Capture Corresponding Speed	≤1s
Max Detection Frame	5fps/s
Fault Detection Ratio	≤2%
Detection Part	People with any posture including half body, head, hand, shoulder
Track People	Support
Detection Mode	Support static and dynamic humanoid detection
Detection method	Image detection during day time or night time with lights or IR LEDs
Detection Area	Appointed area, default full-screen
Upload Method	Upload it under private protocol
Trigger Method	Video trigger
Audio & Video Encoding
Video Encode Standard	H.265/H.264
Encoding Feature	Main stream: 3MP 2048x1536@20fps, 2MP 1920x1080@25fps Sub-stream: D1(720576), VGA (640360)
Max resolution	3MP 2048x1536@20 fps
Video Code Rate	Fixed code rate, variable code rate (Main stream: 160Kbps-4000kbps)
Video Type	Composited stream/video stream
Audio Standard	G.711u / 64Kbps
Network Function
Protocol	TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP
Connection Protocol	ONVIF, GB28181 (Option)
Security Mode	Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification
Motion Detection	Set detection area, can set multi-level sensitivity
Privacy Mask Alarm	Support 1 area
Privacy Mask	Support 4 areas
Schedule Linkage	Snapshot, email
Device abnormal Inspection	Support network broken alarm, IP conflict alarm, illegal visiting alarm
Character Overlay (OSD)	Title, time and date overlay, multi-line, and color of characters optional
Port
Network Port	RJ45 10M/100M network self-adaptation
Audio	MIC Input/ Output
General
Power Supply	DC12V /PoE (option)
Size	38*38mm
Working Temperature	-10°C ~ 50°C
Working Humidity	0~90 Percent

Q: 1. Support sample order?
Yes, we support sample order for customer to test before bulk order place.

Q: 2. What is the lead time?
For sample order need 3-5days, for bulk order time can be negotiate.

Q: 3. Do you have any MOQ limit?
Sample order is no limit, but for bulk order once you need customized logo print or customized package then it will have MOQ limit.

Q: 4. How do you ship the goods and how long does it take arrive?
For sample order, usually we shipped by DHL, FedEx, UPS or TNT.
For bulk order, usually we shipped by customer appointed forwarder by air, by sea or by train.

Q: 5. What is the warranty for the products?
Our warranty is for 2 years.

Q: 6. How is your after-selling service?
We support online technical support.
Any problem with our product can contact us to solve problems at any time.

Q: 7. Do you supply OEM service?
Yes, we are professional OEM/ODM manufacturer.
We support customized logo print on products, customized package, customized GUI_language.
