Full HD Webcam Face Recognization Detection 2MP USB Binocular Camera Module

Product Description

Full HD Webcam Face Recognization Detection 2MP USB Binocular Camera Module
1. Double 1/3 inch Ar0230+Ov2710 Cmos camera module

2. Dual 2 mega Cmos USB Camera Module

3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.

4. USB camera module with 90 degree

5. 58*25mm mini micro USB board camera

Specification:

Items	Parameters
SENSOR	AR0230	OV2710
Lens Size	1/2.7	1/2.7
Most effective pixels	1928(H)*1088(V)	1928(H)*1088(V)
Data Format)	YUY2/MJPG/H.264	YUY2/MJPG
Pixel Size	3.0um*3.0um	3 µm x 3 µm
dynamic range	96DB	69 dB @ 8x gain
Lens	FOV :D= 90°
	Optical length :19MM
	lens construction:2G2P+IR
	mount :M12*P0.5mm
focusing	Fixed focus
IR	850
Frame rate	30fps
auto control	Saturation,Contrast,Acutance,White balance,Exposure
audio	High quality digital MIC, single or dual channel is optional
Voltage	DC 5V
working current	MAX 300mA
USB Connector	USB2.0
Storage Temperature	-20-90ºC; humidity: 90%RH
working Temperature	-20-80ºC; humidity: 93%RH
system compatibility	1,Windows XP(SP2,SP3),Vista ,7,8,10
	2,Linux or OS with UVC driver

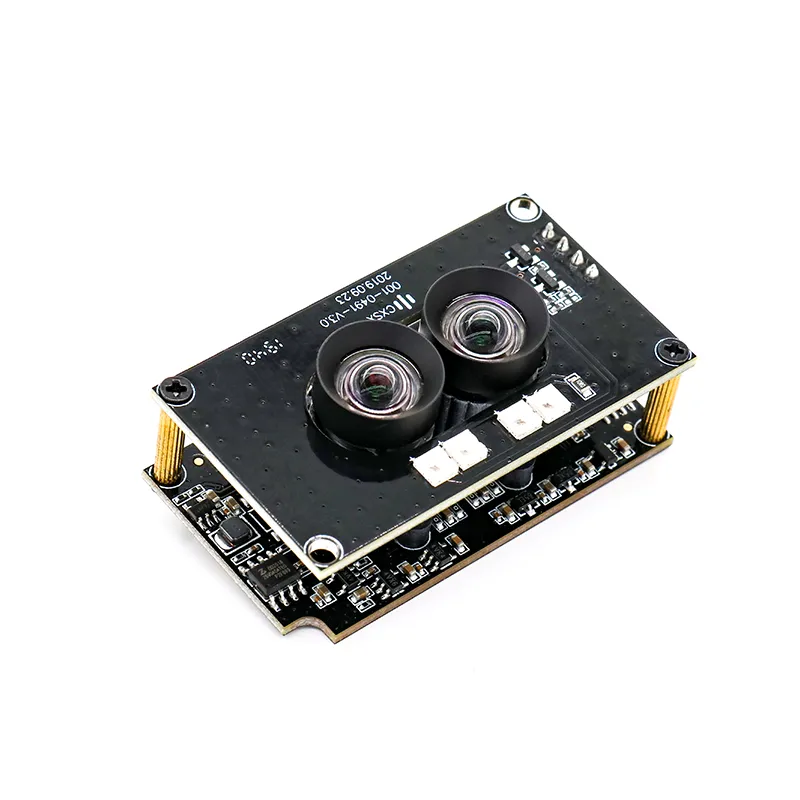

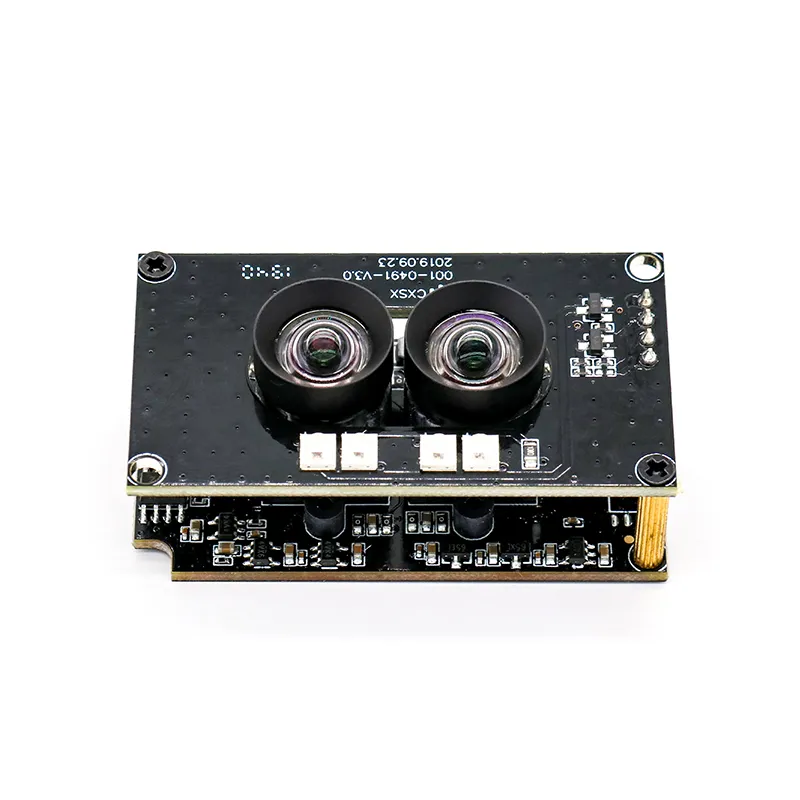

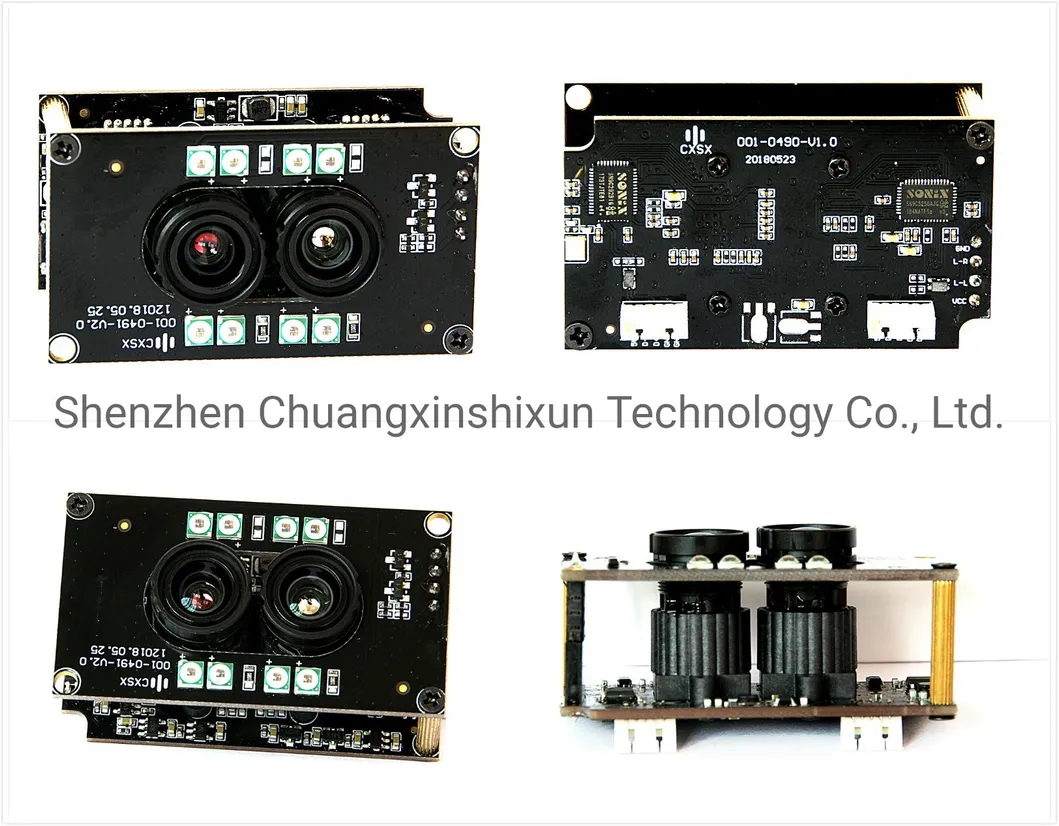

Pictures Display:

Quality Control:

Company Information:
Shenzhen Chuangxinshixun Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed ompanies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc.
