GPS 4G WiFi Wireless Connection Full HD 4MP 33X Optical Zoom Vehicle Mouting Security CCTV PTZ Camera with Battery
Key Features> 4MP 1440p, 2560x1440; 1/2.8" CMOS, imx 327> 360° Endless rotation; tilt range is -25°~ 90° tilt with auto-flip;> camera modules : 33x optical zoom, 5.5~180mm> Infrared up to 50 meters. > WDR 120 dB> Built-in GPS> LCD screen for real-tim......
Send Inquiry
Product Description
Key Features
> 4MP 1440p, 2560x1440; 1/2.8" CMOS, imx 327
> 360° Endless rotation; tilt range is -25°~ 90° tilt with auto-flip;> camera modules : 33x optical zoom, 5.5~180mm
> Infrared up to 50 meters.
> WDR 120 dB
> Built-in GPS
> LCD screen for real-time operation display, pan, tilt, zoom statue;
> Wi-Fi wireless connection, 3G, 4G
> RS485 interfaces
> Built-in battery up to 9 hours
> Magnetic base for vehicle (Option tripod).
1.Specifications| Model No.: SOAR972-4133 | |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS, 4MP; |
| Effective Pixels | 2560(H) x 1440(V), 4 Megapixels; |
| Minimum Illumination | Color: [email protected]; W/B: [email protected] (IR on) |
| LENS | |
| Focal Length | Focal Length 5.5mm~180mm |
| Optical Zoom | Optical Zoom 33x, 16x digital zoom |
| Aperture Range | F1.6-F4.3 |
| Field of View | H: 57.0-2.3°(Wide-Tele) |
| V: 32.6-1.3°(Wide-Tele) | |
| Working Distance | 100-1500(Wide-Tele) |
| Zoom Speed | Approx. 3.5 s (optical lens, wide-tele) |
| Video | |
| Compression | H.265/H.264 / MJPEG |
| Streaming | 3 Streams |
| BLC | BLC / HLC / WDR(120dB) |
| White Balance | Auto,ATW,Indoor,Outdoor,Manual |
| Gain Control | Auto / Manual |
| Network and connection | |
| Dial-up | LTE-FDD: B1/B3/B5/B8/(B28); LTE-TDD: B38/B39/B40/B41; WCDMA: B1/B8 |
| TD-SCDMA: B34/B39; CDMA&EVDO: BC0 GSM: 900/1800. | |
| Wi-Fi Protocol | 802.11b;802.11g;802.11n;802.11ac |
| Wi-Fi Working Mode | AP, Station |
| Wi-Fi Frequency | 2.4 Ghz |
| Positioning | GPS; Bidou; |
| Bluetooth | 4 |
| Interface Protocol | Ehome; Hikvision SDK; Gb28181; ONVIF |
| Battery | |
| Working time | 9 Hours |
| PTZ | |
| Pan Range | 360° endless |
| Pan Speed | 0.05°~80° /s |
| Tilt Range | -25°~90° |
| Tilt Speed | 0.5°~60°/s |
| Number of Preset | 255 |
| Patrol | 6 patrols, up to 18 presets per patrol |
| Pattern | 4 , with the total recording time not less than 10 mins |
| Power loss recovery | Support |
| Infrared | |
| IR distance | Up to 50m |
| IR intensity | Automatically adjusted, depending on the zoom ratio |
| General | |
| Power | DC 12~24V,45W(Max) |
| Working temperature | -40ºC~60ºC |
| Humidity | 90% or less |
| Protection level | Ip66, TVS 4000V Lightning protection, surge protection |
| Mount option | Vehicle mouting, Ceiling/tripod Mounting |
| Weight | 4kg |

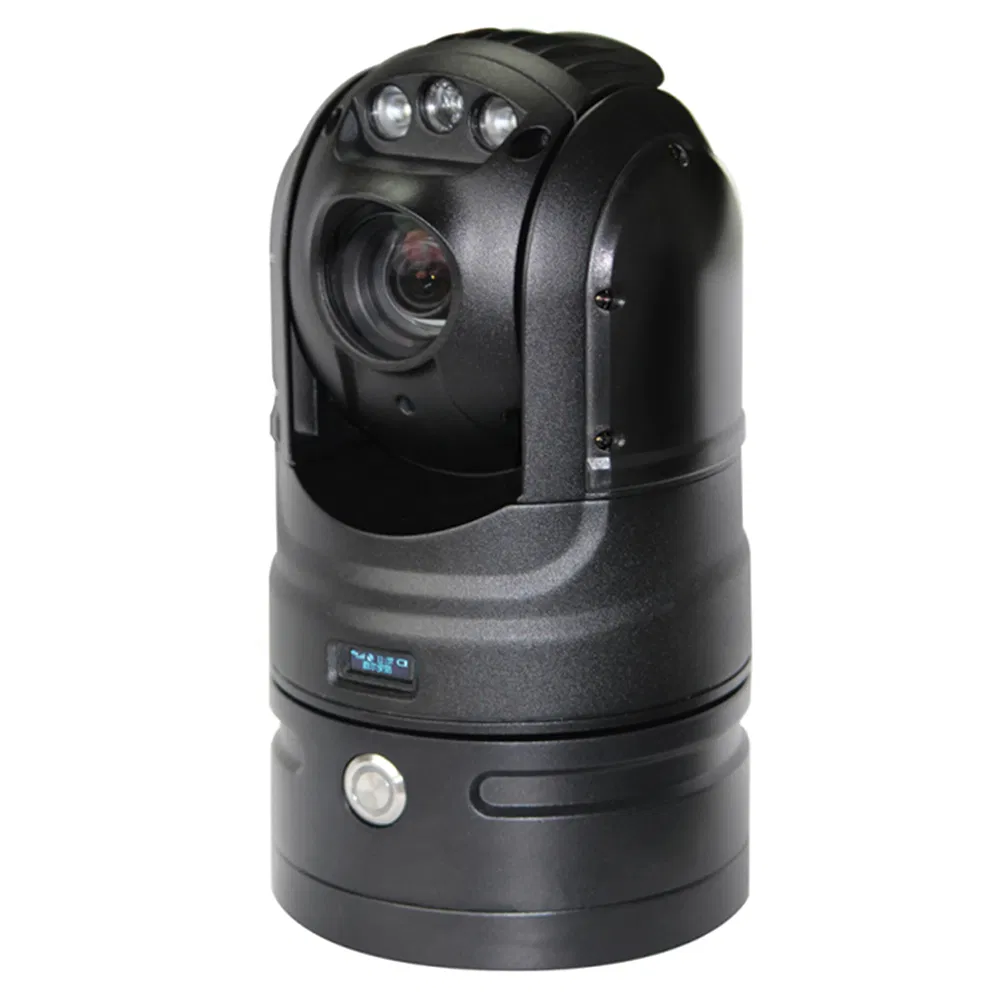

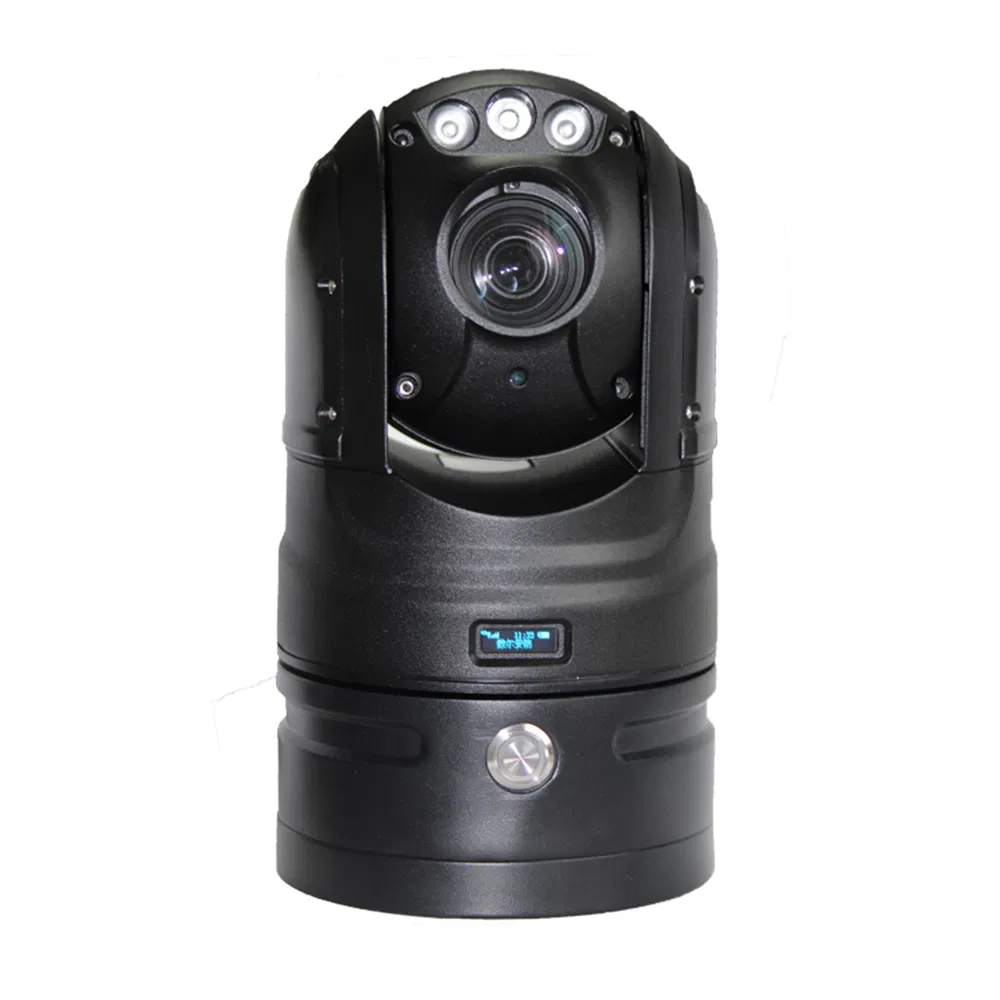

Model No.: SOAR972-4133It's a high-definition IP camera powered by a high-performance lithium battery pack.It is waterproof, shock-proof, with characteristics particular to the demands of a temporary or rapid installation such as a magnetic base for vehicle application or tripod mount.
SOAR972 series 4G LTE PTZ is is a high-definition, rapid deployment PTZ. The all-metal waterproof structure is waterproof (waterproof grade reaches IP66), and it has a built-in lithium battery that can last for up to 9 hours.

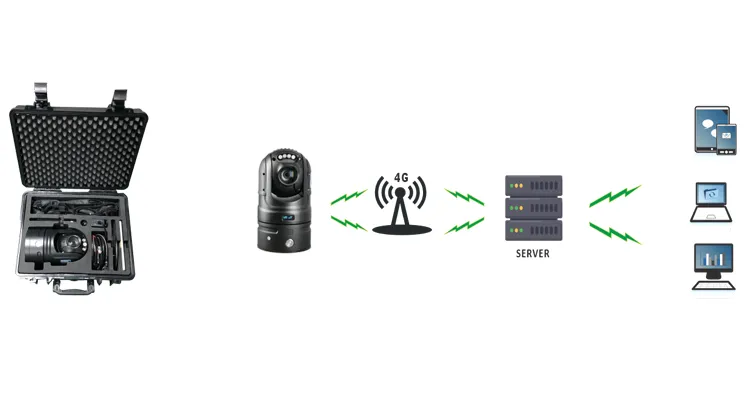

It is a comprehensive wireless video emergency command integrated product. With the built-in 4G transmission module, users can insert a local SIM card, allowing the device to communicate with the command center in real time through 4G wireless transmission. Can meet the temporary needs of deployment and rapid installation. When performing a task, the device can be temporarily installed at the desired location. After the task is completed, the location or vehicle and device used for monitoring can be easily removed. Mainly used for traffic , fire protection, road management, city management, etc.
Applications:
> Tempoary Traffic Monitoring
> People Gathering Event Monitoring
> Emergency Action Taker
> Law Enforcement
> Fire Rescure
> Mobile Command Center

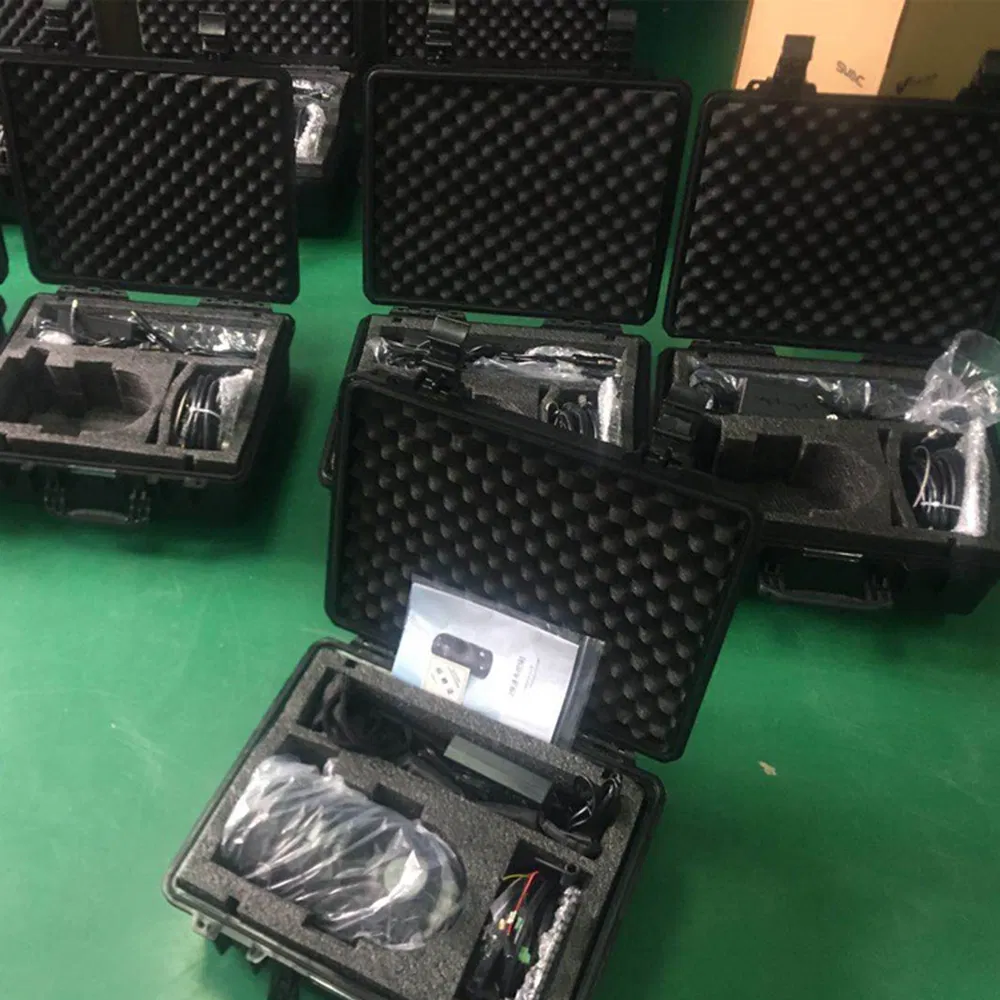

2.Packing & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

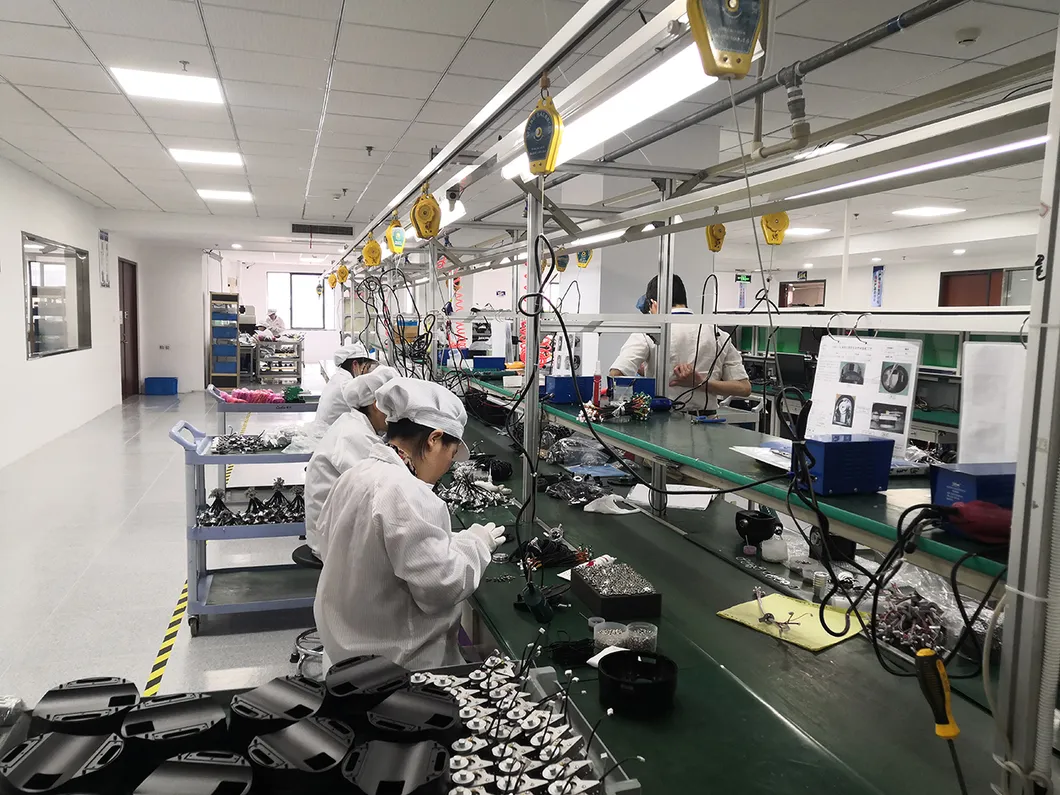

3.Company Profile
Hangzhou Soar Security Technology Co., Ltd is a professional video surveillance products provider, devoted in the front-end surveillance product design , manufacture and sales for more than 15 years, Since the foundation in 2005. We were honored as "national technical innovation enterprise" in 2015, and successfully listed in public Stock in 2016, stock code:839365.
Payment Way: T/T.
> People Gathering Event Monitoring
> Emergency Action Taker
> Law Enforcement
> Fire Rescure
> Mobile Command Center
2.Packing & Shipping
3.Company Profile
Hangzhou Soar Security Technology Co., Ltd is a professional video surveillance products provider, devoted in the front-end surveillance product design , manufacture and sales for more than 15 years, Since the foundation in 2005. We were honored as "national technical innovation enterprise" in 2015, and successfully listed in public Stock in 2016, stock code:839365.
Our R&D team consists of 60+ members of Masters and senior engineers majored in industrial design, FPGA, ISP, video analysis, AI algorithm, etc.
Our main products are various PTZ and Zoom camera module for vertical/niche market, passed ISO9001 quality certification.
Our products are widely sold all over the world. Meanwhile, we also provide OEM/ODM service. We focus on product innovation, to serve customers, create value for customers as the company's purpose.
4.Our ServicesPayment Way: T/T.
Delivery Time: Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.
OEM Service: We could offer OEM and ODM services for our clients.
Quality Warranty: 1 years hardware warranty, whole life technical service for continue cooperating customers.
