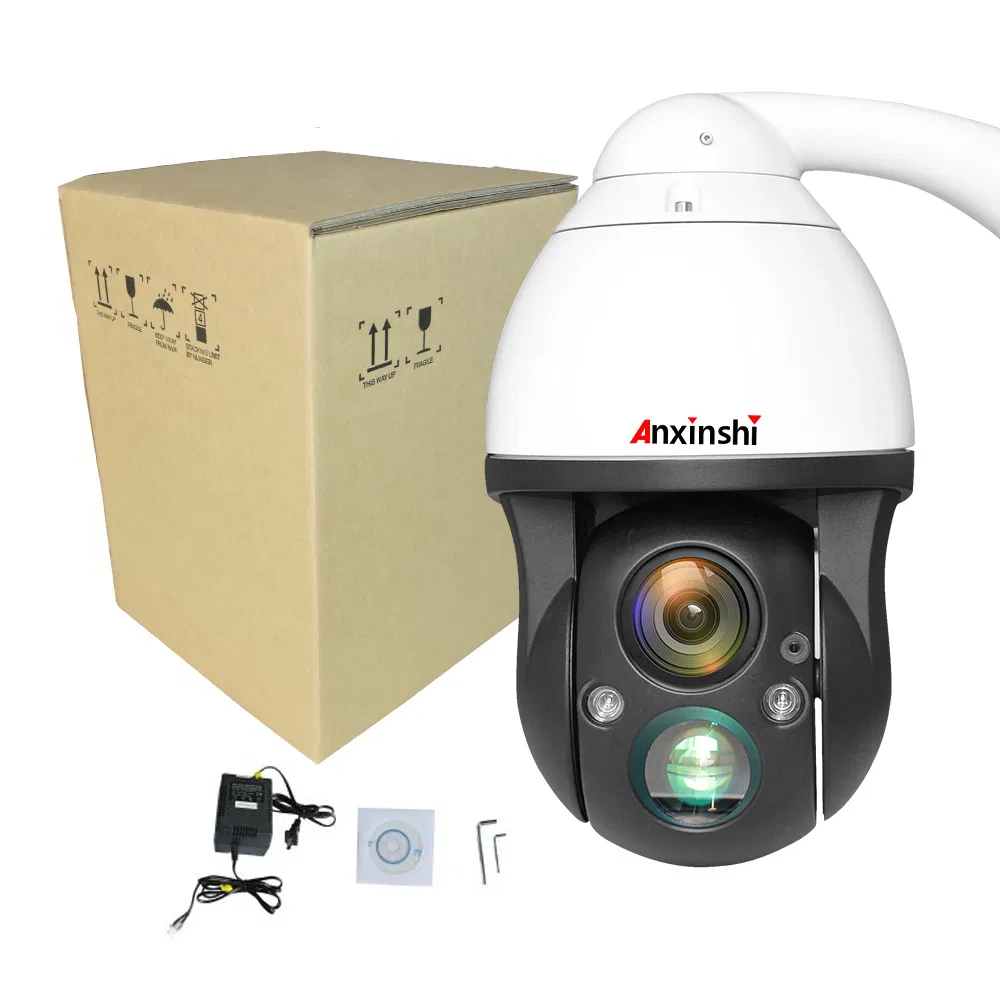

H. 265 4K HD Starlight Low Illumination Core-Tex Technology Integration Network PTZ Camera

Camera:1.1/1.7" progressive scan, 8megapixel, Sony IMX334 CMOS2.36X optical zoom, auto focus f= 6~216 mm 3.8.0MP available4.True Day/Night, 3D DNR, Digital WDR5.Backlight compensation, and auto gain control (AGC)Network Features:1.Main Stream: 3840×2160@30fps2. Support remote update s......

Send Inquiry

Product Description

$H. 265 4K HD Starlight Low Illumination Core-Tex Technology Integration Network PTZ Camera$

$H. 265 4K HD Starlight Low Illumination Core-Tex Technology Integration Network PTZ Camera$
$H. 265 4K HD Starlight Low Illumination Core-Tex Technology Integration Network PTZ Camera$
$H. 265 4K HD Starlight Low Illumination Core-Tex Technology Integration Network PTZ Camera$
$H. 265 4K HD Starlight Low Illumination Core-Tex Technology Integration Network PTZ Camera$
$H. 265 4K HD Starlight Low Illumination Core-Tex Technology Integration Network PTZ Camera$
$H. 265 4K HD Starlight Low Illumination Core-Tex Technology Integration Network PTZ Camera$
$H. 265 4K HD Starlight Low Illumination Core-Tex Technology Integration Network PTZ Camera$
$H. 265 4K HD Starlight Low Illumination Core-Tex Technology Integration Network PTZ Camera$
Camera:
1.1/1.7" progressive scan, 8megapixel, Sony IMX334 CMOS
2.36X optical zoom, auto focus f= 6~216 mm
3.8.0MP available
4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)

Network Features:
1.Main Stream: 3840×2160@30fps
2. Support remote update software
3.Support ONVIF,PSIA,CGI,ISAPI
4.H.265 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Support a variety of network protocol such as TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6(SIP,SRTP),GB28181,E-HOME

Dome Features:
1.PoE NetWork Camera CORE-TEX Technology Integration PTZ in Synchro zoom Varifocal IR Technology IP PTZ night version 150M Harshest protection &CTC defog technology contributed
2. New Design No scratch& Hidden Wiper PTZ
3. Smart air energy system IR PTZ
4. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
5. Imported array IR LED, auto adjust zoom according to different distance
6. IR range 150M
7. Highest ESD protection against lightning and power surges.
8. 360 degree continued rotation, manual pan speed 0.1~180°/S, manual tilt speed 0.1~180°/S, preset speed 210°/S.

Form parameters
Mode	Name and Description	H.265 4K HD Starlight low illumination CORE-TEX Technology Integration Network PTZ Camera
Mode	Name and Description	ASRIH639-036-4532

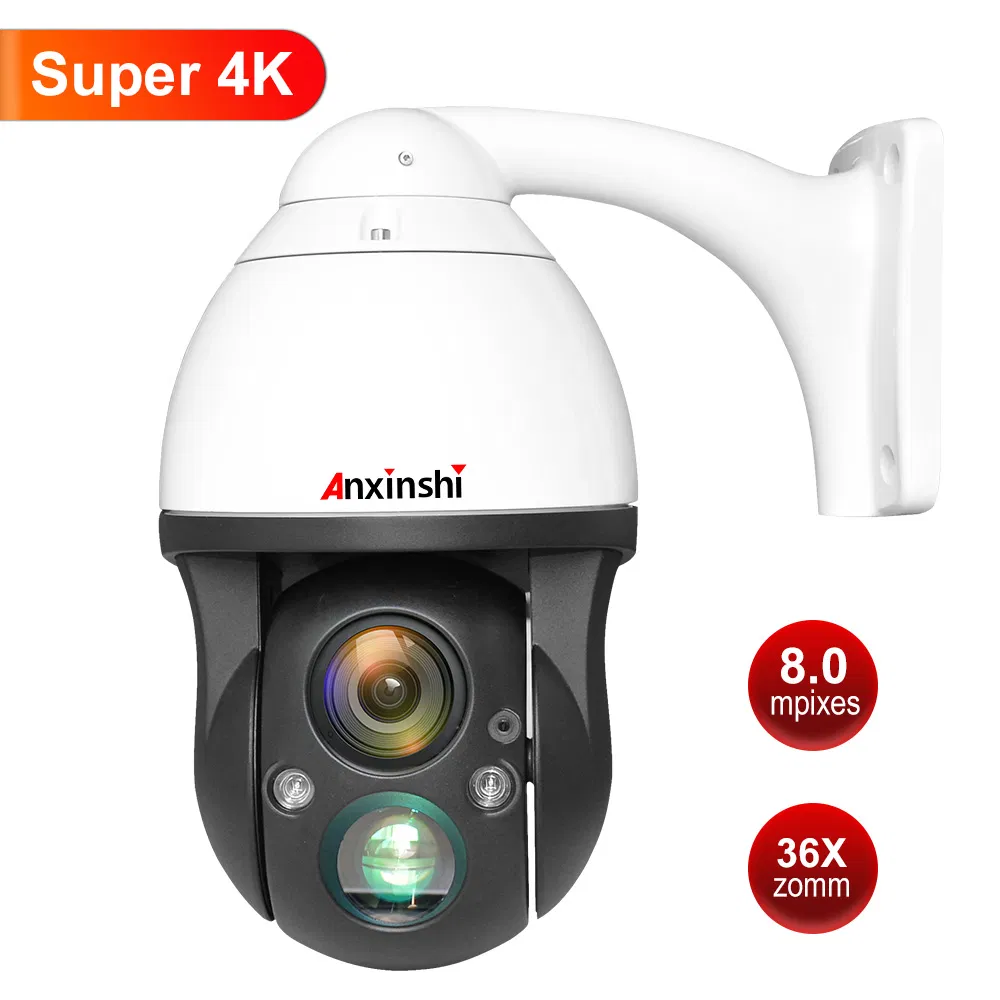

Camera	Image Sensor	1/1.7" progressive scan, Sony IMX334 CMOS
	Effective Pixels	8.0 Mpixes
	Min. Illumination	Color:Colour: 0.01 lux (F1.5,AGC ON) 0.001 lux with IR

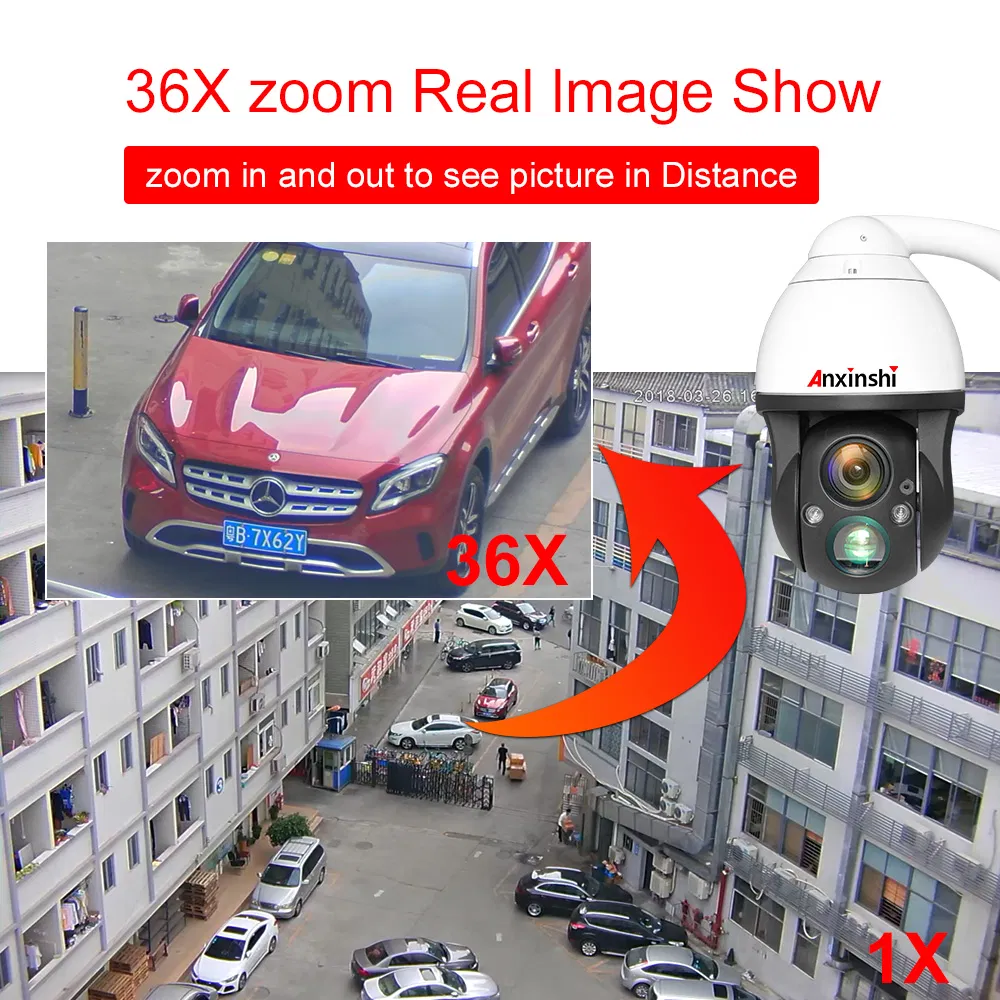

	Zoom	36X , f=6mm~216mm, D/N( ICR-Cut) ,F1.6~F4.8
	Day/Night	Day / Night / External control(IR Cut Filter)
	SNR	≥50dB(AGC OFF)
	WDR	Digital WDR,≥80dB
	AGC	Auto / Manual
	White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
	Digital noise Reduction	DNR,3DNR
	Shutter speed	1/2 - 1/20,000s
Network	Video Compression	H.265 Main Profile/H.264 Main Profile/M-JPEG
	Streams	Dual streams
	Frame Rate	Main stream:
		3840x2160,2592x1944,2592x1520,2304x1296,1920x1080,1280x960,1280×720
		Sub-stream:
		640×480,480x360,352×288,320×240,176×144
		MJPEG:1920x1080,1280x720
	Bitrate	32Kbps ~ 12Mbps
	Output	1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC (S/N ratio≥ 55dB)
	Network Interface	Ethernet 10/100Base-T (RJ-45)
	Network Protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6(SIP,SRTP),GB28181,E-HOME
	Interface Protocol	ONVIF,PSIA,CGI,ISAPI
	Algorithm	G.722.1,G.711-a law,G.711-u law,MP2L2,G.726,AAC,PCM
	Input	1 x Line-In (Mini-stereo, Single Mono)
	Output	1 x Line-Out (Mini-stereo, Single Mono)
	Mini SD Card	Up to 64GB(Optional)

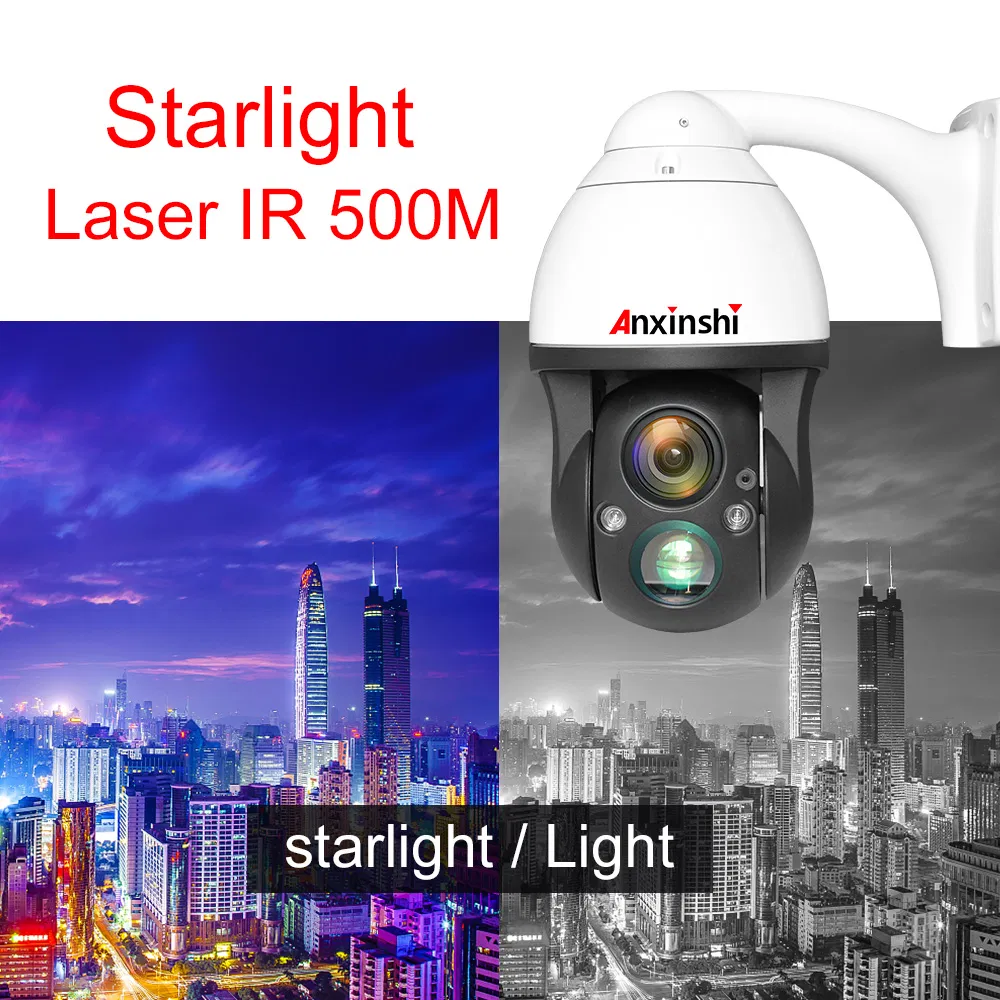

IR	Luminary	1EA Varifocal IR LED
	Night vision distance	150M
	Lamp control	Auto, Manual, by Zoom
Dome Features	Range	Pan : 360°(Endless)/ Tilt: -10~90°
	Pan/Tilt Speed	Preset Max.:210°/sec
		Manual : 0.1° ~ 210°/sec (Zoom Proportional)
		Patrol : 1.4°~210° /sec
	Preset	254 Presets
	Pattern	3 Patterns
	Patrol Scan	Yes
	Other Functions	Auto Flip, Auto Parking, Power-up Action & etc
	Alarm Trigger	Intrusion detection,Region entrance,Region exiting,Audio exception detection,Motion detection,Storage exception,Storage error,Tampering alarm.
	Alarm Action	Preset,Patrol,Pattern,Relay output,Notification on client,Send Email,Upload to FTP,Trigger Channel.
	Alarm Input	1(ON/OFF signal)
	Alarm Output	1(ON/OFF signal)

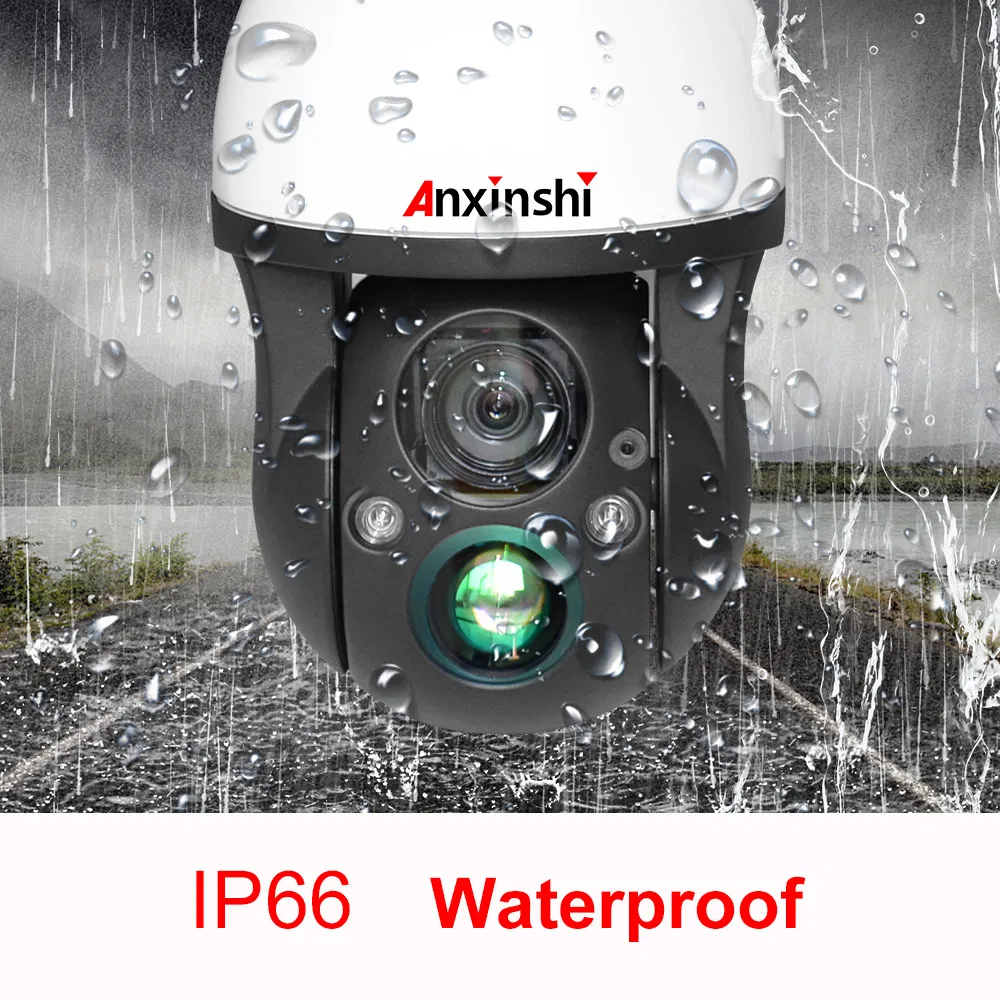

General	IP protection	With IP66
	Operating Temperature	-30ºC~50ºC
	Humidity	0%~98% (Non condensing)
	Heater in operation	≤6ºC on ≥ 10ºC off
	Power Consumption	AC24V:8W-45W PoE++(high power 60w) optional
