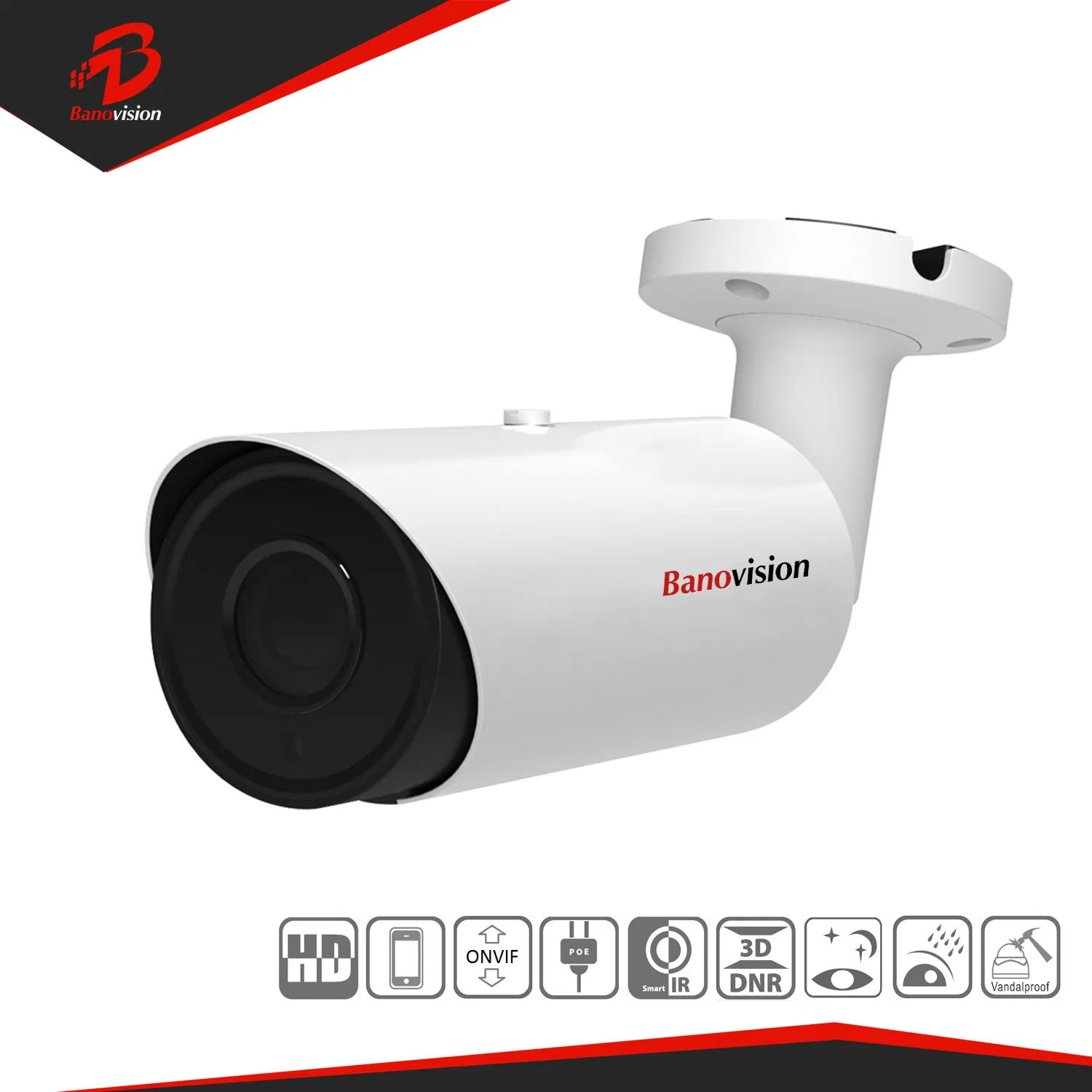

H. 265 8MP 4K Ultra HD Security CCTV Waterproof Network IP Poe Bullet Camera with IR Distance 35 Meters From CCTV Camera Supplier
Features 1/2.8" Sony IMX415 CMOS sensor Full HD resolution 3840(H)x2160(V) Ultra low illumination 0.01Lux Day/Night (ICR),AWB, 2D/3D-DNR, IR-CUT D-WDR, Motion Detection, Privacy Mask, Mirror, rotate RTSP and Onvif 17.06 compatible H.265/H.264 dual-stream media server Easy-to-use P2P Cloud servi......
Send Inquiry
Product Description
Features

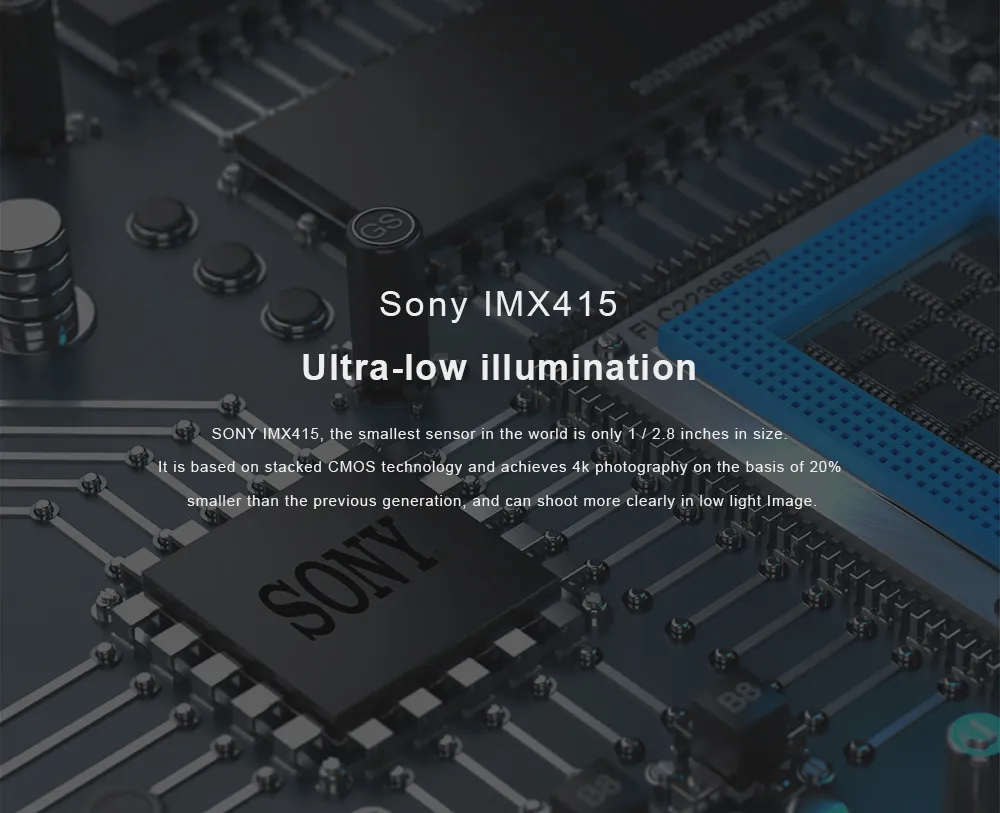

• 1/2.8" Sony IMX415 CMOS sensor
• Full HD resolution 3840(H)x2160(V)
• Ultra low illumination 0.01Lux
• Day/Night (ICR),AWB, 2D/3D-DNR, IR-CUT
• D-WDR, Motion Detection, Privacy Mask, Mirror, rotate
• RTSP and Onvif 17.06 compatible
• H.265/H.264 dual-stream media server

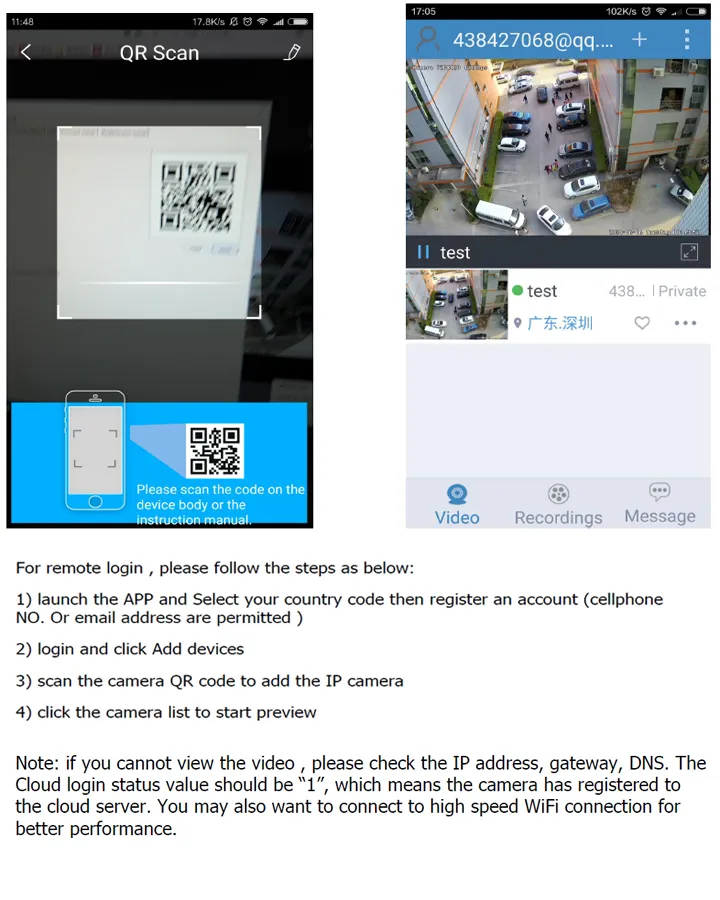

• Easy-to-use P2P Cloud service

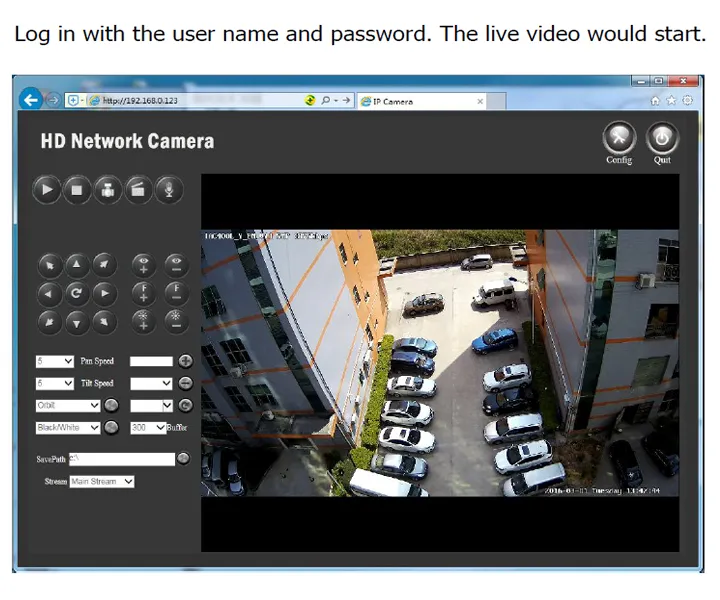

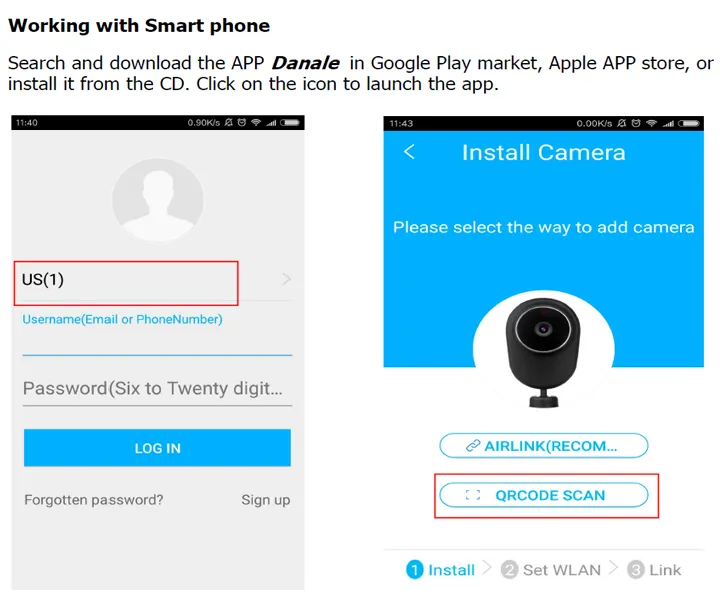

• Multi web browser, PC Client, mobileAPP remote access
• Audio in/out, Alarm in/out, SD slot,
• Optional customization Lens/POE, etc.
• Strong water-proof housing, IP66
• 20 pcs new HD SMD led Leds, IR distance 15-30meters
• VF 2.8-12mm lens
• Lightning protection 4000V
Specification
| Model | BA-NW20AB80 |
| Camera | |
| Image Sensor | 1/2.8" 8MP IMX415 CMOS |
| Effective Pixels | 3840(H)x2160(V) |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | [email protected](AGC ON), 0Lux IR o |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| BLC | Support |
| DNR | 2D/3D DNR |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror, Rotate |
| Encode | |
| Embedded Solution | SCC328Q+IMX415 |
| Video Standard | H.264/H.265 |
| Video Resolution | MainStream:15fps@8MP(3840x2160),30fps@6MP(3072x2048) /5MP(2592x1944)/4MP(2592x1520)/3MP/1080P/720P,etc. |
| Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps | |
| Video Bitrates | 512Kbps - 12Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a/AAC |
| IR Led | |
| IR Led | 20pcs HD SMD led Leds |
| IR Distance | 15-35 M |
| Lens | |
| Focal length | VF 2.8-12mm lens |
| Optional Functions | |
| Audio | 1 RCA in (sound pick-up), 1 RCA out (talk-back)- NW20AB80F support |
| Storage | Micro-SD slot (Max. 128GB )- NW20AB80F(S) support |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. |
| P2P | Yes |

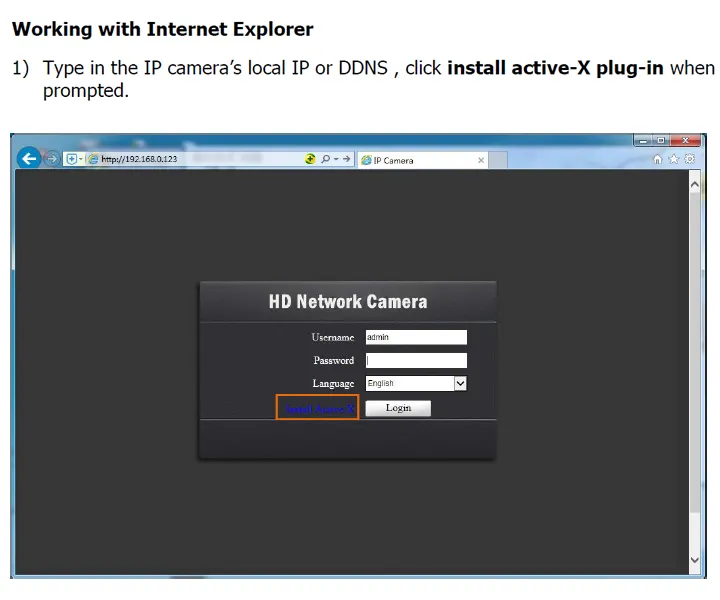

| Web | IE , Firefox, etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -30ºC-(+60)ºC, 10%-90%RH |
Our Service
OEM Service:
We offer OEM and ODM services for our clients.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
How to oder from us?
1) Please confirm the model numbers and quantities that you would like to purchase to our sales person,
or email to us.
2) We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges
once you confirm the order.
3) After you arrange the payment and send us your bank slip, we will put your order down to production,
and let you know the delivery date in 2 days.
4) When the goods are finished, we will send them by air express,or by sea or other available shipping method appointed by customers, and let you know the tracking number and estimated time of arrival.
